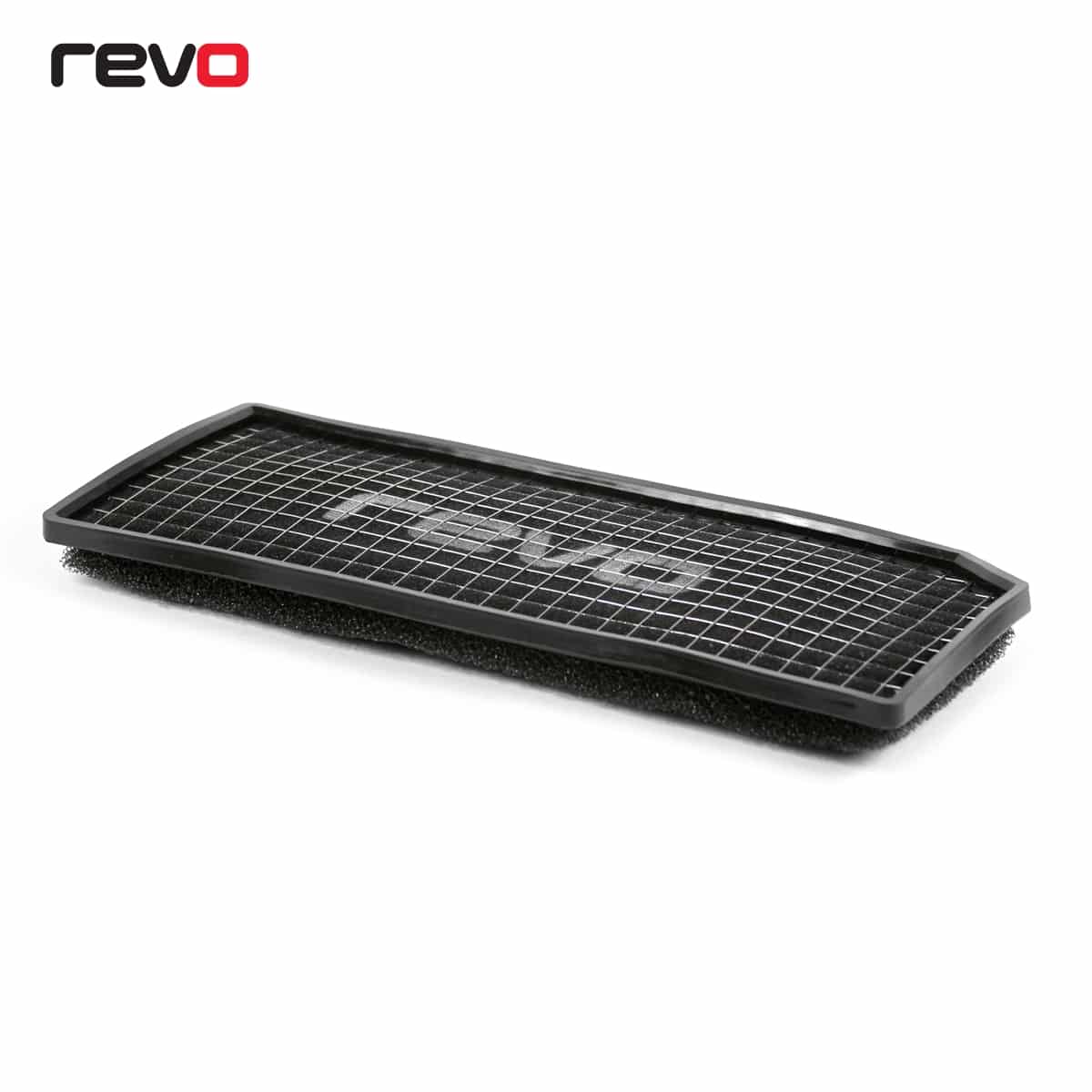

Revo ProPanel High-Performance Air Filter VAG 2.0 TFSI – RV532M700101
£72.00
Revo ProPanel Filter – VAG 2.0 TFSI
High-Performance Air Filters
Overview
The Revo ProPanel is a high-grade direct replacement filter for your vehicle. Designed as direct replacement filters to fit inside your factory airbox and are suitable for road or competition use.
Benefits
- Designed to increase horsepower and rate of acceleration
- Exceptional filtration
- High air flow with three layers of foam
- Lifetime warranty
- Cleanable (Every 10,000 Miles or 12 Months)
- Works with original manufacturers airbox
Design and performance
Why choose foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:
- Maximum airflow: the ability to allow air to pass through without causing a large pressure drop.
- Cleaning efficiency: the capability to arrest a high proportion of airborne dust while feeding the engine clean air.
- Dust load-up tolerance: the capability to absorb a large amount of dust without reducing air flow capacity.
This design of filter has been used in all fields of motorsport from Formula 1 to the World Rally Championship. The range receives this same attention to detail at the design stage and is then taken into production with consummate quality.
Three layer foam system
Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter’s surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.
The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long-term performance advantage.
1: Stainless steel wire mesh
To avoid erosion, only the highest quality steel is used.
2: Course outer layer:
Stops large pieces of dirt and foreign matter from penetrating further. Straightens airflow into subsequent layers.
3: Medium grade middle layer:
This second filtration layer traps most of the harmful dirt that leads to engine damage.
4: Fine inner layer:
Extracts fine particles while allowing full airflow to the engine for maximum power.
Advantages of a Revo ProPanel filter
- Emissions legal in all 50 US states
- Will not void vehicle warranty
- Lifetime warranty (to the original purchaser with proof of purchase)
Fitting
| Manufacturer | Model | Engine | Year |
|---|---|---|---|
| Audi | A3 (8P) | 2.0 TFSI | 2003 – 2012 |
| VW | Golf MK5 | 2.0 TFSI | 2004 – 209 |
| VW | Golf MK6 | 2.0 TFSI | 2009 – 2014 |
| VW | Passat | 2.0 TFSI | 2006 – 2011 |
| VW | Jetta | 2.0 TFSI | 2005 – 2011 |
| Audi | TT | 2.0 TFSI | 2007 – 2010 |
| Audi | S3 (8P) | 2.0 TFSI | 2007 – 2013 |
| Seat | Leon | 2.0 TFSI | 2005 – 2013 |
| Seat | Altea | 2.0 TFSI | 2006 – 2010 |
| Seat | Toledo | 2.0 TFSI | 2005 – 2009 |
| Skoda | Octavia | 2.0 TFSI | 2005 – 2013 |
| VW | Scirocco | 2.0 TFSI | 2009 – 2015 |
| VW | EOS | 2.0 TFSI | 2006 – 2015 |
Notes:
- Simple replacement of the OEM part
Please contact your local Revo Authorised Dealer for additional information and availability.
© Revo
| Weight | 0.5 kg |
|---|---|
| Dimensions | 44 × 33 × 15 cm |
| Brand |
RV532M700101 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
A3 (8P1) 2.0 TFSI (AXX/BWA/CAWB/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2012
A3 (8P1) 2.0 TFSI quattro (AXX/BWA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2012
A3 (8P1) S3 quattro (BZC/CDLC) | 256hp
Petrol 1984cc | Hatchback | 2007 - 2012
A3 (8P1) S3 quattro (BHZ/CDLA) | 265hp
Petrol 1984cc | Hatchback | 2006 - 2012
A3 Convertible (8P7) 2.0 TFSI (CAWB/CCZA) | 200hp
Petrol 1984cc | Convertible | 2008 - 2013
A3 Sportback (8PA) 2.0 TFSI (AXX/BWA/CAWB/CBFA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2013
A3 Sportback (8PA) 2.0 TFSI quattro (AXX/BPY/BWA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2013
A3 Sportback (8PA) S3 quattro (BHZ/CDLA) | 265hp
Petrol 1984cc | Hatchback | 2008 - 2013
TT (8J3) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Coupe | 2006 - 2010
TT (8J3) 2.0 TTS quattro (CDLB) | 272hp
Petrol 1984cc | Coupe | 2008 - 2014
TT Roadster (8J9) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Convertible | 2007 - 2010
LEON (1P1) 2.0 Cupra R (CDLA) | 265hp
Petrol 1984cc | Hatchback | 2009 - 2012
LEON (1P1) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Hatchback | 2005 - 2009
LEON (1P1) 2.0 TFSI (BWJ/CDLD) | 240hp
Petrol 1984cc | Hatchback | 2006 - 2011
LEON (1P1) 2.0 TFSI (BWA) | 185hp
Petrol 1984cc | Hatchback | 2005 - 2006
TOLEDO III (5P2) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | MPV | 2005 - 2009
EOS (1F7, 1F8) 2.0 TFSI (BWA/CAWB/CBFA/CCZA) | 200hp
Petrol 1984cc | Convertible | 2006 - 2015
EOS (1F7, 1F8) 2.0 TSI (CCZB) | 210hp
Petrol 1984cc | Convertible | 2009 - 2015
GOLF V (1K1) 2.0 GTI (BYD) | 230hp
Petrol 1984cc | Hatchback | 2006 - 2008
GOLF V (1K1) 2.0 GTI (AXX/BWA/CAWB) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2009
GOLF VI (5K1) 2.0 GTi (CDLG) | 235hp
Petrol 1984cc | Hatchback | 2011 - 2012
GOLF VI (5K1) 2.0 R 4motion (CDLF) | 270hp
Petrol 1984cc | Hatchback | 2009 - 2012
JETTA III (1K2) 2.0 TFSI (BPY/BWA/CAWB/CBFA/CCTA) | 200hp
Petrol 1984cc | Saloon | 2005 - 2010
PASSAT B6 (3C2) 2.0 TFSI (AXX/BPY/BWA/CAWB/CBFA/CCTA/CCZA) | 200hp
Petrol 1984cc | Saloon | 2005 - 2010
PASSAT B6 Estate (3C5) 2.0 TFSI (AXX/BPY/BWA/CAWB/CBFA/CCTA/CCZA) | 200hp
Petrol 1984cc | Estate | 2005 - 2010
SCIROCCO III (137, 138) 2.0 R (CDLA) | 265hp
Petrol 1984cc | Coupe | 2009 - 2017
SCIROCCO III (137, 138) 2.0 R (CDLK) | 280hp
Petrol 1984cc | Coupe | 2014 - 2017
