Revo Ford Focus RS 2.3 Ecoboost Intercooler – RF011M100300
£594.00

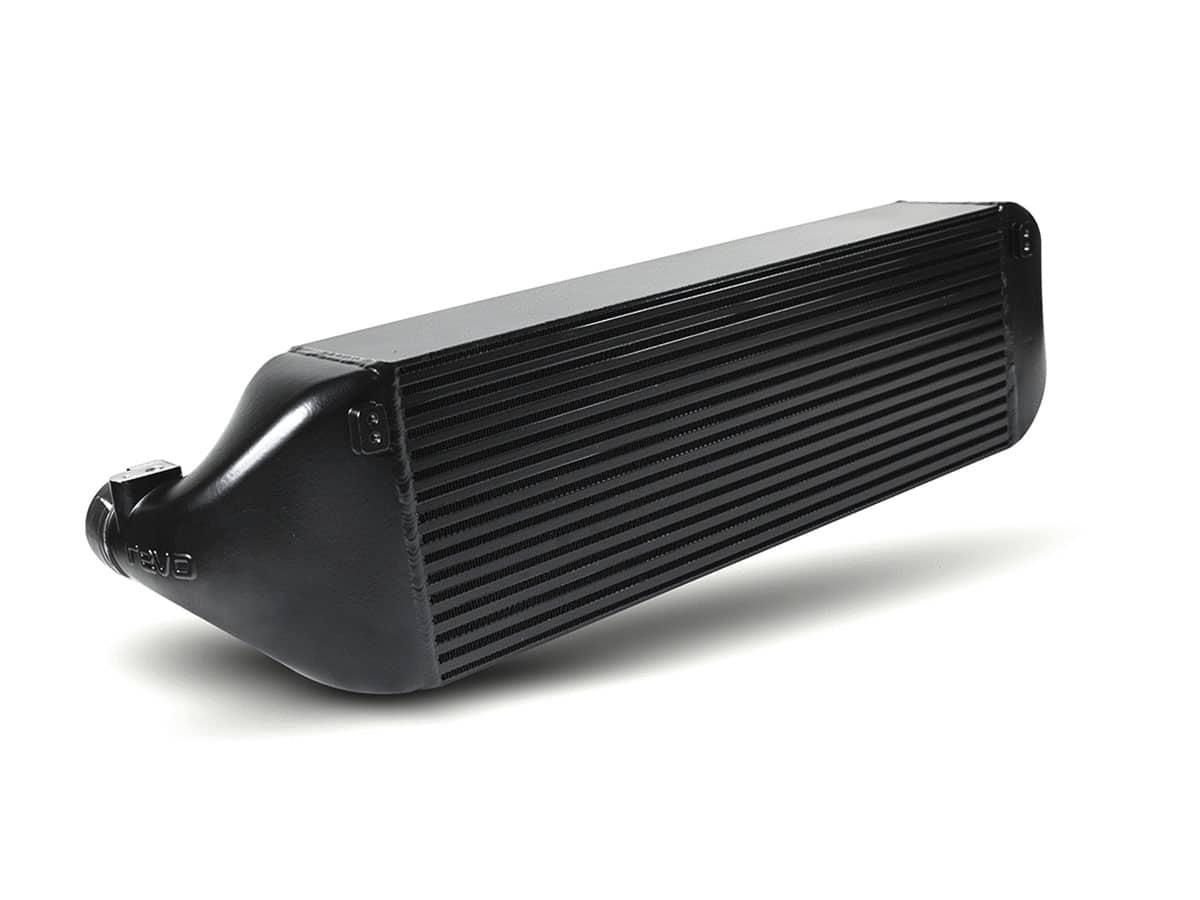

Ford Focus RS 2.3 EcoBoost Intercooler Upgrade
The Revo Intercooler upgrade for the Ford Focus RS Mk3 2.3 EcoBoost utilises unique design features to lower intake air temperatures, minimise pressure drop and allow the engine to produce impressive power and torque increases.
The Focus’s turbocharged 4-cylinder engine produces extreme intake temperatures that the standard intercooler struggles to cope with, especially after consecutive hard use. The Revo Intercooler combats this by directly replacing the OE part, enhancing cooling efficiency by over 40ºC, allowing you to drive harder, for longer.
Key Features
- Bar & Plate Core Design
- 18.5% Larger frontal Area
- 72.4% Increased external core volume
- Over 40ºC Lower AIT

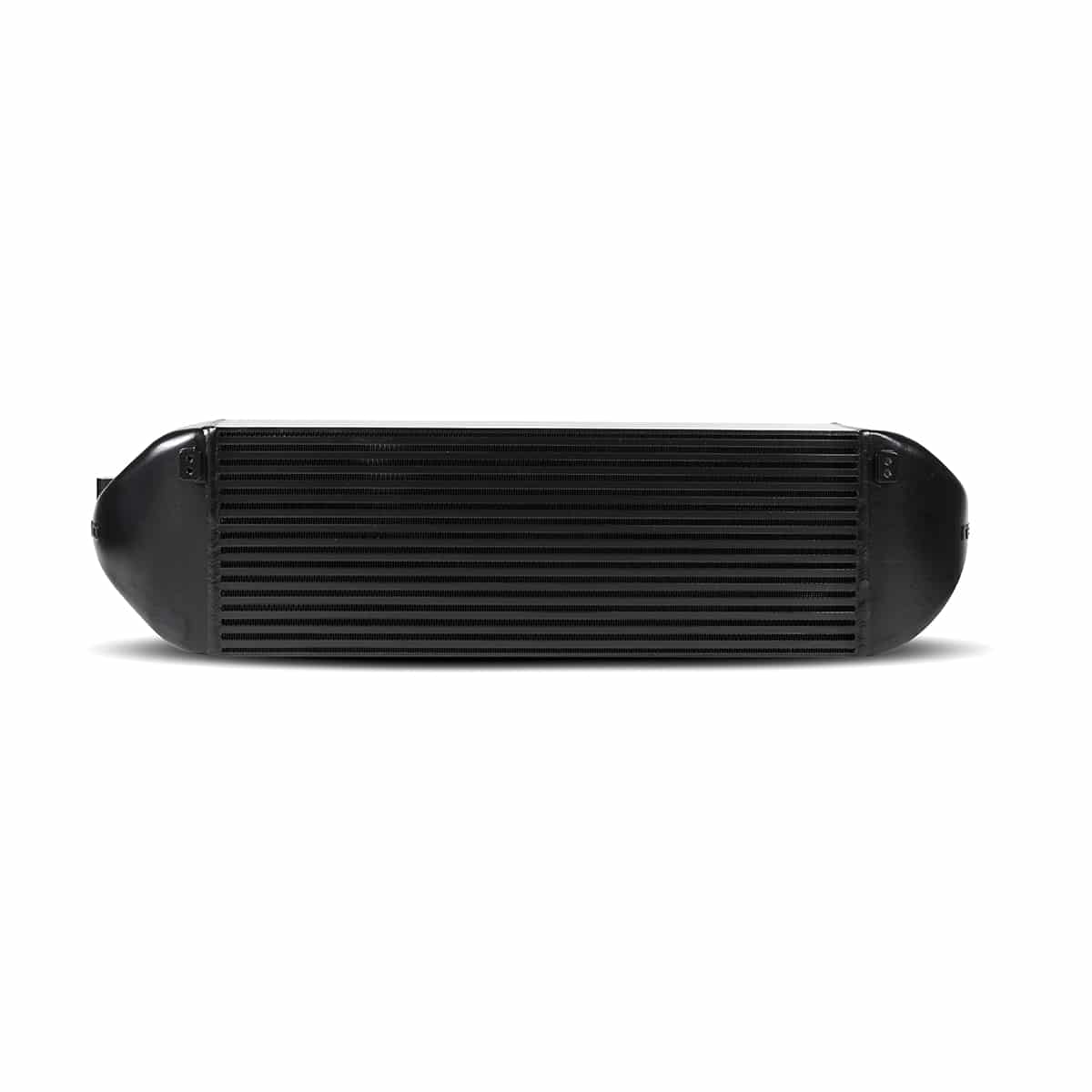

Increased Core Volume
The Revo Intercooler was built around the simple principle of creating the largest amount of surface area possible to improve cooling efficiency. The Revo Intercooler for the Focus RS has been maximised to offer the largest possible external core volume with the stock location, improving cooling by utilising cold ambient air from the front of the vehicle.
- 72.4% Increase in external core volume
- 18.5% Increase in frontal surface area

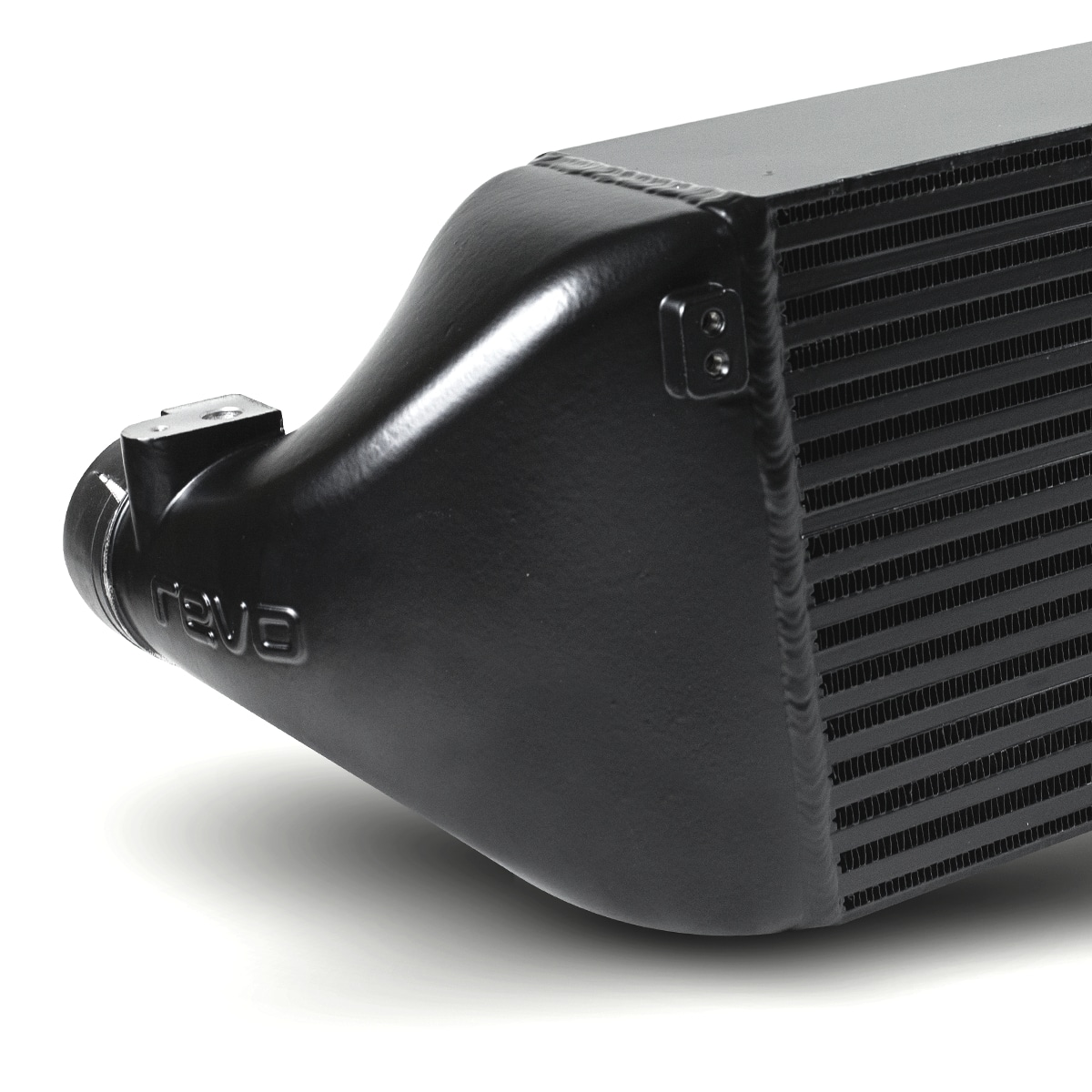

End Tank Design
The Revo intercooler uses flow-conducive geometry lines to allow a fitment of the larger cooler, while still promoting the best possible flow within the end tank. The Revo Intercooler end tanks are precision cast to eliminate turbulence and ensure the maximum amount of air can reach the core. Smoother internals allows air to flow freely and are not obstructed by welds or inefficient construction found in the standard OE intercooler. End tanks play an important part in maintaining pressure and work in harmony with the core to promote air flow.
Bar and Plate
Designed with a bar and plate core to guarantee the efficiency of heat transfer, this also minimises pressure drop as the air meets less resistance compared to that of a tube and fin alternative. The Intercooler also features louvred fins to slow ambient air flow which improves heat transfer, along with an offset internal fin design to balance surface area and resistance to minimise pressure drop.
Research and Development
All Revo products are designed in-house and are rigorously tested. By utilising the latest 3D printing technology, the latest CAD and CFD programs, hub dyno and Revo data acquisition software we are able to ensure our products meet the high expectations of Only The Driven. The Revo carbon intake allows the RS turbo to run more efficiently, intake a larger volume of air and minimise turbulence. This increases power and torque, especially at the top end of the rev range as highlighted during controlled dyno testing.
The Revo Focus RS Intercooler was tested on an in-house, fitted on a stock car running Revo Stage 2 software and Milltek downpipe. Comparison runs where carried out with the stock intercooler vs the Revo intercooler.
Performance Data
Showing the last of four consecutive dyno runs, the efficiency of the Revo Intercooler over the stock part is highlighted. With peak gains in Torque, along with increased performance throughout the entire rev range, the stock intercooler struggles to effectively function in comparison to the Revo Intercooler which remained consistent throughout.
Outlet Temperature
This graph illustrates the increased cooling performance of the Revo intercooler vs the stock cooler over all four runs. The Revo Intercooler keeps temperatures lower on its forth run than the stock does on its first. It is also apparent that the ECU was pulling back timing over the 4 run of the stock cooler to control intake air temperatures.
Pressure Drop
Pressure drop is an important factor when it comes to choosing an Intercooler. The Revo solution features custom cast end tanks to evenly distribute air over the core. This graph highlights the consistent pressure in comparison to the stock part, ensuring engine response and minimising turbo lag. You can rest assured that your Mustang will drive and respond as you would expect standard
Fitment
Vehicle Applications
| Manufacturer | Model | Engine | Year |
|---|---|---|---|
| Ford | Focus RS | 2.3 EcoBoost | 2016> |
Documents
The following documents are available to view:
Fitting instructions
Download the Revo Ford Focus RS Intercooler Instructions
Notes
- Simple replacement of the OEM part
- Optimised for the Revo Focus RS Stage 2 Performance Pack
| Weight | 13 kg |
|---|---|
| Dimensions | 100 × 35 × 40 cm |
| Brand |
RF011M100300 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
FOCUS III 2.3 RS AWD (YVDA) | 350hp
Petrol 2261cc | Hatchback | 2015 - 2017
