Revo Ford Fiesta Mk7 ST OEM+ Intake System – RF032M200200
£326.40
Revo Ford Fiesta Mk7 ST OEM+ Intake System – RF032M200200
Increased Power, Torque & Throttle Response
OVERVIEW
The Revo OEM+ Air Intake System for the Ford Fiesta ST is a high performance upgrade that utilises the stock air box, offering gains in both power and torque.
Initial flow testing of the OEM system highlighted the restriction and turbulence caused by the pipe joining the turbo to the airbox. The route varies in diameter and convolutions in the pipe slow airflow to the turbo, choking the engine. The OEM airbox performed far better than expected when used in conjunction with the Revo enhancements.
The Revo system is the only kit currently available that replaces the rear plastic back-pipe with a one-piece 70mm aluminium pipe. Automotive grade silicone couplers connect the system to the stock airbox and a Revo 3 stage foam panel filter replaces the restrictive paper filter. The Revo OEM+ Air Intake system was found to be less restrictive than the stock system during testing and continued to flow air long after the stock system maxes out.
BENEFITS
- OEM+ Look
- Increased Airflow
- +4 WHP & +4 NM Torque
- Improved Throttle Response

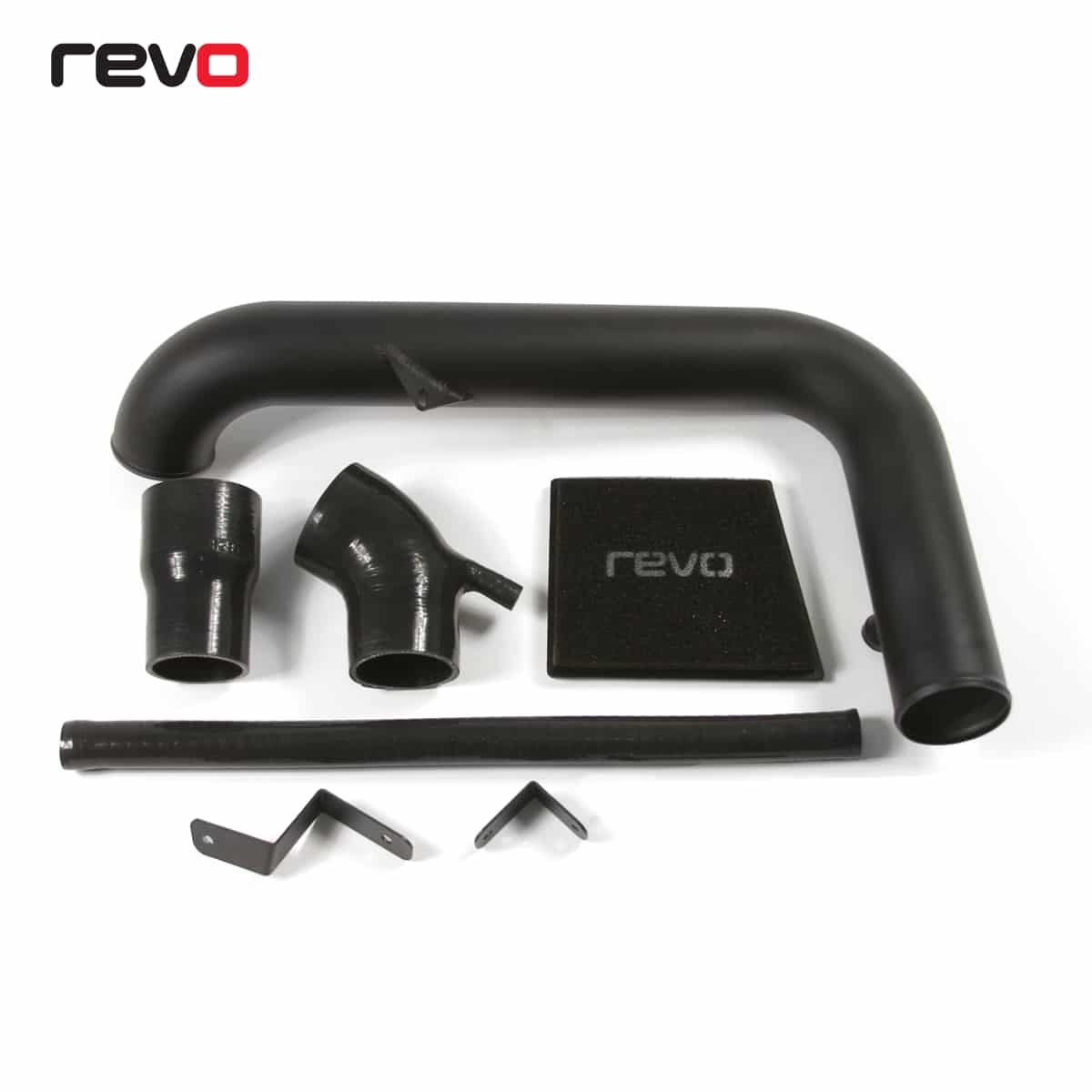

KIT INCLUDES
- Revo Hi Flow Panel Filter
- Custom 70mm Mandrel Bent Pipe

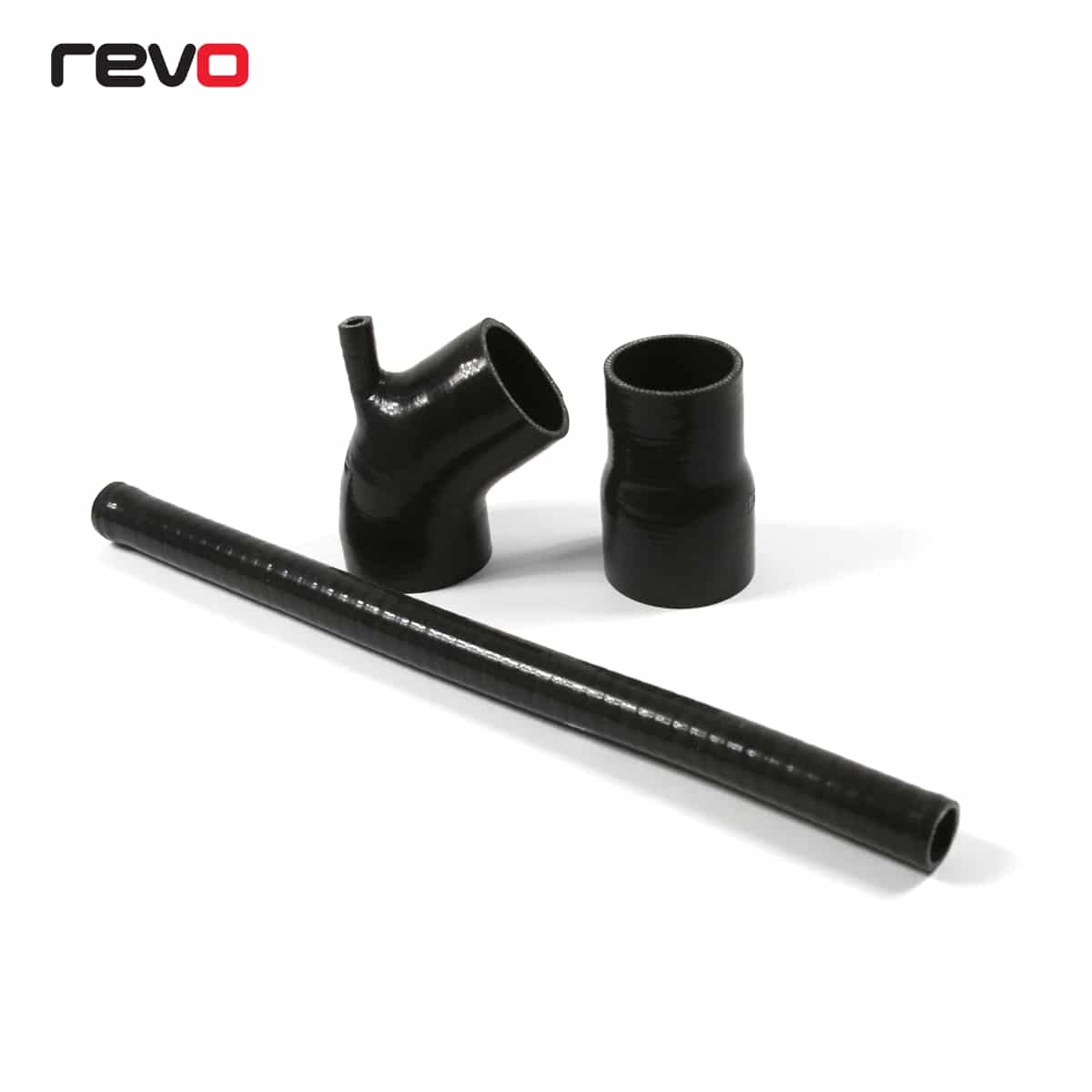

- Silcone Hoses
- Fitting Brackets
MORE AIR, LESS RESTRICTION
Flow bench testing saw a significant reduction in restriction over the stock system. The OEM system reached its maximum potential of 300 Cubic Feet per Minute(CFM) with a restriction of 759.3 mmWg, the Revo system was able to flow up to 350 CFM with a mmWg restriction of only 761. At the same 300 CFM point there is a difference of 151 mmWg between the stock and Revo OEM+ intake. This difference allows the engine to still make power at the top of the rev limit when installed with the Revo kit.
| Weight | 6 kg |
|---|---|
| Dimensions | 63 × 58 × 33 cm |
| Brand |
RF032M200200 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
FIESTA VI (CB1, CCN) 1.6 ST (JTJA/JTJB) | 182hp
Petrol 1596cc | Hatchback | 2013 - 2017
FIESTA VI (CB1, CCN) 1.6 ST200 (JTJC) | 200hp
Petrol 1596cc | Hatchback | 2016 - 2017
