Wagner Tuning RS3 8V EVO3 Comp. Package with Catalyst Pipes

Wagner Tuning RS3 8V EVO3 Competition Package with Catalyst Pipes

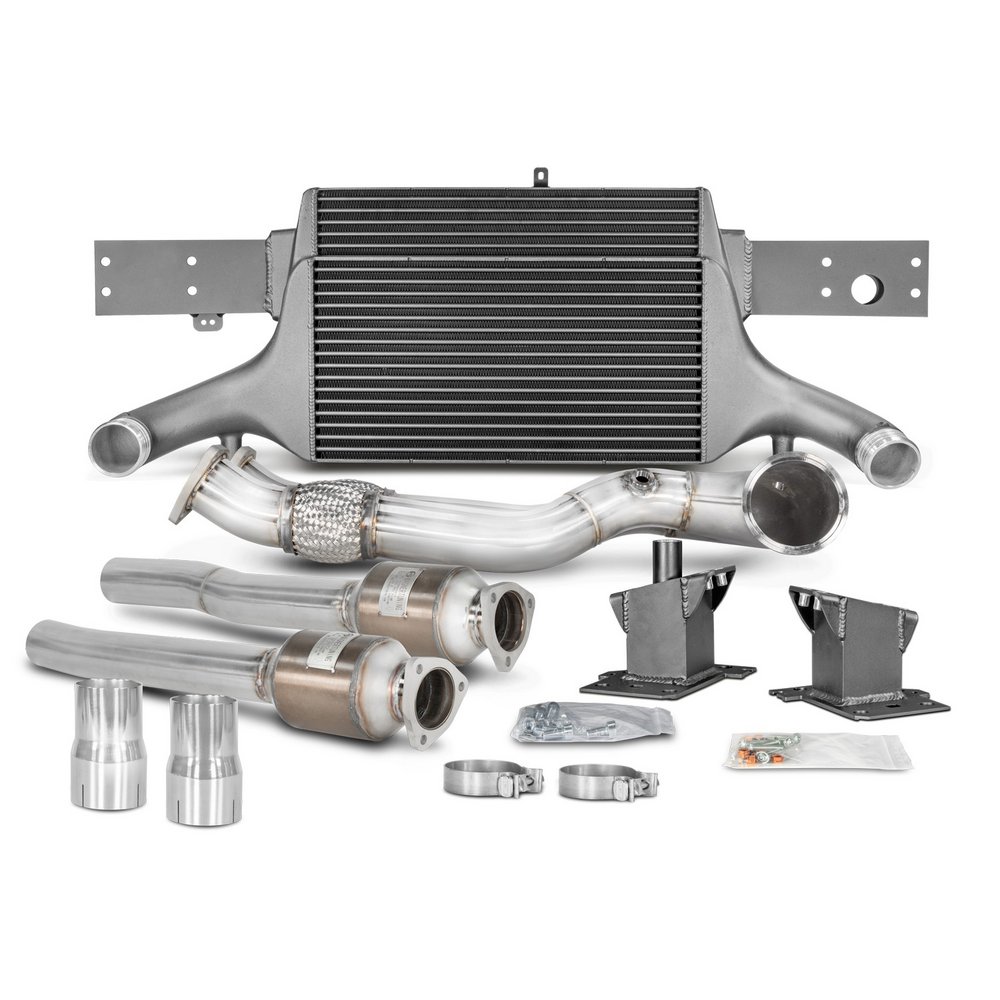

The competition package for the Audi RS3 8V Sportback/Sedan 294KW/400PS (08/2017+) consists of the intercooler upgrade kit EVO3 and the downpipe kit.

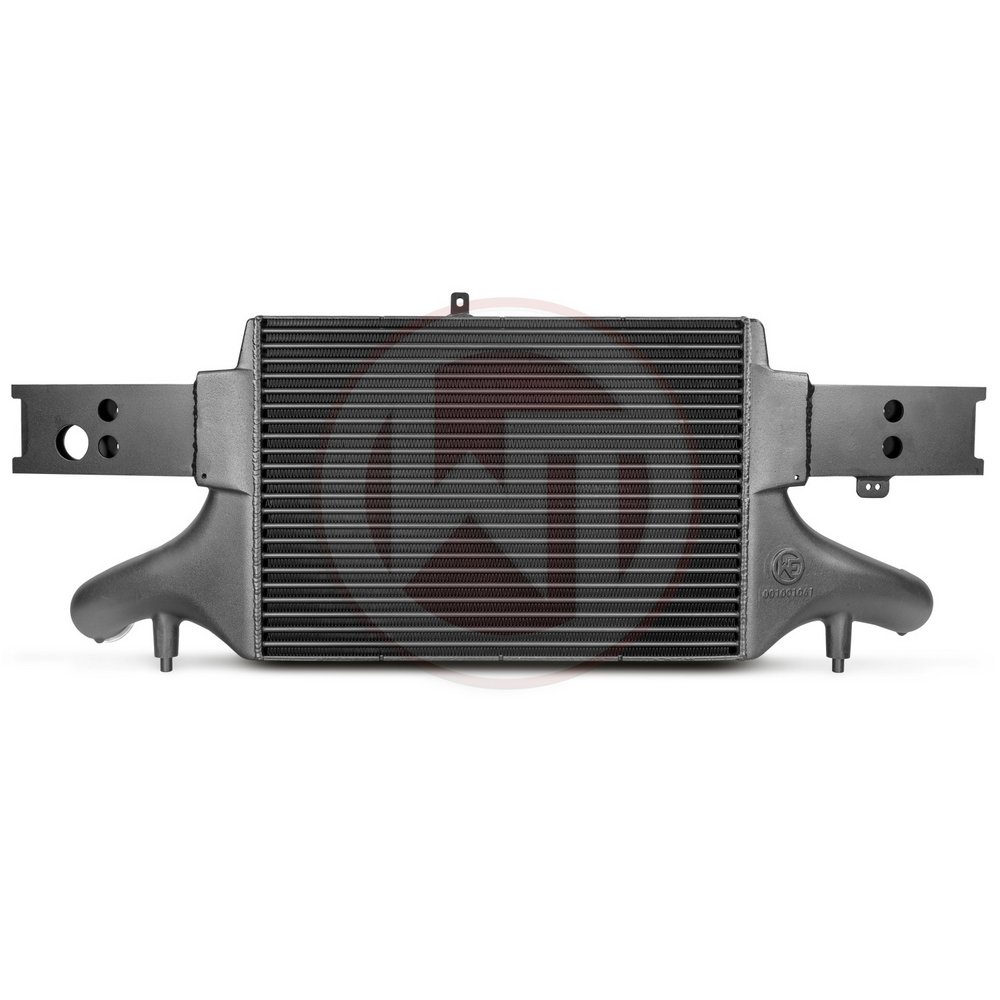

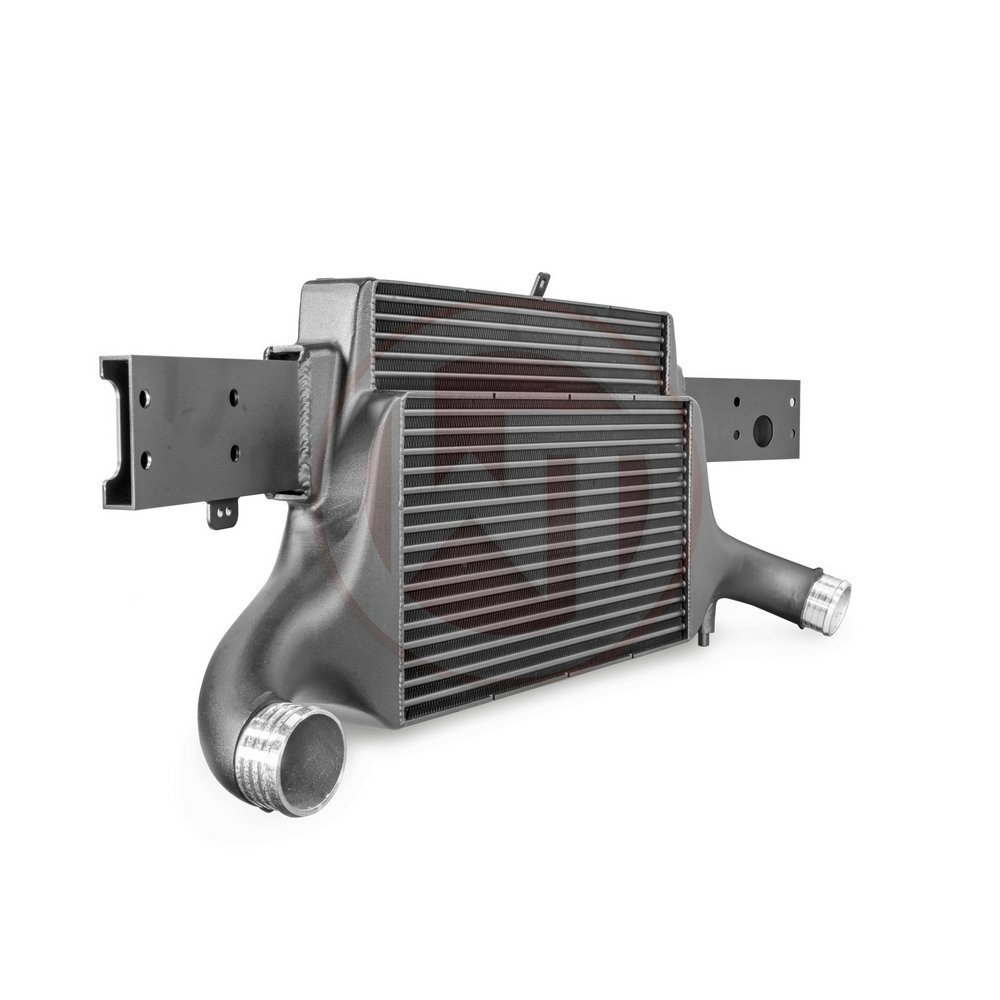

Intercooler Upgrade Kit

200001081 Audi RS3 8V Sportback 270KW/367PS 04/2015-04/2016 Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+ (OPF models not included in TGA)

Important: We recommend using the standard version for power classes up to 600PS and the X version for power classes from 600PS.

• High-performance intercooler core dimensions: 515mm x 367mm x 95mm (stepped) = 16.5L
• 84% larger inflow area and 101% more charge air volume compared to the original intercooler
• Newly developed competition high-performance intercooler core ensures sufficient airflow to adjacent components
• High-quality Tube Fin core with internal turbulators
• Cast aluminium end boxes optimised using flow analysis in the CFD system
• Integrated air baffles at the inlet ensure even filling of the charge air cooler
• Excellent cooling properties with minimal back pressure
• Anti-corrosion coating with heat conduction properties for long-lasting and optimum cooling
• Stable unit with the crossbar, weighing just 14.3 kg
• Easy installation (1:1 replacement) using original mounting points
• Tested up to 6 bar and pressure-resistant
• Subject to constant quality control

OEM Intercooler:

• Cooling surface: 102400mm²
• Charge air volume: 8.2L
• Inlet and outlet: Ø68mm

Wagner Tuning EVO3 Competition:

• Cooling surface: 189,000mm²
• Charge air volume: 16.5L
• Inlet and outlet: Ø68mm

Remark: Recalibration of the ACC may be necessary.

Kit includes:

• 1 intercooler together with the crossbar
• 1 mounting material
• 1 installation instructions
• 1 TÜV parts certificate (OPF models excluded)

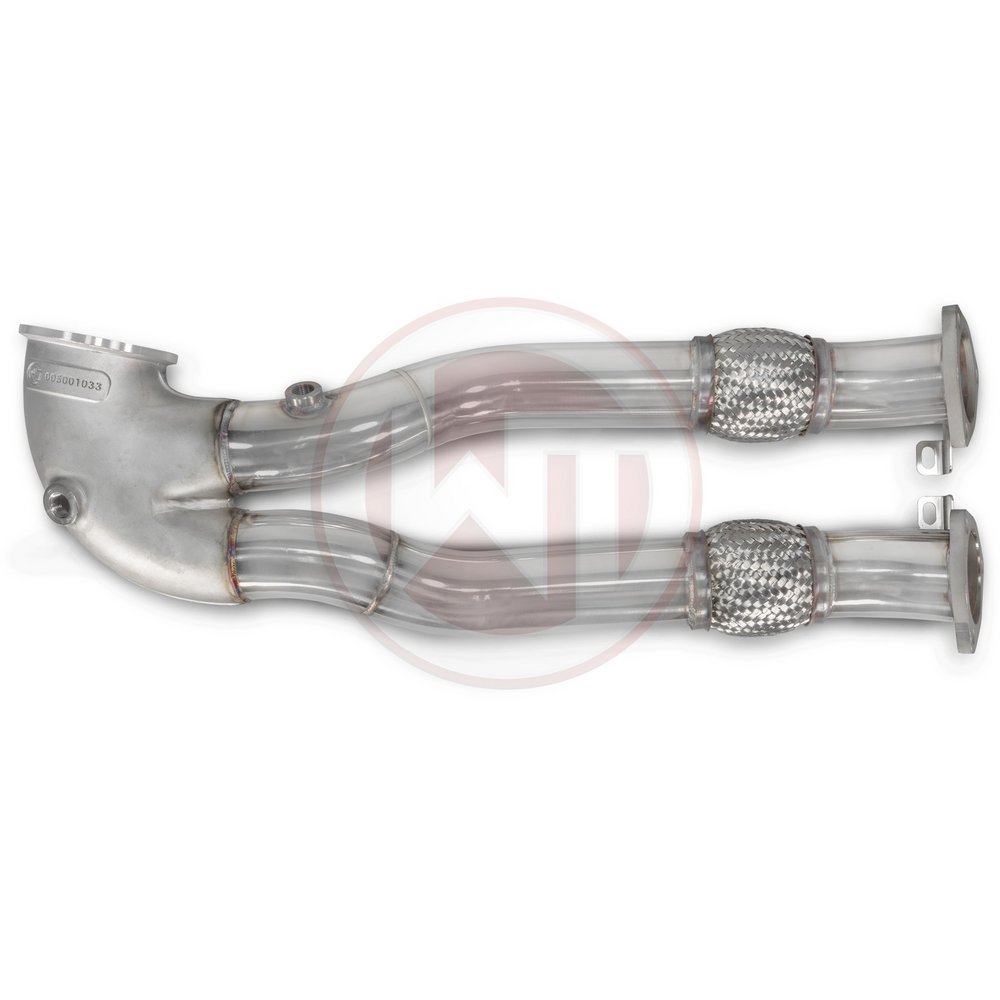

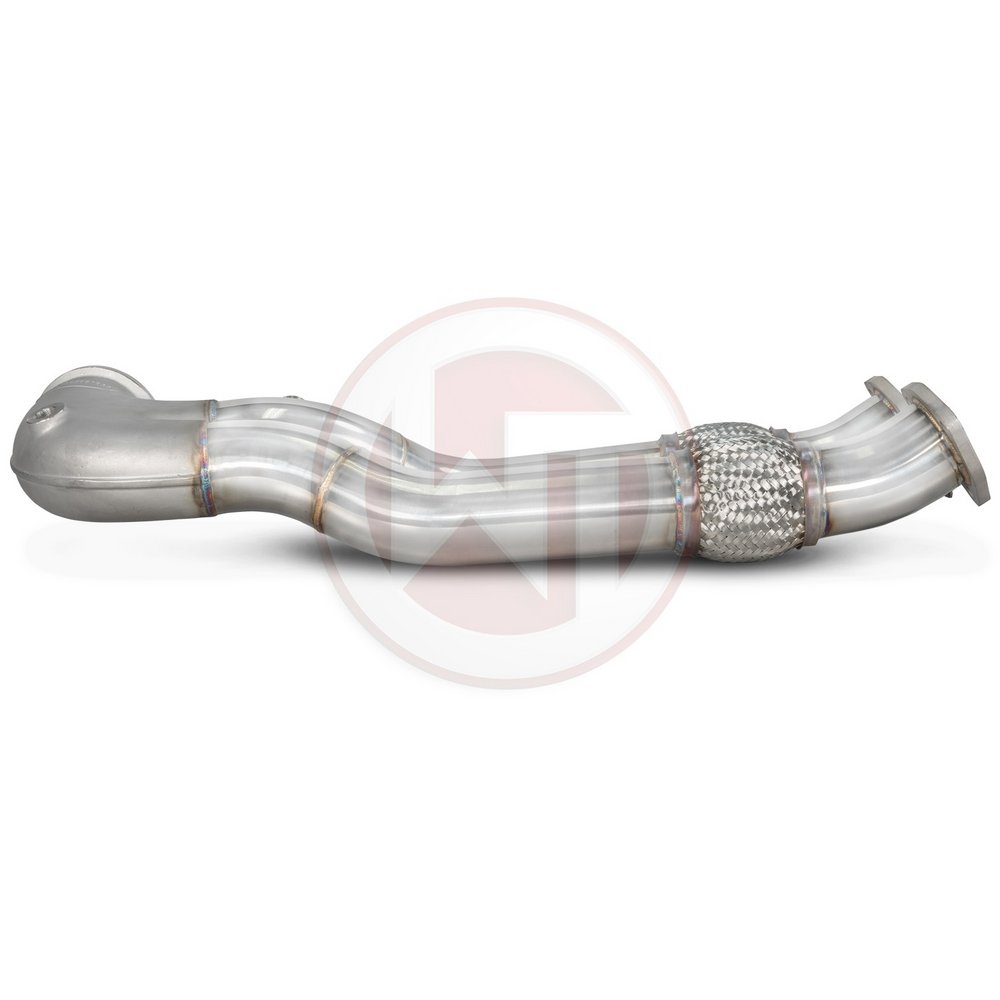

Wagner-Tuning Downpipe Kit for Audi RS3 8V

Part number: 500001028.Kat

Experience ultimate performance with our state-of-the-art downpipe kit, specially developed for Audi RS3 8V facelift models. This kit offers a range of innovations to take your vehicle’s performance to a new level.

Technical Data:

• High quality cast stainless steel 1.4301 (SS304) for optimum durability and corrosion resistance
• Without pre-cat for maximum power and performance
• Complete with 2x Ø70mm diameter for improved flow dynamics
• CAD-designed and flow-optimised for maximum power delivery
• Equipped with 2 lambda probe connections for precise exhaust gas measurements
• 100% accuracy of fit for easy replacement with the standard part
• Reduction of the thermal load on the turbocharger for a longer service life
• Increased performance through back pressure reduction for an impressive driving experience
• Compatible with the original aftercat pipes (not OPF)
• Optionally including aftercat pipes with 2x200CPSI racing catalytic converters (for OPF models, the exhaust system must be cut)

Maximum performance, maximum driving experience: Our downpipe kit for Audi RS3 8V facelift not only offers improved performance, but also an incomparable driving experience. Experience the power and dynamics of your vehicle in a completely new way.

Quality and innovation: With our downpipe kit, you can rely on quality and innovation. Discover the ultimate combination of performance, efficiency and reliability for your Audi. Redesign your ride and experience the true power of your Audi RS3 8V Facelift.

Part number: 500001028

Not permitted in the STVO area. Error display in the DME possible.

Disclaimer for Catalytic Converters

It should be noted that Wagner Tuning catalytic converters are intended for use on OEM vehicles for performance optimisation. They are NOT intended for use in conjunction with ECU tuning. Wagner Tuning GmbH & Co. Kg. accepts no responsibility for damage caused by modifications to a vehicle, such as a tuned ECU and/or ‘burble’ style tunes. Wagner Tuning GmbH & Co. Kg. is also not responsible for damage caused by engine malfunctions that create rich/lean conditions that are detrimental to the catalytic converter. All claims regarding a catalytic converter are subject to a warranty check. In order for a warranty to be honoured, Wagner Tuning GmbH & Co. Kg. requires the purchaser to prove that the engine has been set up unchanged and in accordance with the original manufacturer’s specifications and has been kept in proper working order. The end user assumes all responsibility for the legality of the use of a non-OEM catalytic converter on their vehicle for the region in which it is used.
