Wagner Tuning KTM X-Bow K03 Performance Intercooler Kit

Wagner Tuning KTM X-Bow K03 Performance Intercooler Kit

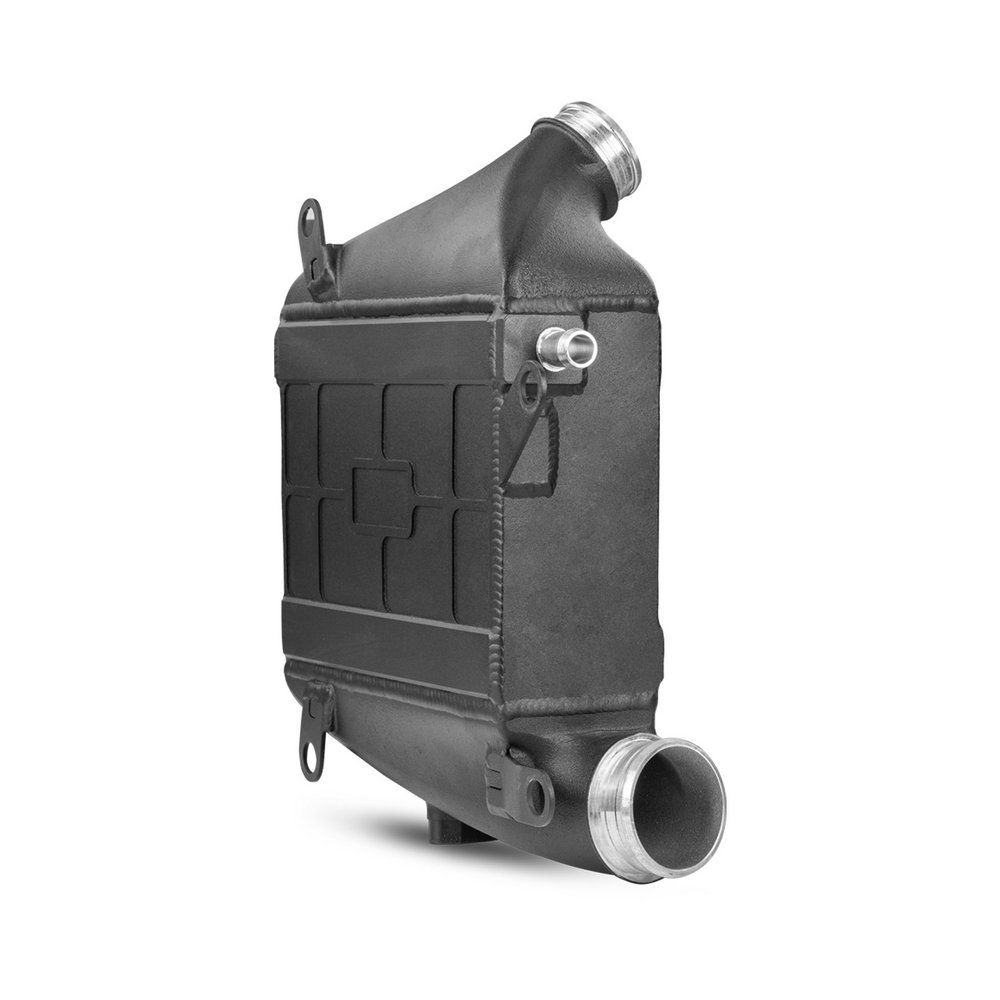

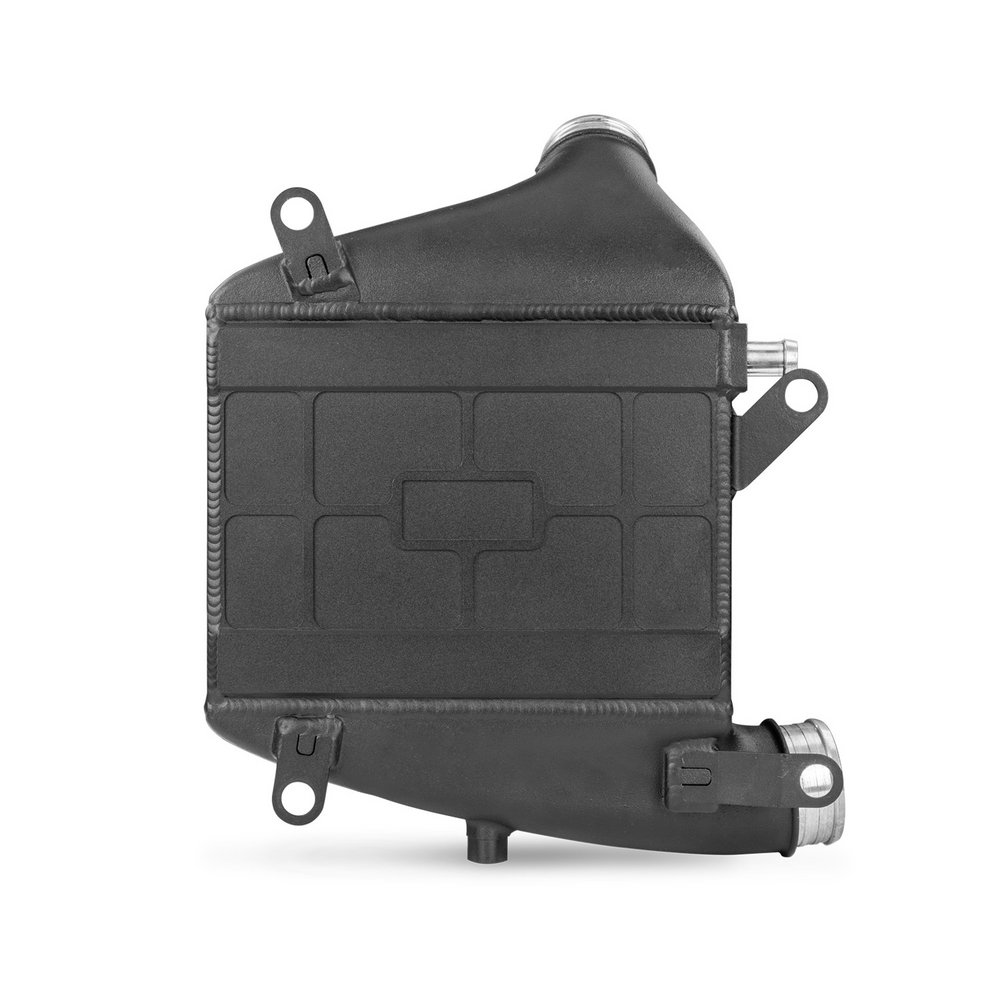

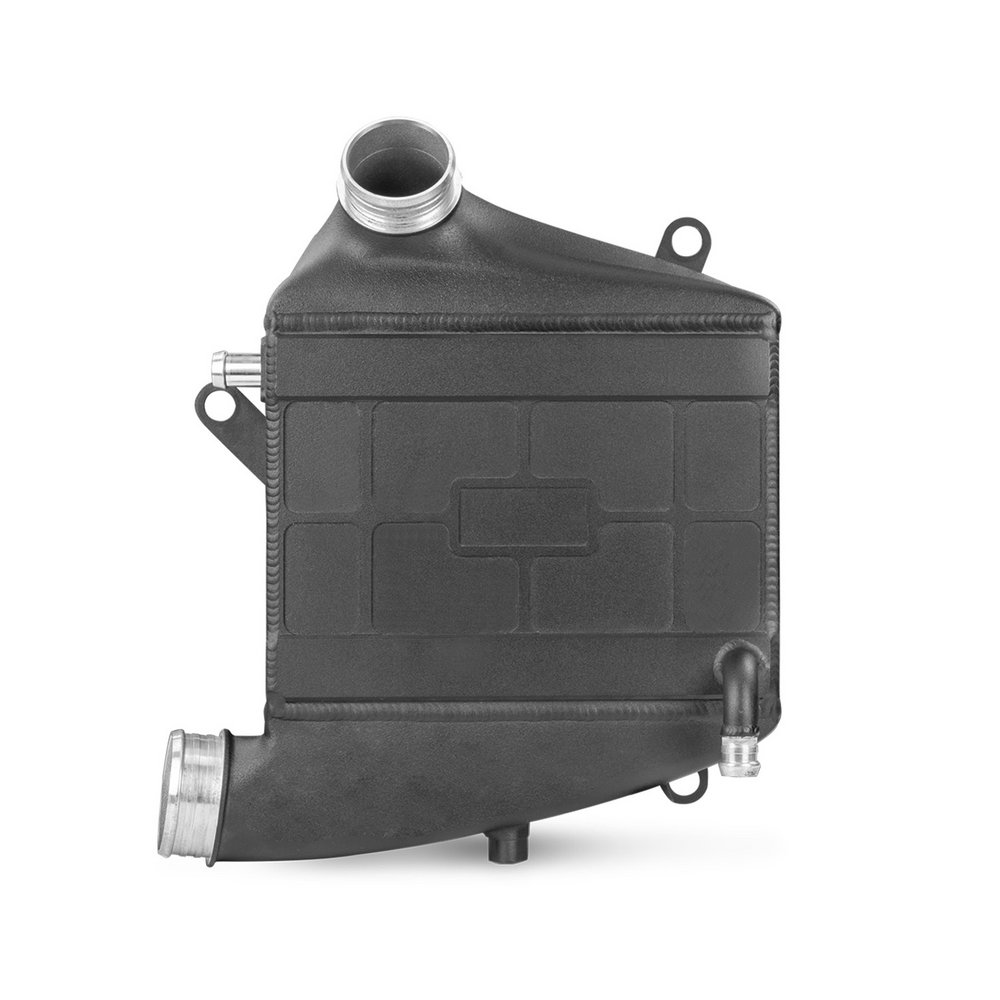

Experience the ultimate performance upgrade for your KTM X-Bow with the WAGNERTUNING high performance intercooler! The 2.0 TFSI turbo engine of the KTM X-Bow has an indirect charge air cooling circuit, where the cooling process of the charge air is done by a water-cooled intercooler. With our specially designed high performance intercooler from WAGNERTUNING you replace the original intercooler and experience a revolutionary increase in performance.

Our high performance intercooler features an innovative performance intercooler core with dimensions of 222 mm x 297 mm x 95 mm. It was developed specifically for the high demands of the KTM engine and offers an incredible 80% more external core volume compared to the stock intercooler. The ratio between internal and external cooling surface ensures maximum heat transfer and optimal internal airflow. The cast aluminium end boxes were designed using state-of-the-art CAD technology and optimised by CFD simulations. The result is outstanding cooling properties with minimal back pressure, increasing air mass flow by an impressive 33%. This also makes our kit ideal for racing. You benefit from optimum cooling of the supercharged air and a significant increase in performance.

To ensure a lasting cooling effect, all Wagner Tuning charge air coolers are provided with a heat-conducting anti-corrosion coating. The installation of the system is uncomplicated thanks to our detailed installation instructions and a direct replacement of the original intercooler is possible.

Advantages of this product:

• Direct replacement for the original intercooler.
• Significantly improved cooling performance
• 80% more outer intercooler core volume
• 33% more air mass flow and lower back pressure
• More power and torque for your engine
• Mechanical relief of the turbocharger
• All-aluminium intercooler, pressure stable up to 6 bar (tested)
• LLK connection towards throttle body enlarged from Ø62 mm to Ø70 mm

Experience the power of the WAGNERTUNING high performance intercooler and maximise the performance of your KTM X-Bow to a new level!

Performance intercooler fits the following models:

• KTM X-Bow 177-210KW/240-286PS (2008-2017) K03 Turbo

Core Dimensions:

• OEM intercooler: 180mm x 218mm x 90mm V = 3.5 litres
• Wagner Tuning intercooler: 222 mm x 297 mm x 95 mm V = 6.3 litres

Part number:

• 200001169.K03

Kit includes:

• 1 intercooler
• 1 silicone hose air
• 1 cooling water hose
• 1 mounting material
• 1 installation instruction
