Wagner Tuning BMW/Toyota B58.2 EVO1 Cast Intake/Intercooler
£2,199.00

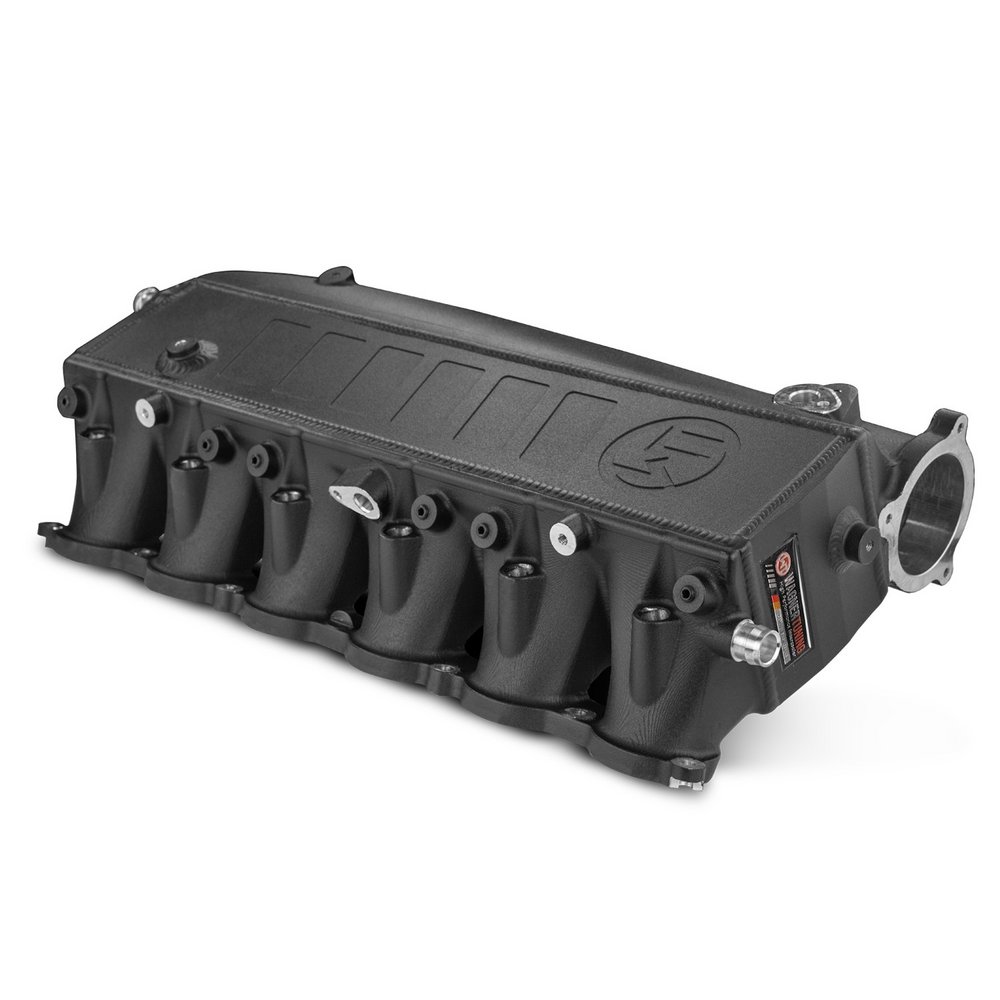

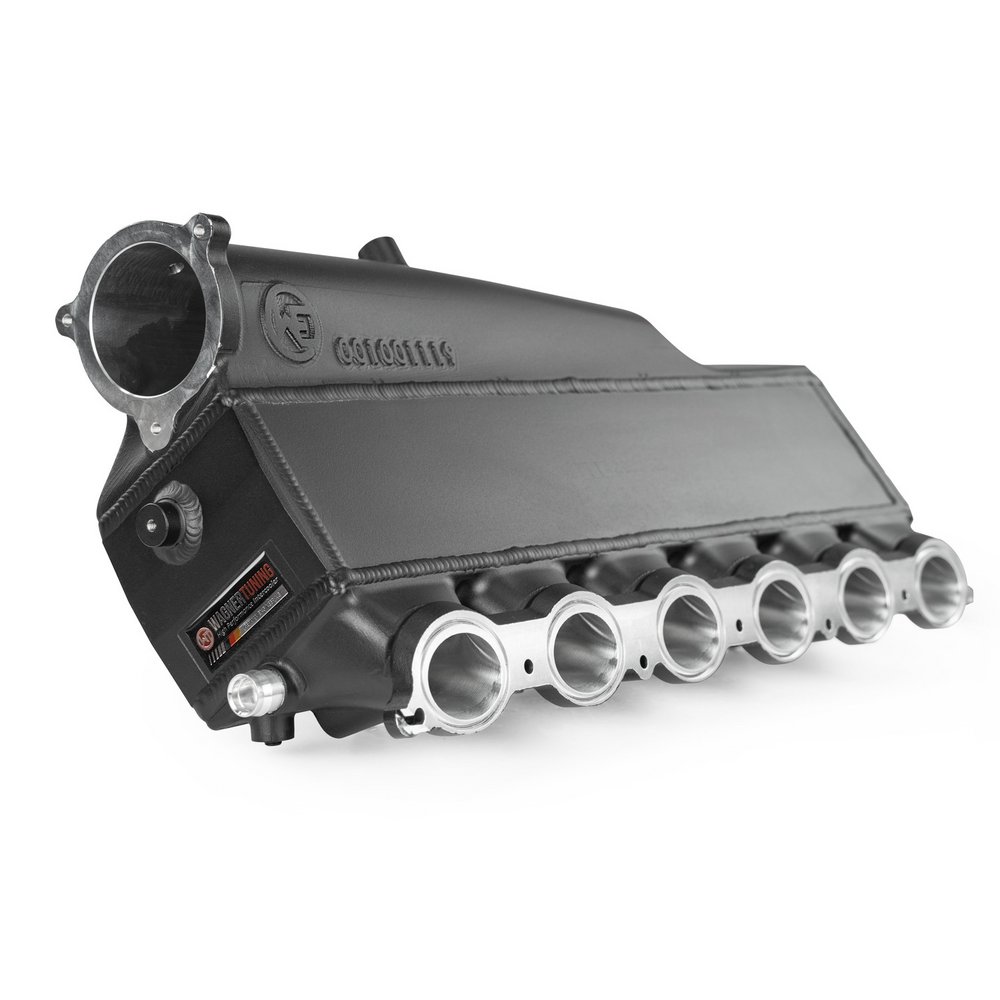

Wagner Tuning BMW/Toyota B58.2 EVO1 Cast Intake Manifold with Integrated Intercooler
The Wagner Tuning EVO1 is a complete intake manifold replacement with a high-performance intercooler built directly into the manifold itself. Designed specifically for the 3.0 litre B58.2 turbo engine found in modern BMW M Performance models and the Toyota GR Supra, it tackles the biggest weakness of the standard setup: heat soak under sustained load.
By placing the intercooler core inside the intake manifold, the charge air (the compressed air from the turbo) is cooled right before it enters the cylinders. The result is denser, cooler air, more consistent power, and a turbocharger that has to work less hard to deliver the same boost.
Why upgrade the standard intake manifold?
The factory B58.2 manifold and intercooler do a reasonable job in standard form, but they quickly run out of capacity once you start pushing the engine harder, whether on track, during repeated pulls, or with tuning upgrades. Intake temperatures climb, the ECU pulls timing to protect the engine, and performance tails off.
The Wagner EVO1 addresses this with a much larger and more efficient core, helping maintain stable intake temperatures even when the engine is being worked hard.
Key benefits
- Up to 20°C cooler intake air temperatures for more consistent power delivery
- 128% larger external core volume compared to the OEM intercooler
- Around 35% less back pressure, reducing strain on the turbocharger
- CNC-machined end tanks, shaped using CFD (airflow simulation) for smooth flow
- Heat-conducting anti-corrosion coating for long-term durability
- 100% pressure tested for reliability at higher boost levels
- Plug and play fitment with no modifications to the vehicle required
Built for tuners and track use
The EVO1 manifold is preprocessed for port fuel injection (an optional Wagner fuel rail is available separately), making it a strong foundation for higher-power builds where the standard direct injection alone may struggle to keep up.
It also includes:
- Three 1/8 NPT ports for measuring additional parameters such as boost or intake temperature
- Six preprocessed ports for NOS or water-methanol injection (WMI) nozzles, for example 90° 1/16 NPT NOS nozzles
This makes it suitable for everything from a road-driven M340i to a fully built Supra running on track.
Servicing made easy
The oil filter can still be accessed and changed without removing the intake manifold, so routine servicing is not affected by the upgrade.
Vehicle fitment
The EVO1 cast intake manifold and intercooler is designed for B58.2 (B58TU) engines, including:
- BMW 2 Series G42 M240i
- BMW 3 Series G20/G21 M340i
- BMW 4 Series G22/G23/G26 M440i
- BMW Z4 G29 M40i
- BMW X3 G01 M40i
- Toyota GR Supra MK5 (3.0)
Please use the vehicle lookup on the site or check the Vehicle Fitment tab to confirm compatibility with your exact model and year.

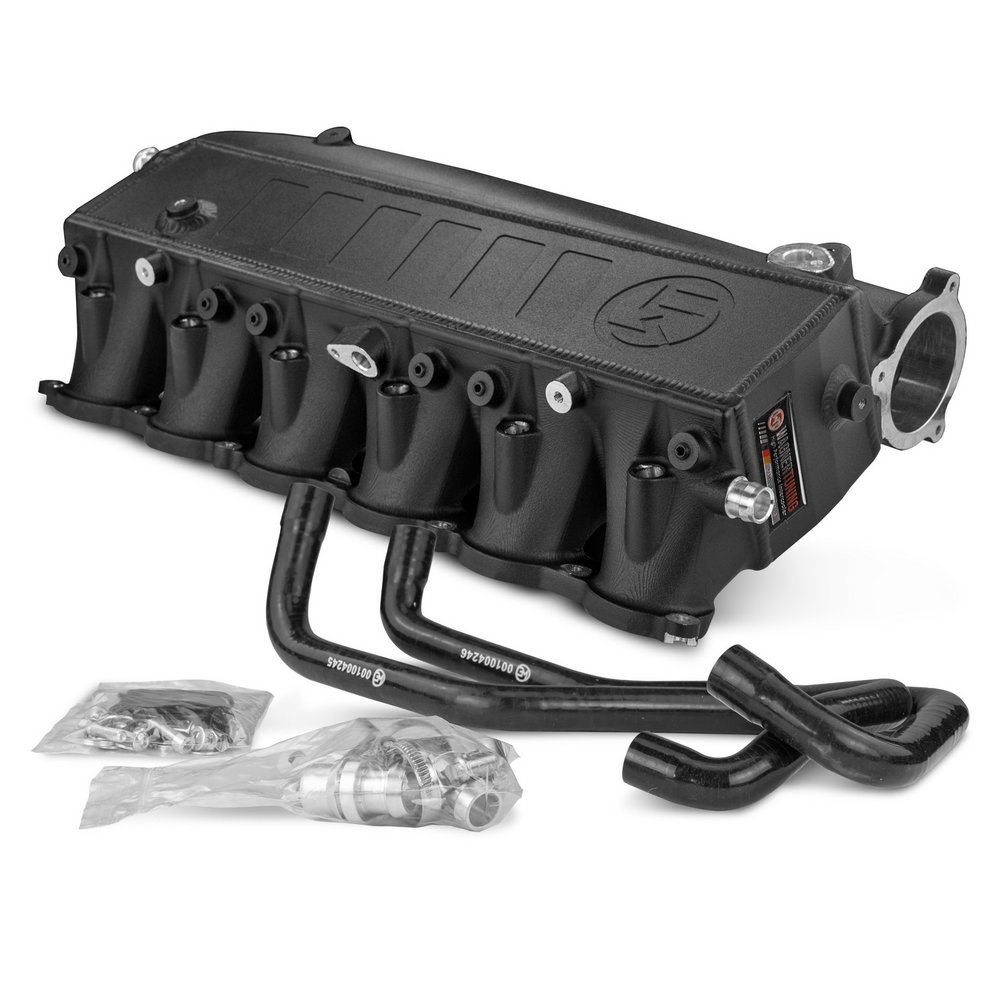

What’s in the kit
- 1 x intake manifold with integrated intercooler
- 2 x silicone hoses
- 5 x retaining plates
- 1 x mounting hardware set
- 1 x installation instructions
Technical summary
| Attribute | Detail | |
|---|---|---|
| Engine | BMW B58.2 / B58TU 3.0 turbo | |
External core
Additional Information
200001175 Confirmed FitmentPlease note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
2 Coupe (G42, G87) M240 i (B58 B30 B) | 374hp
Petrol 2998cc | Coupe | 2022 - 2024
2 Coupe (G42, G87) M240 i xDrive (B58 B30 B) | 374hp
Petrol 2998cc | Coupe | 2021 - 2024
3 (G20, G80, G28) M 340 i xDrive (B58 B30 B) | 387hp
Petrol 2998cc | Saloon | 2019 - 2024
3 (G20, G80, G28) M 340 i xDrive (B58 B30 B) | 374hp
Petrol 2998cc | Saloon | 2019 - 2024
3 Touring (G21, G81) M 340 i xDrive (B58 B30 B) | 374hp
Petrol 2998cc | Estate | 2019 - 2024
3 Touring (G21, G81) M 340 i xDrive (B58 B30 B) | 387hp
Petrol 2998cc | Estate | 2019 - 2024
Z4 Roadster (G29) M40 i (B58 B30 C) | 340hp
Petrol 2998cc | Convertible | 2018 - 2024
SUPRA (DB_) 3.0 GR (DB41, DB42, DB43, DB45, DB46) (B58) | 340hp
Petrol 2998cc | Coupe | 2019 - 2024
