Wagner Tuning Audi TTRS 8S EVO3 Competition Package with Catalysts

Wagner Tuning Audi TTRS 8S Evo3 Competition Package with Catalysts

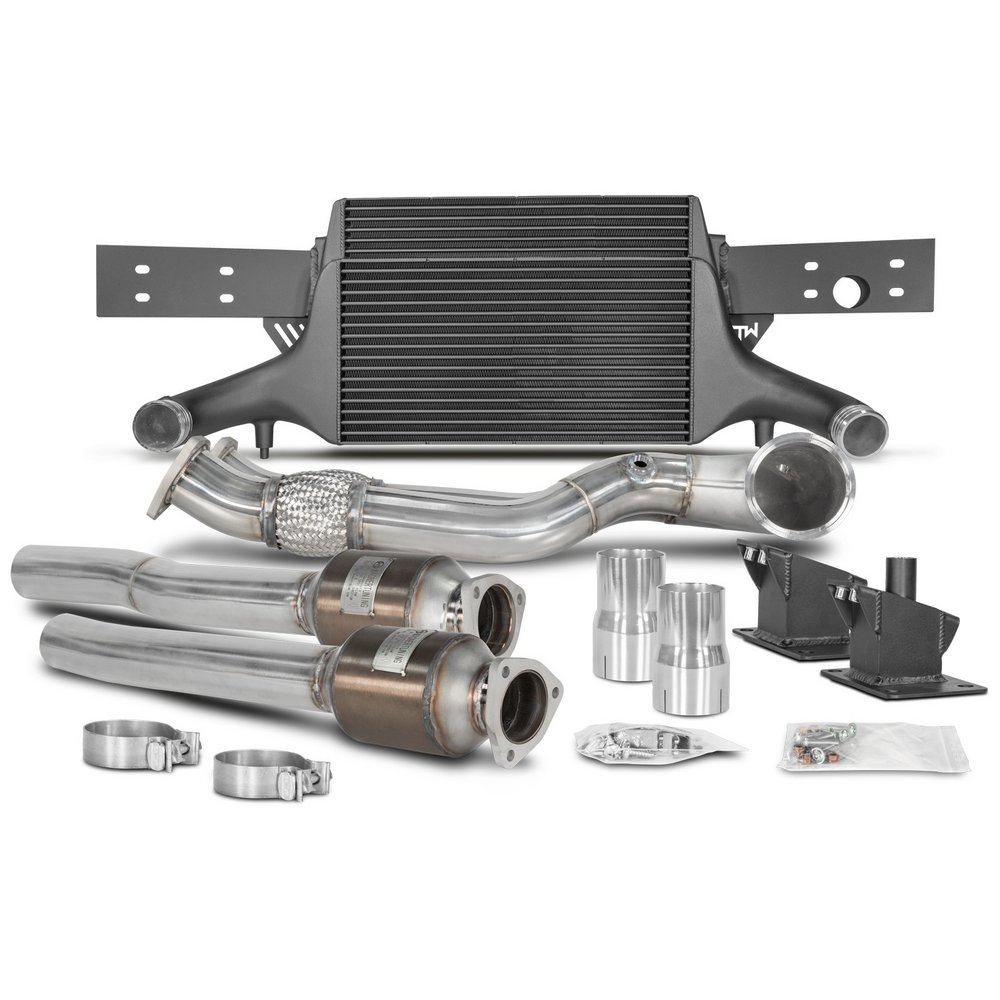

The competition package for the Audi TTRS 8S consists of the Intercooler Upgrade Kit EVO3 and the Downpipe Kit with 2 additional cat pipes (200CPSI).

Intercooler Upgrade Kit 200001136

The high-performance intercooler has the following core dimensions (515mm x 367mm x 95mm [stepped] = 16,500cm³) and offers an 84% larger inflow area and 101% more charge air volume compared to the original intercooler. The newly developed competition high-performance intercooler core ensures sufficient airflow to the adjacent components, such as the water cooler. It is a high-quality Tube Fin core with internal turbulators. The end boxes of the intercooler are made of cast aluminium and have been optimised using flow analysis in the CFD system. Integrated air baffles at the inlet ensure that the charge air cooler is filled evenly. The result is excellent cooling properties with minimal back pressure. This kit is suitable for racing. In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees long-lasting and optimum cooling with a significant increase in performance. The intercooler and the original crossbar form a stable unit and, thanks to the new competition high-performance intercooler core, weighs just 11.7 kg. It is fitted to the original mounting points and is easy to install (see installation instructions for minor adjustments). Tested and pressure-resistant up to 6 bar. All our products are subject to constant quality control.

• OEM intercooler: Cooling surface 1024cm² / charge air volume 8.2L
• Inlet and outlet Ø68mm
• Wagner Tuning EVO3 Competition: Cooling surface 1890cm² / charge air volume 16.5L
• Inlet and outlet Ø68mm

Kit comes with:

• 1 intercooler together with the crossbar
• 1 mounting material
• 1 installation instructions
• 1 TÜV parts certificate (only for vehicles without OPF)

Important: We recommend using the standard version for power classes up to 600 hp and the X version for power classes from 600 hp.

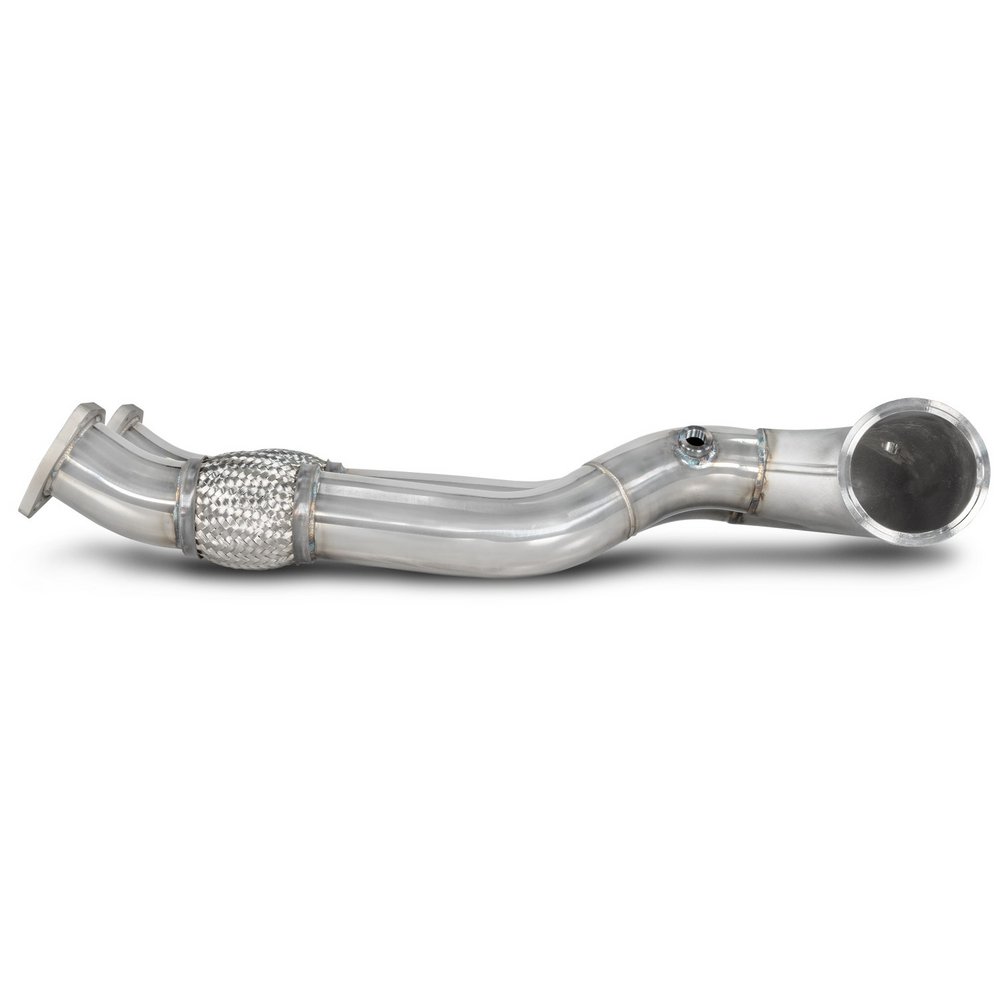

Wagner-Tuning Downpipe Kit 500001028.Kat

Experience ultimate performance with our state-of-the-art Y-pipe/downpipe kit, specially developed for Audi TTRS 8S. This kit offers a range of innovations to take your vehicle’s performance to a new level.

Technical data:

• High quality cast stainless steel 1.4301 (SS304) for optimum durability and corrosion resistance.
• Without pre-cat for maximum power and performance.
• Complete with 2x Ø70mm diameter for improved flow dynamics.
• CAD-designed and flow-optimised for maximum power delivery.
• Equipped with 2 lambda probe connections for precise exhaust gas measurements.
• 100% accuracy of fit for easy replacement with the standard part.
• Reduction of the thermal load on the turbocharger for a longer service life.
• Increased performance through back pressure reduction for an impressive driving experience.
• Compatible with the original aftercat pipes (not OPF)

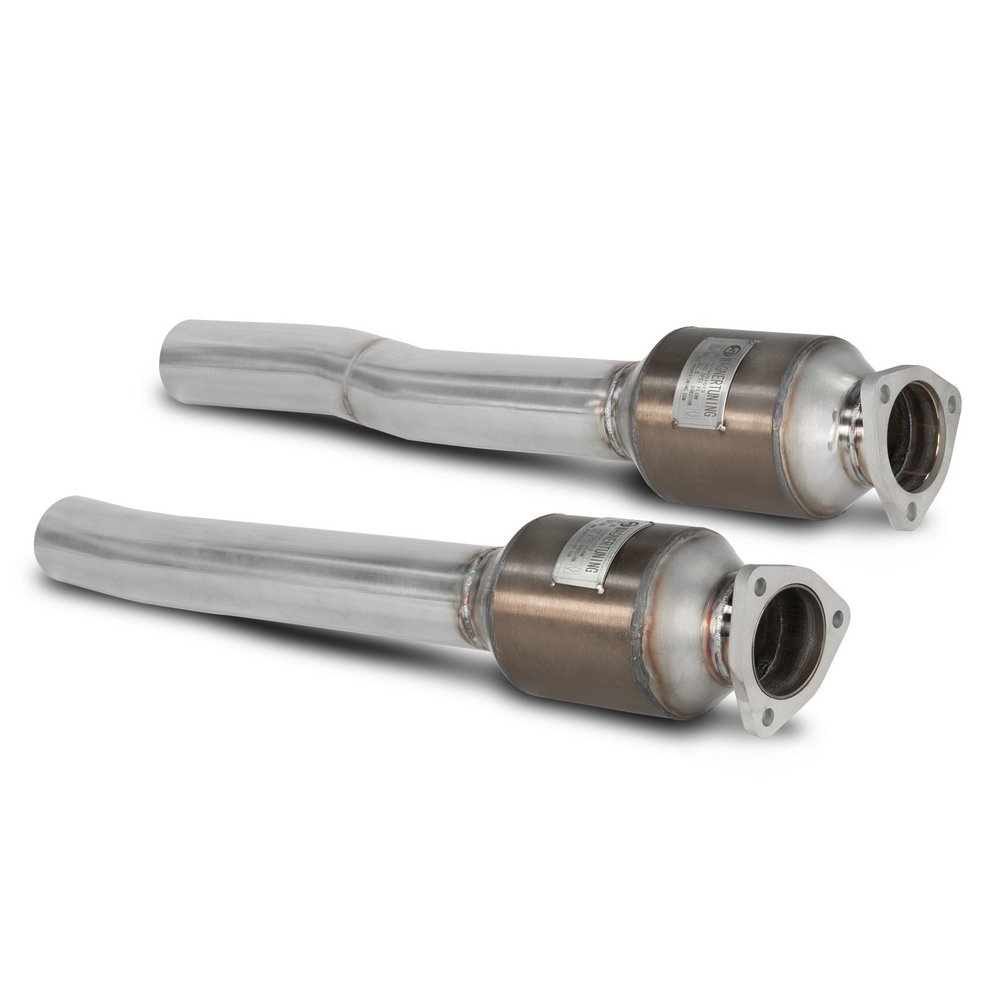

• Includes aftercat pipes with 2x200CPSI racing catalytic converters (for OPF models the exhaust system must be cut).

Maximum performance, maximum driving experience: Our downpipe kit for Audi TTRS 8S not only offers improved performance, but also an incomparable driving experience. Experience the power and dynamics of your vehicle in a completely new way.

Quality and innovation: With our downpipe kit, you can rely on quality and innovation. Discover the ultimate combination of performance, efficiency and reliability for your Audi. Redesign your ride and experience the true power of your Audi TTRS 8S.

Part number 500001028.Kat

Not permitted in the STVO area. Error display in the DME possible.

Disclaimer for Catalytic Converters

Please note that Wagner Tuning catalytic converters are intended for use on OEM vehicles for performance optimisation. They are NOT intended for use in conjunction with ECU tuning. Wagner Tuning GmbH & Co. Kg. accepts no responsibility for damage caused by modifications to a vehicle, such as a tuned ECU and/or deactivating the boost cut-off. Wagner Tuning GmbH & Co. Kg. is also not responsible for damage caused by engine malfunctions that create rich/lean conditions that are detrimental to the catalytic converter. All claims regarding a catalytic converter are subject to a warranty check. In order for a warranty to be honoured, Wagner Tuning GmbH & Co. Kg. requires the purchaser to prove that the engine has been set up unchanged and in accordance with the original manufacturer’s specifications and has been kept in proper working order. The end user assumes all responsibility for the legality of using a non-OEM catalytic converter on their vehicle for the region in which it is used.
