Wagner Tuning Audi TTRS 8S EVO 3 Competition Intercooler Kit

RRP. £1,689.00£1,599.00SAVE £90.00 (5%)

Checking current stock levels...

Klarna
3 payments of £533.00/mo example 0% APR
Clearpay
4 payments of £399.75/mo example 0% APR
Dopple
Compare 6, 12 and 24 month payment options from 16.9% APR
18+, T&C apply, Credit subject to status. Advanced calculator available at checkout.
SKU: 200001136.S Categories: , , , , PP-PC-10

Wagner Tuning Audi TTRS 8S EVO 3 Competition Intercooler Kit

The Competition Intercooler Kit EVO3 for Audi TTRS 8S is now available with a TÜV certificate and two different intercooler core options.

Important note: We recommend using the standard version for power applications up to 600HP and the X-version for power applications above 600HP.

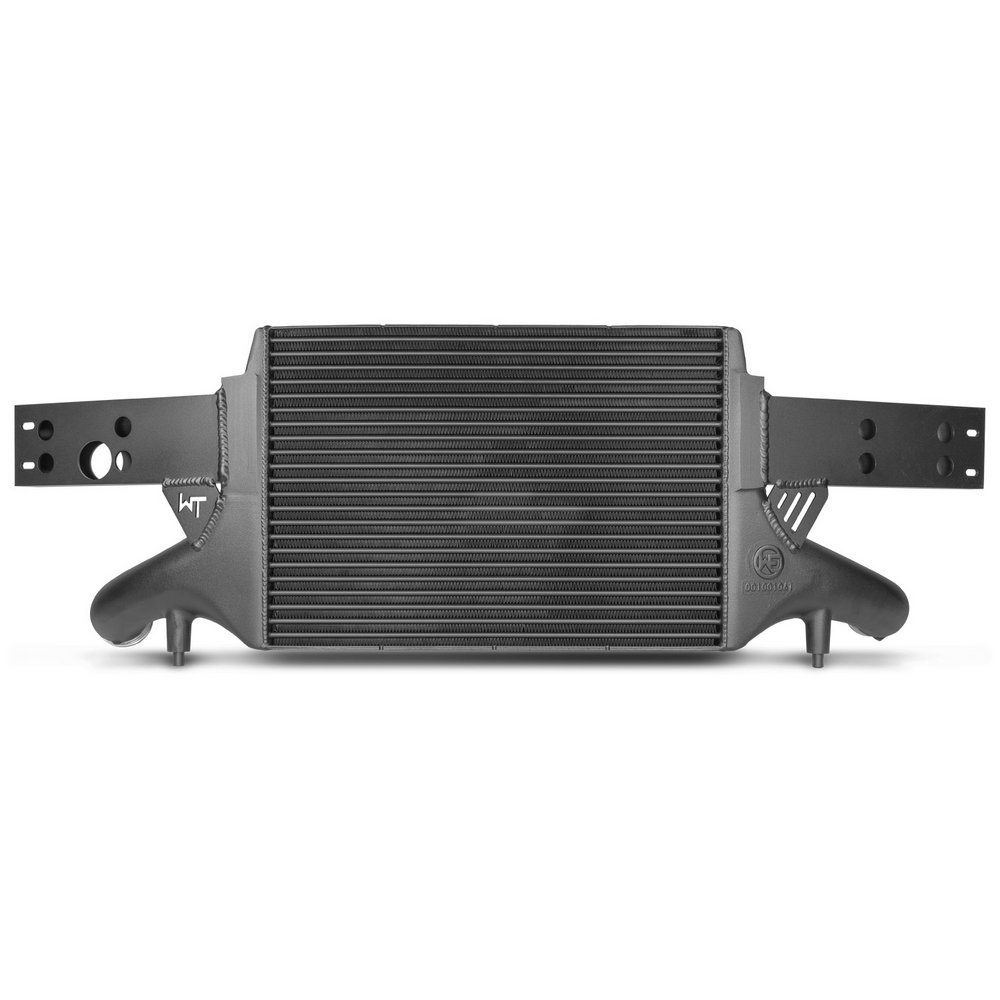

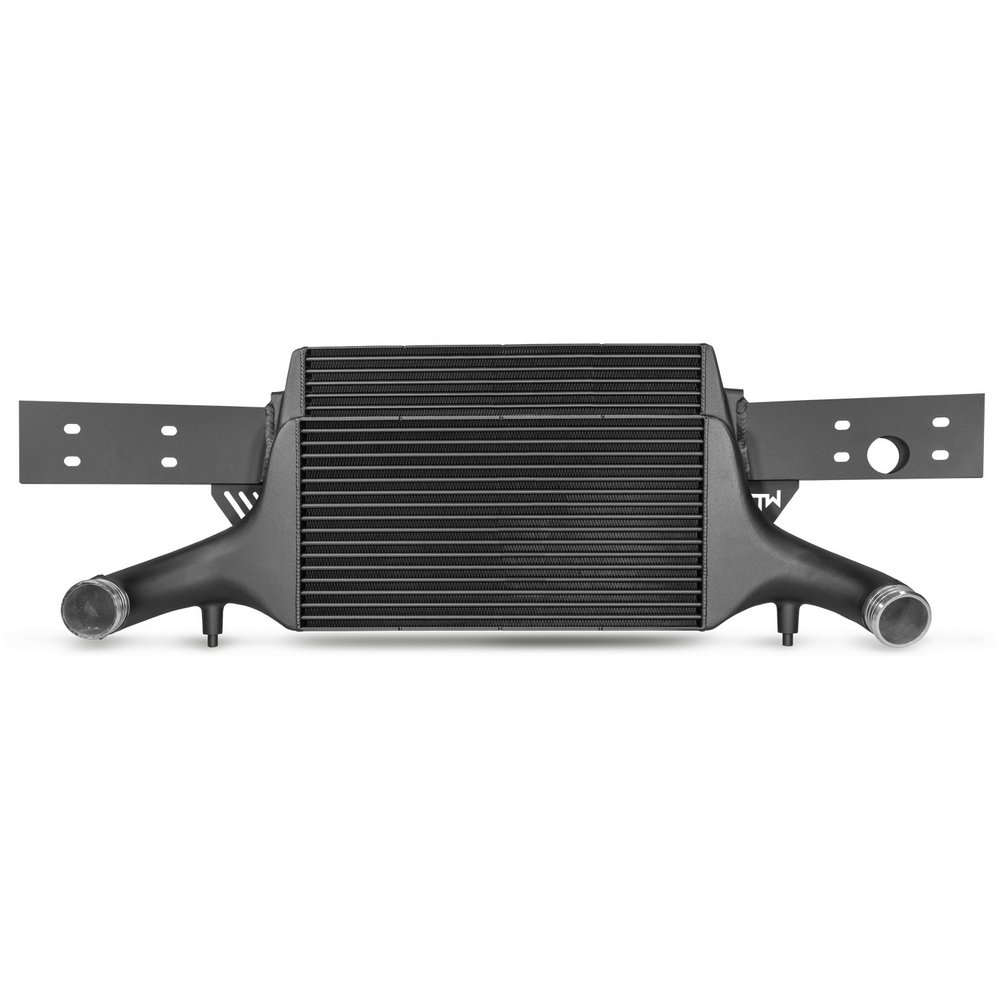

The high-performance intercooler has the following core dimensions (515mm x 367mm x 95mm = 16,500cm³) and offers an 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

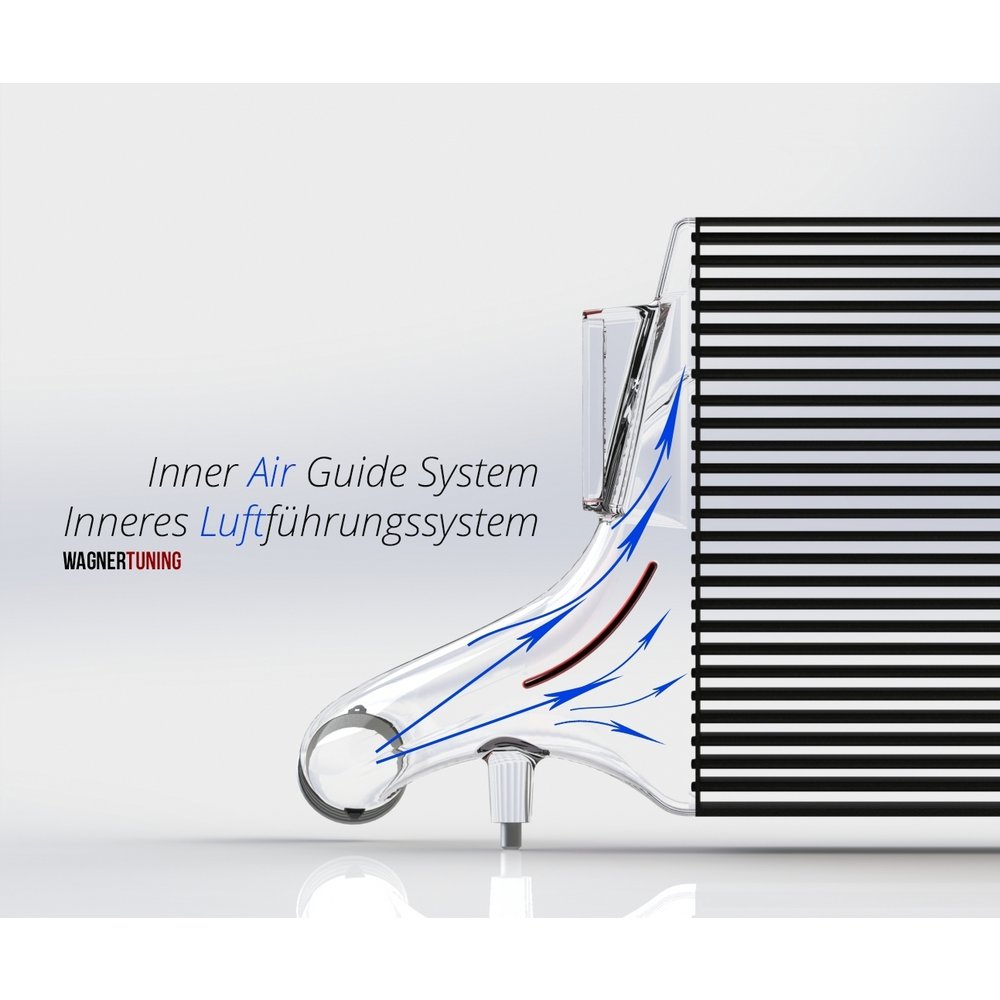

This Audi RS3 intercooler uses our award-winning Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow. With the help of additional air guides inside the inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop, making this kit ideal for racing.

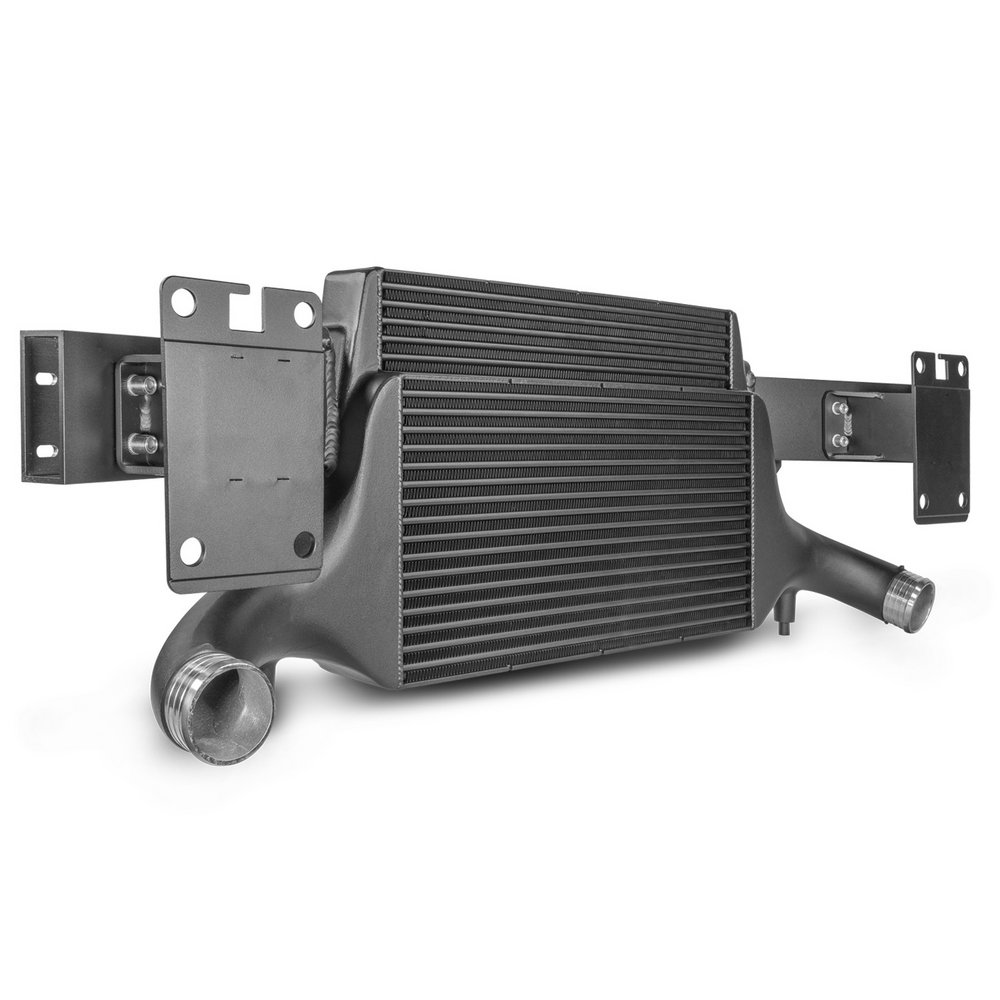

The intercooler and the original crossmember form a stable unit and weigh only 11.7 kg. It is mounted to the original mounting points and is easy to install (simple adjustments necessary – check installation instructions). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

Advantages of the Wagner Tuning Intercooler:

  • Improved cooling performance
  • 84% larger inflow area
  • 101% more charge air volume
  • Flow-optimised
  • Less back pressure
  • Original mounting points

Specifications:

  • OEM intercooler: cooling surface 1024cm² (158.7Inch²), charge-air-volume 8.2L (500.4Inch³)
  • Wagner Tuning EVO3 Competition: cooling surface 1890cm² (293Inch²), charge-air-volume 16.5L (1006.9Inch³)

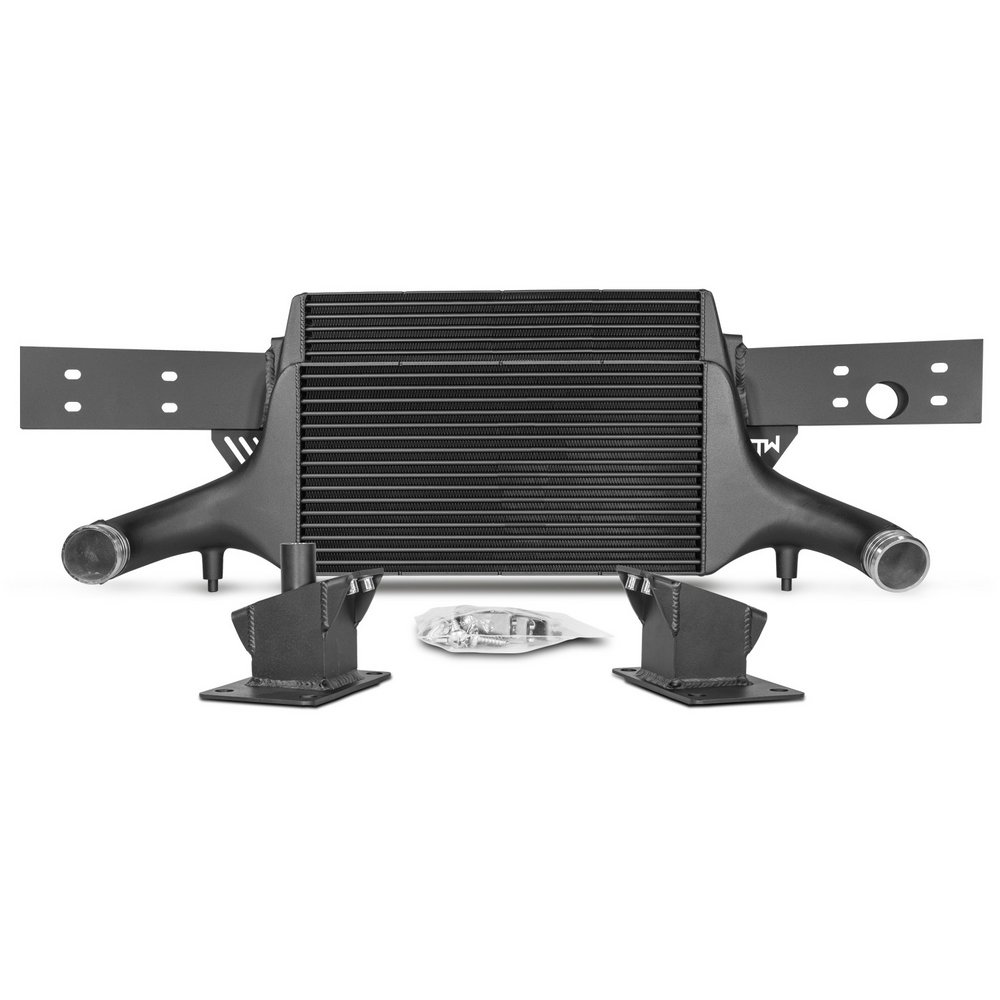

Kit Includes:

  • 1 intercooler including crossmember
  • 1 mounting material
  • 1 installation instruction
  • 1 TÜV Certification (*only for Non-OPF cars)
Brand

200001136.S Confirmed Fitment

Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions

AUDI (2 Models)
TT (FV3, FVP) 2.5 RS TFSI quattro (DAZA/DNWA) | 400hp
Petrol 2480cc | Coupe | 2016 - 2024
TT Roadster (FV9, FVR) 2.5 RS TFSI quattro (DAZA/DNWA) | 400hp
Petrol 2480cc | Convertible | 2016 - 2024
