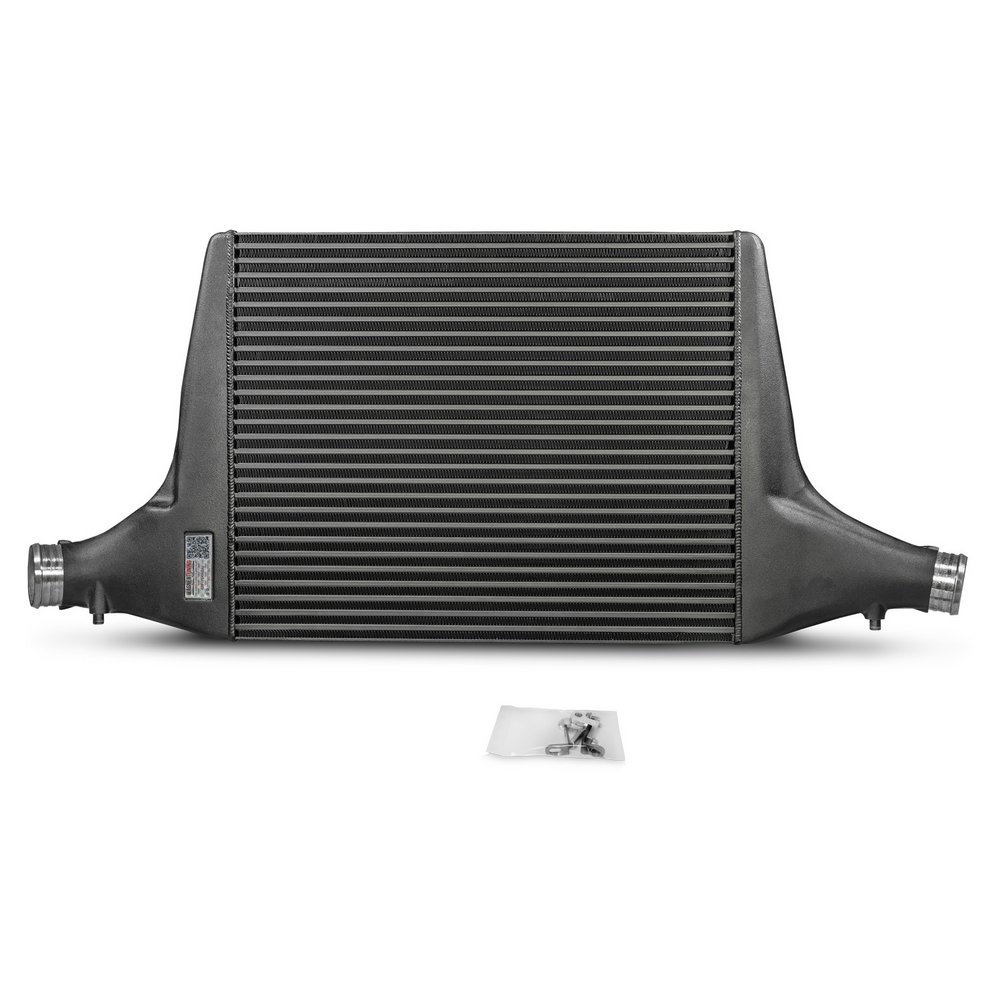

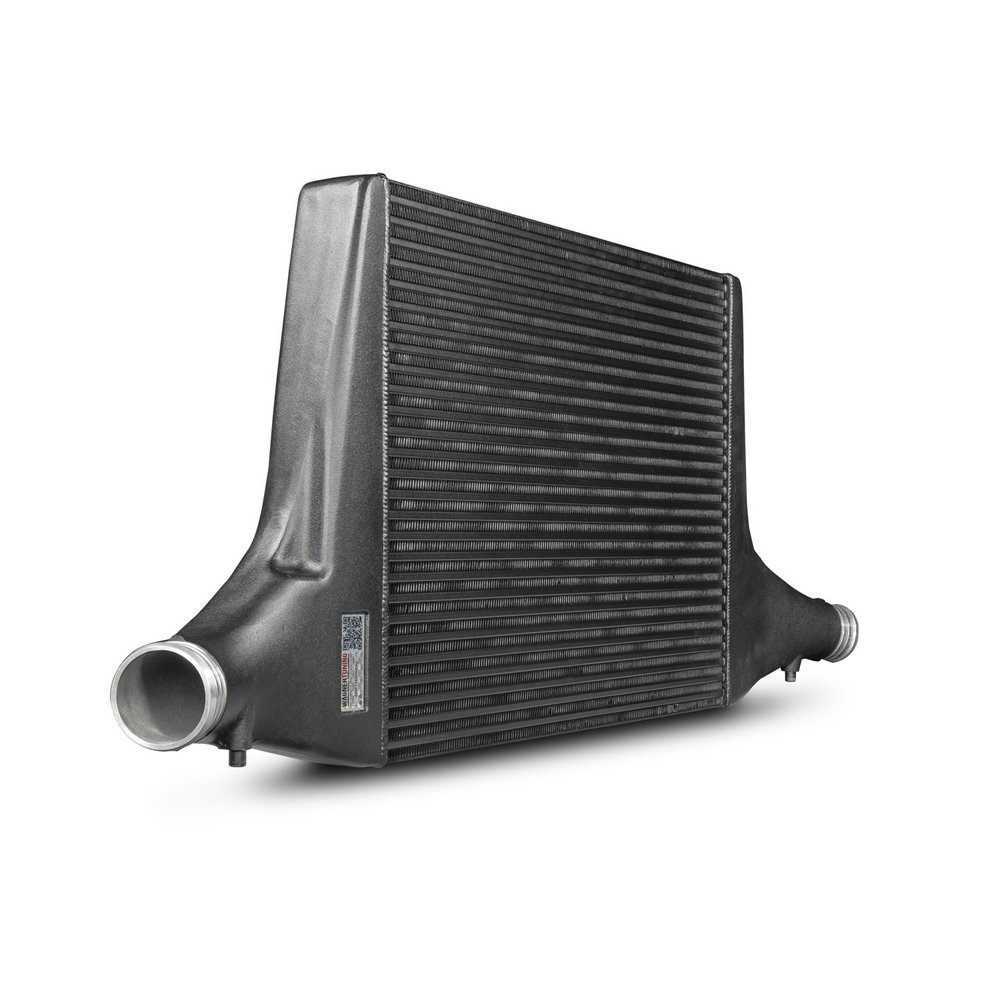

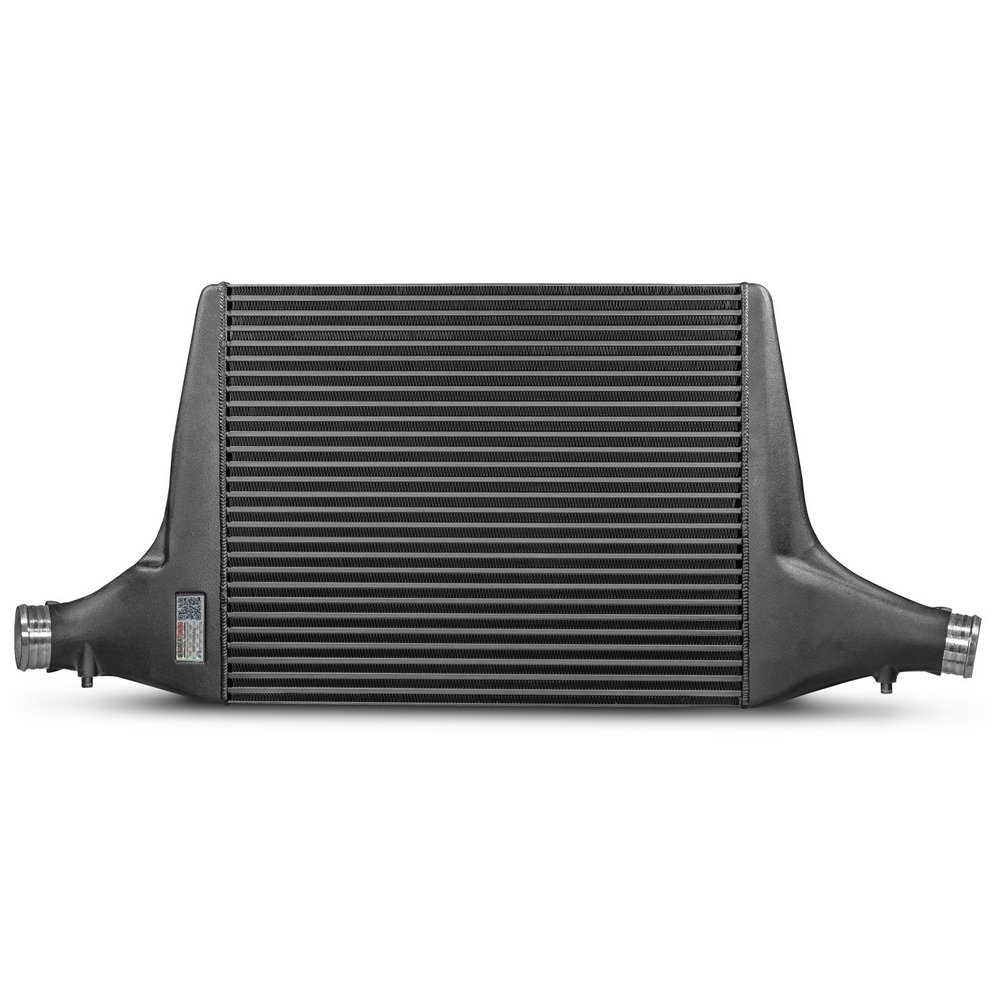

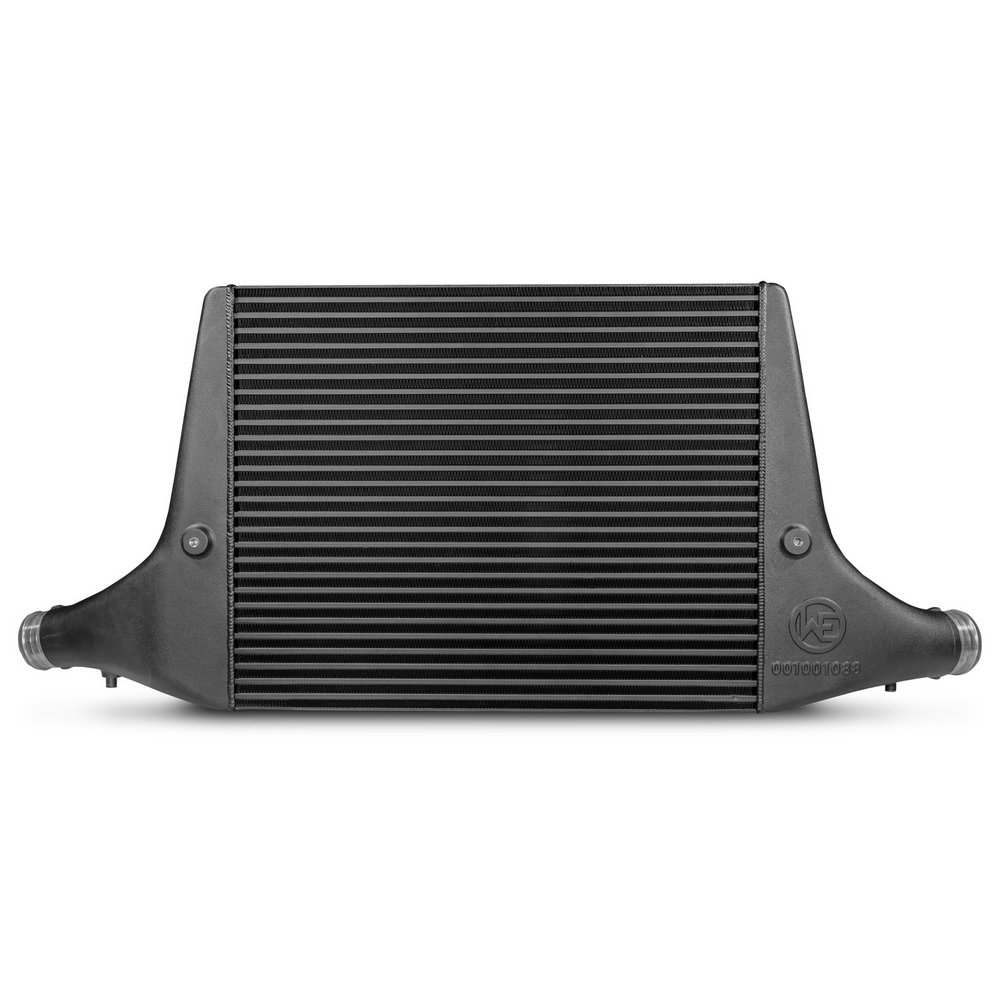

Wagner Tuning Audi SQ5 FY Competition Intercooler Kit

Wagner Tuning Audi SQ5 FY Competition Intercooler Kit

The Wagner Tuning Competition Intercooler Kit is a direct upgrade for the Audi SQ5 FY 3.0 TFSI, designed to keep intake temperatures in check when the engine is working hard. By replacing the restrictive stock unit with a much larger, more efficient core, this kit helps your SQ5 deliver more consistent power, particularly during spirited driving, track use, or in warmer conditions where the original intercooler tends to heat-soak.

Why upgrade the intercooler?

An intercooler cools the compressed air from the turbocharger before it enters the engine. Cooler air is denser, which means more oxygen, better combustion, and more reliable power. The factory intercooler on the SQ5 is adequate for standard use, but it can struggle to maintain steady intake temperatures under sustained load. Once temperatures climb, the ECU pulls timing and reduces boost to protect the engine, which leads to noticeable power loss.

Wagner Tuning’s Competition core addresses this with significantly more cooling capacity, helping the engine maintain consistent performance lap after lap, or pull after pull.

Performance and design

The Competition core measures 550 mm x 445 mm x 70 mm, offering a 134% larger flow area and 105% greater charge air volume than the original. Despite the increase in size, the unit weighs just 9.5 kg, helping to keep added mass to a minimum.

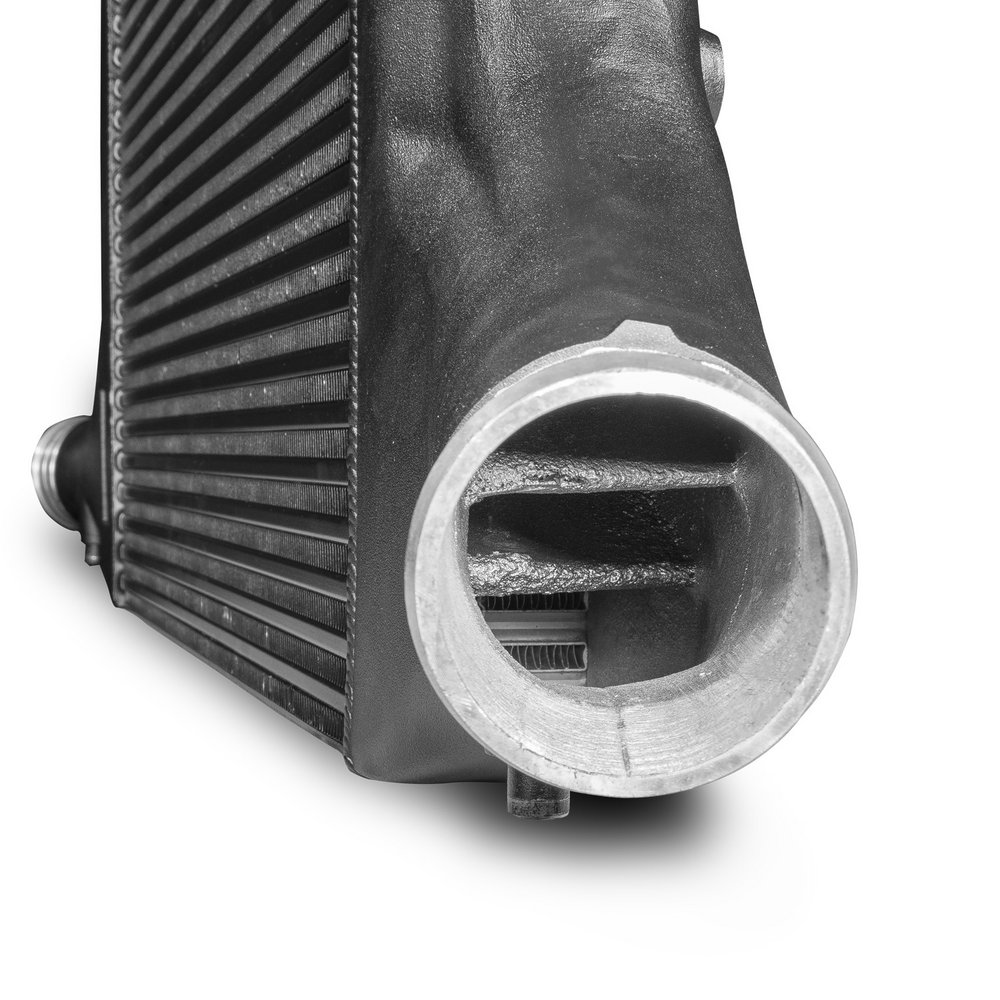

The core uses tube fin construction with internal turbulators – small features inside the tubes that disrupt airflow to improve heat transfer from the charge air to the cooler walls. The cast aluminium end tanks were CAD-designed and CFD-optimised to promote even airflow distribution and minimise pressure drop, so the upgrade improves cooling without choking the intake.

An anti-corrosion coating with good thermal conductivity is applied to protect the core while maintaining cooling efficiency. Each unit is pressure tested up to 6 bar, making it suitable for tuned and race applications.

Technical specifications

Fitment

This kit is developed specifically for the Audi SQ5 FY 3.0 TFSI (260 kW / 354 PS, 2016 onwards). Please use the site’s vehicle lookup or check the Vehicle Fitment tab to confirm compatibility with your specific model.

What’s in the kit

• 1 x Wagner Tuning Competition intercooler (black coated)
• Mounting hardware
• Installation instructions

The kit is designed as a direct replacement for the OEM intercooler, with no cutting or major modification required. Installation should be carried out by a competent technician, and we always recommend reviewing the supplied instructions in full before starting work.

Who is this for?

If you’re running a stage tune, regularly drive your SQ5 hard, attend track days, or simply want more consistent performance in warmer weather, this intercooler offers a worthwhile improvement over the standard unit. Even on a stock car, you can expect more stable intake temperatures and reduced heat-soak, which helps the engine perform closer to its potential more of the time.
