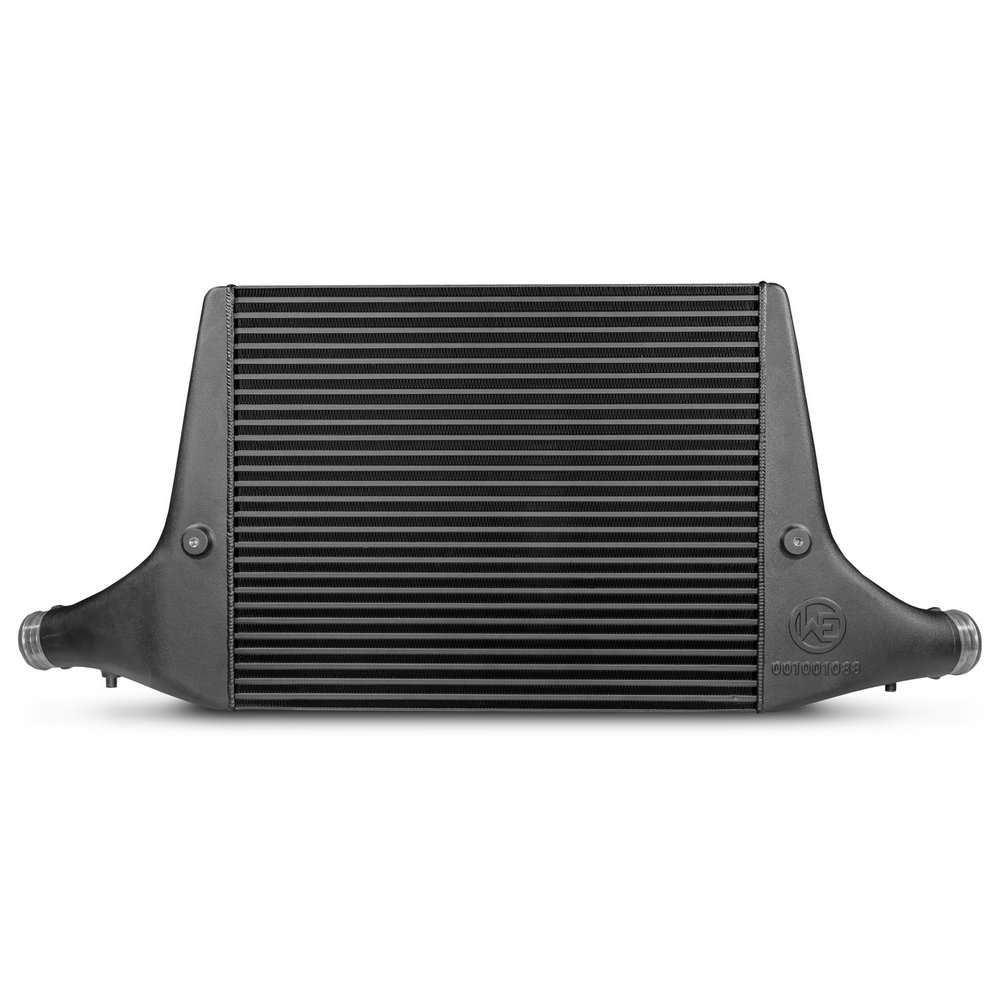

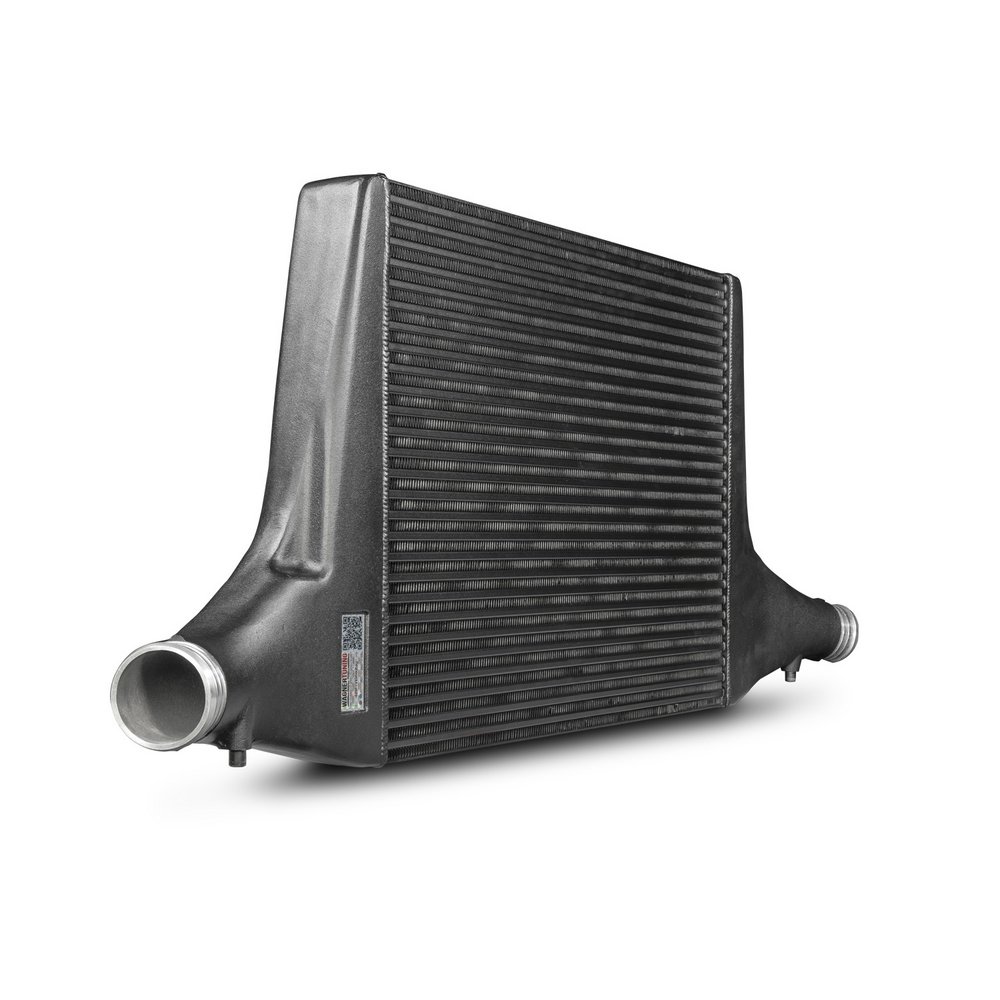

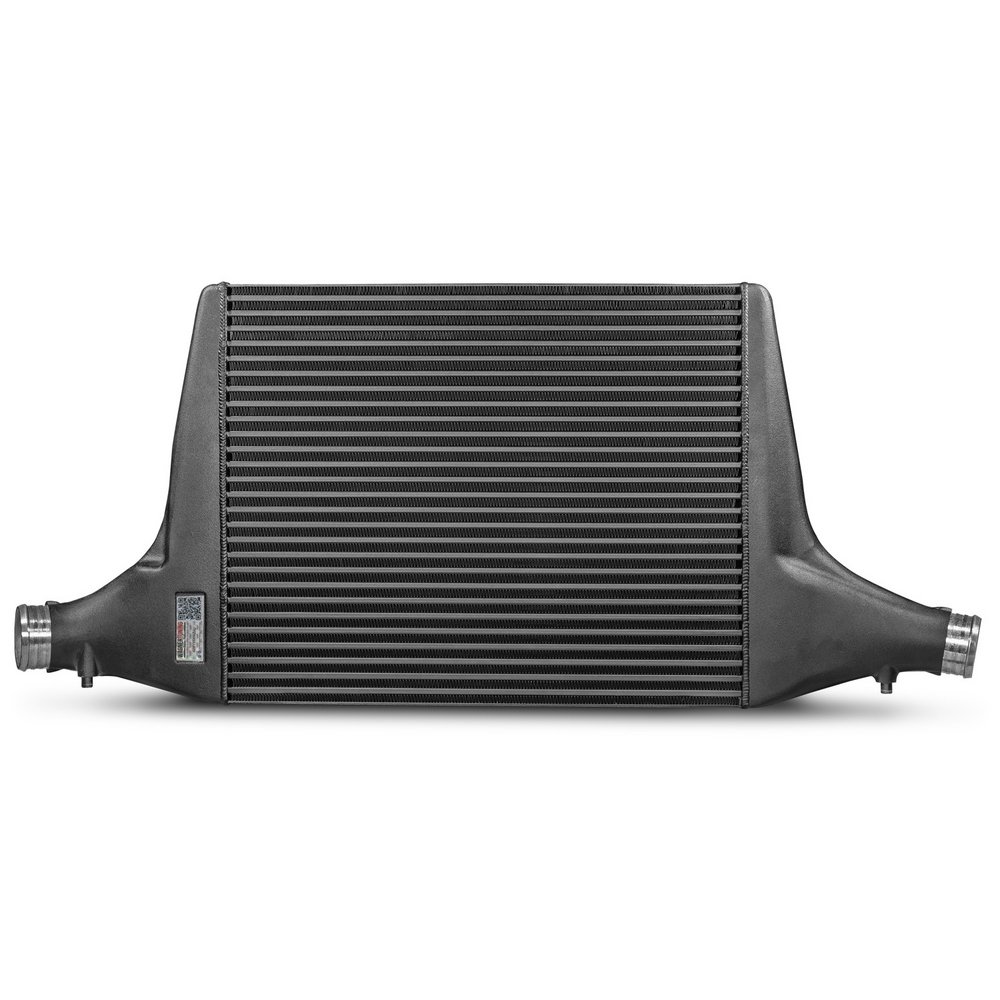

Wagner Tuning Audi SQ5 FY Competition Intercooler Bundle

Wagner Tuning Audi SQ5 FY Competition Intercooler Bundle

The Wagner Tuning Competition Intercooler Bundle is a direct upgrade for the Audi SQ5 FY 3.0 TFSI, designed to keep charge air temperatures under control when the standard cooler starts to struggle. Whether you’re running the car hard on track, towing in warm weather, or simply want consistent performance from a tuned engine, this kit gives the 3.0 TFSI the cooling capacity it deserves.

Compared to the original equipment intercooler, the Wagner core offers a 134% larger flow area and 105% larger charge air volume, which translates to lower intake temperatures, more stable power delivery, and reduced heat soak during hard or extended driving.

Why upgrade the intercooler?

An intercooler cools the compressed (charged) air from the turbo before it enters the engine. Cooler air is denser, which means more oxygen, better combustion, and more reliable power. When the standard intercooler reaches its limits, the ECU pulls timing and reduces boost to protect the engine – so you lose performance the harder you drive. A larger, more efficient core helps prevent this.

Core design and construction

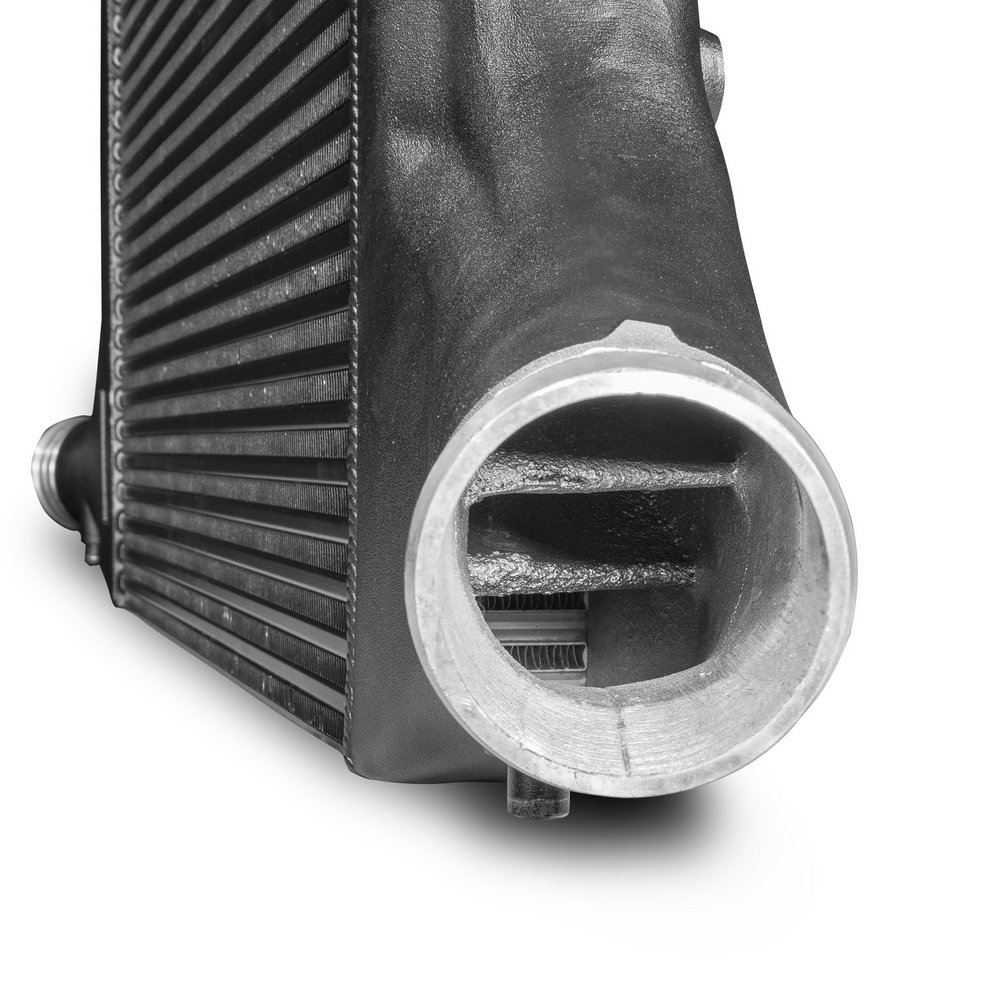

The Competition core uses a high quality tube fin design with internal turbulators, which improve heat transfer by mixing the air as it passes through. The cast aluminium end tanks were developed in CAD and refined using CFD flow analysis, giving smooth airflow with minimal back pressure – so you gain cooling without choking the turbo.

An anti-corrosion coating protects the core while still allowing efficient heat dissipation, and despite the much larger size the unit weighs in at just 9.5 kg. The complete assembly has been pressure tested up to 6 bar.

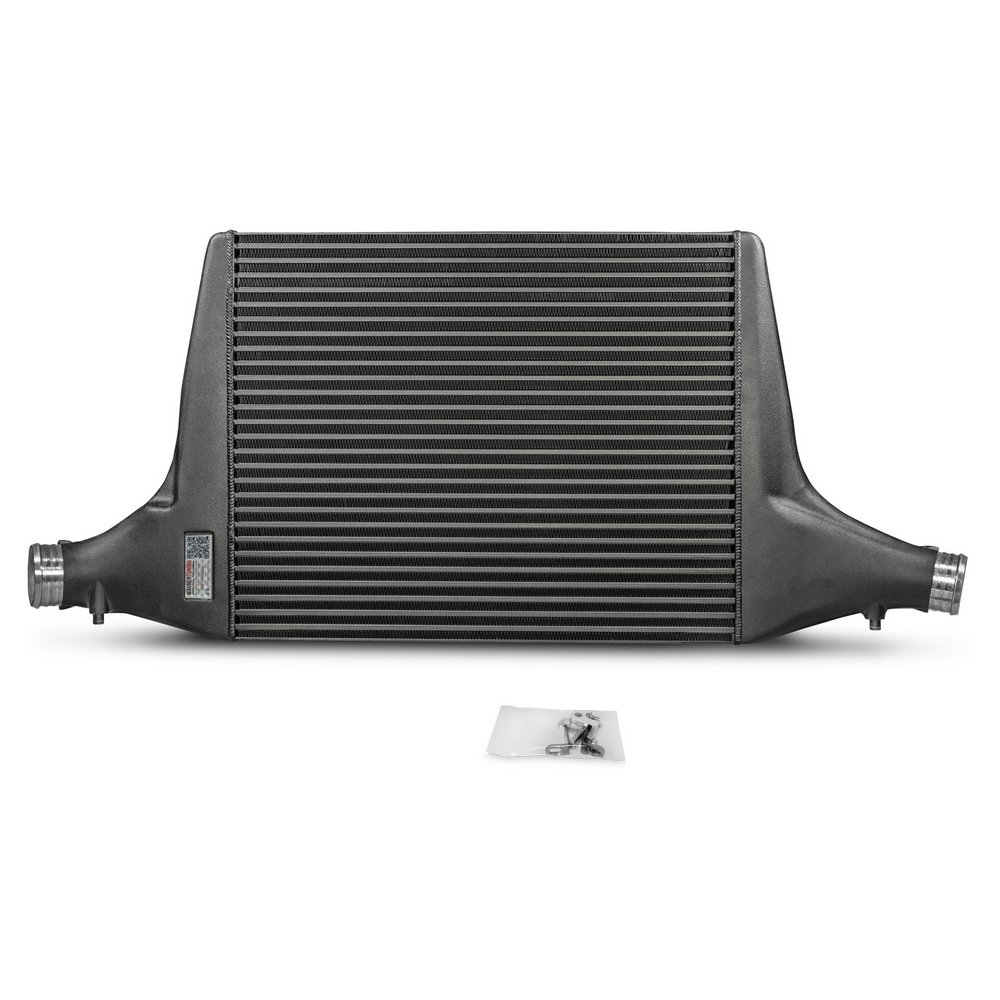

What’s in the bundle

• 1 x Competition Intercooler (black coated)
• 1 x Ø65mm aluminium charge pipe
• Mounting hardware
• Installation instructions

The bundled aluminium charge pipe replaces a restrictive section of the standard pipework, helping airflow keep pace with the larger intercooler for a more complete upgrade.

Technical Specifications

Fitment

This bundle is designed specifically for the Audi SQ5 FY 3.0 TFSI (2016 onwards). Please use the vehicle lookup tool or check the Vehicle Fitment tab to confirm compatibility with your exact model before ordering.

Installation

The kit is supplied as a direct replacement for the factory intercooler and charge pipe, with no cutting or permanent modification required. Standard hand tools and a methodical approach to front-end removal are all that’s needed – follow the supplied instructions for best results.
