VIS Motorsport High Pressure Fuel Pump Internal Upgrade Kit – Audi C7 RS6/RS7 4.0 Twin Turbo EA824 V8

Unlock the true power of your vehicle with our high-performance fuel pump internal upgrade kit. Designed specifically for the Audi 4.0L TFSI (EA824) engine, this kit is a must-have for anyone looking to push their car to the next level. Whether you’re building a “big turbo” monster or simply want to optimize your stock setup, our upgraded pump internals deliver the extra fuel flow you need.

Key Features & Benefits

• Boost Fuel Pressure: Our internals are engineered with 20% more surface area, allowing for up to 10 bar of additional fuel rail pressure. This directly translates to more horsepower, even on a stock setup without a software upgrade.
• Built for Power: Capable of handling over 150 bar of pressure, this kit is ready for high-demand applications and big turbo builds.
• Precision Engineering: Each piston head is optimized for ideal fuel flow direction and undergoes a two-stage hardening and heat treatment process for maximum durability.
• Enhanced Traceability: A unique laser marking on each component provides better traceability and protects against counterfeit products.

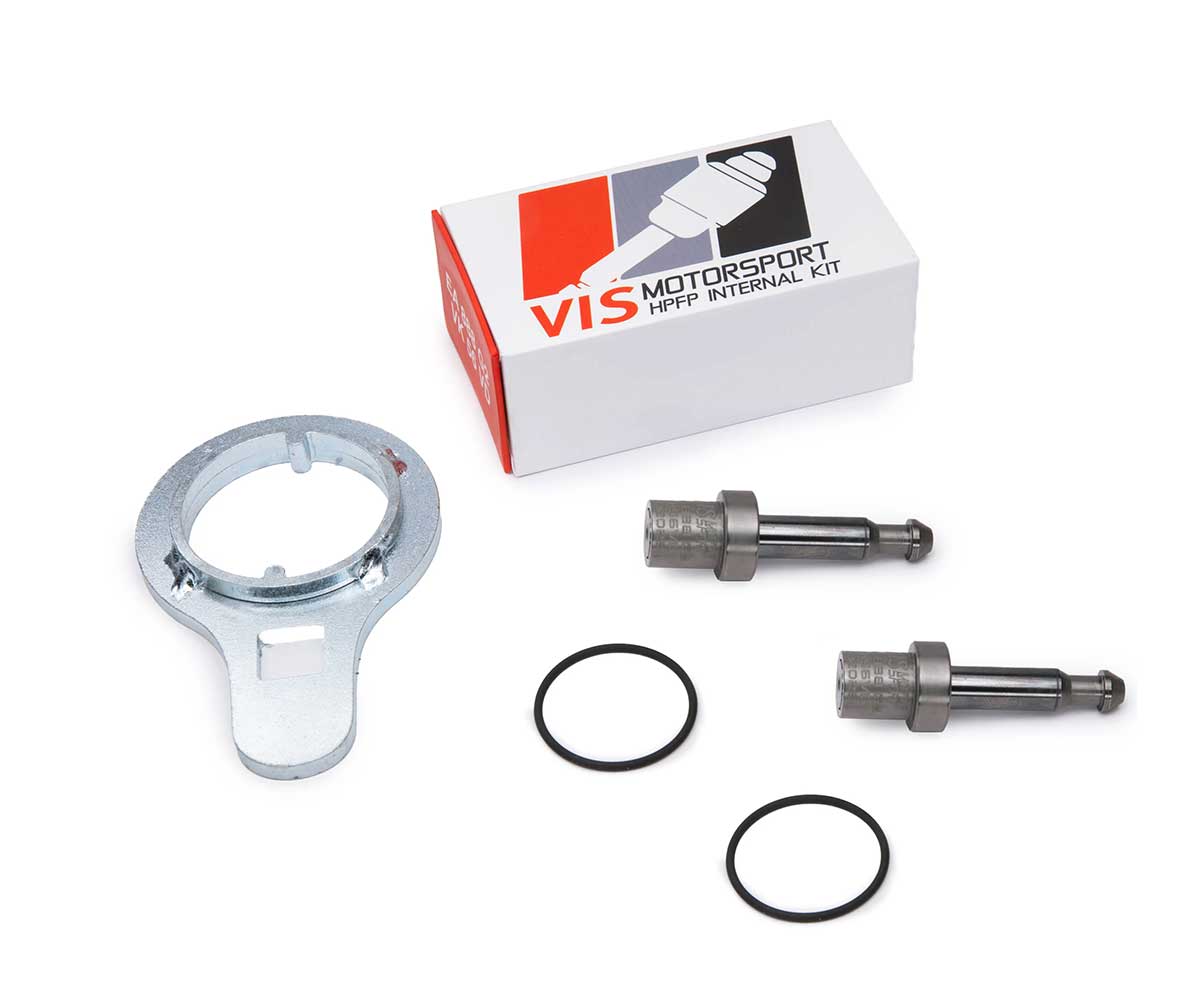

• Complete Kit: This kit includes all the parts you need—one set of internals for each of the two high-pressure fuel pumps on your engine, along with a specialized installation tool to make the job easier.

Technical Specifications

• Piston Clearance: 0.001-0.00015
• Circularity Deviation: Max 0.001mm
• Material: 34mocr11 STAS 791-1988 special aged steel
• Hardness (after nitriding): 760-860 kgf/mm²

Vehicle Fitment

This high-performance kit is compatible with the following vehicles and engine codes:

• Audi A6 / S6 / RS6 C7 | 2011-2018: 4.0L TFSI (EA824) | CEUC, CRDB, CTGE, CWUC
• Audi A7 / S7 / RS7 C7 (4G) | 2010-2018: 4.0L TFSI (EA824)
• Audi A8 / S8 D4 (Typ 4H) | 2009-2017: 4.0L TFSI (EA824)

VIS Motorsport Product Disclaimer

Modifying your vehicle’s fuel system changes its operational parameters and may cause damage to the fuel system, engine, or drivetrain, and could also void your factory or aftermarket warranty. All VIS Motorsport parts are intended for racing purposes only and should not be used on any street-driven vehicle. Some products may not be legal for sale or use on pollution-controlled motor vehicles.

Before installation, inspect the existing camshaft lobe and follower for wear. If worn, the camshaft must be replaced, and it is strongly recommended to replace the follower with a new part where applicable. We will not accept claims for improper installation, camshaft or follower failures, or any resulting damage to the fuel pump, engine, or automobile.

All warranties of any kind are expressly disclaimed. By installing this part, you accept such risks and waive any and all claims against our company for personal injury, property damage, or damage to the product itself.
