Verkline Mitsubishi Lancer EVO VII-IX Front Tubular Wishbones – WAS-903-904

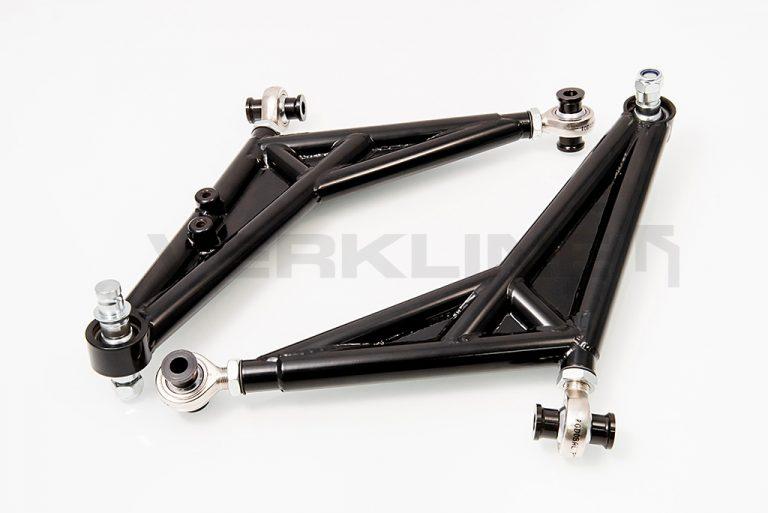

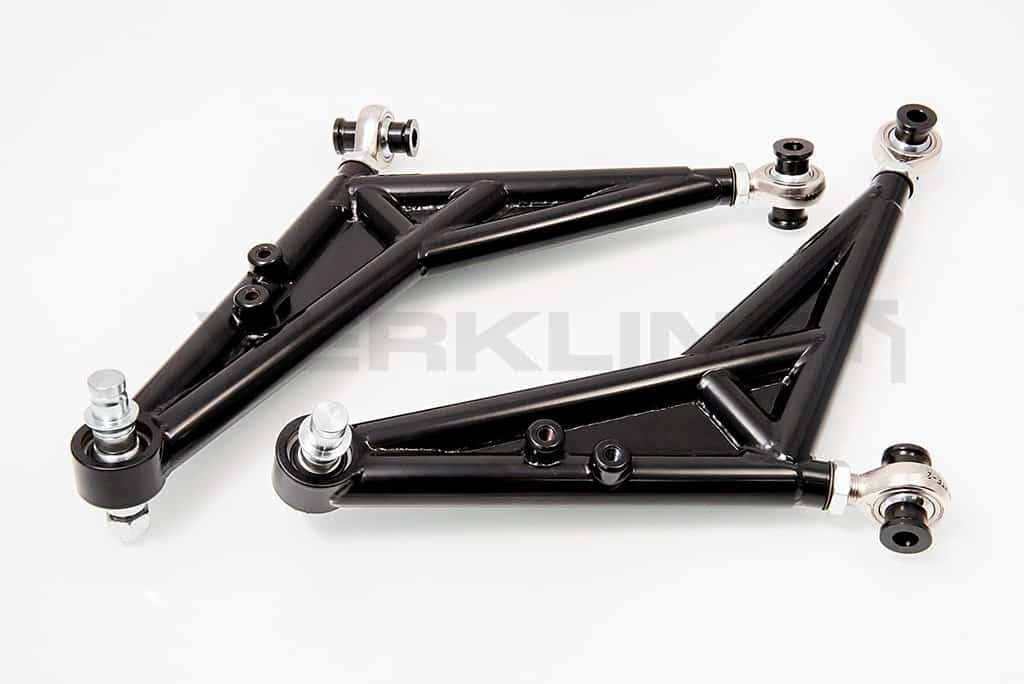

The kit consists of all the parts visible on the pictures
- Front light weight tubular wishbones (left + right)

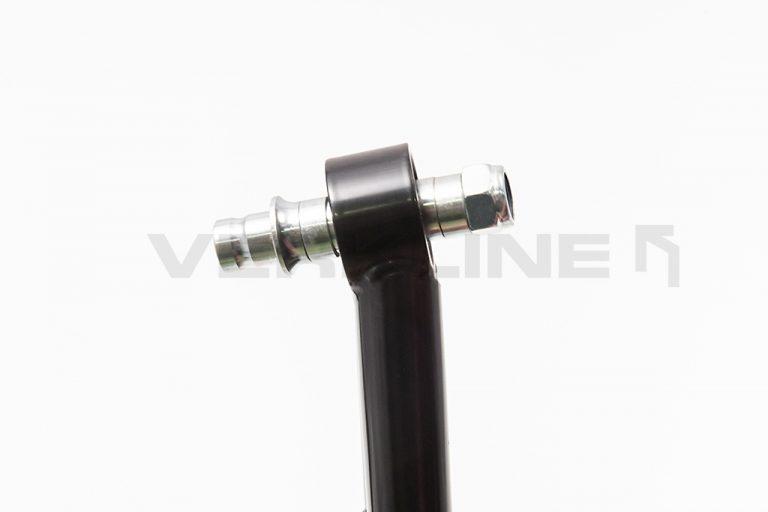

- Two adjustable pins for uprighs
- Four M18 motorsport rod ends same as used by Rally Art. They are made in Europe, not in China
- Four M18 half size screw locking nuts
- Four spacer sleeves for assemble of the rod ends in the front subframe
- Two M22 teflon lined spherical plain motorsport bearings vibration/resonance resistant
Features
- Comes preassembled ready for fitment in the car
- Pin is tilted to allow more suspension travel
- Allow increased caster and camber adjustment
- Can be used with standard front subframe
- Greater strength over OEM wishbones
Technical details
- Full 3D CAD designed
- FEA Tested and additional reinforcement to the original design was made
- Manufactured from T45 tubing and S355 steel
- All pins made from C45 and Galvanized Silver
- Tig Welded
- OEM wishbone weight is 3.10 kg. Our wishbones are 2.95 kg but provide much more rigidity.
- Wishbones are powder painted in black as standard.
