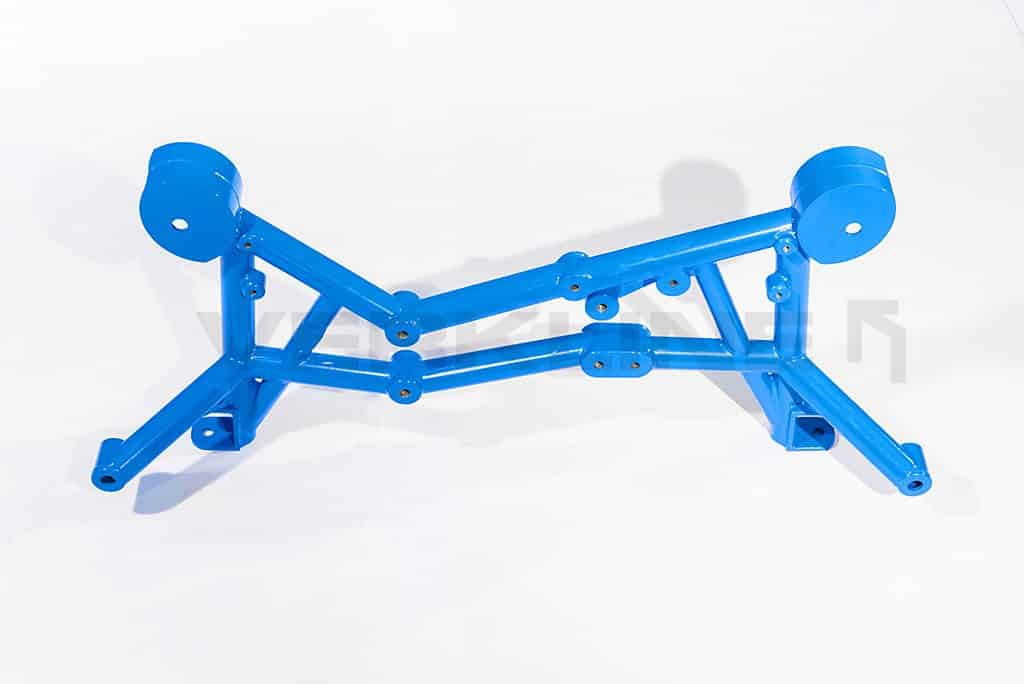

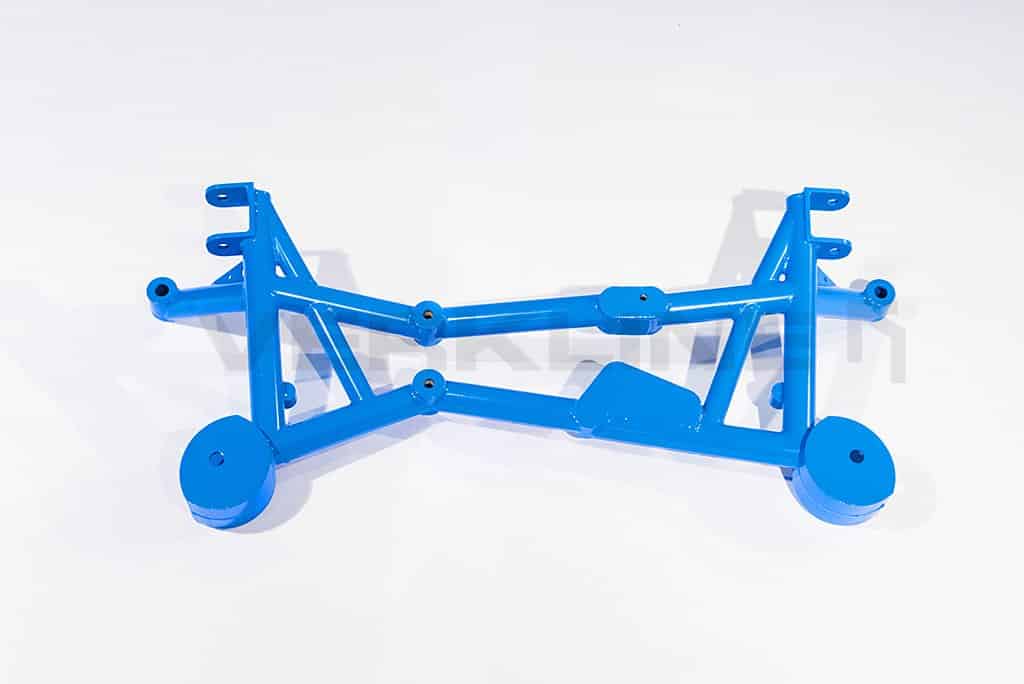

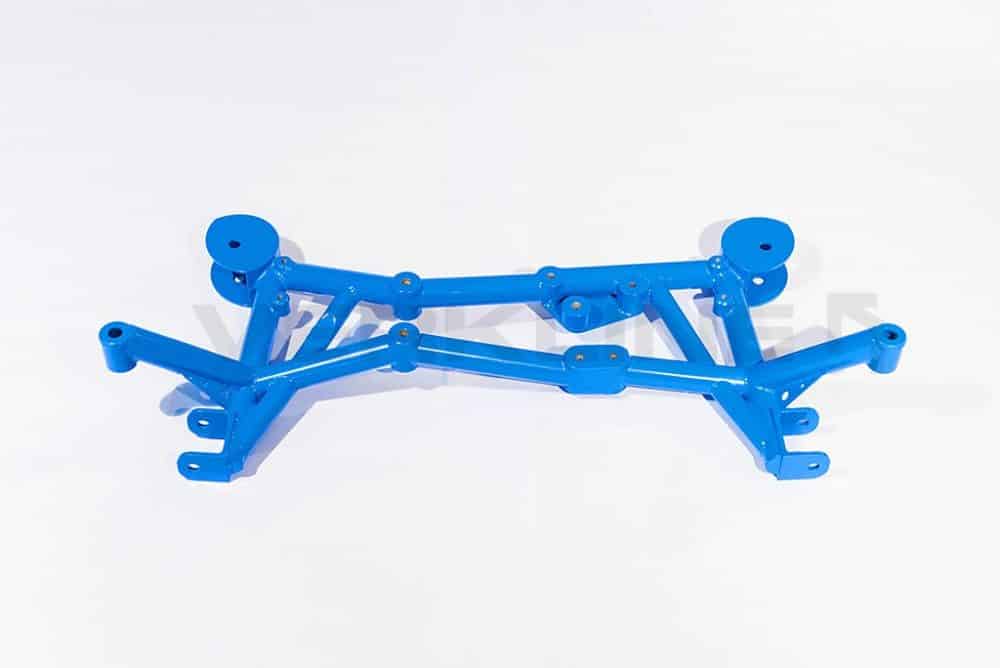

Verkline Mitsubishi EVO VII-IX Tubular Front Lightweight Subframe – WAS-901
The kit consists of
- Front Light weight Tubular Subframe for LHD cars. RHD version also available on request.
- Two aluminium mounts for steering rack
- Three steel mounts for steering rack
Technical details
- Mountings to the chassis using are on standard attachment points
- Full 3D CAD designed
- FEA Tested and additional reinforcement to the original design was made
- Manufactured from T45 tubing and S355 steel sheets
- Tig Welded
- Front tubular subframes provide saving of 5 kg on the car over same OEM components. The subframes weighs 8.45 kg.
- Was developed in close cooperation with 7motorsport
Front subframe is not compatible with Whiteline 26mm front anti-roll bar.
Image is for illustration purposes only Subframes are powder painted in black as standard
