Vektor Digital Display Gauge for VW Mk7 Golf
An awesome boost gauge and other application display for Volkswagen Mk7 Golf models. The data display fits into all Golf 7 models. From 1.0 TSI to R, from 1.6 TDI to GTD. All body styles, pre-facelift and facelift.

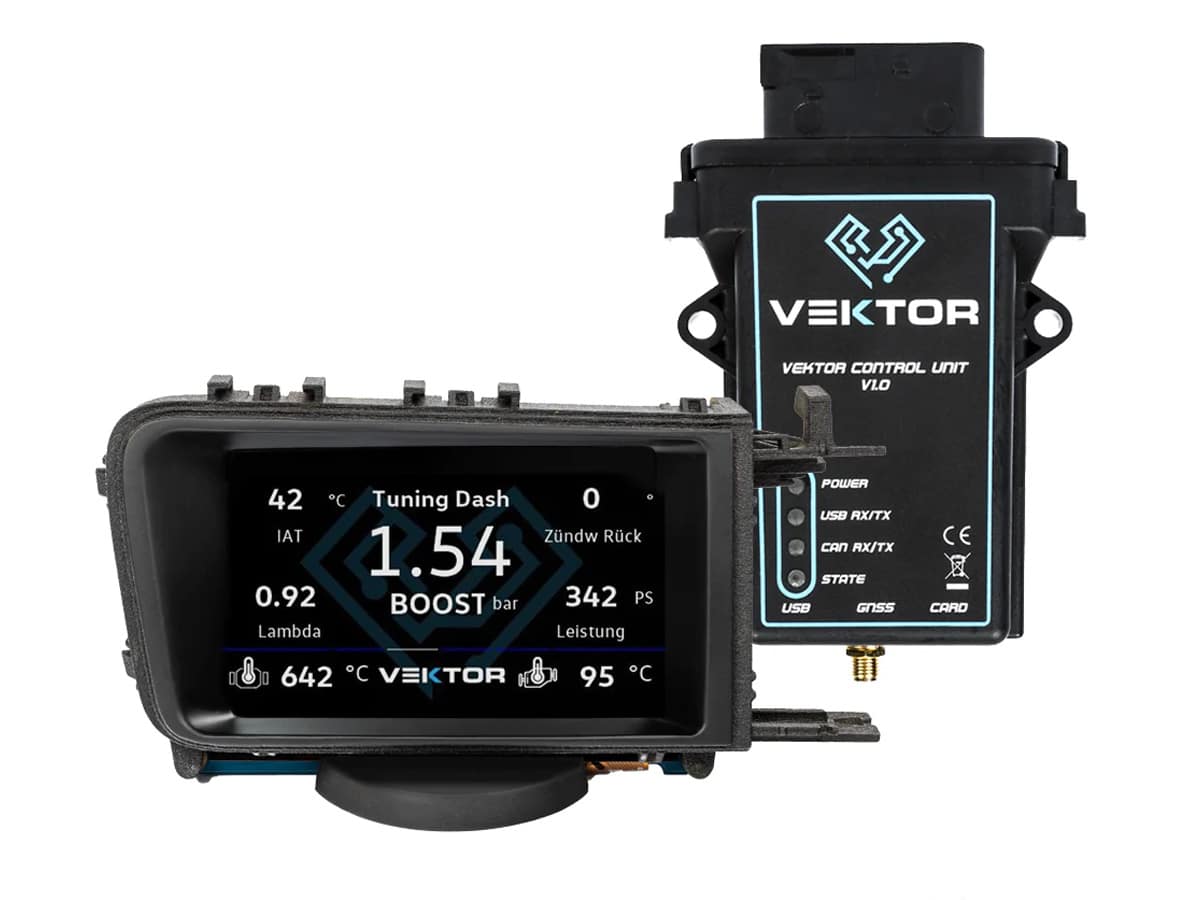

The VCU – Vector Control Unit – controls all functions of the data display. We offer a variety of internal sensors and interfaces and thus have optimal control over all vehicle-relevant data. The vector data display can be operated either by touch or the steering wheel buttons. We use a capacitive 4.3″ multi-touch display to make operation as easy and pleasant as with your smartphone. If desired, you can get haptic feedback directly from the display via every touch input.
Features

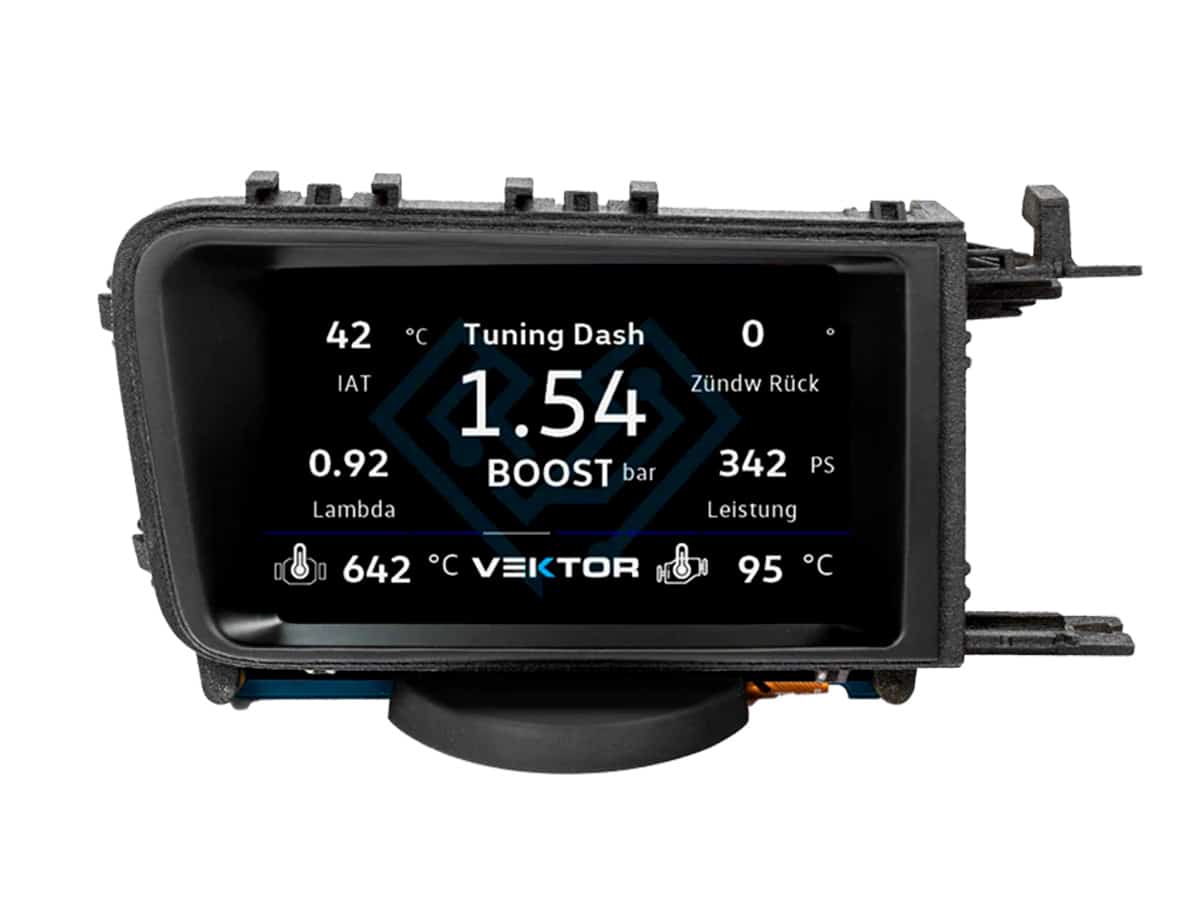

- Dashboard [LITE/PRO] – Here you will find all the important facts and figures about your engine. On several pages you can find out the current boost pressure, speed, temperatures and more.

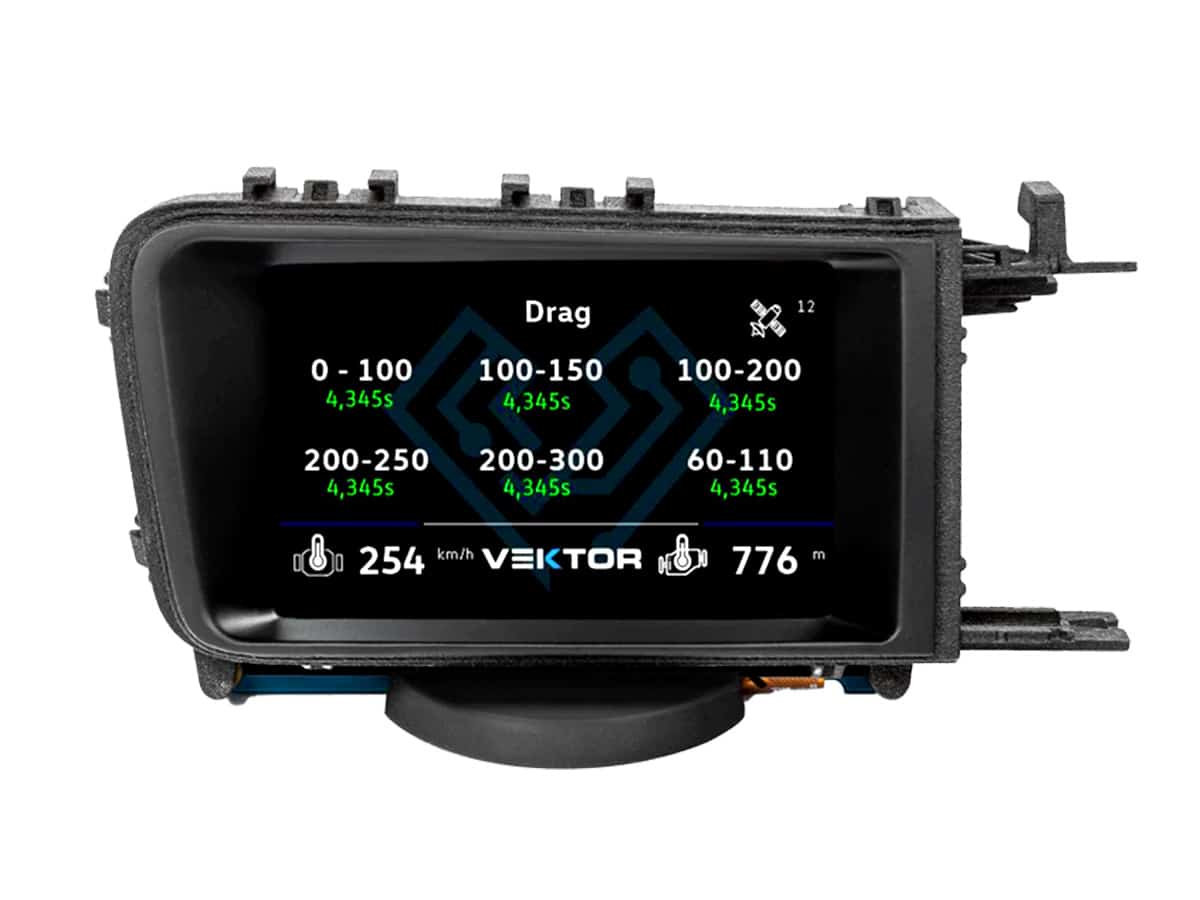

- Timepieces [PRO] – Capture your car’s acceleration more accurately than ever before. With the help of the integrated 30 Hz GNSS chip and a Dead Reckoning Sensor Fusion, you can experience ultra accurate acceleration of your car.
- Encoding [PRO] – US parking light, seat belt reminder, start-stop deactivation or pointer deflection code without complicated software? Here you can do it with just one touch in a few seconds.
- Fault memory [PRO] – Read and delete the fault memory in any ECU, conveniently, quickly and easily – without a computer or other hardware.
- Service Features [PRO] – Resetting the service intervals for oil, brake and maintenance as well as deleting the adaptations of engine and transmission. We have also integrated Service Mode for the electronic parking brake.

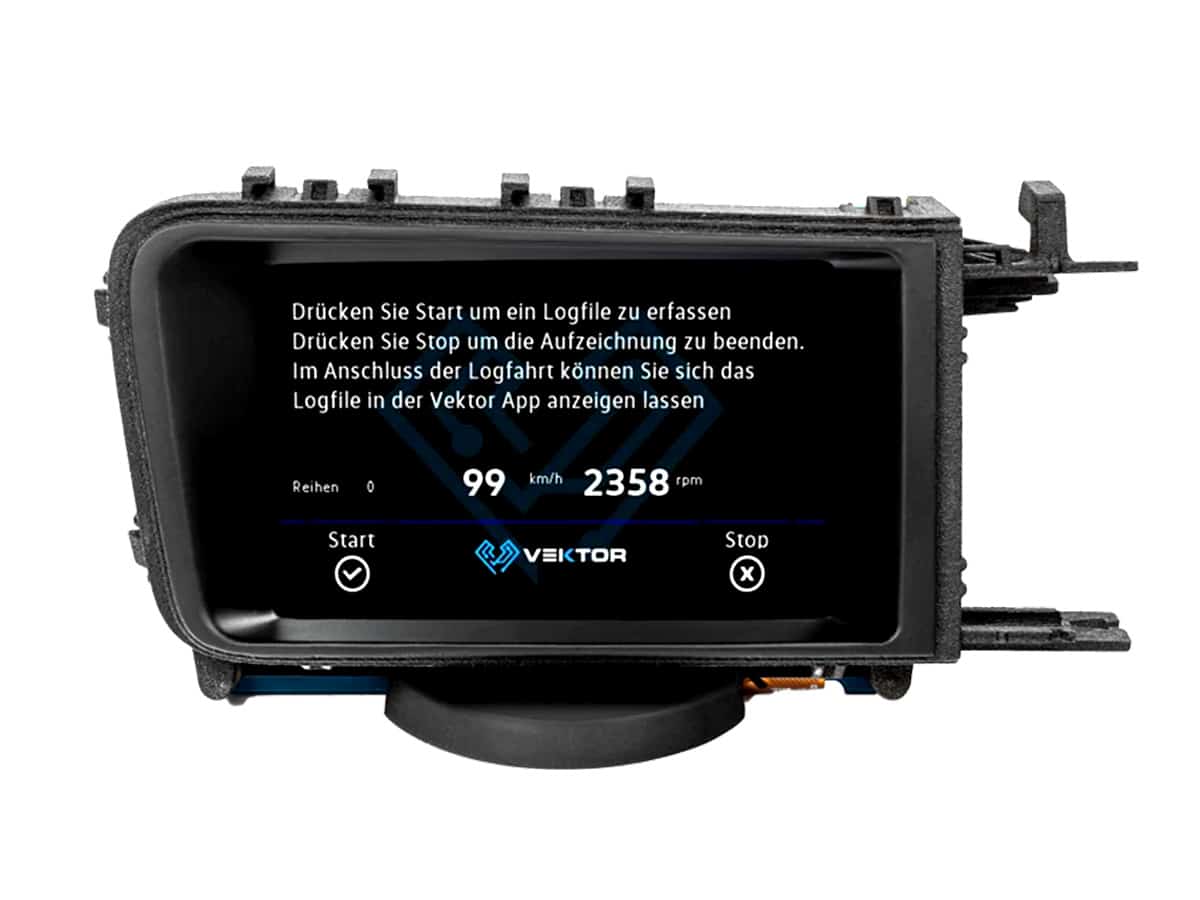

- Data Logger [PRO] – With the help of the data logger, you can create log files in no time at all. For example, send them to your tuner via email or Whatsapp for direct diagnosis. As soon as our app is launched, you can also analyse the log files there.
LITE has the dashboard function, PRO has all of the features above. An upgrade can be purchased at a later day for the LITE to have PRO features apart from the GNSS functionality.
Which kit do I need?
- LITE – No GNSS. Dashboard display only, upgradable post-purchase to other features, apart from GNSS.
- PRO – GNSS and all functions.
- Separate Antenna – For cars without compatible factory nav, aftermarket nav or no factory nav.
- Factory Navigation – For cars with compatible factory navigation
Technology
GNSS Performance Meter
We use a 30Hz GNSS multiband (GPS, GLONASS, GALILEO) sensor for exact acceleration measurement. Through dead reckoning and sensor fusion of gyroscope and accelerometers, we can perform a very accurate location determination.

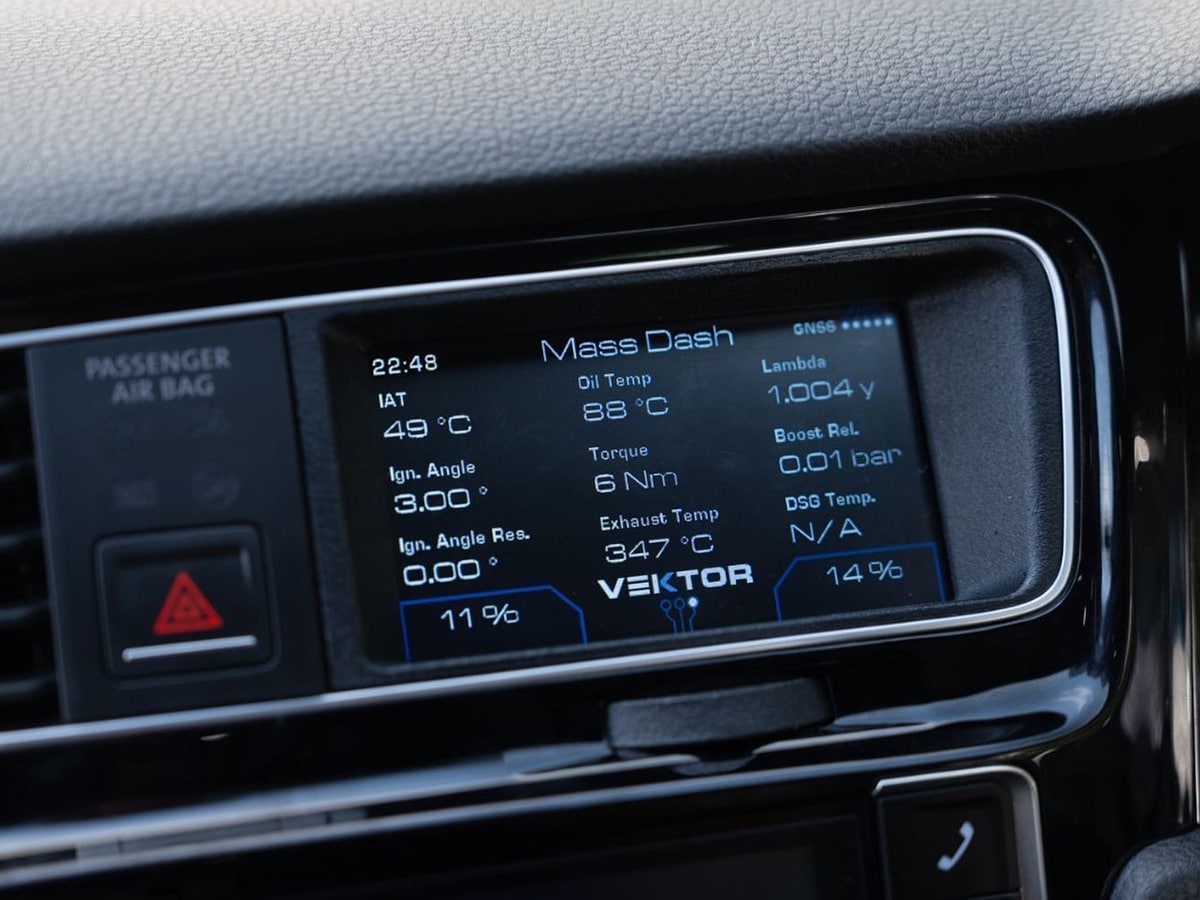

20 channel dashboard
Thanks to high-speed CAN integration, we are able to read a large number of sensors simultaneously from your car and display their values in real time.
Easy Install
No cutting, soldering, or pinning. The supplied wiring harness is simply plugged between the CAN gateway and the car.
You can remove and reinstall the panel without damage with the supplied tool.
You can update both the vector control unit and the data display via the PC software and get new functions. An app is in development.
