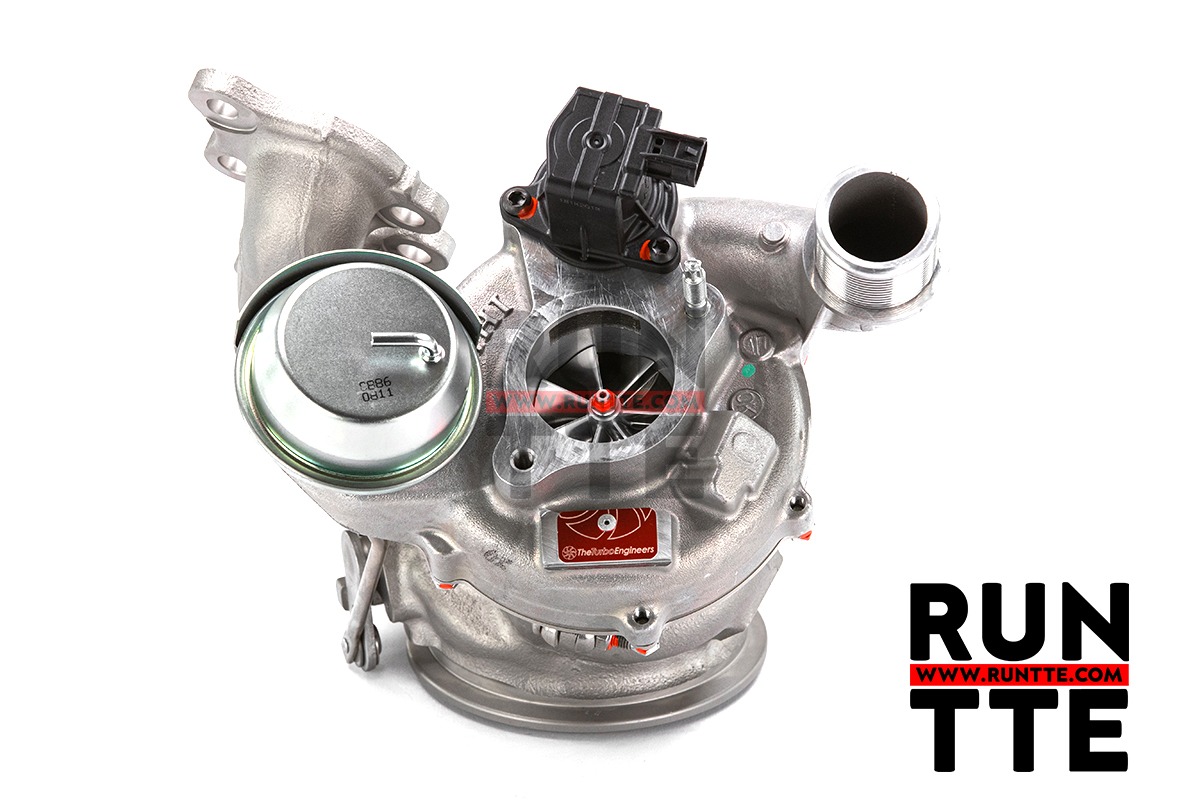

The turbo engineers tte400 g16e-gts toyota gr yaris upgraded turbocharger - tte10423
The turbo engineers tte400 g16e-gts toyota gr yaris upgraded turbocharger - tte10423 - image 2
The turbo engineers tte400 g16e-gts toyota gr yaris upgraded turbocharger - tte10423 - image 3

The Turbo Engineers TTE400 G16E-GTS Toyota GR Yaris Upgraded Turbocharger – TTE10423

Price range: £1,488.06 through £6,134.23

Select a product option to display live stock information
Klarna
3 payments of £496.02/mo example 0% APR
Clearpay
4 payments of £372.02/mo example 0% APR
Dopple
Compare 6, 12 and 24 month payment options from 16.9% APR
18+, T&C apply, Credit subject to status. Advanced calculator available at checkout.
SKU: TTE10423-PAR Categories: , , , , PP-PC-20

Toyota GR Yaris TTE400 (G16E-GTS) Hybrid Turbo

Engineered & Enhanced

To construct a TTE400 G16E-GTS we change the original compressor and employ a far larger and more efficient billet wheel and mill the compressor cover to an optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger lightweight turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.

The TTE turbine is a special turbine designed by TheTurboEngineers.  Advantages are larger diameter for greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

 Product Highlights

  • Original IHI turbocharger as the base parts
  • Original Genuine actuator
  • Original Genuine diverter valve
  • TTE Billet Milled compressor 7+7 Blade
  • TTE High-Flow Turbine
  • TTE Reinforced bearing pack
  • Plug & Play installation
  • Upto 400 HP
  • Proven TheTurboEngineers quality
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Made in Germany
Brand

TTE10423-PAR Confirmed Fitment

Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions

TOYOTA (1 Model)
YARIS (_P21_, _PA1_, _PH1_) 1.6 GR 4WD (GXPA16) (G16E-GTS) | 261hp
Petrol 1618cc | Hatchback | 2020 - 2025
