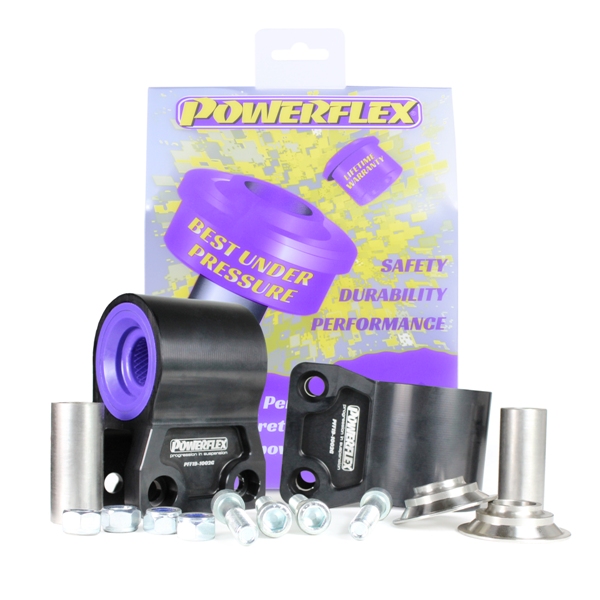

Powerflex Road Series Front Wishbone Rear Bush Anti-Lift & Caster Offset (2 Required) – PFF19-1002G

Powerflex Road Series Front Wishbone Rear Bush Anti-Lift & Caster Offset – PFF19-1002G

The PFF19-1002G Powerflex Road Series Front Wishbone Rear Bush Anti-Lift & Caster Offset is designed to enhance your driving experience by adding 1 degree of caster offset. This modification increases the tyre contact area, providing greater feedback to the driver, improved traction, and enhanced stability. The increased caster angle adds weight and detail to the steering, which is crucial for driver confidence, allowing your Focus to corner with more urgency, significantly improved grip, and reduced understeer.

Focus ST and RS owners often experience torque steer, but our new part addresses this by providing anti-lift and caster offset to improve handling characteristics. Proven and tested on both road and track, the PFF19-1002G ensures a superior driving experience.

Starting from a 6082 T6 heat-treated solid billet of aluminium, our CNC machining centre and 4th axis shape the material into a unique design, which is then hard black anodized and engraved. This process ensures the part has the best strength-to-weight ratio and an appealing look. The PFF19-1002G also includes CNC machined stainless steel thrust washers to enhance braking stability.

Available in our Purple Shore 80A Road Series material, the PFF19-1002G is 10% stiffer than the original rubber bush. For those seeking a Track/Competition option, our Black Series Shore 95A material is 85% stiffer than the original.

Technical

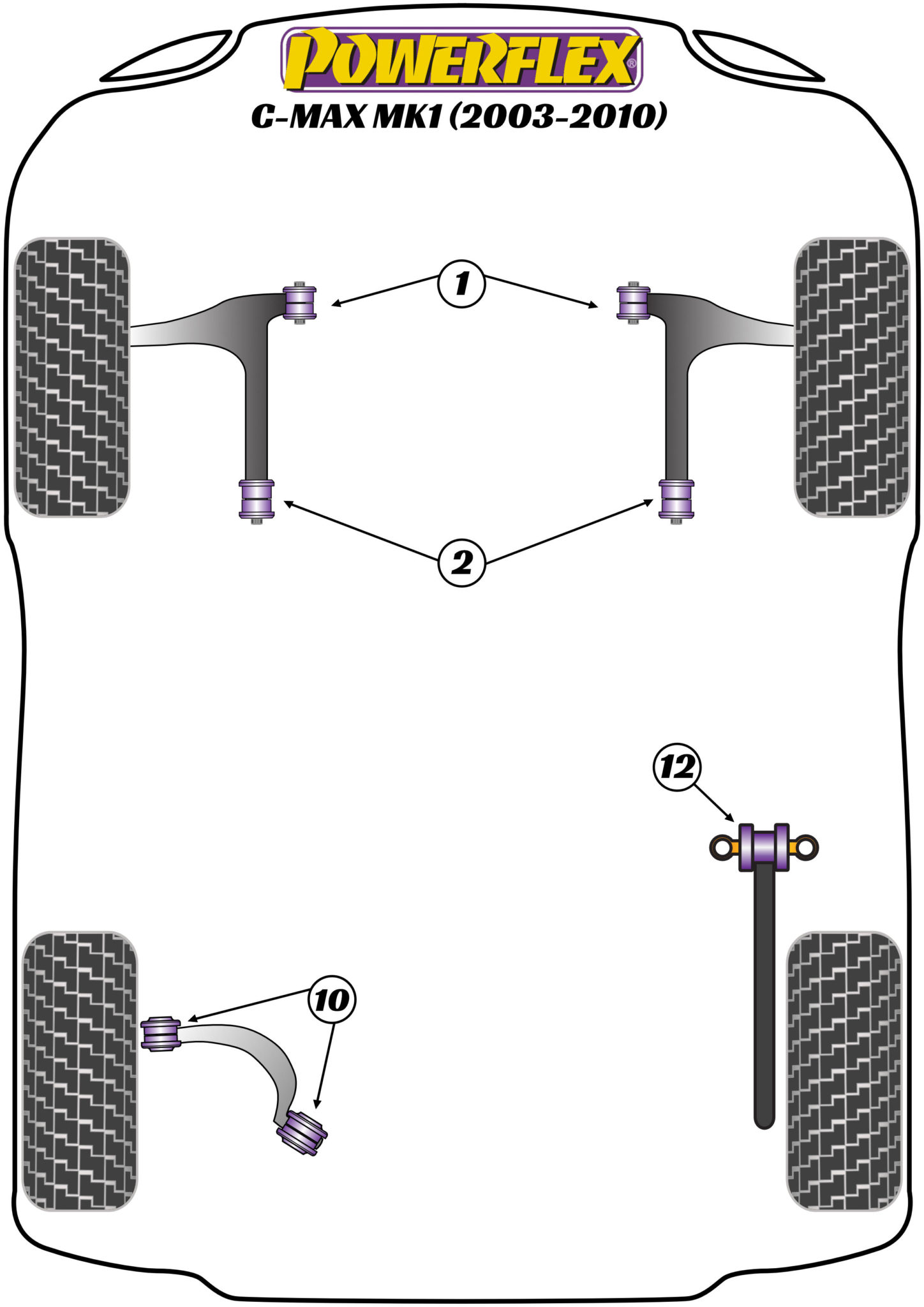

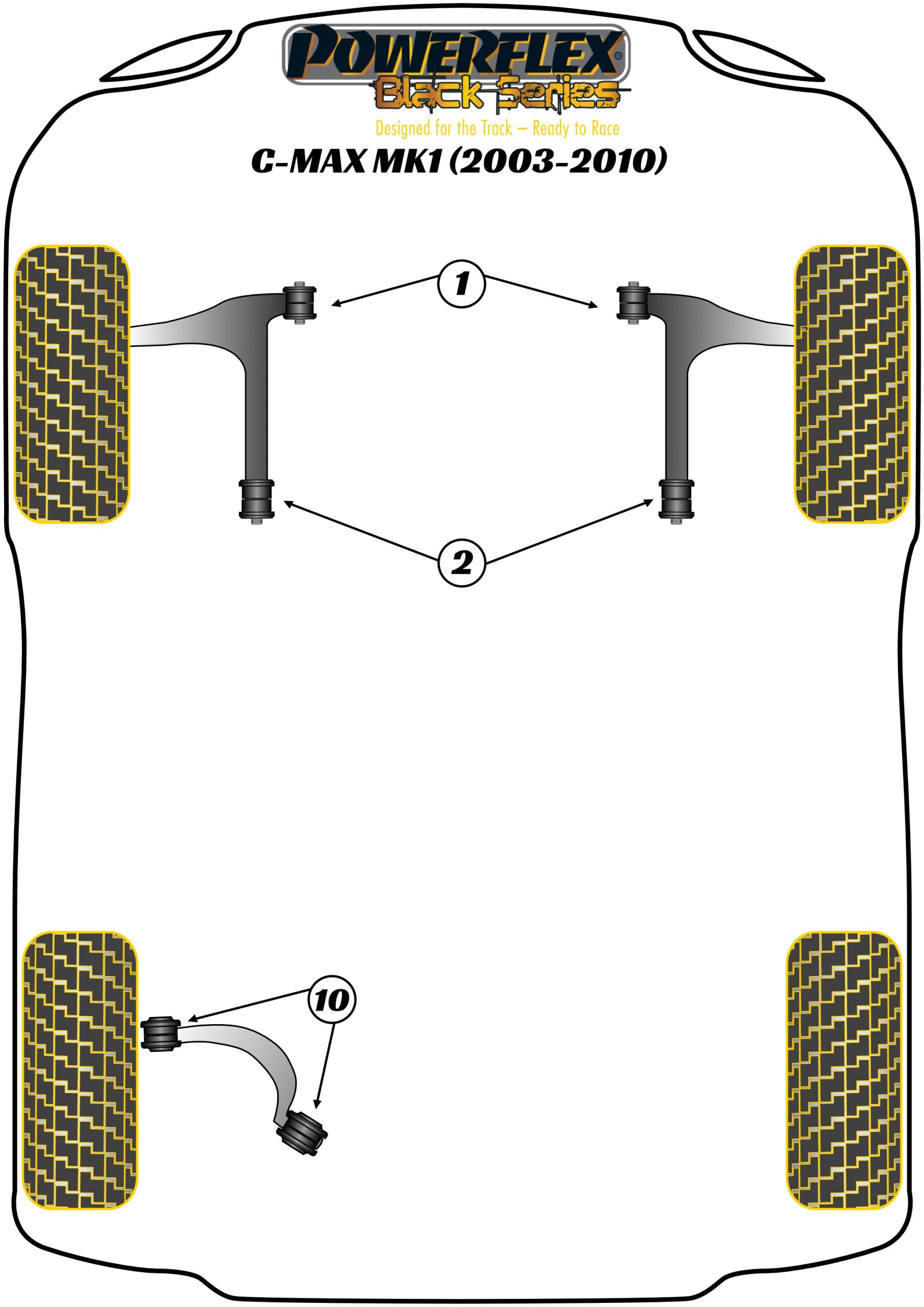

• Diagram fitting position (see product image): 2
• Quantity required: 2
• Included in pack: 2
• Powerflex series: Road

OEM Cross-reference

1883046 / 1866070 / 1866072
B32H34250ES4
31277464SK3

Focus ST and RS owners are all too familiar with the commonly reported torque steer effect of their vehicles. Our new part provides anti-lift and caster offset to improve handling characteristics and has been proven and tested on road and track.

PFF19-1002G adds 1 degree of caster offset for a greater tyre contact area, which, in turn, provides greater feedback information to the driver, improves traction and offers greater stability. The increased caster angle produces more weight and detail to the steering which is vital to driver confidence, allowing your Focus to corner with more urgency, significantly improved grip and reduced understeer.

Starting out as a 6082 T6 (heat treated) solid billet of aluminium, our CNC machining centre and 4th axis shape the material into our unique design which is then hard black anodized, followed by an engraving process. By machining from a solid billet, we ensure our part has the best strength to weight ratio and looks great too. PFF19-1002G ships with CNC machined stainless steel-steel thrust washers to enhance braking stability.

In our Purple Shore 80A Road Series material, PFF19-1002G is 10% stiffer than the original rubber bush, whilst our Black Series Shore 95A material is 85% stiffer than the original for those looking for a Track/Competition option.

POLYURETHANE SPECIALISTS
UK AUTHORISED DEALER

SUSPENSION PERFORMANCE

A wealth of experience derived from years working within race environments.

POLYURETHANE SPECIALISTS

Lightweight and strong, the cornerstone for all materials used in our performance parts.

LIFETIME WARRANTY

On the entire range of Powerflex products, confidence in quality.

Why Polyurethane Bushes?

Suspension bushes are some of the most highly stressed components fitted to a motor car. They undergo enormous strains and in the most arduous of conditions with no maintenance or lubrication.

The material they are manufactured from is a rubber compound containing natural products that deteriorate with age. It becomes softer and more pliable, resisting the forces placed on it less and less. Therefore allowing more and more movement of suspension components and offering less and less control over the suspension geometry.

This in turn causes accelerated tyre wear, braking instability, and poor handling. This is the single biggest reason you can instantly tell the difference driving a three-year-old car compared to a showroom new one. However, even new cars will benefit from POWERFLEX bushes because of the superior design they offer much more effective control of the suspension components to a much greater extent than normal rubber items.

With the technological advances in this material, it has been possible to overcome the common problem associated with harder bushes which is increased noise. By correctly engineering the polyurethane compound, bushes can be made 25-30% stiffer than new rubber items but with exactly the same noise absorbing properties.
