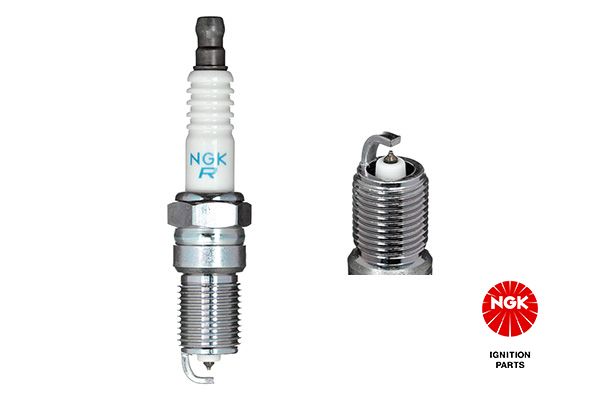

NGK TR6AP-13 Laser Platinum Spark Plug (5809)
£16.74 Original price was: £16.74.£9.49Current price is: £9.49.
EARN REWARD POINTS
Purchasing this product will earn you 18 reward points worth £0.18 to redeem on future purchases. You can check your current points here.
NGK TR6AP-13 Spark Plug – Stock No. 5809
The NGK TR6AP-13 is a high-quality platinum spark plug designed for reliable ignition and long service life. It delivers consistent spark under daily driving and mild performance use. The factory-set 1.3 mm gap suits many modern petrol engines that specify a wide plug gap for strong combustion.
A platinum centre electrode needs less voltage to spark and wears more slowly than standard copper. This helps cold starts, smooth idle, and stable performance over higher mileages.
Use this plug when your vehicle specifies NGK TR6AP-13 (or an exact cross). For full fitment details, use the site’s vehicle lookup or check the Vehicle Fitment tab.
| Part Number | TR6AP-13 |
|---|---|
| NGK Stock Number | 5809 |
| GTIN | 087295158098 |
| Category | 686 – Spark Plug |
| Thread Diameter | 14 mm |
| Thread Reach | 19 mm (3/4 in) |
| Seat Type | Taper seat |
| Hex Size | 16 mm (5/8 in) |
| Heat Range | 6 (NGK scale – mid heat, good general use) |
| Resistor | Yes |
| Centre Electrode | Platinum fine-wire |
| Ground Electrode | Nickel alloy |
| Projection | Projected tip |
| Factory Gap | 1.3 mm (0.052 in) |
| Terminal | Solid SAE |
| Recommended Torque | 15-20 Nm for 14 mm taper seat (aluminium head) |
- Platinum tip for longer life and stable spark over time.
- Projected nose helps efficient burn and throttle response.
- Resistor design reduces radio interference and protects electronics.
- Wide factory gap supports clean combustion and smooth idle.
Do not change the gap unless the vehicle manufacturer specifies a different setting. Always install into a cool engine and torque correctly to protect the threads and ensure good heat transfer.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-5809 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
C-MAX (DM2) 1.8 (QQDA/QQDB) | 125hp
Petrol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 1.8 (QQDC) | 122hp
Petrol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 1.8 Flexifuel (Q7DA) | 125hp
Petrol/Ethanol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | MPV | 2007 - 2010
C-MAX (DM2) 2.0 CNG (SYDA) | 145hp
Petrol/Compressed Natural Gas (CNG) 1999cc | MPV | 2009 - 2010
C-MAX (DM2) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | MPV | 2008 - 2010
FOCUS C-MAX (DM2) 1.8 (QQDC) | 122hp
Petrol 1798cc | MPV | 2005 - 2007
FOCUS C-MAX (DM2) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | MPV | 2004 - 2007
FOCUS C-MAX (DM2) 1.8 Flexifuel (Q7DA) | 125hp
Petrol/Ethanol 1798cc | MPV | 2006 - 2007
FOCUS C-MAX (DM2) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | MPV | 2004 - 2007
FOCUS II (DA_, HCP, DP) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Hatchback | 2006 - 2012
FOCUS II (DA_, HCP, DP) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Hatchback | 2006 - 2012
FOCUS II (DA_, HCP, DP) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Hatchback | 2004 - 2012
FOCUS II (DA_, HCP, DP) 2.0 (SYDA) | 140hp
Petrol 1999cc | Hatchback | 2005 - 2008
FOCUS II (DA_, HCP, DP) 2.0 CNG (SYDA) | 145hp
Petrol/Compressed Natural Gas (CNG) 1999cc | Hatchback | 2009 - 2011
FOCUS II (DA_, HCP, DP) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Hatchback | 2008 - 2011
FOCUS II Convertible 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Convertible | 2006 - 2010
FOCUS II Saloon (DB_, FCH, DH) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Saloon | 2006 - 2012
FOCUS II Saloon (DB_, FCH, DH) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Saloon | 2006 - 2011
FOCUS II Saloon (DB_, FCH, DH) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Saloon | 2005 - 2011
FOCUS II Station Wagon (DA_, FFS, DS) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Estate | 2006 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Estate | 2006 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Estate | 2004 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Estate | 2008 - 2011
GALAXY II (WA6) 2.0 (AOWA/AOWB/TBWA/TBWB) | 145hp
Petrol 1999cc | MPV | 2006 - 2015
GALAXY MK II VAN (WA6) 2.0 (AOWA) | 145hp
Petrol 1999cc | Box Body/MPV | 2006 - 2015
MONDEO IV (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Hatchback | 2007 - 2015
MONDEO IV (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Hatchback | 2009 - 2015
MONDEO IV (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Hatchback | 2009 - 2015
MONDEO IV Estate (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Estate | 2007 - 2015
MONDEO IV Estate (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Estate | 2009 - 2015
MONDEO IV Estate (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Estate | 2009 - 2015
MONDEO IV Saloon (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Saloon | 2007 - 2015
MONDEO IV Saloon (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Saloon | 2009 - 2015
MONDEO IV Saloon (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Saloon | 2009 - 2015
MONDEO IV Van 2.0 (AOBC) | 145hp
Petrol 1999cc | Estate Van | 2007 - 2014
S-MAX (WA6) 2.0 (AOWA/AOWB/TBWA/TBWB) | 145hp
Petrol 1999cc | MPV | 2006 - 2014
S-MAX (WA6) 2.0 Flexifuel (TBWA/TBWB) | 145hp
Petrol/Ethanol 1999cc | MPV | 2006 - 2014
C30 (533) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Hatchback | 2006 - 2012
C30 (533) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Hatchback | 2007 - 2012
C30 (533) 2.0 (B 4204 S3) | 145hp
Petrol 1999cc | Hatchback | 2006 - 2012
C30 (533) 2.0 FlexFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Hatchback | 2010 - 2012
S40 II (544) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Saloon | 2004 - 2010
S40 II (544) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Saloon | 2006 - 2010
S40 II (544) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Saloon | 2006 - 2012
S40 II (544) 2.0 F (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Saloon | 2009 - 2012
S80 II (124) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Saloon | 2008 - 2012
V50 (545) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Estate | 2004 - 2010
V50 (545) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Estate | 2005 - 2010
V50 (545) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Estate | 2006 - 2012
V50 (545) 2.0 FlexFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Estate | 2010 - 2012
V70 III (135) 2.0 (B 4204 S3) | 145hp
Petrol 1999cc | Estate | 2007 - 2011
V70 III (135) 2.0 FlexiFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Estate | 2008 - 2011
