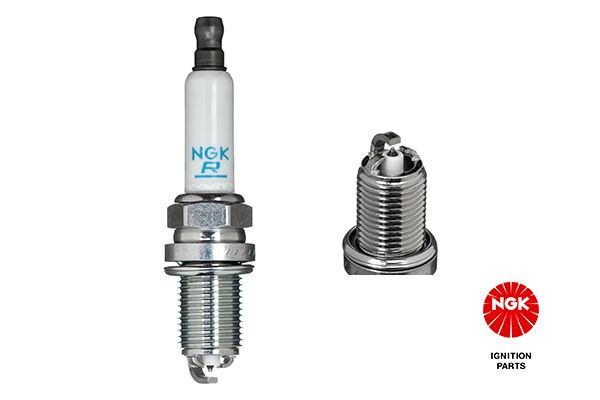

NGK PFR7Z-TG Laser Platinum Spark Plug (5768)
RRP. £21.25£12.02SAVE £9.23 (43%)
NGK PFR7Z-TG Laser Platinum Spark Plug (Stock No. 5768)
A long-life Laser Platinum spark plug designed for stable ignition under high load and high temperature. Suits performance and remapped petrol engines that specify a heat range 7 plug. Use the site’s vehicle lookup or check the Vehicle Fitment tab to confirm compatibility.
- Platinum firing tip for consistent spark and slow wear
- Resistor design to reduce electrical noise and protect ECU and sensors
- Projected tip helps cold starts and smooth idle
| Manufacturer | NGK |
| Part Number | PFR7Z-TG |
| NGK Stock Number | 5768 |
| Category | 686 – Spark Plug |
| GTIN | 087295157688 |
| Type | Laser Platinum (precious metal on centre and ground) |
| Heat Range | 7 (colder than many OE plugs for tuned/boosted use) |
| Thread Diameter | M14 x 1.25 |
| Thread Reach | 19 mm |
| Hex Size | 16 mm |
| Seat Type | Flat seat with gasket |
| Resistor | Yes |
| Terminal | Solid terminal |
| Tip Projection | Projected |
| Factory Gap | Preset to OE spec – check your vehicle manual (do not widen) |
| Centre Electrode | Platinum tipped |
| Ground Electrode | Nickel with laser-welded platinum pad |
| Insulator | Alumina ceramic |
| Recommended Torque | 25-30 Nm (aluminium head, M14 gasket seat) |
Why choose this plug
It holds a stable spark under boost and high RPM. The platinum tips resist wear, so the gap stays correct for longer. This helps throttle response, fuel economy, and smooth running over a long service life.
Installation notes: Fit to a cold engine. Do not use anti-seize. Tighten to the specified torque. If checking the gap, use a wire gauge and avoid bending the fine electrodes.
The price displayed is for a single plug, please add the desired amount to your basket.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-5768 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
C-MAX (DM2) 1.8 (QQDA/QQDB) | 125hp
Petrol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 1.8 (QQDC) | 122hp
Petrol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 1.8 Flexifuel (Q7DA) | 125hp
Petrol/Ethanol 1798cc | MPV | 2007 - 2010
C-MAX (DM2) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | MPV | 2007 - 2010
C-MAX (DM2) 2.0 CNG (SYDA) | 145hp
Petrol/Compressed Natural Gas (CNG) 1999cc | MPV | 2009 - 2010
C-MAX (DM2) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | MPV | 2008 - 2010
FOCUS C-MAX (DM2) 1.8 (QQDC) | 122hp
Petrol 1798cc | MPV | 2005 - 2007
FOCUS C-MAX (DM2) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | MPV | 2004 - 2007
FOCUS C-MAX (DM2) 1.8 Flexifuel (Q7DA) | 125hp
Petrol/Ethanol 1798cc | MPV | 2006 - 2007
FOCUS C-MAX (DM2) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | MPV | 2004 - 2007
FOCUS II (DA_, HCP, DP) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Hatchback | 2006 - 2012
FOCUS II (DA_, HCP, DP) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Hatchback | 2006 - 2012
FOCUS II (DA_, HCP, DP) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Hatchback | 2004 - 2012
FOCUS II (DA_, HCP, DP) 2.0 (SYDA) | 140hp
Petrol 1999cc | Hatchback | 2005 - 2008
FOCUS II (DA_, HCP, DP) 2.0 CNG (SYDA) | 145hp
Petrol/Compressed Natural Gas (CNG) 1999cc | Hatchback | 2009 - 2011
FOCUS II (DA_, HCP, DP) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Hatchback | 2008 - 2011
FOCUS II Convertible 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Convertible | 2006 - 2010
FOCUS II Saloon (DB_, FCH, DH) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Saloon | 2006 - 2012
FOCUS II Saloon (DB_, FCH, DH) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Saloon | 2006 - 2011
FOCUS II Saloon (DB_, FCH, DH) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Saloon | 2005 - 2011
FOCUS II Station Wagon (DA_, FFS, DS) 1.8 (Q7DA/QQDA/QQDB) | 125hp
Petrol 1798cc | Estate | 2006 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 1.8 Flexifuel (Q7DA/QQDA/QQDB) | 125hp
Petrol/Ethanol 1798cc | Estate | 2006 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 2.0 (AODA/AODB/AODE/SYDA) | 145hp
Petrol 1999cc | Estate | 2004 - 2012
FOCUS II Station Wagon (DA_, FFS, DS) 2.0 LPG (SYDA) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Estate | 2008 - 2011
GALAXY II (WA6) 2.0 (AOWA/AOWB/TBWA/TBWB) | 145hp
Petrol 1999cc | MPV | 2006 - 2015
GALAXY MK II VAN (WA6) 2.0 (AOWA) | 145hp
Petrol 1999cc | Box Body/MPV | 2006 - 2015
MONDEO IV (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Hatchback | 2007 - 2015
MONDEO IV (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Hatchback | 2009 - 2015
MONDEO IV (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Hatchback | 2009 - 2015
MONDEO IV Estate (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Estate | 2007 - 2015
MONDEO IV Estate (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Estate | 2009 - 2015
MONDEO IV Estate (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Estate | 2009 - 2015
MONDEO IV Saloon (BA7) 2.0 (AOBA/AOBC/TBBA/TBBB) | 145hp
Petrol 1999cc | Saloon | 2007 - 2015
MONDEO IV Saloon (BA7) 2.0 Flexifuel (TBBA/TBBB) | 145hp
Petrol/Ethanol 1999cc | Saloon | 2009 - 2015
MONDEO IV Saloon (BA7) 2.0 LPG (TBBA/TBBB) | 145hp
Petrol/Liquified Petroleum Gas (LPG) 1999cc | Saloon | 2009 - 2015
MONDEO IV Van 2.0 (AOBC) | 145hp
Petrol 1999cc | Estate Van | 2007 - 2014
S-MAX (WA6) 2.0 (AOWA/AOWB/TBWA/TBWB) | 145hp
Petrol 1999cc | MPV | 2006 - 2014
S-MAX (WA6) 2.0 Flexifuel (TBWA/TBWB) | 145hp
Petrol/Ethanol 1999cc | MPV | 2006 - 2014
C30 (533) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Hatchback | 2006 - 2012
C30 (533) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Hatchback | 2007 - 2012
C30 (533) 2.0 (B 4204 S3) | 145hp
Petrol 1999cc | Hatchback | 2006 - 2012
C30 (533) 2.0 FlexFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Hatchback | 2010 - 2012
S40 II (544) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Saloon | 2004 - 2010
S40 II (544) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Saloon | 2006 - 2010
S40 II (544) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Saloon | 2006 - 2012
S40 II (544) 2.0 F (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Saloon | 2009 - 2012
S80 II (124) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Saloon | 2008 - 2012
V50 (545) 1.8 (B 4184 S11) | 125hp
Petrol 1798cc | Estate | 2004 - 2010
V50 (545) 1.8 FlexFuel (B 4184 S8) | 125hp
Petrol/Ethanol 1798cc | Estate | 2005 - 2010
V50 (545) 2.0 (B 4204 S3) | 146hp
Petrol 1999cc | Estate | 2006 - 2012
V50 (545) 2.0 FlexFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Estate | 2010 - 2012
V70 III (135) 2.0 (B 4204 S3) | 145hp
Petrol 1999cc | Estate | 2007 - 2011
V70 III (135) 2.0 FlexiFuel (B 4204 S4) | 146hp
Petrol/Ethanol 1999cc | Estate | 2008 - 2011
