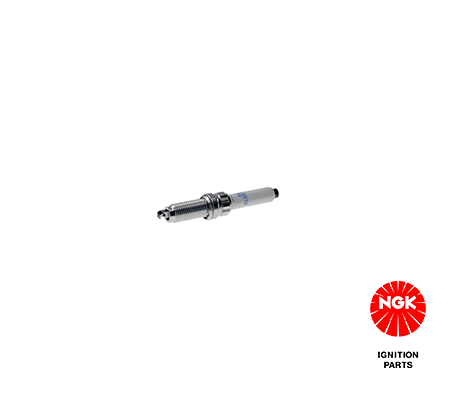

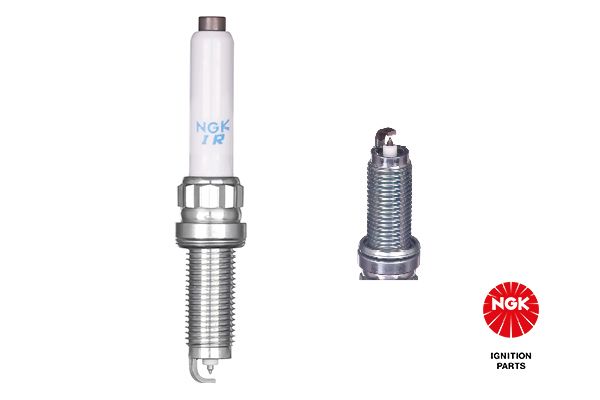

NGK ILZKGR7B8G Laser Iridium Spark Plug (97434)
£16.85 Original price was: £16.85.£11.95Current price is: £11.95.
EARN REWARD POINTS
Purchasing this product will earn you 23 reward points worth £0.23 to redeem on future purchases. You can check your current points here.
NGK ILZKGR7B8G Laser Iridium Spark Plug (Stock No. 97434)
The NGK ILZKGR7B8G is a Laser Iridium spark plug built for reliable ignition under high load and temperature. It provides a strong, consistent spark, helps cold starts, and resists fouling in stop-start and short trips. The fine iridium centre electrode needs less voltage to fire, which can improve throttle response and stability at idle.
Use it as a performance-friendly OE replacement where specified by the manufacturer. It suits many modern turbocharged, direct-injection petrol engines that require an NGK heat range 7, M12 plug with long reach. Always confirm fitment with the vehicle lookup or the Vehicle Fitment tab.
- Strong spark and stable idle from fine iridium centre electrode
- Long service life via iridium centre and platinum ground pad
- Good knock resistance and reliable performance under boost
| Part Number | ILZKGR7B8G |
| NGK Stock Number | 97434 |
| GTIN | 87295974346 |
| Category | 686 – Spark Plug |
| Plug Type | Laser Iridium (iridium centre, platinum ground) |
| Thread Diameter | M12 x 1.25 |
| Reach (thread length) | 26.5 mm |
| Hex Size | 14 mm |
| Seat Type | Flat seat with gasket |
| Heat Range | 7 (NGK scale) |
| Factory Gap | 0.8 mm |
| Resistor | Yes |
| Electrode Design | Fine-wire iridium centre, tapered cut ground with platinum pad |
| Projected Tip | Yes |
| Typical Torque | 18 – 22 Nm (aluminium head, new gasket) |
Fitment Guidance
This specification is common on many late-model turbo petrol engines from major manufacturers. Use the site’s vehicle lookup to confirm fitment, or check the Vehicle Fitment tab for full details.
Install Tips
– Fit to a cold engine. Hand-thread first to avoid cross-threading.
– Check gap if the application requires it. Do not force the fine iridium tip.
– Torque to spec. Re-torque only if the plug has been removed and the gasket re-used.
If unsure, have a qualified technician install and check for the latest OE gap and torque values.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-97434 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
BERLINGO (ER_, EC_) 1.2 PureTech 110 (HNP (EB2ADT)) | 110hp
Petrol 1199cc | MPV | 2018 - 2025
BERLINGO (ER_, EC_) 1.2 PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | MPV | 2019 - 2025
BERLINGO Box Body/MPV (B9) PureTech 110 (HNZ (EB2DT)) | 110hp
Petrol 1199cc | Box Body/MPV | 2018 - 2025
BERLINGO Box Body/MPV (K9) PureTech 110 (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Box Body/MPV | 2018 - 2025
BERLINGO Box Body/MPV (K9) PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
C3 AIRCROSS I (2R_, 2C_) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | SUV | 2017 - 2025
C3 AIRCROSS I (2R_, 2C_) 1.2 PureTech 130 (2RHNYH) (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | SUV | 2017 - 2025
C3 III (SX) 1.2 THP 110 (SXHNPS, SXHNZT, SXHNZ6) (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback | 2016 - 2025
C3 IV (CC_, CB_) 1.2 PureTech 100 (CCHPV4) (HPV (EB2LTED)) | 101hp
Petrol 1199cc | Hatchback | 2024 - 2025
C4 CACTUS 1.2 PureTech 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | Hatchback | 2017 - 2025
C4 CACTUS 1.2 THP 110 (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback | 2014 - 2025
C4 CACTUS Van (0B_, 0P_) PureTech 110 (HNP (EB2ADT)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback Van | 2019 - 2025
C4 III (BA_, BB_, BC_) 1.2 Hybrid 136 (BAHPYJ) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | Hatchback | 2024 - 2025
C4 III (BA_, BB_, BC_) 1.2 MHEV (BAHPXH) (HPX (EB2LTEDH2)) | 101hp
Petrol/Electric 1199cc | Hatchback | 2024 - 2025
C4 III (BA_, BB_, BC_) 1.2 PureTech 100 (BAHNEA, BAHNKA) (HNE (EB2ADTD)/HNK (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2021 - 2025
C4 III (BA_, BB_, BC_) 1.2 PureTech 130 (BAHNSA, BAHNSB) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2020 - 2025
C4 PICASSO II 1.2 THP 110 (HNZ (EB2DT)) | 110hp
Petrol 1199cc | MPV | 2016 - 2025
C4 SPACETOURER (3D_) 1.2 PureTech 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | MPV | 2018 - 2025
C4 X (BD_, BE_, BF_) 1.2 Hybrid 136 (BDHPYJ) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | Hatchback | 2024 - 2025
C4 X (BD_, BE_, BF_) 1.2 PureTech 100 (BDHNEA) (HNE (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2022 - 2025
C4 X (BD_, BE_, BF_) 1.2 PureTech 130 (BDHNSB) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2022 - 2025
C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 Hybrid 136 (ARHPYJ) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | SUV | 2023 - 2025
C5 AIRCROSS (AC_, AJ_, AR_, A4_) 1.2 PureTech 130 (ARHNSJ) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2018 - 2025
C5 X (ND_, NC_) PureTech 130 (NCHNSP) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Estate | 2021 - 2025
GRAND C4 SPACETOURER (3A_, 3E_) 1.2 PureTech 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | MPV | 2018 - 2025
DS 3 (SA_) 1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT) (HNP (EB2ADT)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback | 2015 - 2019
DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) 1.2 PureTech 100 (URHNKK, URHNEK) (HNK (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2018 - 2025
DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) 1.2 PureTech 130 (URHNSS) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2018 - 2025
DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_) 1.2 PureTech 155 (URHNNS) (HNN (EB2ADTX)) | 156hp
Petrol 1199cc | Hatchback | 2018 - 2022
DS 3 Convertible (SB_) 1.2 THP 110 (HNP (EB2ADT)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Convertible | 2015 - 2019
DS 4 II (FR_, FB_, F3_, FP_, F4_) PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2021 - 2025
DS 7 Crossback (J4_, JR_, JC_) PureTech 130 (JRHNSU) (HNS (EB2ADTS)) | 130hp
Petrol 1199cc | SUV | 2018 - 2022
DOBLO Box Body/MPV (510_, 511_) PureTech 110 (EB2ADT) | 110hp
Petrol 1199cc | Box Body/MPV | 2022 - 2025
DOBLO MPV (510_, 511_, 360_, 361_) PureTech 110 (EB2ADT) | 110hp
Petrol 1199cc | MPV | 2022 - 2025
ASTRA L (OV5) 1.2 (FPHNPJ) (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Hatchback | 2021 - 2025
ASTRA L (OV5) 1.2 (FPHNSL, FPHNSR) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2021 - 2025
ASTRA L Sports Tourer (OV5) 1.2 (FRHNPJ) (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Estate | 2021 - 2025
ASTRA L Sports Tourer (OV5) 1.2 (FRHNSL, FRHNSR) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Estate | 2021 - 2025
COMBO Box Body/MPV (K9) 1.2 (D 12 XHL (EB2ADT)/F 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
COMBO Box Body/MPV (K9) 1.2 (F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
COMBO E Tour / Life (K9) 1.2 (D 12 XHL (EB2ADT)/F 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | MPV | 2018 - 2025
COMBO E Tour / Life (K9) 1.2 (F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | MPV | 2019 - 2025
CORSA F (P2JO) 1.2 (68) (F 12 XHT (EB2ADTS)/HNL (EB2ADTSM)) | 131hp
Petrol 1199cc | Hatchback | 2019 - 2025
CORSA F (P2JO) 1.2 (68) (F 12 XHL (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2019 - 2025
CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) (B 12 XHL (EB2DT)/D 12 XHL (EB2ADT)/F 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | SUV | 2017 - 2025
CROSSLAND X / CROSSLAND (P17, P2QO) 1.2 (75) (B 12 XHT (EB2DTS)/D 12 XHT (EB2ADTS)/F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2017 - 2025
GRANDLAND (OV64) 1.6 PHEV (5G0(EP6LTCHPD)) | 194hp
Petrol/Electric 1598cc | SUV | 2024 - 2025
GRANDLAND / GRANDLAND X (A18, P1UO) 1.2 (75) (B 12 XHT (EB2DTS)/D 12 XHT (EB2ADTS)/F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2017 - 2025
MOKKA 1.2 (76) (F 12 XHL (EB2ADTD)/HPV (EB2LTED)) | 101hp
Petrol 1199cc | SUV | 2020 - 2025
2008 I (CU_) 1.2 THP 110 / PureTech 110 (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | SUV | 2015 - 2025
2008 I (CU_) 1.2 THP 130 / PureTech 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 130hp
Petrol 1199cc | SUV | 2015 - 2019
2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 PureTech 100 (USHNK) (HNK (EB2ADTD)) | 101hp
Petrol 1199cc | SUV | 2019 - 2025
2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 PureTech 130 (USHNS, URHNS) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2019 - 2025
2008 II (UD_, US_, UY_, UJ_, UR_, UC_) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... (HNJ (EB2ADTXM)/HNN (EB2ADTX)/HNR (EB2ADTXM)) | 155hp
Petrol 1199cc | SUV | 2019 - 2025
208 I (CA_, CC_) 1.2 THP 110 (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback | 2013 - 2019
208 II (UB_, UP_, UW_, UJ_) 1.2 Hybrid 100 (HPX (EB2LTEDH2)) | 101hp
Petrol/Electric 1199cc | Hatchback | 2023 - 2025
208 II (UB_, UP_, UW_, UJ_) 1.2 Hybrid 136 (UPHPYK) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | Hatchback | 2023 - 2025
208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 100 (HNE (EB2ADTD_B)/HNK (EB2ADT)/HNK (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2019 - 2025
208 II (UB_, UP_, UW_, UJ_) 1.2 PureTech 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | Hatchback | 2019 - 2025
3008 II SUV (MC_, MR_, MJ_, M4_) 1.2 Hybrid 136 (MRHPYE) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | SUV | 2023
3008 II SUV (MC_, MR_, MJ_, M4_) 1.2 THP/ PureTech 130 (MRHNSM, MRHNSU, MRHNSJ, MRHNYW,... (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | SUV | 2016 - 2025
3008 III (KA_, KB_, KC_) Hybrid 136 (KAHPYE) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | SUV | 2023 - 2025
3008 III (KA_, KB_, KC_) Plug-in Hybrid 195 (KBDGK3) (DGK(EP6LTCHPD)) | 194hp
Petrol/Electric 1598cc | SUV | 2024 - 2025
308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 110 (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Hatchback | 2013 - 2021
308 II (LB_, LP_, LW_, LH_, L3_) 1.2 THP 130 (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | Hatchback | 2013 - 2021
308 III (FB_, FH_, FP_, F3_, FM_) PureTech 110 (FPHNPL) (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Hatchback | 2021 - 2025
308 III (FB_, FH_, FP_, F3_, FM_) PureTech 130 (FPHNSL, FPHNST) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2021 - 2025
308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.2 THP 110 (HNP (EB2ADT)/HNV (EB2DTM)/HNZ (EB2DT)) | 110hp
Petrol 1199cc | Estate | 2014 - 2021
308 SW III (FC_, FJ_, FR_, F4_, FN_) PureTech 110 (FRHNPL) (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Estate | 2021 - 2025
308 SW III (FC_, FJ_, FR_, F4_, FN_) PureTech 130 (FRHNSL, FRHNST) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Estate | 2021 - 2025
408 II (FP_, F3_, FM_) PureTech 130 (FPHNST) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2022 - 2025
5008 II (MC_, MJ_, MR_, M4_) 1.2 Hybrid 136 (MRHPYC) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | MPV | 2023 - 2025
5008 II (MC_, MJ_, MR_, M4_) 1.2 THP (MRHNYH, MRHNYW, MRHNSJ, MRHNSU, MRHNSM) (HNS (EB2ADTS)/HNY (EB2DTS)) | 131hp
Petrol 1199cc | MPV | 2016 - 2025
5008 III (KA_, KB_, KC_) Hybrid 136 (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | SUV | 2024 - 2025
508 II (FB_, FH_, F3_) PureTech 130 (FBHNSR) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2020 - 2025
508 SW II (FC_, FJ_, F4_) PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Estate | 2020 - 2025
PARTNER Box Body/MPV (K9) 1.2 PureTech 110 (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
PARTNER Box Body/MPV (K9) 1.2 PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
RIFTER 1.2 PureTech 110 (HNP (EB2ADT)) | 110hp
Petrol 1199cc | MPV | 2018 - 2025
RIFTER 1.2 PureTech 130 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | MPV | 2019 - 2025
ASTRA Mk VIII (L) 1.2 (FPHNPJ) (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Hatchback | 2021 - 2025
ASTRA Mk VIII (L) 1.2 (FPHNSL, FPHNSR) (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2021 - 2025
ASTRA Mk VIII (L) Sports Tourer 1.2 (HNP (EB2ADT)) | 110hp
Petrol 1199cc | Estate | 2021 - 2025
ASTRA Mk VIII (L) Sports Tourer 1.2 (HNS (EB2ADTS)) | 131hp
Petrol 1199cc | Estate | 2021 - 2025
COMBO Mk IV (E) Box Body/MPV (K9) 1.2 (D 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | Box Body/MPV | 2019 - 2025
COMBO Mk IV (E) Life (K9) 1.2 (D 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | MPV | 2018 - 2025
COMBO Mk IV (E) Life (K9) 1.2 (F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | MPV | 2019 - 2025
CORSA Mk V (F) 1.2 (F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | Hatchback | 2020 - 2025
CORSA Mk V (F) 1.2 (F 12 XHL (EB2ADTD)) | 101hp
Petrol 1199cc | Hatchback | 2019 - 2025
CROSSLAND X / CROSSLAND (P17) 1.2 (75) (B 12 XHT (EB2DTS)/D 12 XHT (EB2ADTS)/F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2017 - 2025
CROSSLAND X / CROSSLAND (P17) 1.2 (75) (B 12 XHL (EB2DT)/D 12 XHL (EB2ADT)/F 12 XHL (EB2ADT)) | 110hp
Petrol 1199cc | SUV | 2017 - 2025
GRANDLAND X / GRANDLAND (A18) 1.2 Turbo (75) (B 12 XHT (EB2DTS)/D 12 XHT (EB2ADTS)/F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2017 - 2025
GRANDLAND X / GRANDLAND (A18) 1.2 Turbo Hybrid (75) (HPY (EB2LTDH2)) | 136hp
Petrol/Electric 1199cc | SUV | 2024 - 2025
MOKKA 1.2 (76) (HPW (EB2LTD)) | 136hp
Petrol 1199cc | SUV | 2022 - 2025
MOKKA 1.2 (76) (F 12 XHT (EB2ADTS)) | 131hp
Petrol 1199cc | SUV | 2020 - 2025
MOKKA 1.2 (76) (F 12 XHL (EB2ADTD)) | 101hp
Petrol 1199cc | SUV | 2020 - 2025
Stock at Progressive Parts
Delivery timescales are given as estimates in good faith, but cannot be taken as precise or exact information. We highly advise against booking installation/workshop time or engaging in preparatory work until you've received and inspected the goods.
What do our stock statuses mean?
1+ IN STOCK in green stock is readily available in one of our warehouses for express delivery (at the time of viewing).
LOW STOCK in green means we're running low! 1 or 2 left on the shelf so act fast. Over evenings, weekends and bank holidays this stock can move quickly so please bear this in mind.
0 IN STOCK in blue means our primary warehouse does not have unallocated stock, but our UK partners do. Often these can be shipped quickly and efficiently. You'll be notified via the Track My Order page if further delays are unavoidable.
MADE TO ORDER in blue means we've partnered with a supplier which primarily makes their products to order. It's not on our shelf, but your order goes into production immediately.
0 IN STOCK in orange means everybody we work with is unfortunately out of stock. Stock is not available in the UK. The best course of action is to place an order to create an allocation from the next batch arriving.
OUT OF STOCK in red. This product is unavailable to order, for whatever reason we're unable to obtain stock or there is an issue with supply/lead times.
We're tuners too!
Our staff are car enthusiasts, we understand the need for speed... This includes getting your orders out the door as quickly and securely as possible!
In some instances, extended lead times are unavoidable. This is as labour-intensive and frustrating for us as it is for you, please know we are doing our best to facilitate your modification goals. Abuse of our staff or systems will not be tolerated.
Thank you, Team PP
In the words of the Vehicle Standards Agency (VCA), type approval provides "confirmation that production and samples of a design will meet specified performance standards".
For emissions components this encompasses noise, emissions and balanced back pressure, which have a strong influence on maintaining engine performance (power), and fuel efficiency. Type approval ensures that an aftermarket component will reach, or exceed the performance standard of the corresponding OE part.
Type-approval then, is a certain guarantee that an end user will receive a product of OE equivalent performance attributes.
Products on the Progressive Parts website that meet this approval will be clearly marked or labelled EC or ECE approved.
