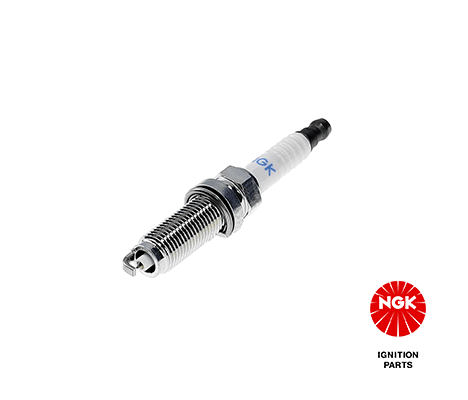

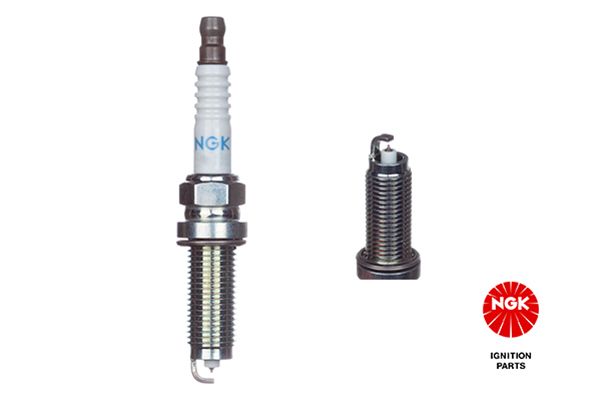

NGK ILZKAR7E11S Laser Iridium Spark Plug – Stock No. 96509
NGK’s ILZKAR7E11S is a long-life laser iridium spark plug designed for clean, reliable ignition. It uses a fine iridium tip and a platinum ground pad to keep the spark strong over high mileage. This helps cold starts, smooth idle, and consistent performance, even under load or light tuning.
The fine-wire centre electrode needs less voltage to fire. That reduces misfires and helps the ECU keep timing stable. A projected tip improves flame spread for better throttle response and fuel efficiency. The resistor design also cuts radio noise.
If you are upgrading or refreshing your ignition system, this plug is a dependable choice for modern petrol engines that specify an NGK heat range 7 iridium plug with a 1.1 mm gap.
- Good for daily driving and mild performance use
- Stable spark at high temperatures and RPM
- Long service life vs standard nickel plugs
| Specification | Value |
|---|---|
| Part number | ILZKAR7E11S |
| NGK stock number | 96509 |
| Category | 686 – Spark Plug |
| GTIN | 87295965092 |
| Centre electrode | Fine-wire iridium (approx. 0.6 mm tip) |
| Ground electrode | Nickel with laser-welded platinum pad |
| Resistor | Yes |
| Heat range | 7 (NGK scale) |
| Factory gap | 1.1 mm (E11) – pre-set |
| Thread diameter | 12 mm |
| Thread pitch | 1.25 |
| Thread reach | 26.5 mm |
| Seat type | Gasket |
| Hex size | 14 mm |
| Terminal | Solid |
| Recommended torque | 18-25 Nm (with gasket) |
| Projected tip | Yes |
Compatibility guidance
This specification matches many late-model petrol engines that use 12 mm long-reach, gasket-seat iridium plugs with a 1.1 mm gap. It is commonly specified across popular Toyota and Lexus applications, among others. Use the site’s vehicle lookup to confirm fitment, or check the Vehicle Fitment tab for full details.
Note: The gap is pre-set. Do not force-adjust iridium tips. Always tighten to the correct torque on a cold engine.
The price displayed is for a single plug, please add the desired amount to your basket.
