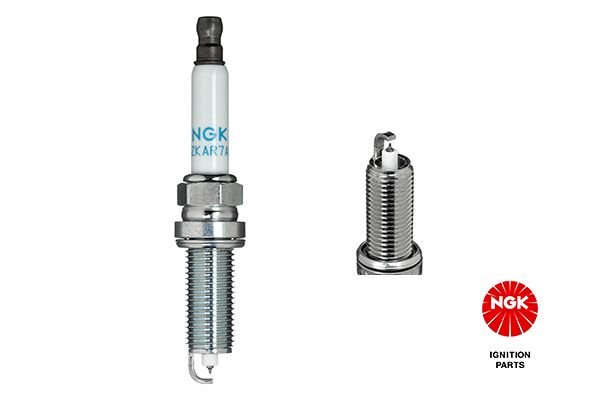

NGK ILZKAR7A10 Laser Iridium Spark Plug
The NGK ILZKAR7A10 is a Laser Iridium spark plug built for clean ignition, strong spark, and long life. It uses a fine iridium centre electrode and a platinum pad on the ground electrode. This helps cold starts, throttle response, and stability at higher RPM, while resisting wear in tuned or hard-driven engines.
It suits many modern petrol engines that require a 1.0 mm plug gap and a heat range 7. Always confirm fitment with the vehicle lookup or check the Vehicle Fitment tab.
- Fine-wire iridium centre for reliable ignition and smoother idle
- Platinum ground pad for stable performance over a long service life
- Resistor design to reduce electrical noise that can affect the ECU
| Part Number | ILZKAR7A10 |
| NGK Stock Number | 6043 |
| Category | 686 – Spark Plug |
| GTIN | 087295160435 |
| Plug Type | Laser Iridium |
| Heat Range | 7 (NGK scale) |
| Resistor | Yes |
| Factory Gap | 1.0 mm |
| Centre Electrode | Iridium, fine wire (~0.6 mm) |
| Ground Electrode | Nickel with platinum pad |
| Thread Diameter | 12 mm |
| Thread Reach | 26.5 mm |
| Hex Size | 14 mm |
| Seat Type | Tapered |
| Terminal | Solid |
| Projected Tip | Yes |
| Plating | Trivalent anti-corrosion |
Use the factory-specified gap unless your tuner advises otherwise. Replace as a full set. Torque to the manufacturer spec on a cold engine. Use our vehicle lookup to confirm this exact part for your engine.
The price displayed is for a single plug, please add the desired amount to your basket.
