NGK ILTR5A-13G Laser Iridium Spark Plug (3811)
Original price was: £23.77.£15.37Current price is: £15.37.
EARN REWARD POINTS
Purchasing this product will earn you 30 reward points worth £0.30 to redeem on future purchases. You can check your current points here.

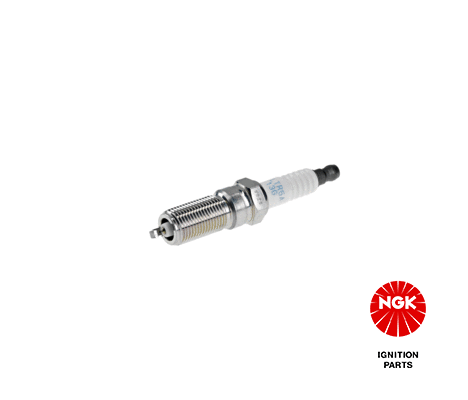

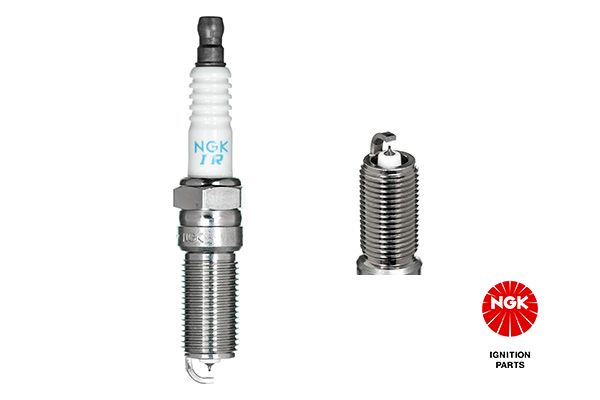

NGK ILTR5A-13G Laser Iridium Spark Plug (Stock No. 3811)
The NGK ILTR5A-13G is a Laser Iridium spark plug designed for stable ignition, long life and consistent performance. It uses a fine iridium centre tip for a strong spark with less voltage, helping cold starts, smooth idle and efficient combustion. A platinum pad on the ground electrode reduces wear, so the gap stays stable for longer.
Why choose this plug
- Strong, consistent spark for smoother running and reliable starts
- Iridium centre tip and platinum ground pad for long service life
- Resistor design to reduce electrical noise for the ECU and sensors
- Trivalent plating to resist corrosion and ease removal
| Part number | ILTR5A-13G |
| NGK stock number | 3811 |
| GTIN | 087295138113 |
| Category | 686 – Spark Plug |
| Technology | Laser Iridium (iridium centre tip, platinum ground pad) |
| Heat range | 5 (NGK scale) |
| Thread diameter | 14 mm |
| Thread reach | 26.5 mm |
| Seat type | Taper seat |
| Hex size | 14 mm (9/16 in) |
| Factory gap | 1.3 mm |
| Resistor | Yes |
| Tip projection | Projected |
| Recommended torque | 18-25 Nm for M14 taper seat in aluminium heads |
| Service life (typical) | Up to 60,000-100,000 miles, subject to engine condition |
This model is commonly used across many mid-2000s Ford 3-valve petrol V8 and V10 engines. Please use our vehicle lookup to confirm fitment for your exact car, or check the Vehicle Fitment tab.
Notes: Supplied pre-gapped at 1.3 mm. Always follow the vehicle manufacturer’s gap specification. Do not use anti-seize unless specified by NGK. Install on a cool engine and torque correctly.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-3811 Confirmed Fitment
Our team haven't provided any fitment data for this product yet, please get in touch or check back later!
