NGK ILKAR7B11 Laser Iridium Spark Plug (4912)
£19.81 Original price was: £19.81.£10.82Current price is: £10.82.
EARN REWARD POINTS
Purchasing this product will earn you 21 reward points worth £0.21 to redeem on future purchases. You can check your current points here.

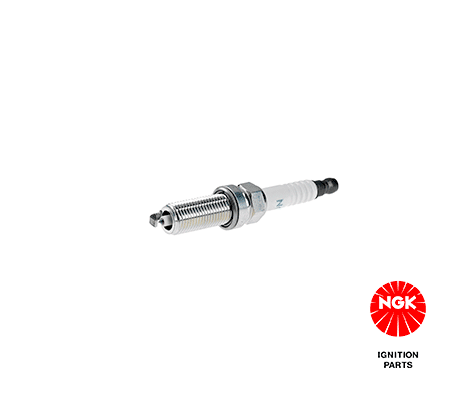

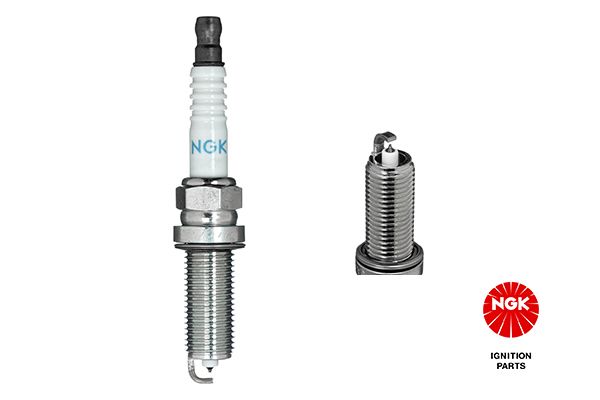

NGK ILKAR7B11 Laser Iridium Spark Plug – Stock No. 4912
This NGK Laser Iridium spark plug delivers a strong, clean spark with long service life. The fine iridium tip needs less voltage to fire, which helps cold starts, smooth idle, and stable performance. It resists wear and fouling, so it keeps working well over high mileage.
It is a direct replacement where ILKAR7B11 is specified. It suits many modern petrol engines that use an M12 long-reach plug. Use the vehicle lookup to confirm fitment, or check the Vehicle Fitment tab for full details.
- Fine iridium centre for reliable ignition and crisp throttle response
- Platinum pad on the ground electrode for long life and consistent gap
- Built-in resistor for clean radio signal and ECU-friendly operation
- Strong anti-fouling and knock resistance under daily and spirited driving
| Part number | ILKAR7B11 |
| NGK stock number | 4912 |
| Category | 686 – Spark Plug |
| GTIN | 087295149126 |
| Series | Laser Iridium |
| Thread diameter | M12 x 1.25 |
| Reach (thread length) | 26.5 mm |
| Hex size | 14 mm |
| Seat type | Flat seat with gasket |
| Heat range | 7 (NGK scale) |
| Factory gap | 1.1 mm |
| Centre electrode | Fine-wire iridium (laser welded) |
| Ground electrode | Nickel with platinum pad |
| Resistor | Yes |
| Terminal | Solid SAE |
| Recommended torque | 18-22 Nm (M12 gasket seat, aluminium head) |
Fitment guidance
Common in many modern Toyota and Lexus petrol engines that specify an M12 long-reach, 1.1 mm gap plug. Always match the exact part number to your engine. Use the site’s vehicle lookup to confirm, or see the Vehicle Fitment tab.
Installation notes
Do not force-gap fine-wire iridium plugs. Set only if the vehicle maker requires it. Fit to a cool engine, use a new gasket, and tighten to the specified torque. Replace all plugs in a set for best results.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-4912 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
CYGNET 1.3 (1NR-FE) | 98hp
Petrol 1329cc | Hatchback | 2011 - 2013
CT (ZWA10_) 200h (ZWA10_, ZWA10R) (2ZR-FXE/5ZR-FXE) | 136hp
Petrol/Electric 1798cc | Hatchback | 2011 - 2025
2 Hatchback (DL, DJ) 1.5 E-SKYACTIV G (P5X9/P5Z7/P5ZE) | 116hp
Petrol/Electric 1496cc | Hatchback | 2021 - 2025
3 Hatchback (BP) 2.0 SKYACTIV-G M Hybrid (PEXN) | 150hp
Petrol/Electric 1998cc | Hatchback | 2020 - 2025
3 Hatchback (BP) SKYACTIV-X M Hybrid (HFY7) | 186hp
Petrol/Electric 1998cc | Hatchback | 2021 - 2025
3 Hatchback (BP) SKYACTIV-X M Hybrid AWD (HFY7) | 186hp
Petrol/Electric 1998cc | Hatchback | 2021 - 2025
3 Saloon (BP_) 2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) (PEXN) | 150hp
Petrol/Electric 1998cc | Saloon | 2020 - 2025
TREZIA 1.3 (NSP120X, NSP120L) (1NR-FE/1NR-FKE) | 99hp
Petrol 1329cc | Hatchback | 2011 - 2025
AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) (1NR-FE) | 99hp
Petrol 1329cc | Hatchback | 2010 - 2012
AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) (1NR-FE) | 101hp
Petrol 1329cc | Hatchback | 2009 - 2012
AURIS (_E15_) 1.6 (ZRE151_, ZRE151R) (1ZR-FE) | 124hp
Petrol 1598cc | Hatchback | 2007 - 2012
AURIS (_E15_) 1.6 (ZRE151_, ZRE151R) (1ZR-FAE) | 132hp
Petrol 1598cc | Hatchback | 2009 - 2012
AURIS (_E15_) 1.8 (ZRE152_, ZRE152) (2ZR-FAE) | 147hp
Petrol 1798cc | Hatchback | 2009 - 2012
AURIS (_E15_) 1.8 Hybrid (ZWE150_, ZWE150R) (2ZR-FXE) | 136hp
Petrol/Electric 1798cc | Hatchback | 2010 - 2012
AURIS (_E18_) 1.3 Dual-VVTi (NRE180_, NRE180R) (1NR-FE) | 99hp
Petrol 1329cc | Hatchback | 2012 - 2018
AURIS (_E18_) 1.6 (ZRE181_, ZRE185_, ZRE185R, ZRE181R) (1ZR-FAE) | 132hp
Petrol 1598cc | Hatchback | 2012 - 2018
AURIS (_E18_) 1.8 Hybrid (ZWE186_, ZWE186R) (2ZR-FXE) | 136hp
Petrol/Electric 1798cc | Hatchback | 2012 - 2018
AURIS Estate (_E18_) 1.3 Dual-VVTi (NRE180_) (1NR-FE) | 99hp
Petrol 1329cc | Estate | 2013 - 2018
AURIS Estate (_E18_) 1.6 (ZRE185_) (1ZR-FAE) | 132hp
Petrol 1598cc | Estate | 2013 - 2018
AURIS Estate (_E18_) 1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H) (2ZR-FXE) | 136hp
Petrol/Electric 1798cc | Estate | 2013 - 2018
AVENSIS Estate (_T27_) 1.6 VVT-i (ZRT270_, ZRT270R) (1ZR-FAE) | 132hp
Petrol 1598cc | Estate | 2008 - 2018
AVENSIS Estate (_T27_) 1.8 VVT-i (ZRT271_, ZRT271R) (2ZR-FAE) | 147hp
Petrol 1798cc | Estate | 2008 - 2018
AVENSIS Estate (_T27_) 2.0 VVT-i (ZRT272_, ZRT272R) (3ZR-FAE/3ZR-FE) | 152hp
Petrol 1987cc | Estate | 2008 - 2018
AVENSIS Saloon (_T27_) 1.6 VVT-i (ZRT270_, ZRT270R) (1ZR-FAE) | 132hp
Petrol 1598cc | Saloon | 2008 - 2018
AVENSIS Saloon (_T27_) 1.8 VVT-i (ZRT271_, ZRT271R) (2ZR-FAE) | 147hp
Petrol 1798cc | Saloon | 2008 - 2018
AVENSIS Saloon (_T27_) 2.0 VVT-i (ZRT272_, ZRT272R) (3ZR-FAE/3ZR-FE) | 152hp
Petrol 1987cc | Saloon | 2008 - 2018
COROLLA Saloon (_E15_) 1.3 (NRE150) (1NR-FE) | 101hp
Petrol 1329cc | Saloon | 2008 - 2014
COROLLA Saloon (_E15_) 1.6 (ZRE151) (1ZR-FAE/1ZR-FE) | 132hp
Petrol 1598cc | Saloon | 2006 - 2013
COROLLA Saloon (_E15_) 1.6 Dual VVTi (ZRE141, ZRE151) (1ZR-FE) | 124hp
Petrol 1598cc | Saloon | 2007 - 2014
COROLLA Saloon (_E15_) 1.6 VVTi (ZRE141_, ZRE151_) (1ZR-FAE/1ZR-FE) | 122hp
Petrol 1598cc | Saloon | 2010 - 2014
COROLLA Saloon (_E15_) 1.6 VVTi (ZRE151) (1ZR-FE) | 136hp
Petrol 1598cc | Saloon | 2007 - 2010
COROLLA Saloon (_E18_, ZRE1_) 1.3 Dual-VVTi (NRE180_) (1NR-FE) | 99hp
Petrol 1329cc | Saloon | 2013 - 2018
COROLLA Saloon (_E18_, ZRE1_) 1.6 (ZRE171, ZRE181) (1ZR-FAE/1ZR-FE) | 122hp
Petrol 1598cc | Saloon | 2013 - 2018
COROLLA Saloon (_E18_, ZRE1_) 1.6 (ZRE181_) (1ZR-FAE) | 132hp
Petrol 1598cc | Saloon | 2013 - 2018
COROLLA Saloon (_E18_, ZRE1_) 1.8 VVTi (ZRE172, ZRE182) (2ZR-FE) | 140hp
Petrol 1798cc | Saloon | 2013 - 2019
IQ (_J1_) 1.33 (NGJ10_, NGJ10R) (1NR-FE) | 98hp
Petrol 1329cc | Hatchback | 2009 - 2015
PRIUS PLUS (_W4_) 1.8 Hybrid (ZVW40W, ZVW41W) (2ZR-FXE) | 136hp
Petrol/Electric 1798cc | MPV | 2011 - 2025
RAV 4 III (_A3_) 2.0 (ZSA35_, ZSA35R) (3ZR-FAE) | 158hp
Petrol 1987cc | SUV | 2008 - 2013
RAV 4 III (_A3_) 2.0 4WD (ZSA30_, ZSA30R) (3ZR-FAE) | 158hp
Petrol 1987cc | SUV | 2008 - 2013
RAV 4 IV (_A4_) 2.0 4WD (ZSA44_, ZSA44R) (3ZR-FAE) | 151hp
Petrol 1987cc | SUV | 2012 - 2018
URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110) (1NR-FE) | 101hp
Petrol 1329cc | Hatchback | 2009 - 2016
URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110R) (1NR-FE) | 99hp
Petrol 1329cc | Hatchback | 2009 - 2016
VERSO (_R2_) 1.6 (ZGR20_, ZGR20R) (1ZR-FAE) | 132hp
Petrol 1598cc | MPV | 2009 - 2018
VERSO (_R2_) 1.6 (ZGR20) (1ZR-FAE) | 110hp
Petrol 1598cc | MPV | 2009 - 2018
VERSO (_R2_) 1.8 (ZGR21_, ZGR21R) (2ZR-FAE) | 147hp
Petrol 1798cc | MPV | 2009 - 2018
VERSO S (_P12_) 1.33 (NSP120_) (1NR-FE) | 99hp
Petrol 1329cc | MPV | 2010 - 2016
YARIS Hatchback Van (_P13_) 1.3 VVTi (NSP130) (1NR-FE) | 99hp
Petrol 1329cc | Hatchback Van | 2012 - 2017
YARIS/VITZ (_P13_) 1.3 (NSP130_, NSP130) (1NR-FE/1NR-FKE) | 99hp
Petrol 1329cc | Hatchback | 2011 - 2017
YARIS/VITZ (_P9_) 1.33 VVT-i (NSP90_, NSP90R) (1NR-FE) | 99hp
Petrol 1329cc | Hatchback | 2010 - 2011
YARIS/VITZ (_P9_) 1.33 VVT-i (NSP90_, NSP90R) (1NR-FE) | 100hp
Petrol 1329cc | Hatchback | 2008 - 2011
YARIS/VITZ (_P9_) 1.8 VVTi (ZSP90_, ZSP90R) (2ZR-FE) | 133hp
Petrol 1798cc | Hatchback | 2007 - 2011
