NGK ILFR7H Laser Iridium Spark Plug (5245)
Original price was: £27.59.£17.77Current price is: £17.77.
EARN REWARD POINTS
Purchasing this product will earn you 35 reward points worth £0.35 to redeem on future purchases. You can check your current points here.

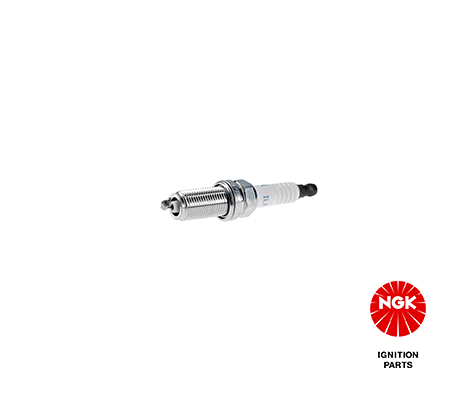

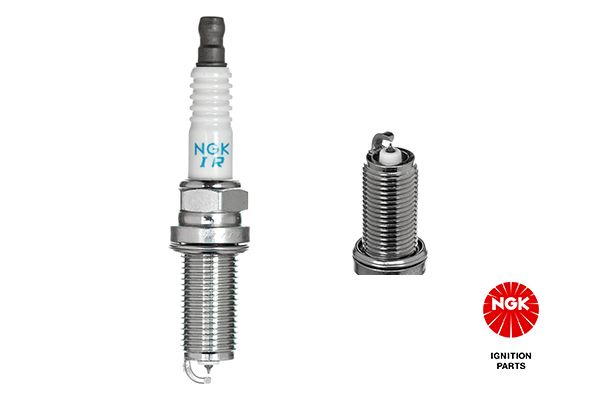

NGK ILFR7H Laser Iridium Spark Plug – Stock No. 5245
The NGK ILFR7H is a long-life Laser Iridium spark plug designed for clean ignition, stable idle, and reliable performance under load. It uses a fine iridium centre electrode and a platinum-tipped ground electrode. This keeps the spark strong while reducing wear, so performance stays consistent over time.
Iridium needs less voltage to spark. That helps cold starts and smooth running, especially on turbo and high-compression engines. The resistor design also helps cut electrical noise that can affect the ECU.
Use this plug as a high-quality replacement or light performance upgrade. It is pre-gapped and ready to install. Always confirm fitment using our vehicle lookup or check the Vehicle Fitment tab.
| Part Number | ILFR7H |
|---|---|
| NGK Stock Number | 5245 |
| Category | 686 – Spark Plug |
| GTIN | 087295152454 |
| Plug Type | Laser Iridium (iridium centre, platinum ground pad) |
| Heat Range | 7 (NGK scale) |
| Resistor | Yes |
| Thread Diameter | M14 x 1.25 |
| Reach (thread length) | 19 mm |
| Hex Size | 16 mm |
| Seat Type | Gasket (flat seat) |
| Electrode Gap | 0.8 mm (factory set) |
| Terminal | Solid |
Why choose this plug
- Strong spark for clean combustion and better throttle response.
- Fine-wire iridium reduces misfire under high boost or load.
- Laser-welded electrodes for long life and stable performance.
- OE-grade design with consistent heat control.
Fitting notes
– Fit only to engines specified for this plug. Use our vehicle lookup to confirm.
– Install on a cold engine. Tighten to manufacturer torque.
– The plugs are pre-gapped. Do not adjust unless the vehicle maker specifies a different gap.
– Do not use anti-seize on NGK plated shells.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
