Ngk ifr7g-11ks laser iridium spark plug (7746)
Ngk ifr7g-11ks laser iridium spark plug (7746) - image 2

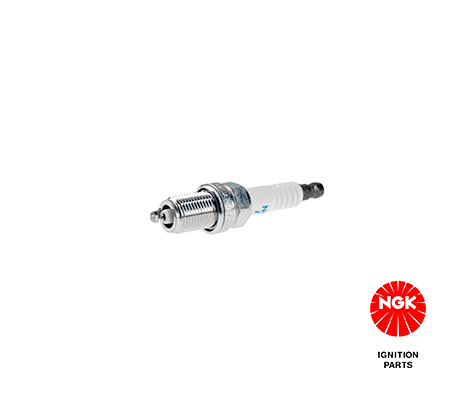

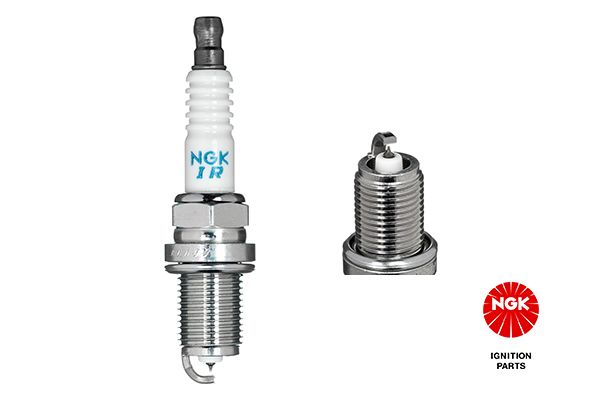

NGK IFR7G-11KS Laser Iridium Spark Plug (7746)

RRP. £32.36£20.92SAVE £11.44 (35%)

Checking current stock levels...

Klarna
3 payments of £6.97/mo example 0% APR
Clearpay
4 payments of £5.23/mo example 0% APR
Dopple
Compare 6, 12 and 24 month payment options from 16.9% APR
18+, T&C apply, Credit subject to status. Advanced calculator available at checkout.
SKU: NGK-7746 Categories: , , , , PP-RM5

NGK IFR7G-11KS Iridium Spark Plug – Stock 7746

This NGK iridium spark plug gives a strong, consistent spark for reliable combustion. It helps cold starts, smooth idle, and stable performance under load. The fine-wire iridium tip needs less voltage to fire, which supports tuned engines and sustained high RPM use. It also lasts longer than standard nickel plugs.

Key benefits

  • Fine-wire iridium centre electrode for clean, reliable ignition
  • Platinum-tipped ground electrode for long service life
  • Resistor design reduces electrical noise for stable ECU signals
  • Pre-set 1.1 mm gap for easy installation
Part Number IFR7G-11KS
NGK Stock Number 7746
Part Category 686 – Spark Plug
GTIN 87295177464
Thread Diameter 14 mm
Thread Pitch 1.25
Reach (thread length) 19 mm
Hex Size 16 mm
Seat Type Flat seat with gasket
Heat Range 7 (NGK scale)
Resistor Yes
Spark Gap 1.1 mm (pre-set)
Centre Electrode Fine-wire iridium, approx. 0.6 mm tip
Ground Electrode Platinum pad
Terminal Type Solid
Typical Tightening Torque 25 – 30 Nm (M14 gasket seat)
Shell Plating Trivalent anti-corrosion

Fitment guidance

This plug suits many Honda K-series 2.0 and 2.4 petrol engines that specify an NGK IFR7G-11KS plug with a 1.1 mm gap. Always use the vehicle lookup on our site or check the Vehicle Fitment tab to confirm.

Important: Confirm thread, reach, heat range, and gap against your vehicle’s specification or ECU tune. Do not force a plug if the thread or reach does not match.

The price displayed is for a single plug, please add the desired amount to your basket.

Additional Information

Weight 0.05 kg
Dimensions 10 × 3 × 3 cm
Brand

NGK-7746 Confirmed Fitment

Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions

HONDA (4 Models)
CIVIC VII Hatchback (EU, EP, EV) 2.0 Type-R (EP3) (K20A2) | 200hp
Petrol 1998cc | Hatchback | 2001 - 2005
CIVIC VIII Hatchback (FN, FK) 2.0 i-VTEC Type R (FN2) (K20Z4) | 241hp
Petrol 1998cc | Hatchback | 2010
CIVIC VIII Hatchback (FN, FK) Type R (FN2) (K20Z4) | 201hp
Petrol 1998cc | Hatchback | 2006 - 2012
INTEGRA Coupe (DC5) 2.0 16V Type-R (DC5) (K20Z1) | 220hp
Petrol 1998cc | Coupe | 2002 - 2025
