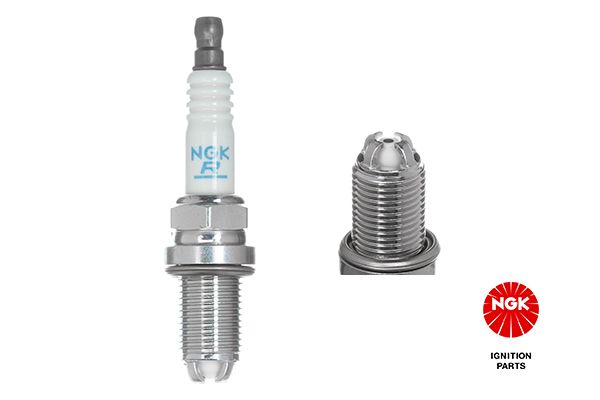

NGK BKR6EQUP Laser Platinum Spark Plug – Quad Ground (Stock No. 3199)
This NGK Laser Platinum plug uses a fine platinum-tipped centre electrode and four ground electrodes for stable, long-lasting ignition. It helps cold starts, smooth idle and reliable performance under load. The quad ground design shares wear and resists fouling, so service life is longer than standard copper plugs.
Well suited to many BMW 6-cylinder petrol engines from the late 1990s to mid-2000s (e.g. M52, M52TU, M54, M56). Always confirm using the vehicle lookup or check the Vehicle Fitment tab.
- Strong spark with low voltage demand for easier starts
- Quad ground design for consistent ignition and longer life
- Resistor type to reduce electrical noise for the ECU and audio systems
| Part number | BKR6EQUP |
|---|---|
| NGK stock number | 3199 |
| GTIN | 087295131992 |
| Category | 686 – Spark Plug |
| Thread size | M14 x 1.25 |
| Reach (thread length) | 19 mm |
| Hex size | 16 mm (5/8 in) |
| Seat type | Gasket |
| Heat range | 6 (NGK) |
| Resistor | Yes |
| Projected tip | Yes |
| Ground electrodes | 4 (quad) |
| Centre electrode | Platinum tip |
| Ground electrode material | Nickel alloy |
| Factory gap | 0.8 mm (approx.) |
| Terminal type | Solid |
| Typical resistance | ~5 k? |
| Recommended tightening torque | 18 – 25 Nm (aluminium head, 14 mm gasket seat) |
Installation notes
– Fit to a cool engine. Check and adjust gap only if the vehicle manufacturer specifies a different setting.
– Apply a small amount of clean engine oil to the gasket. Do not use anti-seize on plated NGK threads.
– Tighten to the specified torque. If no torque wrench: finger tight, then 1/2 turn for a new gasket.
The price displayed is for a single plug, please add the desired amount to your basket.
