NGK BKR5EQUPA Laser Platinum Spark Plug (3566)
Original price was: £13.02.£8.46Current price is: £8.46.
EARN REWARD POINTS
Purchasing this product will earn you 16 reward points worth £0.16 to redeem on future purchases. You can check your current points here.

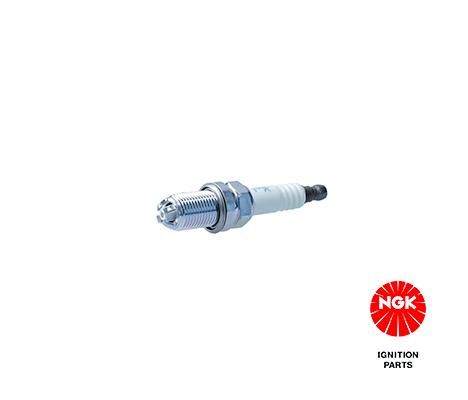

NGK BKR5EQUPA Spark Plug – Quad Ground, Laser Platinum
This NGK spark plug is built for consistent ignition and long service life. It uses a fine platinum centre electrode for a strong spark with less voltage. Four ground electrodes help maintain reliable firing as the plug wears.
The projected tip places the spark where the mixture burns best. A built-in resistor reduces electrical noise that can affect the radio or ECU. It is pre-gapped for typical factory settings and is suited to petrol engines that specify a 14 mm thread with long reach.
Use the vehicle lookup to confirm fitment, or check the Vehicle Fitment tab for full details.
- Stable spark under load for smoother running
- Long service interval thanks to platinum centre and multi-ground design
| Part Number | BKR5EQUPA |
|---|---|
| NGK Stock Number | 3566 |
| GTIN | 087295135662 |
| Category | 686 – Spark Plug |
| Thread Size | M14 x 1.25 |
| Reach | 19 mm |
| Hex Size | 16 mm |
| Seat Type | Gasket |
| Heat Range | NGK 5 |
| Resistor | Yes |
| Centre Electrode | Laser Platinum |
| Ground Electrodes | 4 x nickel steel |
| Tip Style | Projected |
| Factory Gap | 0.8 mm (preset) |
| Terminal Type | Solid SAE |
| Tightening Torque | 18 – 25 Nm (14 mm gasket seat) |
| Shell Plating | Trivalent anti-corrosion |
Important: Check and adjust the gap only if your vehicle specifies a different setting. Fit to a cold engine. Do not use anti-seize on NGK plated shells.
The price displayed is for a single plug, please add the desired amount to your basket.
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
