NGK BCPR7EIX Iridium IX Spark Plug (5690)
RRP. £25.00£14.18SAVE £10.82 (43%)

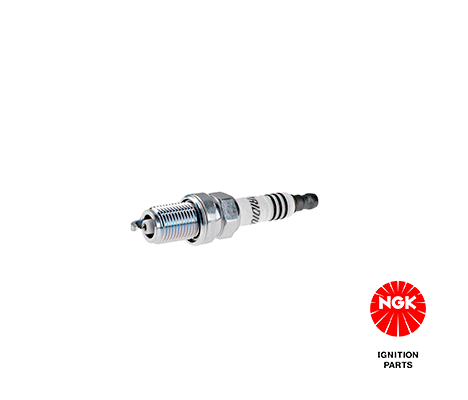

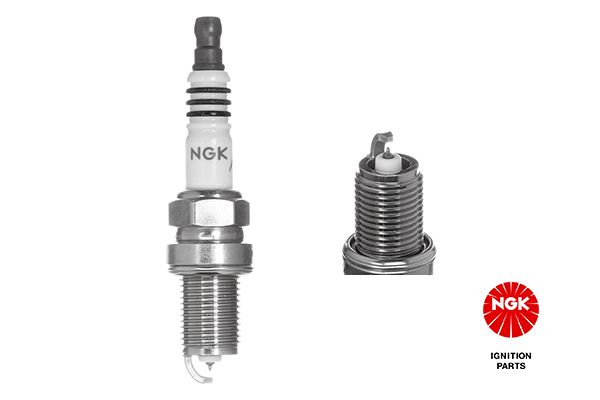

NGK Iridium IX Spark Plug – BCPR7EIX (Stock No. 5690)
The NGK BCPR7EIX is a high-quality iridium spark plug designed for strong ignition and stable performance, especially under load. The fine iridium tip needs less voltage to spark, which helps cold starts, smooth idle, and clean combustion. The heat range 7 rating suits engines that run hotter or have light tuning, where a colder plug is specified.
Iridium also lasts longer than standard copper plugs, so intervals can be extended in normal use. The projected tip improves flame kernel growth for reliable burn. Use this plug where your vehicle or tuner recommends it.
- Fine-wire iridium centre electrode for a strong, consistent spark
- Colder heat range (NGK 7) for higher-temperature running where specified
- Resistor design to reduce electrical noise that can affect the ECU
Always confirm fitment with the vehicle lookup or the Vehicle Fitment tab before ordering.
| Specification | Value |
|---|---|
| Part Number | BCPR7EIX |
| NGK Stock Number | 5690 |
| GTIN | 087295156902 |
| Category | 686 – Spark Plug |
| Technology | Iridium IX fine-wire centre electrode |
| Centre electrode tip diameter | Approx. 0.6 mm |
| Thread diameter | M14 x 1.25 |
| Reach (thread length) | 19.0 mm |
| Hex size | 16 mm (5/8 in) |
| Seat type | Flat seat with gasket |
| Heat range | 7 (NGK scale) |
| Resistor | Yes |
| Tip style | Projected |
| Pre-set gap | 0.8 mm (check and adjust carefully if required) |
Installation notes
– Fit to a cool engine. Hand-start threads to avoid cross-threading.
– Torque to the manufacturer’s spec for M14 gasket-seat plugs.
– If gap adjustment is needed, do not pry on the fine iridium tip. Use a proper gapping tool gently.
The price displayed is for a single plug, please add the desired amount to your basket.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 3 × 3 cm |
| Brand |
NGK-5690 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
155 (167_) 1.8 T.S. (167A4) (AR 67101/AR 67102) | 129hp
Petrol 1773cc | Saloon | 1992 - 1994
155 (167_) 2.0 T.S. (167.A2D) (AR 67201/AR 67202) | 144hp
Petrol 1995cc | Saloon | 1992 - 1995
DB7 Vantage 3.2 (AJ6HT) | 340hp
Petrol 3239cc | Coupe | 1994 - 1999
DB7 Volante 3.2 (AJ6HT) | 340hp
Petrol 3239cc | Convertible | 1996 - 2003
21 (C2) 1.6 i Supersport (16 K4F) | 140hp
Petrol 1588cc | Convertible | 1996 - 1998
DISPATCH I Van (BS_, BT_, BY_, BZ_) 1.6 i (1580 SPI/220 A2.000) | 79hp
Petrol 1581cc | Van | 1995 - 2000
FIORINO Box Body/MPV (146_) 75 i.e. 1.6 (146 C6.000/146 D6.000) | 75hp
Petrol 1581cc | Box Body/MPV | 1993 - 2001
FIORINO Pick up (146_) 1.6 (146 C6.000/146 D6.000) | 75hp
Petrol 1581cc | Pickup | 1994 - 2001
PUNTO (176_) 1.6 (176 A9.000) | 88hp
Petrol 1581cc | Hatchback | 1994 - 1997
PUNTO Convertible (176_) 90 1.6 (176 A9.000) | 88hp
Petrol 1581cc | Convertible | 1994 - 1997
SCUDO Van (220_) 1.6 (220 A 2.000) | 79hp
Petrol 1581cc | Van | 1996 - 2006
TEMPRA (159_) 1.6 i.e. (159.AJ) (159 B9.000) | 87hp
Petrol 1581cc | Saloon | 1994 - 1996
TEMPRA (159_) 1.6 i.e. (159.AJ) (159 B9.000) | 90hp
Petrol 1581cc | Saloon | 1994 - 1996
TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) (159 A3.048/835 C1.000) | 75hp
Petrol 1581cc | Saloon | 1992 - 1996
TEMPRA S.W. (159_) 1.6 i.e. (159.AE) (159 A3.046/835 C1.000) | 78hp
Petrol 1581cc | Estate | 1990 - 1996
TEMPRA S.W. (159_) 1.6 i.e. (159.AJ) (159 B9.000) | 90hp
Petrol 1581cc | Estate | 1994 - 1996
TEMPRA S.W. (159_) 1.6 i.e. (159.AS, 159.AT) (159 A3.048/835 C1.000) | 75hp
Petrol 1581cc | Estate | 1992 - 1996
TIPO (160_) 1.6 i.e. (160.A1, 160.EC, 160.EB) (159 A3.048/835 C1.000) | 75hp
Petrol 1581cc | Hatchback | 1992 - 1995
ESCORT III (GAA) 1.1 (GPA) | 59hp
Petrol 1117cc | Hatchback | 1980 - 1983
ESCORT III (GAA) 1.6 (LUA) | 97hp
Petrol 1597cc | Hatchback | 1980 - 1982
ESCORT III (GAA) 1.6 XR3i (LR1/LRA) | 105hp
Petrol 1597cc | Hatchback | 1982 - 1985
ESCORT IV Express (AVF) 1.4 i (F6B/F6D/FUC) | 73hp
Petrol 1392cc | Estate Van | 1986 - 1990
ESCORT Mk III Convertible (ALD) 1.6 (LP1/LPA) | 79hp
Petrol 1597cc | Convertible | 1983 - 1985
ESCORT Mk III Convertible (ALD) 1.6 i (LR1/LRA) | 105hp
Petrol 1597cc | Convertible | 1983 - 1985
ESCORT Mk III Estate (AWA) 1.6 (LP1/LPA) | 79hp
Petrol 1597cc | Estate | 1980 - 1985
ESCORT Mk IV (GAF, AWF, ABFT) 1.6 XR3i (LR2/LRB) | 105hp
Petrol 1597cc | Hatchback | 1986 - 1989
ESCORT Mk IV Convertible (ALF) 1.6 XR3i (LR2/LRB) | 105hp
Petrol 1597cc | Convertible | 1986 - 1990
FIESTA (GFBT) 1.3 (J3E) | 66hp
Petrol 1297cc | Hatchback | 1977 - 1983
FIESTA (GFBT) 1.6 XR2 (L3E) | 84hp
Petrol 1598cc | Hatchback | 1981 - 1983
FIESTA Mk II (FBD) 1.6 XR2 (FBD) (LUB) | 97hp
Petrol 1597cc | Hatchback | 1984 - 1989
ORION (AFD) 1.6 (LP1/LPA) | 79hp
Petrol 1597cc | Saloon | 1983 - 1986
ORION (AFD) 1.6 i (LR1/LRA) | 105hp
Petrol 1597cc | Saloon | 1983 - 1986
ORION Mk II (AFF) 1.6 i (LRB) | 105hp
Petrol 1597cc | Saloon | 1986 - 1990
DEDRA (835_) 1.6 i.e. (835AN) (835 C1.000) | 75hp
Petrol 1581cc | Saloon | 1993 - 1999
DEDRA (835_) 1.6 LE Cat (835EB) (159 B9.000) | 90hp
Petrol 1581cc | Saloon | 1994 - 1999
Y10 (156_) 1.1 i.e. Fire (156AG) (156 C.046) | 50hp
Petrol 1108cc | Hatchback | 1989 - 1995
106 I (1A, 1C) 1.4 Le Mans (KFZ (TU3FJ2/Z)) | 94hp
Petrol 1361cc | Hatchback | 1991 - 1994
106 I (1A, 1C) 1.6 (NFZ (TU5JP)) | 88hp
Petrol 1587cc | Hatchback | 1993 - 1996
106 I (1A, 1C) 1.6 (NFY (TU5J2)) | 103hp
Petrol 1587cc | Hatchback | 1994 - 1996
306 (7B, N3, N5) 1.6 SR (NFZ (TU5JP)) | 89hp
Petrol 1587cc | Saloon | 1994 - 2000
306 (7B, N3, N5) 2.0 S16 (RFT (XU10J4)) | 150hp
Petrol 1998cc | Saloon | 1994 - 2001
306 Hatchback (7A, 7C, N3, N5) 1.6 (NFZ (TU5JP)) | 89hp
Petrol 1587cc | Hatchback | 1993 - 2000
306 Hatchback (7A, 7C, N3, N5) 2.0 S16 (RFT (XU10J4)/RFY (XU10J4Z)) | 150hp
Petrol 1998cc | Hatchback | 1994 - 2001
405 Mk II (4B) 1.6 (B2A (XU52C/K)/BFZ (XU5JP)) | 92hp
Petrol 1580cc | Saloon | 1992 - 1994
405 Mk II (4B) 2.0 16V (RFT (XU10J4)) | 150hp
Petrol 1998cc | Saloon | 1994 - 1995
405 Mk II (4B) 2.0 MI-16 (RFY (XU10J4Z)) | 152hp
Petrol 1998cc | Saloon | 1992 - 1995
405 Mk II Estate (4E) 1.9 (D6A (XU9J2)) | 109hp
Petrol 1905cc | Estate | 1992 - 1995
605 (6B) 2.0 (RFZ (XU10J2Z)) | 121hp
Petrol 1998cc | Saloon | 1989 - 1999
EXPERT Platform/Chassis (223) 1.6 (222A2 (1580 SPI)) | 79hp
Petrol 1581cc | Platform/Chassis | 1996 - 2000
EXPERT Van (222) 1.6 (222A2 (1580 SPI)) | 79hp
Petrol 1581cc | Van | 1996 - 2000
9-3 (YS3D) 2.0 SE Turbo (B204R) | 200hp
Petrol 1985cc | Hatchback | 1998 - 2002
9-3 (YS3D) 2.0 Turbo (B205R) | 205hp
Petrol 1985cc | Hatchback | 1999 - 2002
9-3 (YS3D) 2.0 Turbo (B204L/B205E/B205L) | 185hp
Petrol 1985cc | Hatchback | 1998 - 2002
9-3 (YS3D) 2.3 (B235R) | 230hp
Petrol 2290cc | Hatchback | 1999 - 2002
9-3 (YS3D) 2.3 Turbo (B235R) | 224hp
Petrol 2290cc | Hatchback | 1998 - 2002
9-3 Cabriolet (YS3D) 2.0 SE Turbo (B204R) | 200hp
Petrol 1985cc | Convertible | 1998 - 2003
9-3 Cabriolet (YS3D) 2.0 Turbo (B204L/B205E/B205L) | 185hp
Petrol 1985cc | Convertible | 1998 - 2003
9-3 Cabriolet (YS3D) 2.0 Turbo (B205R) | 205hp
Petrol 1985cc | Convertible | 1999 - 2003
9-3 Cabriolet (YS3D) 2.3 (B235R) | 230hp
Petrol 2290cc | Convertible | 1999 - 2002
9-3 Cabriolet (YS3D) 2.3 Turbo (B235R) | 224hp
Petrol 2290cc | Convertible | 1999 - 2003
9-5 (YS3E) 2.0 t (B205L) | 185hp
Petrol 1985cc | Saloon | 2000 - 2009
9-5 (YS3E) 2.0 t (B205E) | 150hp
Petrol 1985cc | Saloon | 1997 - 2009
9-5 (YS3E) 2.0 Turbo SE (B205E) | 192hp
Petrol 1985cc | Saloon | 1998 - 2000
9-5 (YS3E) 2.3 Turbo (B235R) | 230hp
Petrol 2290cc | Saloon | 1999 - 2001
9-5 (YS3E) 2.3 Turbo (B235R) | 260hp
Petrol 2290cc | Saloon | 2005 - 2009
9-5 (YS3E) 2.3 Turbo (B235L) | 220hp
Petrol 2290cc | Saloon | 2003 - 2009
9-5 (YS3E) 2.3 Turbo (B235R) | 250hp
Petrol 2290cc | Saloon | 2001 - 2009
9-5 (YS3E) 2.3 Turbo (B235R) | 256hp
Petrol 2290cc | Saloon | 2008 - 2009
9-5 Estate (YS3E) 2.0 t (B205L) | 185hp
Petrol 1985cc | Estate | 2000 - 2001
9-5 Estate (YS3E) 2.0 t (B205E) | 192hp
Petrol 1985cc | Estate | 1998 - 2000
9-5 Estate (YS3E) 2.0 t (B205E) | 150hp
Petrol 1985cc | Estate | 1998 - 2009
9-5 Estate (YS3E) 2.3 Turbo (B235R) | 230hp
Petrol 2290cc | Estate | 1999 - 2001
9-5 Estate (YS3E) 2.3 Turbo (B235R) | 250hp
Petrol 2290cc | Estate | 2001 - 2009
9-5 Estate (YS3E) 2.3 Turbo (B235L) | 220hp
Petrol 2290cc | Estate | 2003 - 2009
9-5 Estate (YS3E) 2.3 Turbo (B235R) | 260hp
Petrol 2290cc | Estate | 2006 - 2009
900 Combi Coupe 2.0 Turbo-16 (B202L) | 180hp
Petrol 1985cc | Hatchback | 1993 - 1994
900 Convertible 2.0 -16 (B202I) | 126hp
Petrol 1985cc | Convertible | 1990 - 1994
900 II Convertible 2.0 -16 Turbo (B204L) | 185hp
Petrol 1985cc | Convertible | 1993 - 1998
9000 2.0 -16 CD (B202S/B204E/B204S) | 150hp
Petrol 1985cc | Saloon | 1993 - 1998
9000 2.0 -16 Turbo (B202XL) | 160hp
Petrol 1985cc | Saloon | 1988 - 1993
9000 2.0 -16 Turbo CD (B202S/B204E) | 147hp
Petrol 1985cc | Saloon | 1992 - 1998
9000 2.0 -16 Turbo CD (B202XL) | 163hp
Petrol 1985cc | Saloon | 1988 - 1993
9000 2.0 -16 Turbo CD (B202L) | 185hp
Petrol 1985cc | Saloon | 1989 - 1998
9000 2.3 -16 CDE (B234I) | 147hp
Petrol 2290cc | Saloon | 1993 - 1998
9000 2.3 -16 Turbo (B234L) | 195hp
Petrol 2290cc | Saloon | 1990 - 1998
9000 Hatchback 2.0 -16 CS (B202I/B202XI) | 128hp
Petrol 1985cc | Hatchback | 1989 - 1998
9000 Hatchback 2.0 -16 ND Turbo (B202S/B204E/B204S) | 150hp
Petrol 1985cc | Hatchback | 1993 - 1998
9000 Hatchback 2.0 -16 Turbo (B202) | 172hp
Petrol 1985cc | Hatchback | 1989 - 1992
9000 Hatchback 2.0 -16 Turbo (B202XL) | 163hp
Petrol 1985cc | Hatchback | 1988 - 1993
9000 Hatchback 2.3 -16 Aero CS (B234R) | 224hp
Petrol 2290cc | Hatchback | 1993 - 1998
9000 Hatchback 2.3 -16 Aero CS (B234R) | 220hp
Petrol 2290cc | Hatchback | 1993 - 1998
IBIZA (21A) 1.2 (021 A 1000) | 60hp
Petrol 1193cc | Hatchback | 1984 - 1993
IBIZA (21A) 1.2 (021 A 1000) | 63hp
Petrol 1193cc | Hatchback | 1984 - 1993
IBIZA (21A) 1.2 i (021 C.1000) | 71hp
Petrol 1193cc | Hatchback | 1989 - 1993
IBIZA (21A) 1.5 (021 A 2000) | 85hp
Petrol 1461cc | Hatchback | 1984 - 1993
IBIZA (21A) 1.5 i (021 D.2000) | 89hp
Petrol 1461cc | Hatchback | 1986 - 1993
IBIZA (21A) 1.5 i (021 B.2000) | 100hp
Petrol 1461cc | Hatchback | 1986 - 1993
IBIZA (21A) 1.5 i Cat (021 C.2000) | 90hp
Petrol 1461cc | Hatchback | 1986 - 1993
IBIZA (21A) 1.7 (021 A.3000) | 98hp
Petrol 1675cc | Hatchback | 1991 - 1993
MALAGA (23A) 1.2 (021 A 1000) | 60hp
Petrol 1193cc | Saloon | 1985 - 1993
MALAGA (23A) 1.2 (021 A 1000) | 64hp
Petrol 1193cc | Saloon | 1984 - 1993
MALAGA (23A) 1.2 i (021 C.1000) | 71hp
Petrol 1193cc | Saloon | 1989 - 1993
MALAGA (23A) 1.5 (021 A 2000) | 85hp
Petrol 1461cc | Saloon | 1985 - 1993
MALAGA (23A) 1.5 i (021 B.2000) | 100hp
Petrol 1461cc | Saloon | 1987 - 1993
MALAGA (23A) 1.5 i Cat (021 A 2000/021 C.2000/021 D.2000) | 90hp
Petrol 1461cc | Saloon | 1986 - 1993
RONDA (22A) 1.2 (021 A 1000) | 60hp
Petrol 1193cc | Hatchback | 1984 - 1986
RONDA (22A) 1.5 (021 A 2000) | 85hp
Petrol 1461cc | Hatchback | 1984 - 1986
C70 I Convertible (873) 2.0 (B 5204 T2) | 180hp
Petrol 1984cc | Convertible | 1998 - 2005
C70 I Convertible (873) 2.0 T (B 5204 T3) | 226hp
Petrol 1984cc | Convertible | 1998 - 2005
C70 I Coupe (872) 2.0 (B 5204 T2) | 180hp
Petrol 1984cc | Coupe | 1997 - 2002
C70 I Coupe (872) 2.0 T (B 5204 T3) | 226hp
Petrol 1984cc | Coupe | 1997 - 2002
S70 (874) 2.0 (B 5204 T2) | 180hp
Petrol 1984cc | Saloon | 1997 - 2000
S70 (874) 2.0 Turbo (B 5204 T) | 210hp
Petrol 1984cc | Saloon | 1997 - 2000
S70 (874) 2.0 Turbo (B 5204 T3) | 226hp
Petrol 1984cc | Saloon | 1997 - 2000
S80 I (184) 2.0 (B 5204 T4) | 163hp
Petrol 1984cc | Saloon | 1998 - 2006
S80 I (184) 2.0 T (B 5204 T3) | 226hp
Petrol 1984cc | Saloon | 1998 - 2006
V70 (875, 876) 2.0 Turbo (B 5204 T3) | 226hp
Petrol 1984cc | Estate | 1996 - 2000
V70 (875, 876) 2.0 Turbo (B 5204 T) | 211hp
Petrol 1984cc | Estate | 1995 - 2000
V70 (875, 876) 2.0 Turbo AWD (B 5204 T3) | 226hp
Petrol 1984cc | Estate | 1996 - 2000
V70 (875, 876) 2.4 Turbo AWD (B 5244 T2) | 265hp
Petrol 2435cc | Estate | 1999 - 2000
Stock at Progressive Parts
Delivery timescales are given as estimates in good faith, but cannot be taken as precise or exact information. We highly advise against booking installation/workshop time or engaging in preparatory work until you've received and inspected the goods.
What do our stock statuses mean?
1+ IN STOCK in green stock is readily available in one of our warehouses for express delivery (at the time of viewing).
LOW STOCK in green means we're running low! 1 or 2 left on the shelf so act fast. Over evenings, weekends and bank holidays this stock can move quickly so please bear this in mind.
0 IN STOCK in blue means our primary warehouse does not have unallocated stock, but our UK partners do. Often these can be shipped quickly and efficiently. You'll be notified via the Track My Order page if further delays are unavoidable.
MADE TO ORDER in blue means we've partnered with a supplier which primarily makes their products to order. It's not on our shelf, but your order goes into production immediately.
0 IN STOCK in orange means everybody we work with is unfortunately out of stock. Stock is not available in the UK. The best course of action is to place an order to create an allocation from the next batch arriving.
OUT OF STOCK in red. This product is unavailable to order, for whatever reason we're unable to obtain stock or there is an issue with supply/lead times.
We're tuners too!
Our staff are car enthusiasts, we understand the need for speed... This includes getting your orders out the door as quickly and securely as possible!
In some instances, extended lead times are unavoidable. This is as labour-intensive and frustrating for us as it is for you, please know we are doing our best to facilitate your modification goals. Abuse of our staff or systems will not be tolerated.
Thank you, Team PP
In the words of the Vehicle Standards Agency (VCA), type approval provides "confirmation that production and samples of a design will meet specified performance standards".
For emissions components this encompasses noise, emissions and balanced back pressure, which have a strong influence on maintaining engine performance (power), and fuel efficiency. Type approval ensures that an aftermarket component will reach, or exceed the performance standard of the corresponding OE part.
Type-approval then, is a certain guarantee that an end user will receive a product of OE equivalent performance attributes.
Products on the Progressive Parts website that meet this approval will be clearly marked or labelled EC or ECE approved.
