IOPEDAL Throttle Response Module
Bring your vehicle to life with the new TÜV approved IOPEDAL wireless module. Easy at-home installation and setup, unlocking an array of features to unlock the responsiveness from your vehicle’s throttle pedal.
Unlike the competition the IOPEDAL module features full wireless capability meaning no wires are strewn across the interior and clutter is kept to minimum. Choose to display the remote control in plain sight or tactfully hide it away until adjustments are required!
Compatibility
Compatible with nearly every vehicle featuring an electronic accelerator pedal, submit your vehicle registration in the form above for the correctly pre-configured kit. Simply plug & play!
Security
It’s easy to toggle secureMode on & off from your Remote Control, leaving the vehicle somewhere different or even just on the driveway after a long day? When enabled secureMode will disable the signal from the accelerator pedal rendering it inactive, so even though potential intruders can start the engine, they won’t get very far! Disabling the secureMode is quick & easy with the touch of a button or via the app.
What’s Included?
- Remote Control & Cradle
- Pedal Module
- Wiring Loom
- Mounting pads & accessories
- Install Guide
App Download
ADVANCED

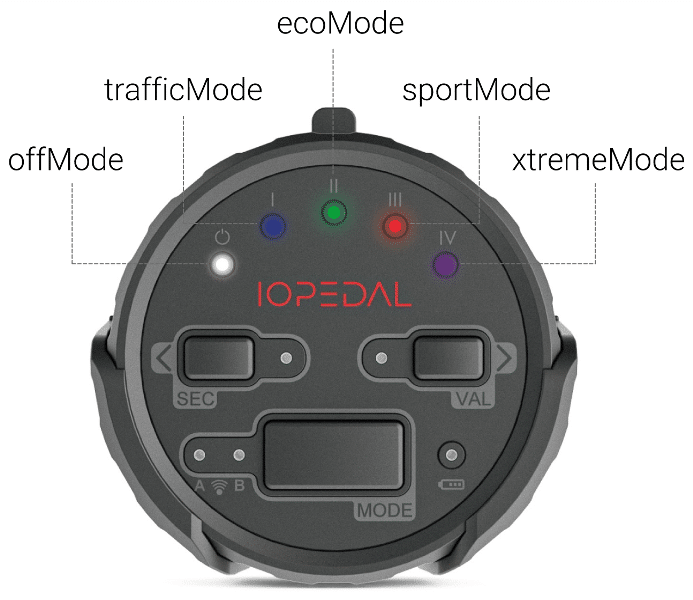

Intelligent Learning & Modes
The IOPEDAL module features advanced self-learning calibration features. After initial installation, all the necessary information from your accelerator pedal is analysed and processed to create individual maps across all driving modes.
- trafficMode – Require a reduced sensitivity in slow traffic or unfamiliar environments? Less stress all round…
- ecoMode – Reduce fuel consumption with lighter pedal use, combined with an eco driving style you’re ready to save some money.
- sportMode – Significantlty better response, smooth acceleration and reduced throttle lag (The most popular setting!)
- xtremeMode – When sportMode just isn’t enough…
AT A GLANCE
IOPEDAL Unique Features
4 Driving Modes
Programmed with performance driving modes with sub-modes, packed full of features!
Wireless Control
Simply beautiful LED controls to navigate preset options and modes.
Security Mode
Anti-theft protection disables the accelerator pedal
Auto-Ranging Function
Intelligent calibration mechanisms to detect vehicle & throttle data during setup.
Valet Mode
Limit your vehicle’s performance during unique driving situations where less power is better!
Warm-up Timer
Automatically give your vehicle a chance to warm up before applying throttle adjustments
EASY TO FOLLOW
Installation Guide

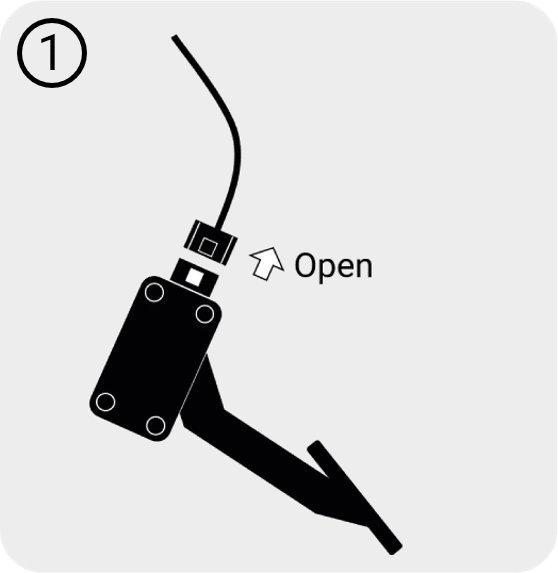

Step 1
Switch off the ignition, keep the key outside the vehicle and wait approx. 10 minutes. Then disconnect the plug from the accelerator pedal.

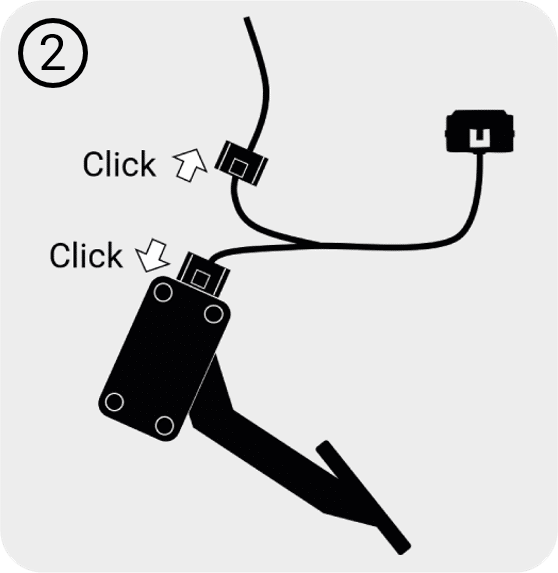

Step 2
Then connect the supplied cable to the accelerator pedal and finally to the vehicle’s original wiring harness.
Step 3
Then fix the cable and the IOPEDAL module in such a way that the pedals of your car are not affected. Use the supplied fixing material (adhesive pad and cable ties).

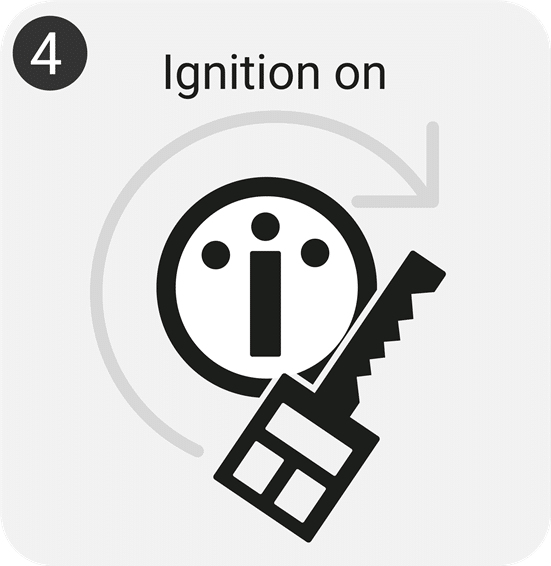

Step 4
After installation, switch on the ignition. With the first start-up of the IOPEDAL, the input signals of the accelerator pedal are analyzed (auto-ranging mode).

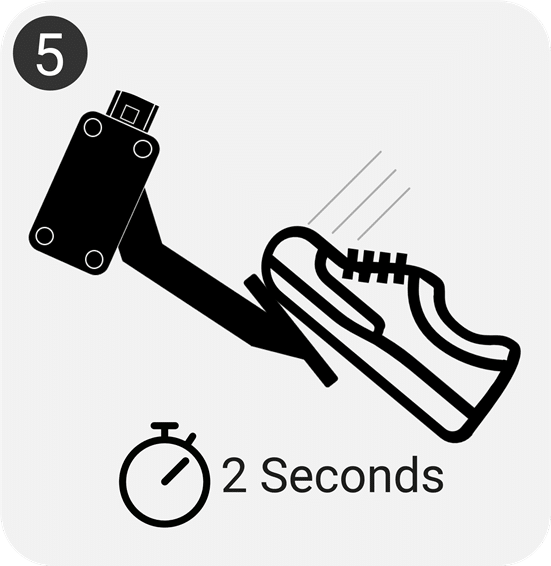

Step 5
Then slowly depress the accelerator pedal to the full throttle position and hold for approx. 2 seconds. Repeat this procedure 2-3 times. The system is then fully configured and a test drive can be carried out.
