iABED Baffled Aluminium Oil Sump/Pan EA888 Engines

iABED Baffled Aluminium Oil Sump/Pan EA888 Engines

A true baffled oil sump for the EA888 engines is designed to address a common problem that arises in high-performance cars: oil surge.

Oil surge occurs when the oil in the sump sloshes around during hard cornering or braking, causing a momentary loss of oil pressure. This can starve the engine of oil, leading to catastrophic engine failure.

A baffled sump helps to prevent oil surge by reducing the amount of oil sloshing around in the sump during aggressive driving. The baffles act as walls and partitions that break up the surface tension of the oil, preventing it from moving excessively. As a result, the engine receives a constant and reliable supply of oil, even under extreme conditions.

Does a baffled sump require more oil?

No, a baffled sump does not require more oil than a standard sump. In fact, a baffled sump is often shallower than a standard sump, which means it can hold less oil. However, the advantage of a baffled sump is that the oil within it is better utilized and distributed, making it more efficient and effective at keeping the engine lubricated.

Features

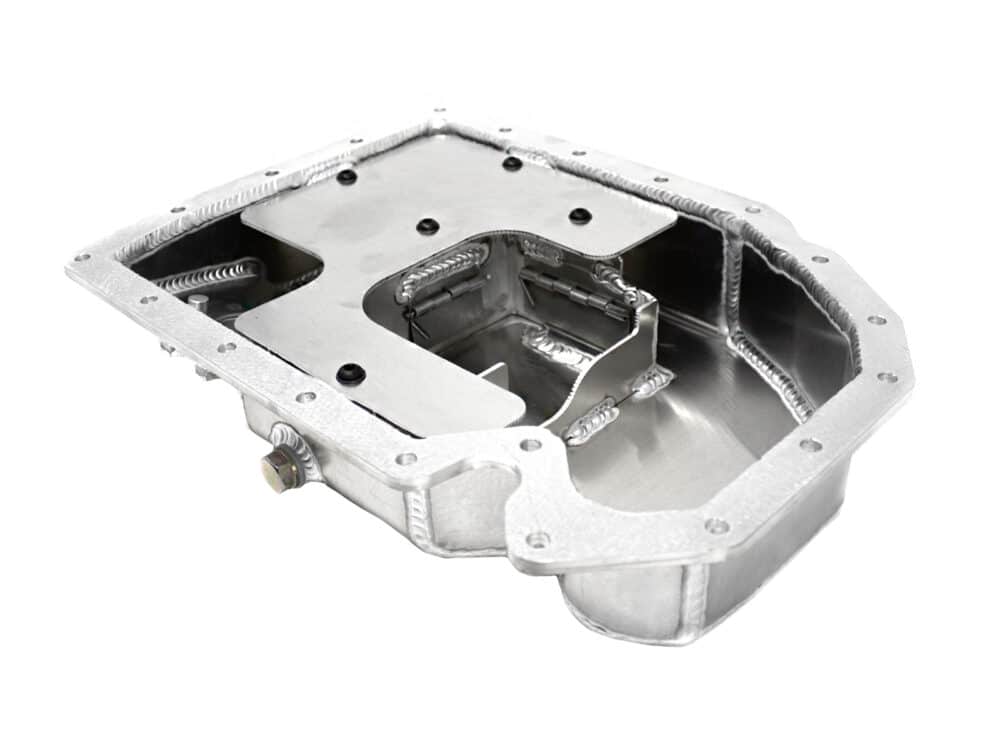

• Full Aluminium construction which replaces the weak OEM plastic sump
• CNC Machined pan rail and oil level sensor provision plate
• Aluminium construction on outer body for strength, longevity and resistance to corrosion
• Prevents oil from sliding up the walls of the crankcase through hard cornering

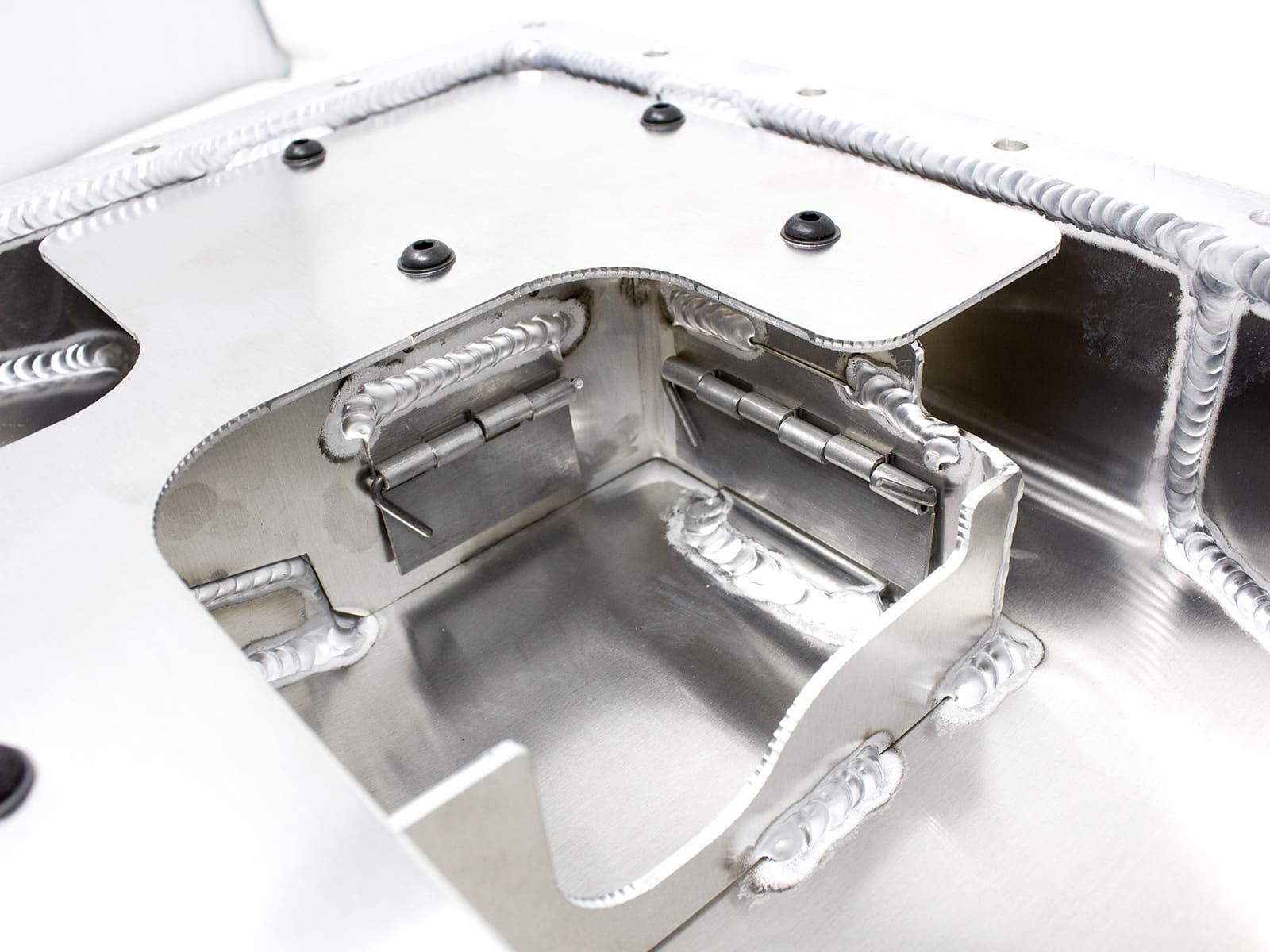

• Hinged flaps maintains oil around the OE pickup pipe at all times making it the perfect addition for those that use their car for fast-road or track use
• 0.8L increased oil capacity without raising the minimum height of the oil level

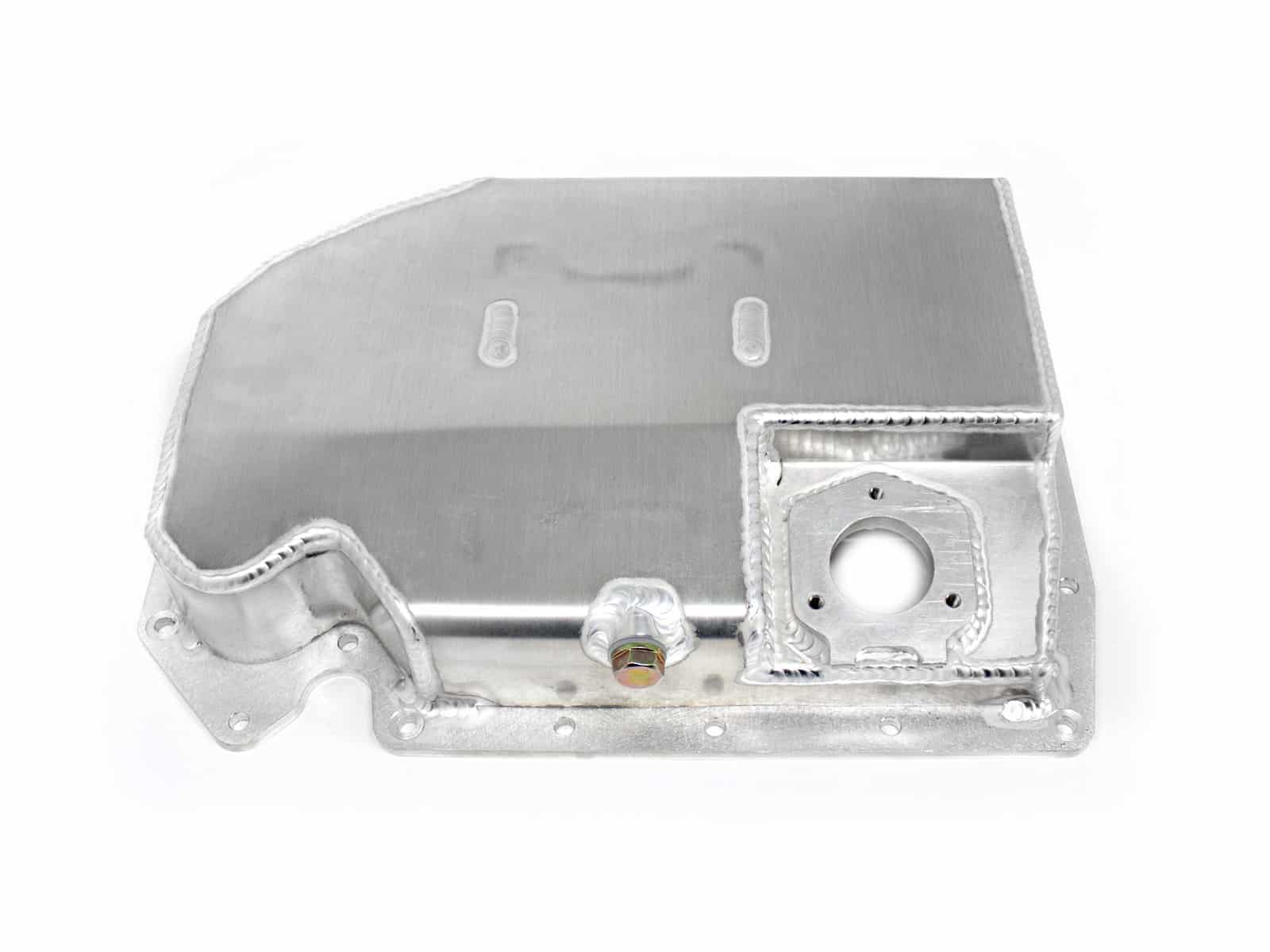

• Provision for OEM oil level sensor so no modifications are needed
• ¾-16 Magnetic drain plug as standard

Confirmed Fitment

• Audi 8V S3 Quattro 2.0TSi
• Audi A3 8V FWD 1.8TSi
• Audi A3 8V FWD 2.0TSi
• Audi A3 8V Quattro 2.0TSi
• Audi MK3 TT (2014+) Quattro 2.0TSi
• Audi TT MKII FWD 1.8TSi
• Audi TT MKII FWD 2.0TSi
• Audi TT MKII Quattro 2.0TSi
• Volkswagen CC FWD 2.0TSi
• Volkswagen Golf VI 2.0TSi
• Volkswagen Golf VII Hatchback 1.8TSi Gen3
• Volkswagen Golf VII Sportwagen 1.8TSi Gen3
• Volkswagen Golf VII GTI 2.0TSi Gen3
• Volkswagen Golf VII Facelift FWD 1.8TSi Gen3
• Volkswagen Golf VII Facelift FWD 2.0TSi Gen3
• Volkswagen Golf VII R GTI 2.0TSi Gen3
• Volkswagen Golf VII R Facelift 4Motion 2.0TSi Gen3
• Volkswagen Golf VII SportWagon Facelift 4Motion 1.8TSi Gen3
• Volkswagen Golf VII SportWagon Facelift FWD 1.8TSi Gen3
• Volkswagen Jetta VI 1.8TSi Gen3
• Volkswagen Jetta VI Sedan Facelift 1.8TSi Gen3
• Volkswagen Passat B7 FWD 1.8TSi Gen3
• Volkswagen Tiguan 1 4 Motion 2.0TSi
• Volkswagen Tiguan 1 FWD 2.0TSi
• Volkswagen Tiguan 24 Motion 2.0TSi
• Volkswagen Tiguan 2 FWD 2.0TSi
• Seat Leon MK3 TSi
• Skoda Octavia MK3 TSi

Factory GPF model vehicles require the oil level sensor to be modified slightly when installing this sump.

– The stock sump plastic guard / windage tray will need removing when installing this product. The iABED sump will not fit with this left in place!

– The factory sump bolts are used to resecure the new sump. X1 bolt will need cutting down slightly to fit. As you reuse your existing stock sump securing bolts, no sump securing bolts are supplied in this kit!

– The sump is not supplied with sump sealant, or a seal for the oil level sensor. You will be required to purchase these items separately if required.

– To fit your existing oil level sensor into the new sump, you cannot use the factory nuts. You will need to replace with bolts. These bolts are not included with the sump at this time.

– If you have a Polo 6C GTI 1.8 EA888.3, Or an Audi S1 you will notice your vehicle isnt listed above – You can fit this sump however you also need to fit the Golf GTI/R oil pickup pipe, part number 06K115251J. The sump will not fit with the standard pickup pipe fitted on these two vehicles!! – If your vehicle is listed above then you will not need to do this!!
