HEL Direct Fit Oil Cooler Kit for Honda Civic (FL5) Type R

£629.99

Checking current stock levels...

Klarna
3 payments of £210.00/mo example 0% APR
Clearpay
4 payments of £157.50/mo example 0% APR
Dopple
Compare 6, 12 and 24 month payment options from 16.9% APR
18+, T&C apply, Credit subject to status. Advanced calculator available at checkout.
EARN REWARD POINTS
Purchasing this product will earn you 1259 reward points worth £12.59 to redeem on future purchases. You can check your current points here.
Installation Instructions
An installation guide is available for this product, download here.
SKU: HOCK-HON-009 Categories: , , , , PP-PC-10

HEL Direct Fit Oil Cooler Kit for Honda Civic (FL5) Type R

The HEL (Automotive) Development Centre has engineered a new direct-fit oil cooler specifically for the all-new 2023-onwards Honda FL5 Civic Type R. Development of this kit commenced after the Centre acquired its own FL5 for research and design. Extensive time was dedicated to its development, and the team is highly satisfied with the outcome.

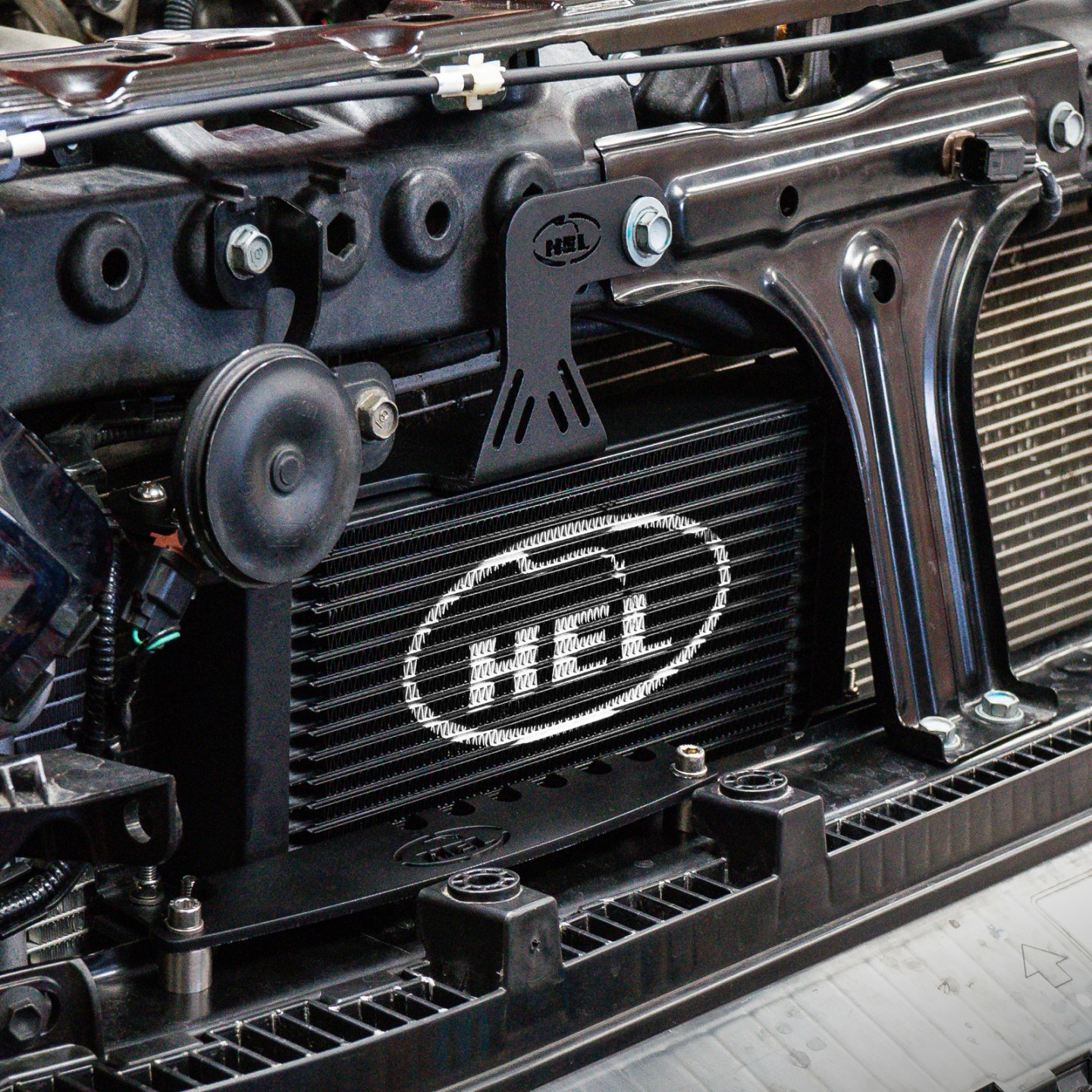

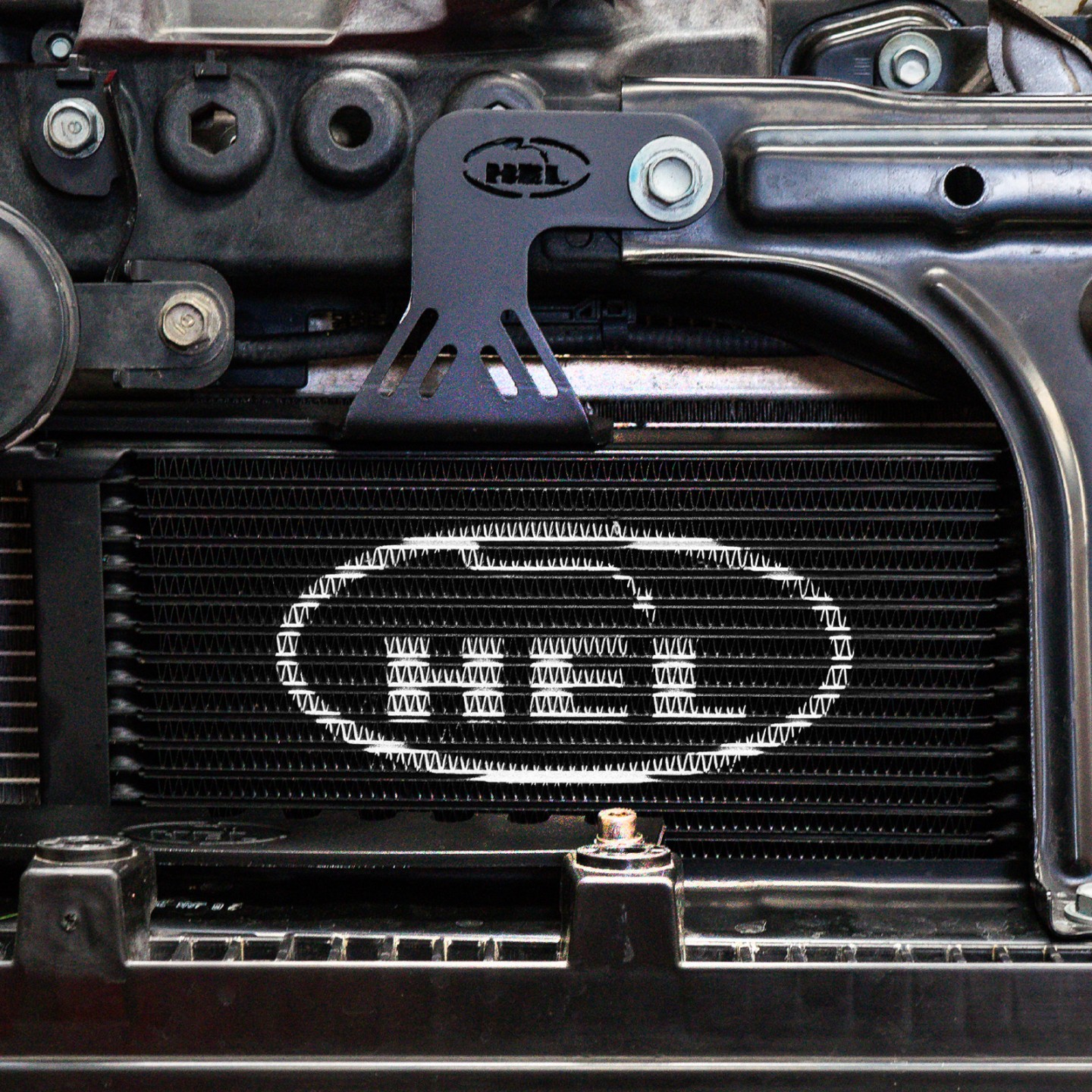

Unlike the FK2 Civic Type R, and much like the FK8, limited options existed for optimal oil cooler placement on the FL5. After a thorough 3D scan of the front end, the left side of the grille area was chosen. This position ensures direct airflow without impeding airflow to other components.

This kit incorporates a 16-row Setrab Series 6 ProLine oil cooler. The 16-row configuration strikes an excellent balance, minimizing pressure loss while providing highly effective cooling.

For the other end of the cooler, the latest Multi Angled Billet Thermostatic sandwich plate was selected. Its front-mounted thermostat provides crucial extra clearance in this kit, where space around the oil filter is restricted. This plate also features two spare ports, allowing for the installation of temperature and pressure sensors if desired.

The HEL Performance Multi Angled Billet thermostatic sandwich plate is set at 92°C (197.6°F). This temperature setting has been determined to offer the perfect balance between effective cooling when necessary and allowing the engine to warm up safely. Operating the oil at excessively low temperatures can be detrimental, and the thermostat precisely controls the temperature.

This comprehensive kit comes complete with pre-assembled high-flow AN10 HEL braided hoses and anodized aluminum fittings, along with all necessary fixings and brackets. These components utilize original equipment (OE) pickups, requiring no drilling or modifications to the car. The hoses are protected with abrasion-resistant, heat-shrunk braided sleeving, which also aids in noise and rattle suppression.

This direct-fit kit provides a safe and reliable cooling system for the FL5 Type R. It includes easy-to-understand instructions, and the technical support team is always available to answer any questions customers may have.

Please note:

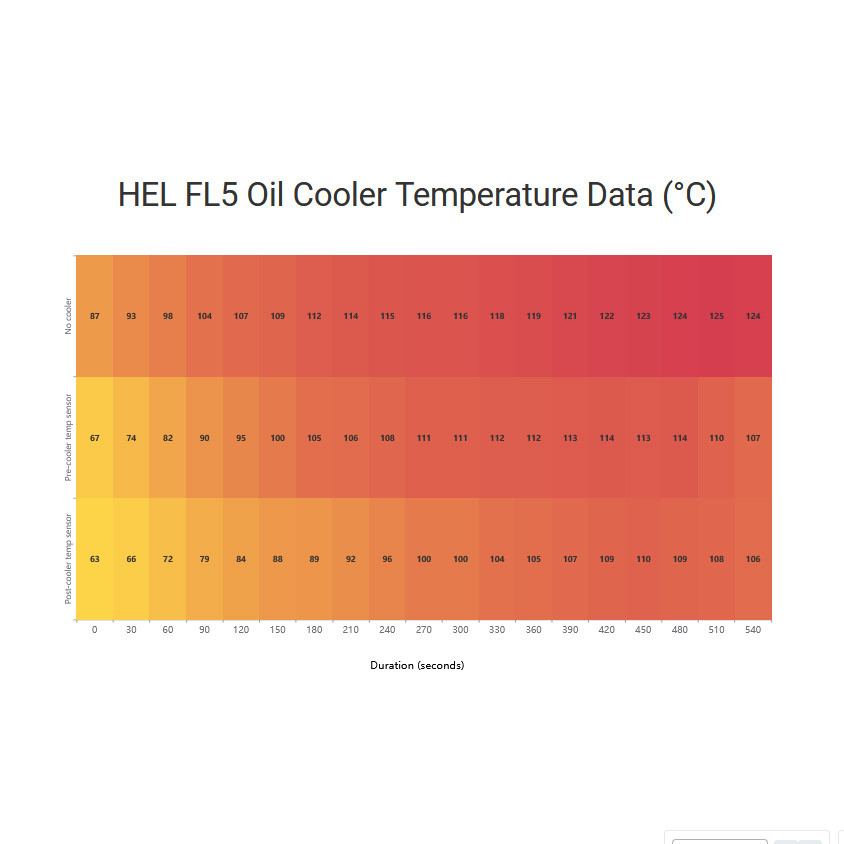

Oil temperature data was collected using a standalone SPAR oil temperature/pressure gauge, with the sensor unit mounted directly in the oil cooler sandwich plate. This provided a true oil temperature reading during testing. In contrast, the data displayed on the HUD & Honda LogoR system is a simulated reading and should not be used for reference once an oil cooler kit has been installed.

Testing was carried out at Castle Combe (UK) in an average ambient air temperature of 18°C. A provided graph contains all collected information.

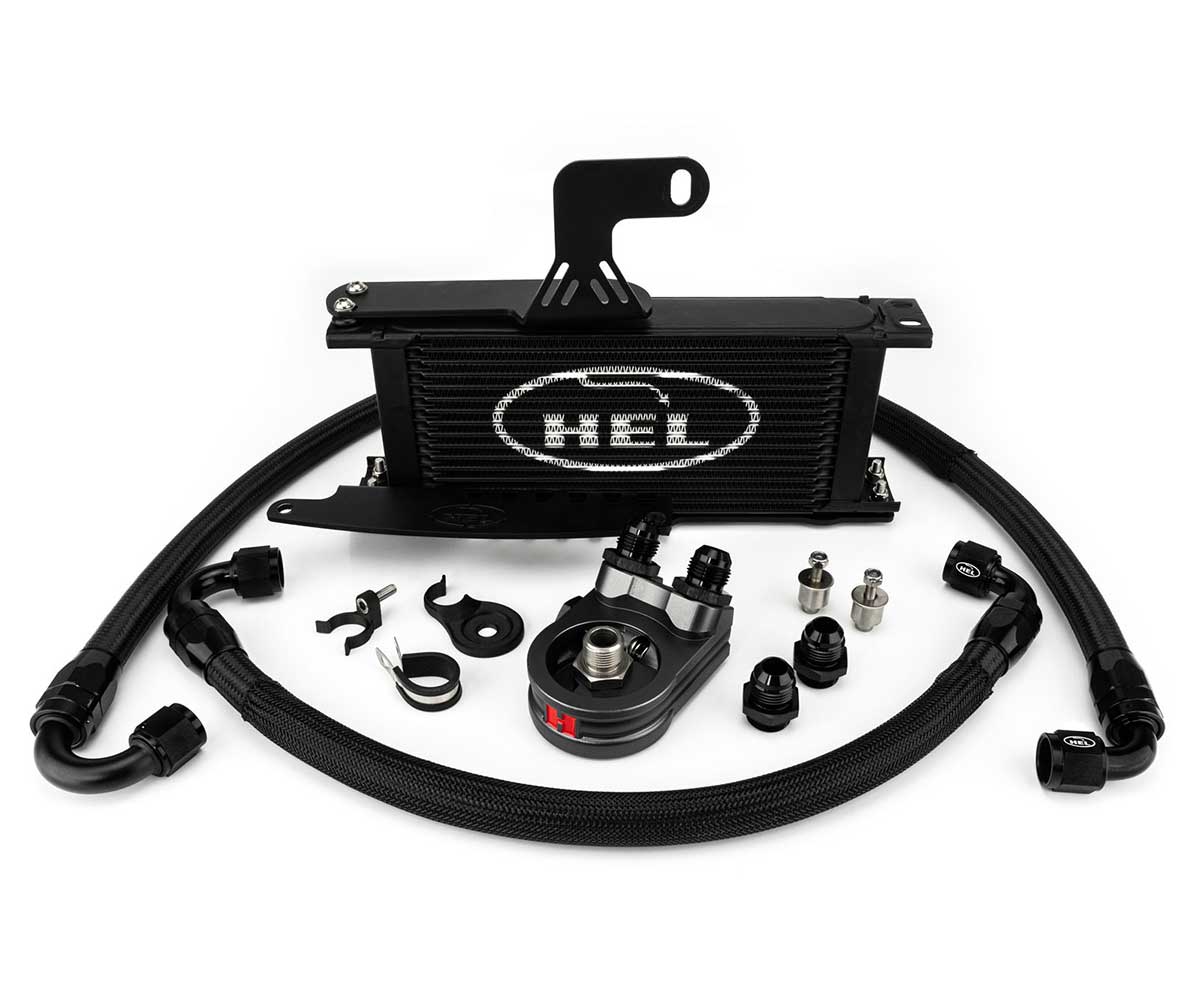

What’s Included

  • Setrab Series 6 ProLine 16 row oil cooler with AN10 banjo adapters to maximise clearance and minimise pressure loss.
  • HEL custom aluminium oil cooler brackets.
  • HEL multi angled solid billet 92°C thermostatic oil filter sandwich plate.
  • Preassembled AN10 HEL braided hoses with anodised aluminium fittings.
  • Stainless steel mounting hardware.
  • Installation instructions.
Weight 4 kg
Brand

HOCK-HON-009 Confirmed Fitment

Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions

HONDA (1 Model)
CIVIC XI Hatchback (FL) Type-R (FL5) (K20C1) | 330hp
Petrol 1996cc | Hatchback | 2022 - 2025
