Forge Motorsport Oil Cooler Kit for Fiat 500/595/695
The Forge Motorsport oil cooler kit for the Fiat 500/595/695 is specifically designed for use with the Forge Motorsport front mount intercooler (FMINT500) and will not fit with the OEM intercooler. It is not confirmed to fit with any other aftermarket intercooler.
This custom fabricated oil cooler features a large core dimension of 165(w) x 200(h) x 47mm(d) and is designed to fit perfectly in the Fiats OEM intercooler location. Manufactured at Forge Motorsport’s HQ in Gloucestershire, England, the oil cooler is crafted by highly skilled fabricators and comes with a lifetime warranty*.

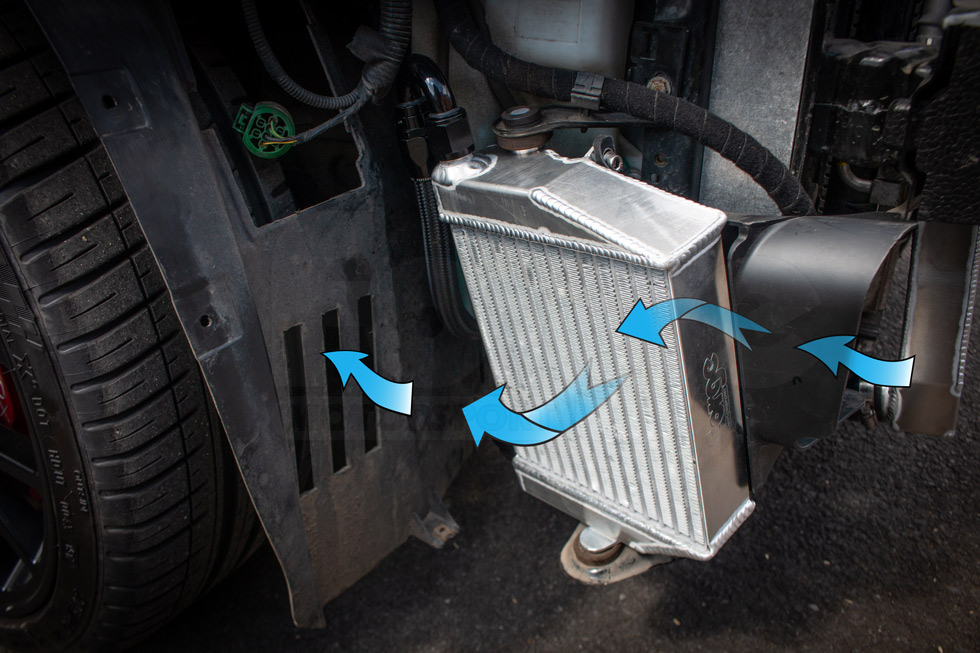

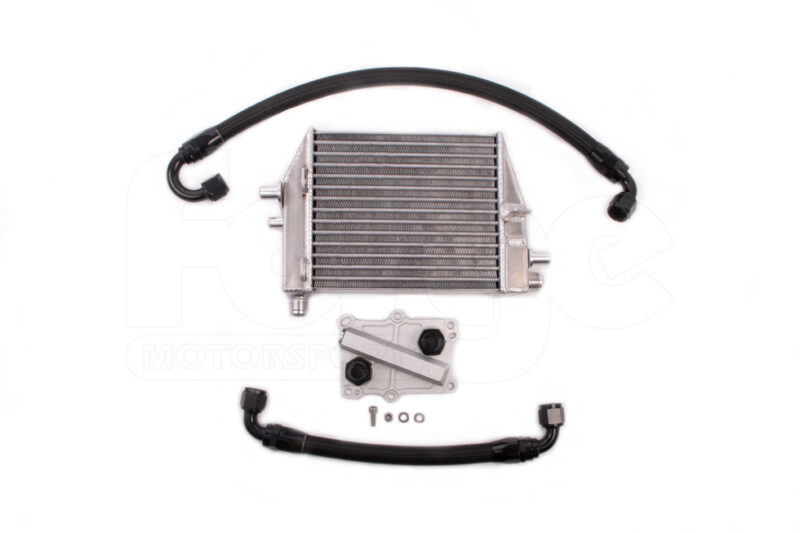

Sitting in full air flow and mounted correctly, the oil cooler ensures the oil flows into the top and exits through the lower outlet, preventing cavitation. The kit includes a CNC machined billet adaptor that replaces the oil to water cooling block, allowing for significant reduction in oil temperatures and enabling the engine to be worked harder for longer.
The oil cooler unit is designed to use the OEM intercooler’s ducting for maximum airflow, making it a 100% plug and play solution. Perfect for track and fast road use on any Fiat 500, fitting of the part is available at our performance workshop at Progressive Parts.
Additional Information
| Weight | 8 kg |
|---|---|
| Dimensions | 33 × 23 × 3 cm |
| Brand |
