Forge Motorsport Oil Cooler Kit for Hyundai i30N MK3.5
Forge Motorsport is proud to introduce the oil cooler kit for the Hyundai i30N MK3.5, developed in direct involvement with BTCC and based on the success of the previous generation I30N. This oil cooler radiator is lifted straight from Forge Motorsport’s motorsport department, ensuring exceptional performance and durable construction.

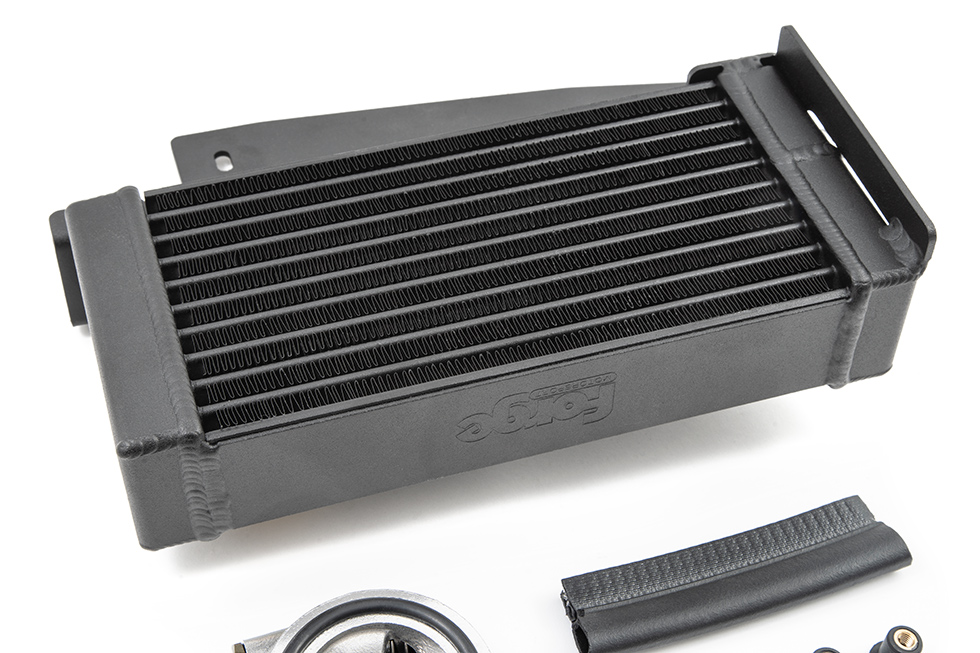

The FMOC13 is a bespoke oil cooler kit with true motorsport development behind it, designed to fit the i30N Mk3.5 perfectly. It addresses the significant issue of rising oil temperatures, especially when tuned, which can lead to dangerous levels on track or in hot climates. The kit includes a thermostat built into the oil cooler sandwich plate, set to open at 85C for optimal working temperature.

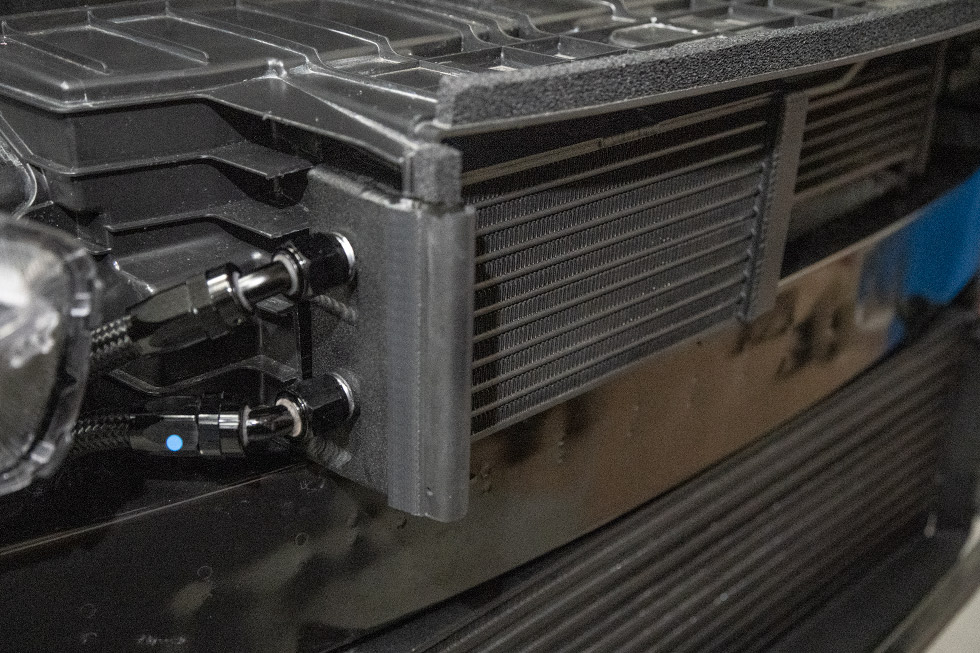

The location of the oil cooler at the front of the vehicles radiator grill allows for superior air flow, resulting in significantly reduced oil temperatures. Unlike many oil cooler kits, the FMOC13 keeps the factory oil to water cooler in position, effectively doubling the engine’s oil cooling capacity.
Manufactured in Gloucester UK, the FMOC13 is made to the highest standard and is backed up by the Forge Motorsport lifetime warranty. It is available in raw finish or black powder coat finish for a stealthier look.

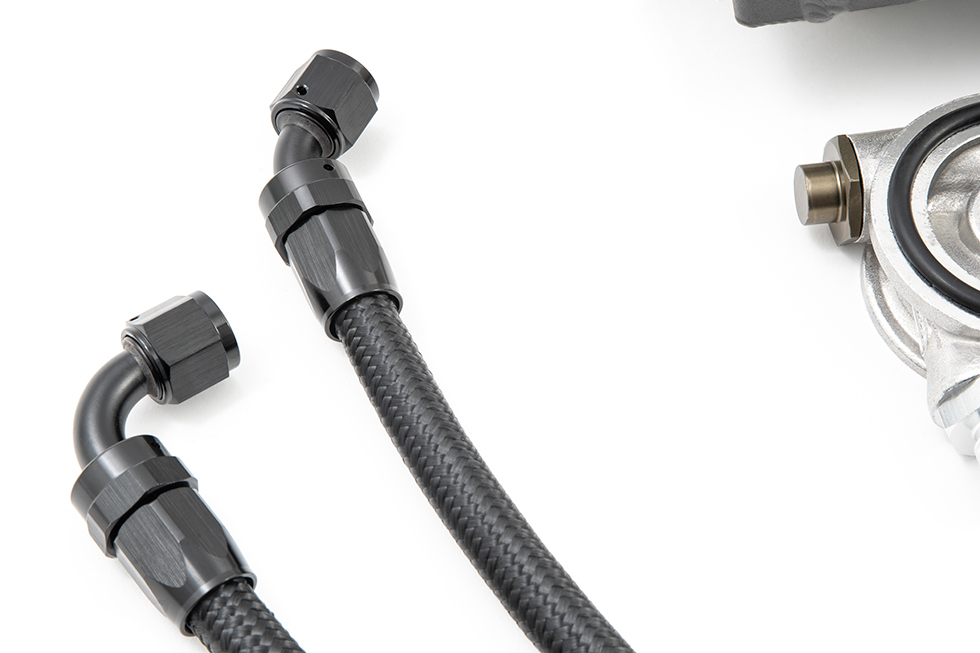

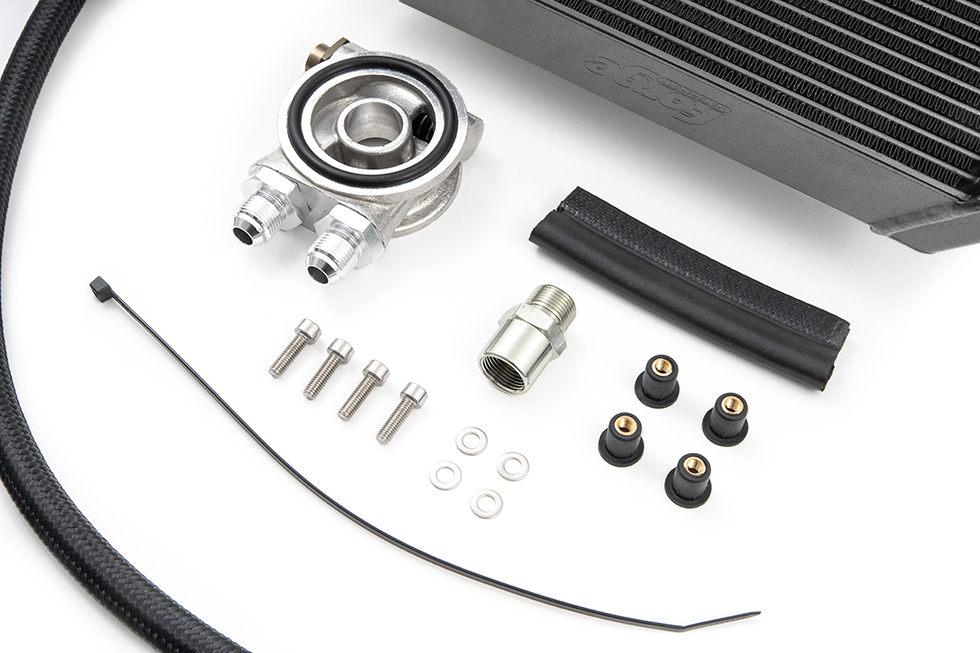

The kit comes with the Forge aluminium sandwich plate, twin pass oil cooler, M6x20 fasteners, M6 washers, oil lines, M6 Rubber Riv nuts, M20x1.5 adaptor, weather strip, and all the fixings required.
Complimentary products such as the Forge Motorsport intercooler and turbo inlet adaptor are also available to further enhance the performance of the Hyundai i30N MK3.5. Fitting of the oil cooler kit and other performance parts is available at our performance workshop at Progressive Parts.
