do88 Vauxhall Vectra C 2.0T (Z20NET) 2002 to 2008 Intercooler and Hoses
£572.68
do88 Vauxhall Vectra C 2.0T (Z20NET) 2002 to 2008 Intercooler and Hoses – ICM-110-VEI4
Performance Turbo Intercooler and Hoses
To Fit: Vauxhall/Opel Vectra C, 2002 to 2008 all 2.0 Turbo models (Z20NET)
A performance Intercooler developed by do88.se, thoroughly tried and tested, replaces the OEM Intercooler with significantly improved performance.

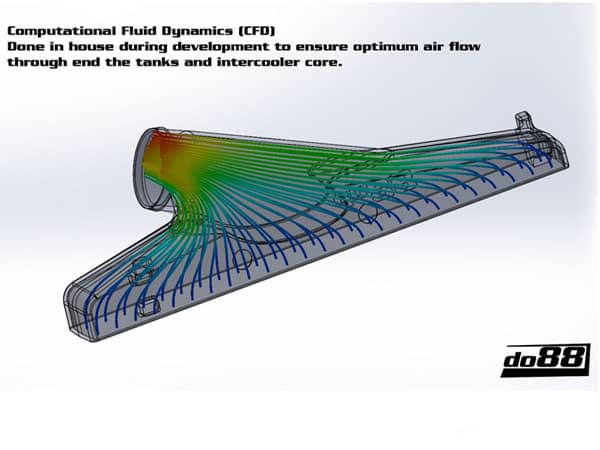

do88 Performance Intercooler is an all Aluminium construction with CAD designed, flow optimised cast end tanks and optimised core design to achieve the best possible cooling efficiency combined with the lowest pressure drop.

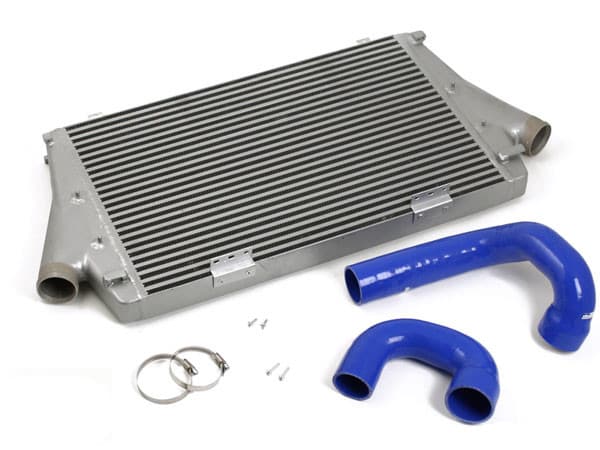

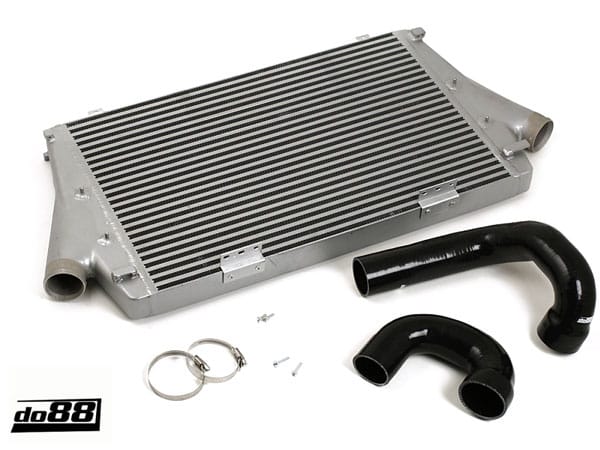

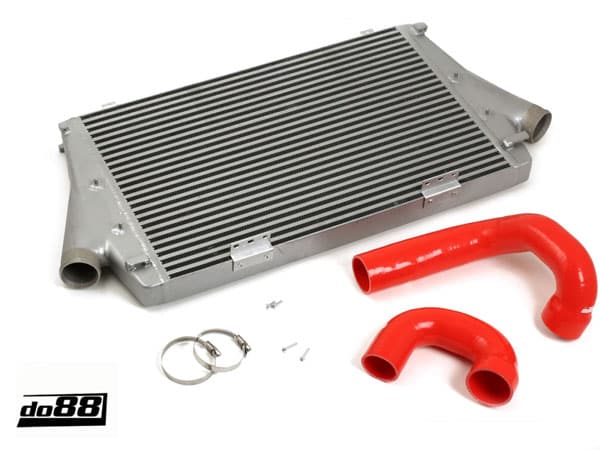

This Intercooler includes 2 Silicone Hoses for installation as the diameter of the Inlet and Oulet have been increased (from 57mm to 63mm) to see the maximum flow improvement. Therefore the Hoses are necessary for installation.

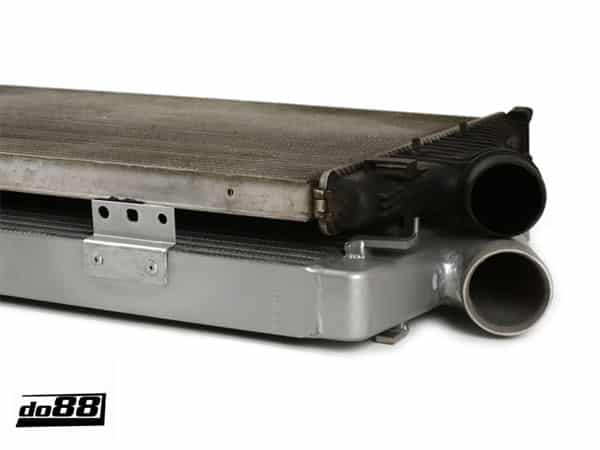

- Core Volume: 13770m3 (7411cm3), do88 is 86% larger!
- Air Flow at 0.15bar/2, 18psi pressure drop: 356CFM (218CFM), do88 is 63% higher!

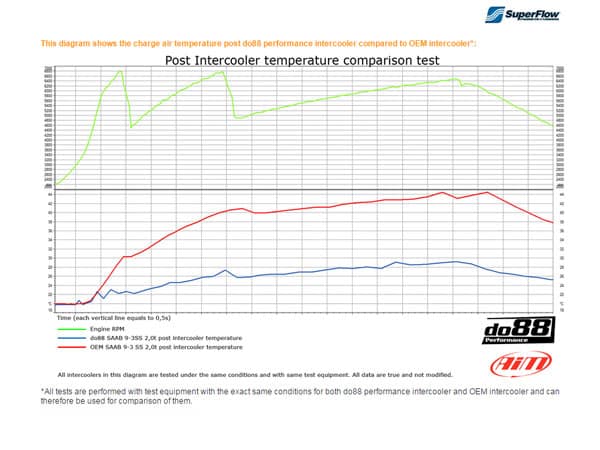

- Post Intercooler Air Temperature at same conditions: 27??C (45??C), do88 18??C lower!
- Intercooler – OEM ref 6302046
- Outlet Hose – OEM ref 5835853
- Inlet Hose – OEM ref 5860782, 5860865
- See enlarged images for test data.
Ref: ICM-110-VE14-S, ICM-110-VE14-B, ICM-110-VE14-R
| Brand |
|---|
ICM-110-VEI4 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
VECTRA Mk II (C) Estate (Z02) 2.8 V6 Turbo (Z 28 NET) | 255hp
Petrol 2792cc | Estate | 2006 - 2009
VECTRA Mk II (C) Estate (Z02) 2.8 V6 Turbo (Z 28 NEL) | 230hp
Petrol 2792cc | Estate | 2005 - 2009
VECTRA Mk II (C) Estate (Z02) 2.8 V6 Turbo (Z 28 NET) | 280hp
Petrol 2792cc | Estate | 2006 - 2009
VECTRA Mk II (C) GTS (Z02) 2.8 V6 Turbo (Z 28 NEL) | 230hp
Petrol 2792cc | Hatchback | 2005 - 2009
VECTRA Mk II (C) GTS (Z02) 2.8 V6 Turbo (Z 28 NET) | 250hp
Petrol 2792cc | Hatchback | 2006 - 2009
VECTRA Mk II (C) GTS (Z02) 2.8 V6 Turbo (Z 28 NET) | 255hp
Petrol 2792cc | Hatchback | 2005 - 2006
VECTRA Mk II (C) GTS (Z02) 2.8 V6 Turbo (Z 28 NET) | 280hp
Petrol 2792cc | Hatchback | 2006 - 2009
