do88 2.0 TFSI Performance Intercooler Kit – S3 8P/TT Mk2, Golf Mk5, Octavia Mk2, Leon Mk2
£618.55
EARN REWARD POINTS
Purchasing this product will earn you 1237 reward points worth £12.37 to redeem on future purchases. You can check your current points here.
do88 Performance Intercooler Kit – ICM-180
Performance Turbo Intercooler Kit – S3 8P/TT Mk2, Golf 5/6, Octavia Mk2, Altea, Leon, Toledo
A performance Intercooler developed by do88.se, thoroughly tried and tested, replaces the OEM Intercooler with significantly improved performance.

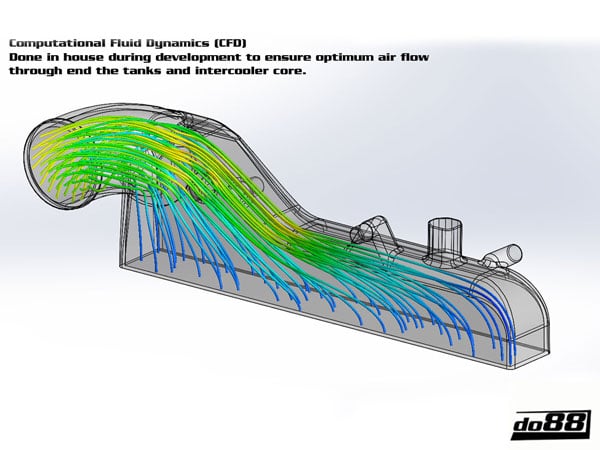

DO88 Performance Intercooler is an all Aluminium construction with CAD designed, flow optimised cast end tanks and optimised core design to achieve the best possible cooling efficiency combined with the lowest pressure drop.

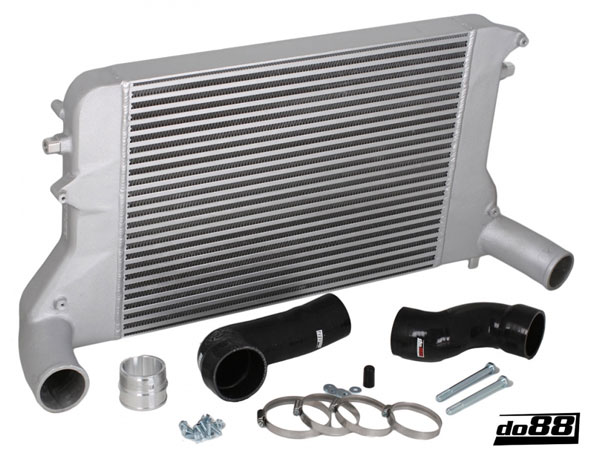

This Intercooler includes 4 layer Silicone polyester fabric Inlet and Outlet Hoses as well as complete fitting kit for ease of installation.
- Core: Volume: 13 342 cm³ (7676 cm³) DO88 is 74% larger!

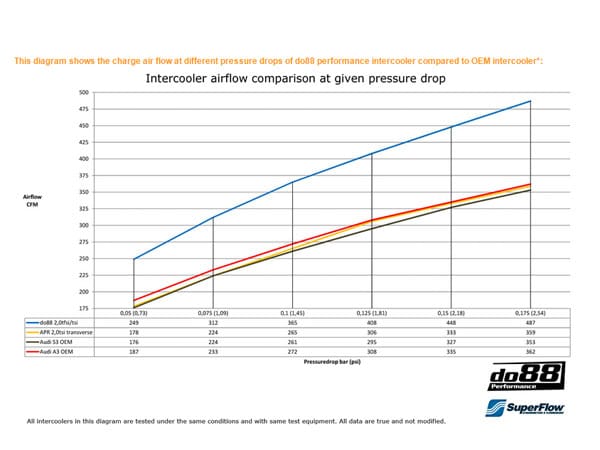

- Air flow at 0,15bar/2,18psi pressure drop: 448CFM (335CFM), DO88 34% higher!

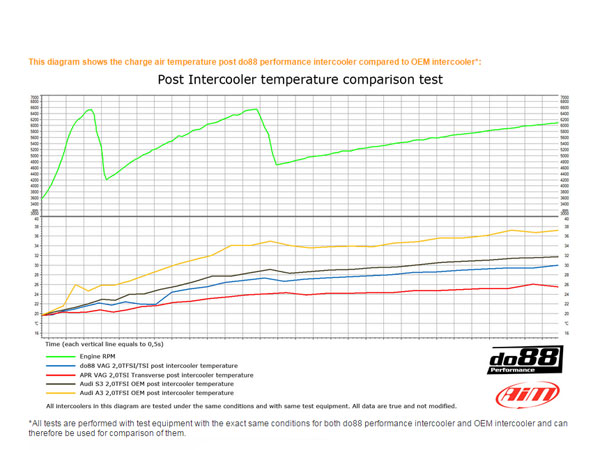

- Post intercooler air temperature at same conditions: 29°C (37°C), DO88 8°C lower!
- OEM reference numbers:
- 1K0 145 803 A
- 1K0 145 803 S
- 1K0 145 803 T
- 3C0 145 805 R
- See enlarged images for test data!
Confirmed Fitment
- Audi A3 2005 – 2012 2.0 Turbo 200BHP (TFSI, TSI)
- Audi S3 2006 – 2012 2.0 Turbo 265BHP (TFSI, TSI)
- Audi TT 2007 – 2014 2.0 Turbo 200BHP (TFSI, TSI)
- Seat Altea 2005 – 2009 2.0 Turbo 200BHP (TFSI, TSI)
- Seat Leon 2005 – 2012 2.0 Turbo 200BHP (TFSI, TSI)
- Seat Toledo 2006 – 2009 2.0 Turbo 200BHP (TFSI, TSI)
- Skoda Octavia 2006 – 2009 2.0 TFSI 200hp / 2.0 TSI 200hp
- VW Golf MK 5 (V) 2005+ 2.0 Turbo 200BHP (TFSI, TSI)
- VW Jetta 2005+ 2.0 Turbo 200BHP (TFSI, TSI)
- VW EOS 2006+ 2009 2.0 Turbo 200BHP (TFSI, TSI)
Fitment Note!
* On VW Golf MK6 (2008-) the stock / OEM fresh air hose to the air filterbox will not fit because of the increased intercooler thickness.
** Audi TT’s must have OEM pressure pipe with part number 1K0145840R.
*** On VW Eos, Scirocco and Jetta the intercooler pipe has a different part number: 5C0145770, on these cars the outlet hose must be extended, contact customer service for guidance.
| Brand |
|---|
ICM-180 Confirmed Fitment
Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions
A3 (8P1) 2.0 TFSI (AXX/BWA/CAWB/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2012
A3 (8P1) 2.0 TFSI quattro (AXX/BWA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2012
A3 (8P1) S3 quattro (BHZ/CDLA) | 265hp
Petrol 1984cc | Hatchback | 2006 - 2012
A3 (8P1) S3 quattro (BZC/CDLC) | 256hp
Petrol 1984cc | Hatchback | 2007 - 2012
A3 Sportback (8PA) 2.0 TFSI (AXX/BWA/CAWB/CBFA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2013
A3 Sportback (8PA) 2.0 TFSI quattro (AXX/BPY/BWA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2013
A3 Sportback (8PA) S3 quattro (BHZ/CDLA) | 265hp
Petrol 1984cc | Hatchback | 2008 - 2013
A3 Sportback (8PA) S3 quattro (CDLC) | 256hp
Petrol 1984cc | Hatchback | 2008 - 2013
TT (8J3) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Coupe | 2006 - 2010
TT (8J3) 2.0 TFSI quattro (CCTA/CCZA) | 200hp
Petrol 1984cc | Coupe | 2008 - 2010
TT Roadster (8J9) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Convertible | 2007 - 2010
TT Roadster (8J9) 2.0 TFSI quattro (CCTA/CCZA) | 200hp
Petrol 1984cc | Convertible | 2008 - 2010
LEON (1P1) 2.0 TFSI (BWA) | 200hp
Petrol 1984cc | Hatchback | 2005 - 2009
LEON (1P1) 2.0 TFSI (CCZB) | 211hp
Petrol 1984cc | Hatchback | 2009 - 2012
OCTAVIA II (1Z3) 2.0 TFSI (BWA/CCZA) | 200hp
Petrol 1984cc | Hatchback | 2005 - 2013
OCTAVIA II Combi (1Z5) 2.0 TFSI (BWA/CCZA) | 200hp
Petrol 1984cc | Estate | 2005 - 2013
GOLF V (1K1) 2.0 GTI (AXX/BWA/CAWB) | 200hp
Petrol 1984cc | Hatchback | 2004 - 2009
GOLF VI (5K1) 2.0 GTi (CCZB) | 210hp
Petrol 1984cc | Hatchback | 2009 - 2012
GOLF VI (5K1) 2.0 R 4motion (CDLC/CRZA) | 256hp
Petrol 1984cc | Hatchback | 2009 - 2013
GOLF VI (5K1) 2.0 R 4motion (CDLA) | 265hp
Petrol 1984cc | Hatchback | 2009 - 2011
GOLF VI (5K1) 2.0 R 4motion (CDLF) | 270hp
Petrol 1984cc | Hatchback | 2009 - 2012
