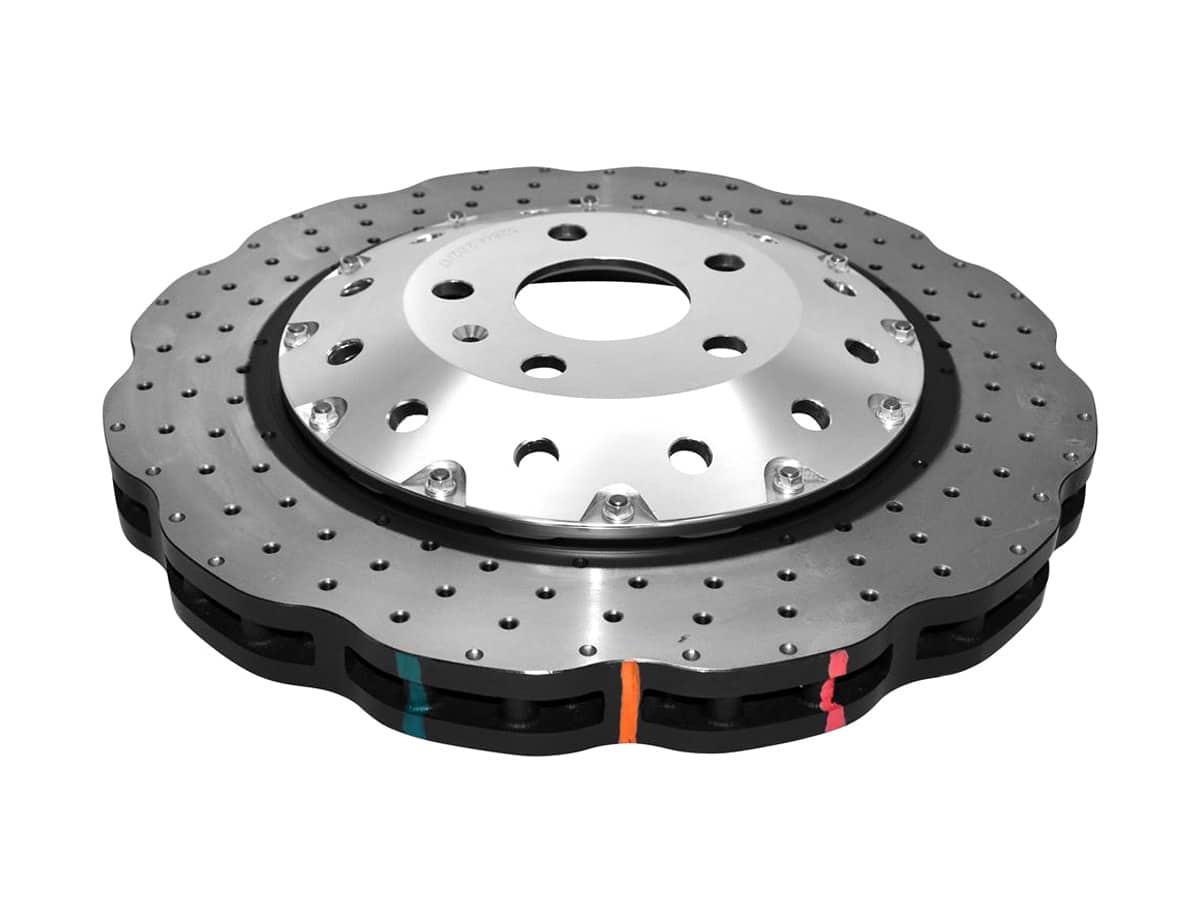

DBA T3 5000 Series Front Brake Discs (Pair) TTRS (8S)/Cupra Sub8 (370x34mm) – DBA52844WSLVXD
DBA’s 5000 Series T3 is the ultimate in direct replacement 2 piece performance brake rotor. Featuring all the benefits of the 5000 Series along with DBA’s patented world renowned T3 bi-directional slot design.
Built on the foundations of DBA’s T2 slot, the T3 slot design features additional precise CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother braking experience. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.
DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.
DBA’s 5000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, club racing, rally cars and armoured vehicles.
Specification
-
Diameter [mm]: 370
-
Disc Vent: Kangaroo Paw
-
Number of Holes: 5
-
Inner Diameter [mm]: 65
-
Minimum Thickness [mm]: 32
-
Thickness [mm]: 34
-
Height [mm]: 60
-
Pitch Circle [mm]: 112
-
Stage: Stage 5
-
Weight [KG]: 11
- OEM Cross Reference: 8V0615301C
Applications
Includes SEAT & CUPRA models with ‘Sub8’ Performance 370mm Front Disc Setup
Make
|
Model
|
Year
|
Variant
|
Category
|
Note
|
Details
|
---|---|---|---|---|---|---|
AUDI | RS3 8V | 2015-2016 | 2.5 Turbo 362BHP (2015-2016) | Front | Brake Caliper: Brembo | Brake Pads: DB15005 |
AUDI | RS3 8V | 2017-2020 | 2.5 Turbo 400BHP Hatchback (2017-2020) | Front | Brake Caliper: Brembo | Brake Pads: DB15005 |
AUDI | RS3 8Y | 2021- | 2.5 Turbo 400BHP Sedan (2021-) | Front | Brake Caliper: Brembo |
