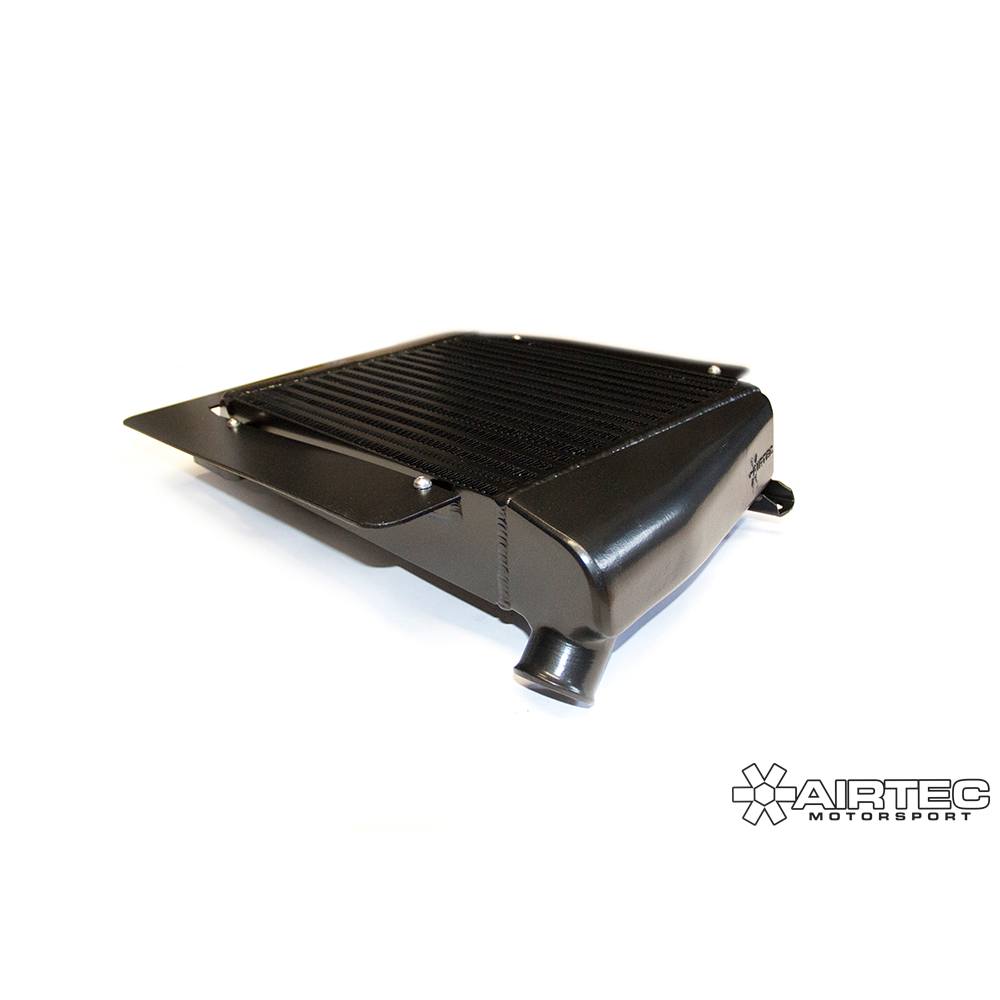

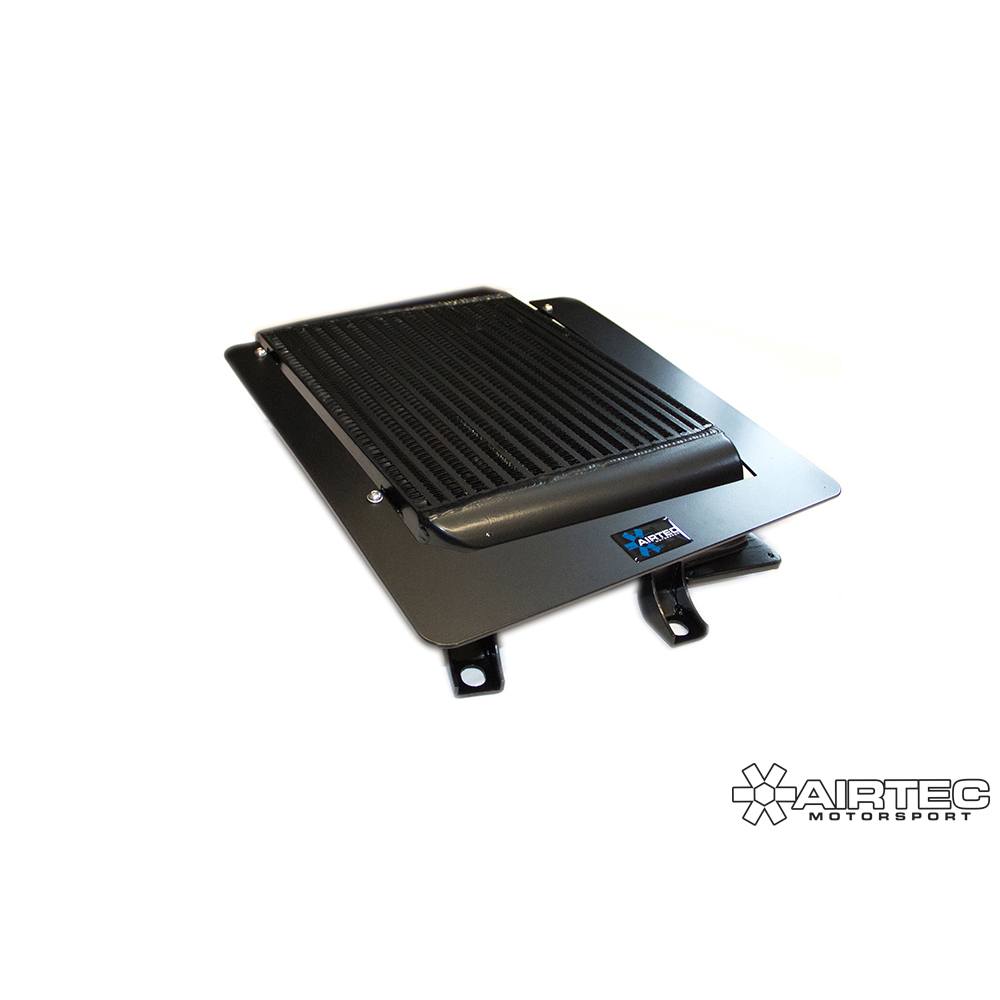

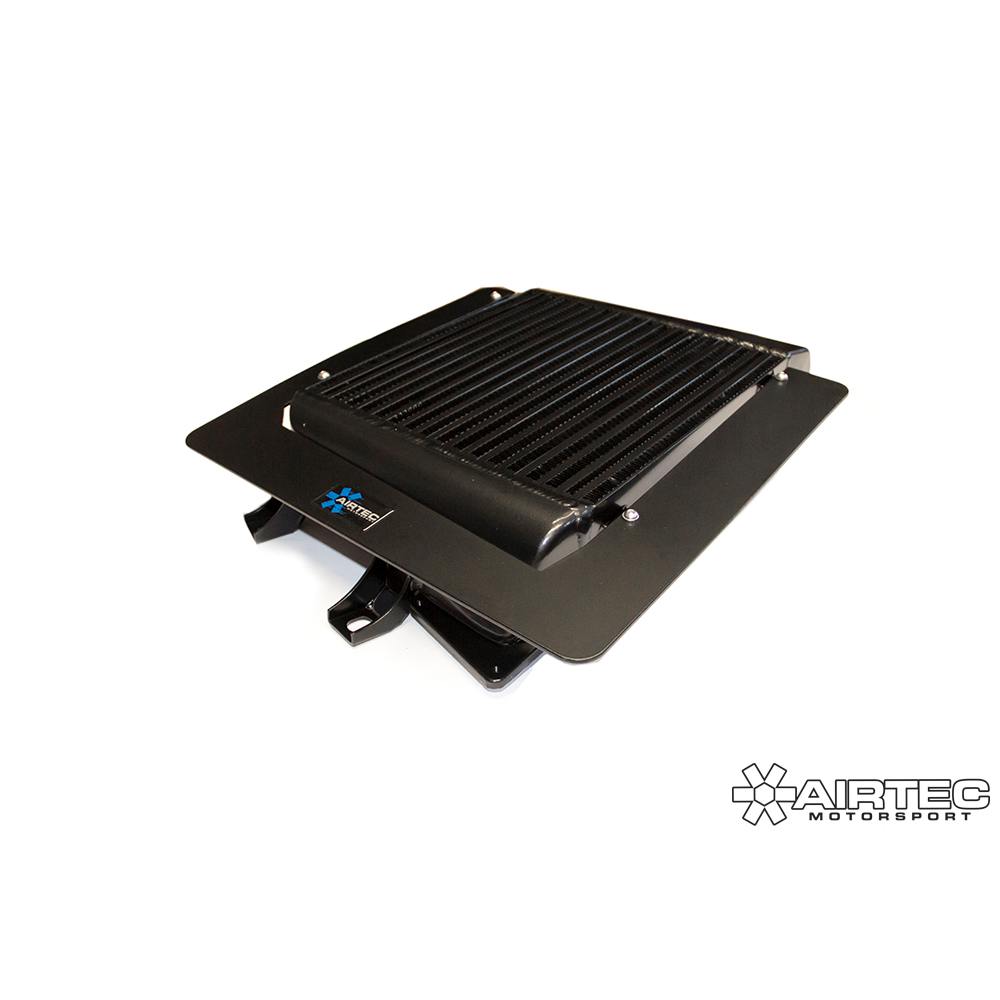

AIRTEC Motorsport Top Mount Intercooler Upgrade for Mazda
AIRTEC Motorsport is proud to launch our top mount intercooler upgrade suitable for track or fast road use. This upgrade offers a massive 66% increase in overall capacity compared to the original intercooler, as well as a significant increase in frontal area over standard, allowing it to make the most of the provided air flow.
Part No: ATINTMAZ05
In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
Our solution to increasing the intercoolers size and performance within the limited space under the bonnet is based upon a 75mm core that’s wider and taller. This offers a massive 66% increase in overall capacity compared to the original intercooler, as well as a significant increase in frontal area over standard, allowing it to make the most of the provided air flow.
Together with our high-flow end tanks and air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard. Fitting is a simple process that uses the original hose connectors and it comes with all fixtures and fittings.
Proven to be a great upgrade for remapped examples to help with reducing charge temperatures associated with increased boost pressure.
Dimensions:
- Standard intercooler
- Width: 325mm
- Height: 295mm
- Depth: 50mm
- Capacity: 4.8 litres
- AIRTEC Motorsport intercooler
- Width: 340mm
- Height: 310mm
- Depth: 75mm
- Capacity: 7.9 litres
Features:
- Proven power increase on road and track use
- 66% increase in capacity
- 75mm thick core
- High flow cast end tanks
- Full fitting instructions
- Finished in Pro-Series powder coated black
- 25 minutes fitting time depending on mechanical skill
Part No: ATINTMAZ05
