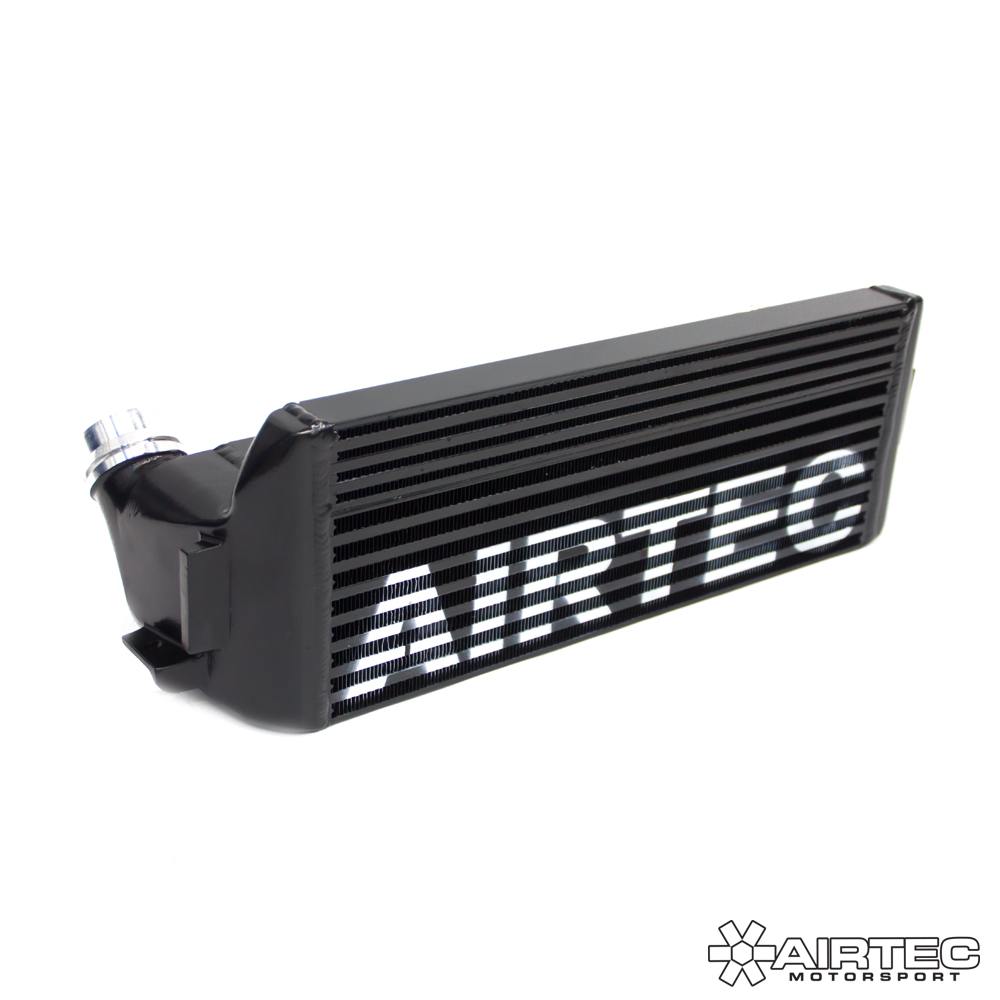

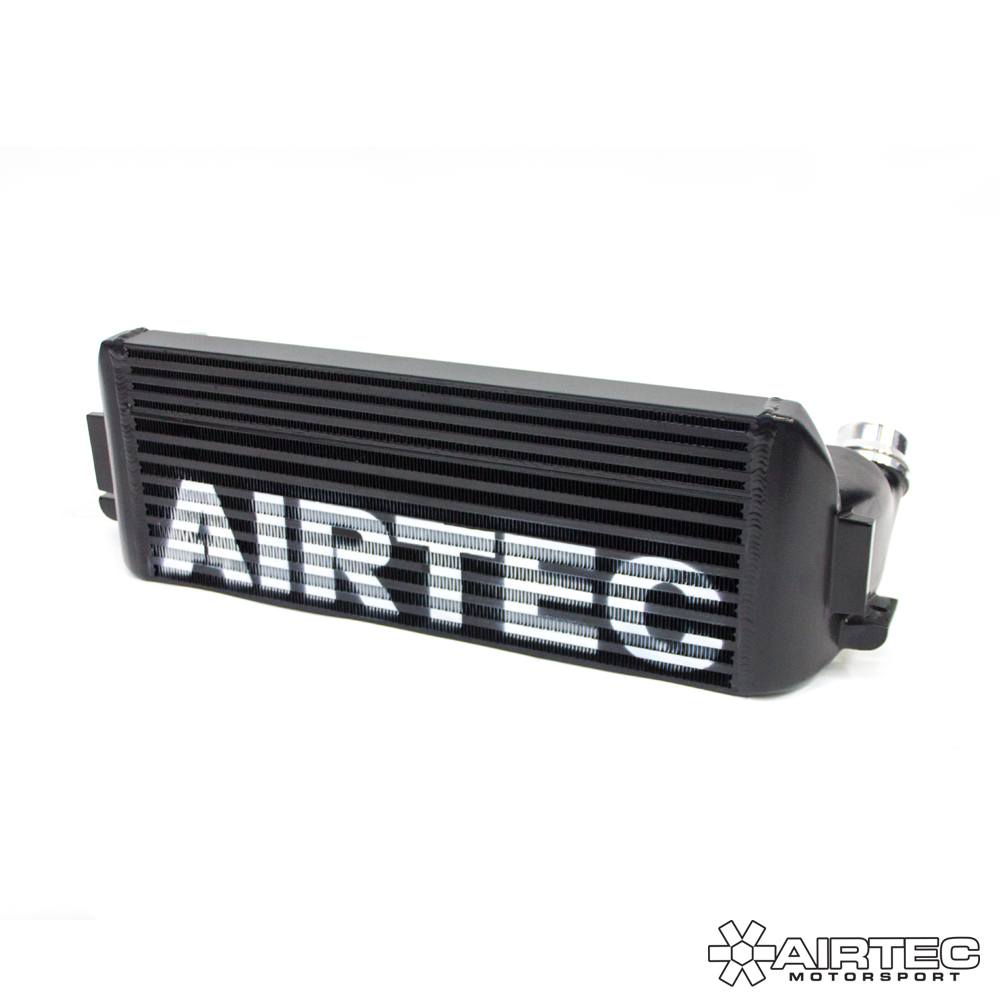

AIRTEC Motorsport Intercooler Upgrade for BMW F-Series Diesel Models
AIRTEC Motorsport is proud to launch our intercooler upgrade for the F-Series diesel models suitable for track or fast road use. Our larger, freer-flowing intercooler is a direct replacement for the smaller and more restrictive OEM item, ensuring no noticeable loss in performance during extended periods of hard driving.
Our solution to increasing the intercoolerÂ’s size and performance within the confines of the limited space behind the bumper is based upon a taller core with an increased 90mm depth. This offers a massive 73% increase in overall capacity in comparison to the original intercooler, as well as a 90% increase in frontal area over standard, which allows it to make the most of the air flow provided. Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.
This comprehensive kit is available in a high-quality powder-coated black finish and comes with all fixtures and fittings, as well as detailed fitting instructions.
Dimensions:
- OEM Intercooler
- Width: 510mm
- Height: 130mm
- Depth: 110mm
- Capacity: 7.3 litres
- Front area: 663cm²
- AIRTEC Motorsport Intercooler
- Width: 600mm
- Height: 210mm
- Depth: 140/40mm stepped
- Capacity: 14.0 litres
- Front area: 1,260cm²
Fits the following models:
- 1-Series models (F20/F21): 114i (2012-2015), 116i (2011-2015), 116i (2015+), 118i (2011-2015), 118i (2015+), 120i (2014-06/2016), 125i (2012-06/2016), M135i (2011-2016), 114d (2012+), 116d (2011+), 118d(x) (2011+), 120d(x) (2011+), 125d (2012+)
- 2-Series models (F22): 218i (2015-2020), 220i (2014-06/2016), 228i(x) (2014-06/2016), M235i(x) (2014-2016), M2 F87 (2016-2018), 218d (20142020), 220d(x) (2014-2020), 225d (2014-2019)
- 3-Series models (F30/F31/F34): 316i (2011-2015), 318i (2015+), 320i(x) (2011-2015), 328i(x) (2011-2015), 335i(x) (2011-2015), 316d (2012+), 318d(x) (2012+), 320d(x) (2011+), 325d (2013+), 328(x)d (2013+), 330d(x) (2012+), 335d(x) (2013+)
- 4-Series models (F32/F36): 418i (2016-), 420i(x) (2013-2015), 428i(x) (2013-2016), 435i(x) (2013-2016), 418d (2014+), 420d(x) (2013+), 425d (2014+), 430d(x) (2013+), 435d(x) (2013)
Features:
- Stepped intercooler design for maximum flow
- Designed and manufactured in the UK by AIRTEC
- AIRTEC cast end tanks for improved airflow and unbeatable strength
- 73% increase in overall capacity compared to original intercooler
- 90% increase in frontal area compared to original intercooler
- 3-year unlimited mileage warranty
- Available in Pro-Series black finish
- AIRTEC logo available at no extra charge
- Unbeatable value for money!
Registered Design Right: AIRTEC part no: ATINTBMW9
