AIRTEC Motorsport Uprated Front Mount Intercooler for Renault Megane Mk4 RS
Freshly developed at AIRTEC HQ in the UK, were proud to launch our uprated front mount intercooler aimed at modified Renault Megane Mk4 RS owners who want the very highest level of cooling efficiency, power, and performance for track or fast road use.
The Design

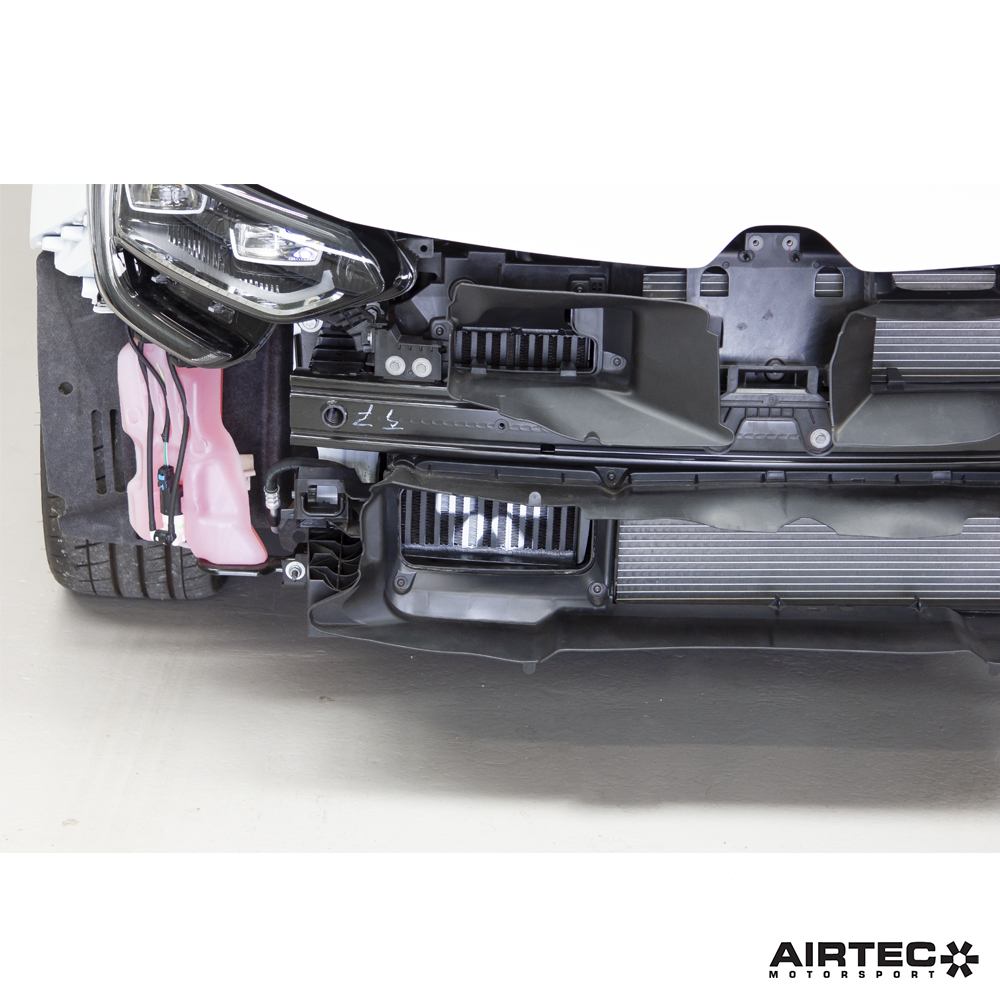

For the Mk4 Megane, Renault Sport engineers focused on creating an overall cooling package that would allow it to maintain running temperatures under harsh track conditions. As a result, the radiator took precedence and a small but deep intercooler was located off to the left-hand side.
This presented issues in developing a larger intercooler, so our solution to increasing the size and performance within the confines of the limited space is based upon a stepped core design. This allowed an impressive 42% increase in overall capacity in comparison to the original intercooler, as well as an increase in frontal area to make the most of the airflow provided.
Together with our CAD-designed end tanks to ensure optimum airflow both in and out of the intercooler, the molded one-piece designs ensure flow is directed correctly and efficiently. There is also an additional air scoop fitted to maximize frontal airflow to the core, as per the original intercooler.
Dimensions
OEM intercooler
- Height: 290mm
- Width: 233mm
- Depth: 115mm
- Capacity: 7.77 liters
- Front area: 6,760cm²

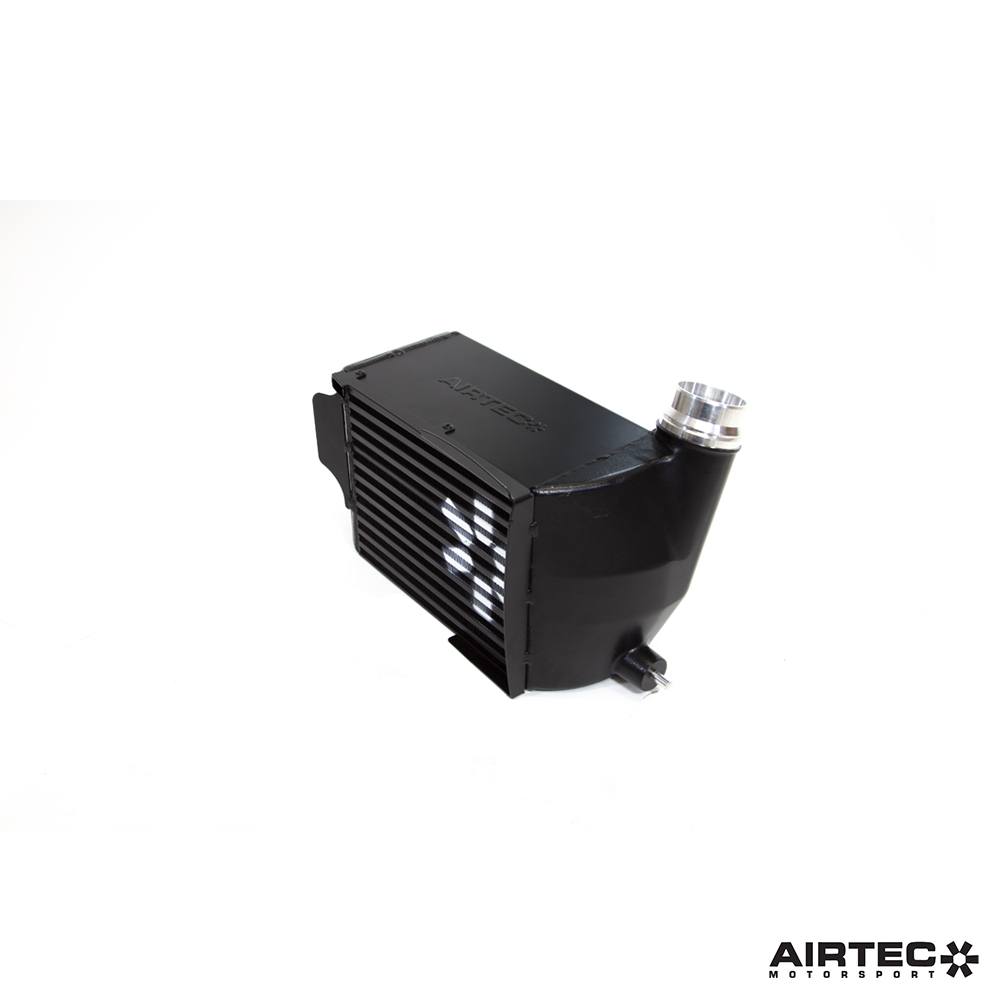

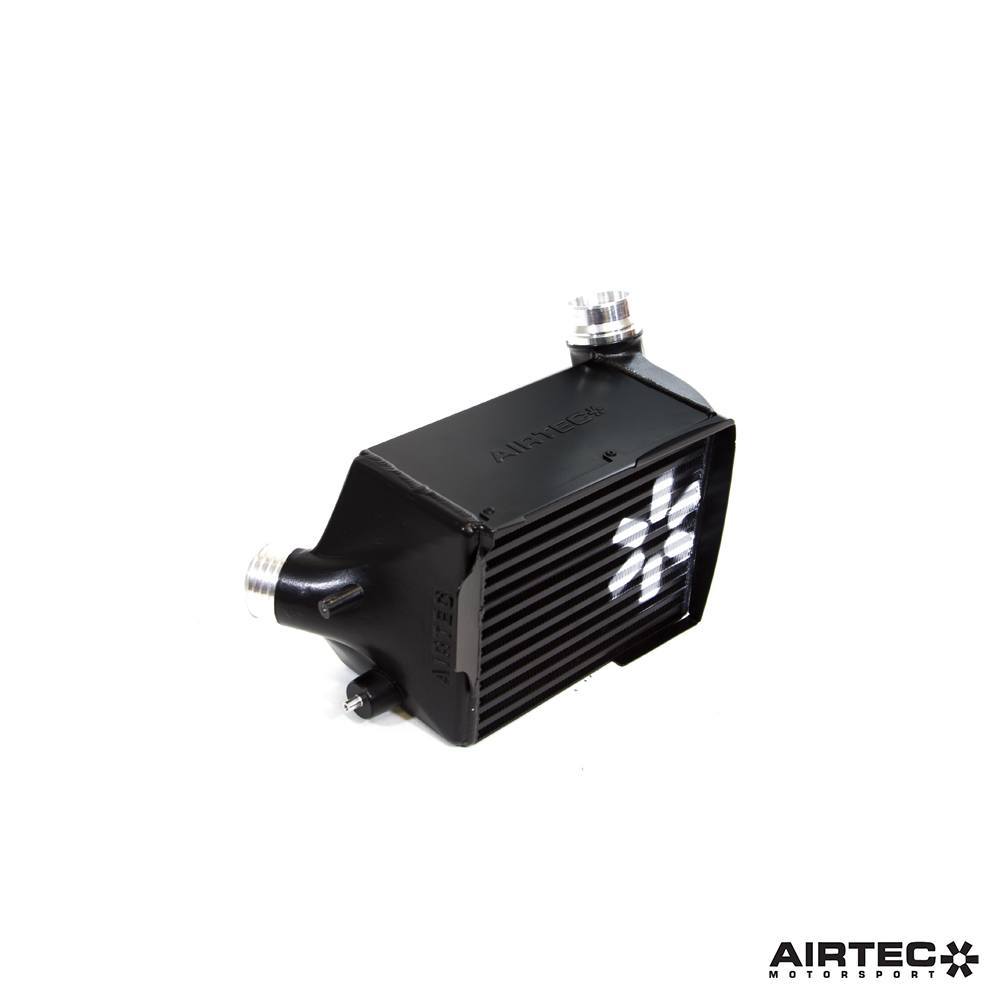

AIRTEC Motorsport intercooler
- Height: 300mm
- Width: 230mm (145mm to 85mm stepped core)
- Depth: 165mm to 150mm stepped core
- Capacity: 11.0 liters
- Front area: 6,900cm²
Features
- Specifically designed for the Megane Mk4 RS model
- 42% increase in overall capacity in comparison to the original
- Increase in frontal area over standard
- Huge increase in cooling ability
- CAD-designed high-flow, one-piece cast end tanks
- Additional air scoop to maximize frontal airflow
- Pro Hoses silicone top pipe included
- Powder coated black finish
- Includes fittings and fixtures
- Detailed fitting guide included
AIRTEC Part No: ATINTREN8
