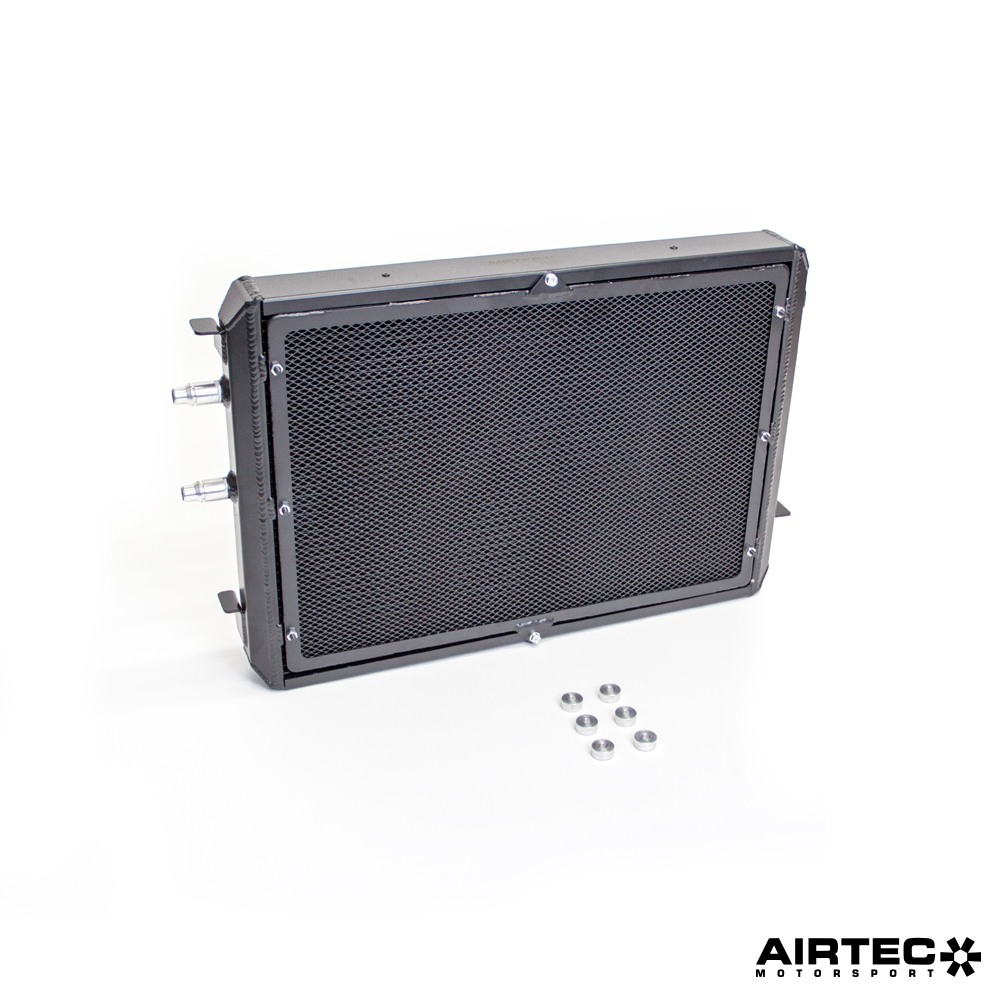

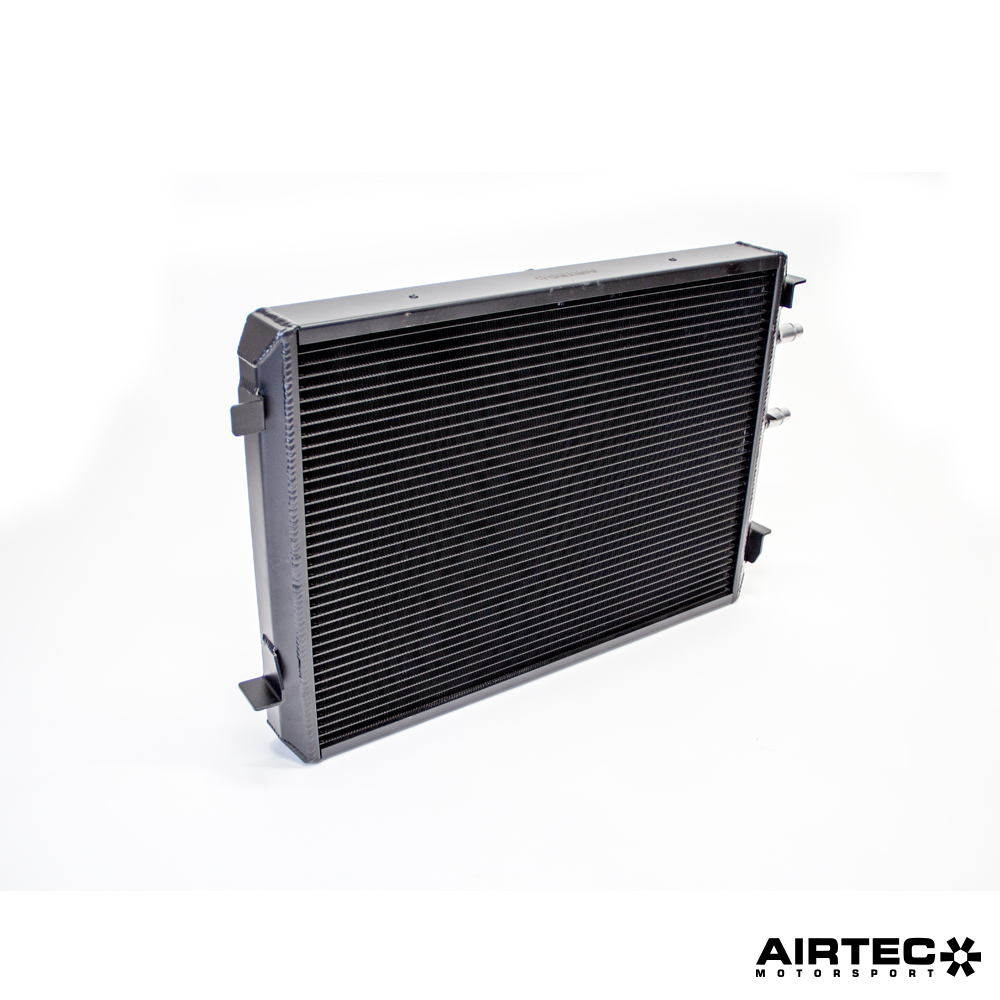

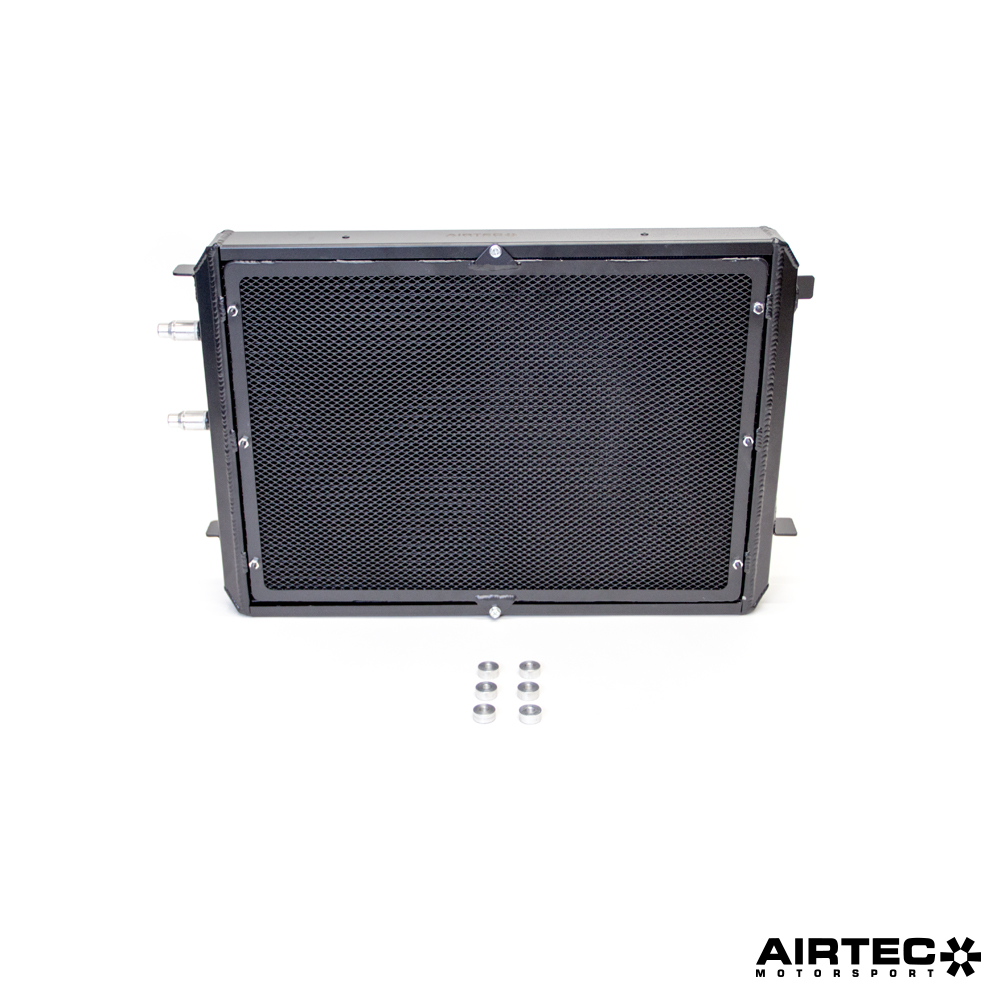

AIRTEC Motorsport Chargecooler Radiator Upgrade for BMW M2 Comp, M3 & M4 (S55 Engine)
AIRTEC Motorsport’s solution to improving the original set up is to utilize the available space behind the front bumper and develop a chargecooler radiator that measures nearly 100mm taller and 20mm thicker overall. This means capacity is increased by a huge 5.4 litres over standard, which is over double the capacity of the original. Frontal area is also increased by 40% to help cool the extra capacity.
Dimensions:
OEM chargecooler radiator:
- Width: 590mm
- Height: 308mm
- Depth: 25mm
- Capacity: 4.5 litres
- Front area: 1810cm²
AIRTEC Motorsport chargecooler radiator:
- Width: 540mm
- Height: 410mm
- Depth: 45mm
- Capacity: 9.9 litres
- Frontal area: 2210cm²
Features:
- Over twice the capacity of the original
- 40% larger frontal surface area
- Twin-pass design for improved cooling

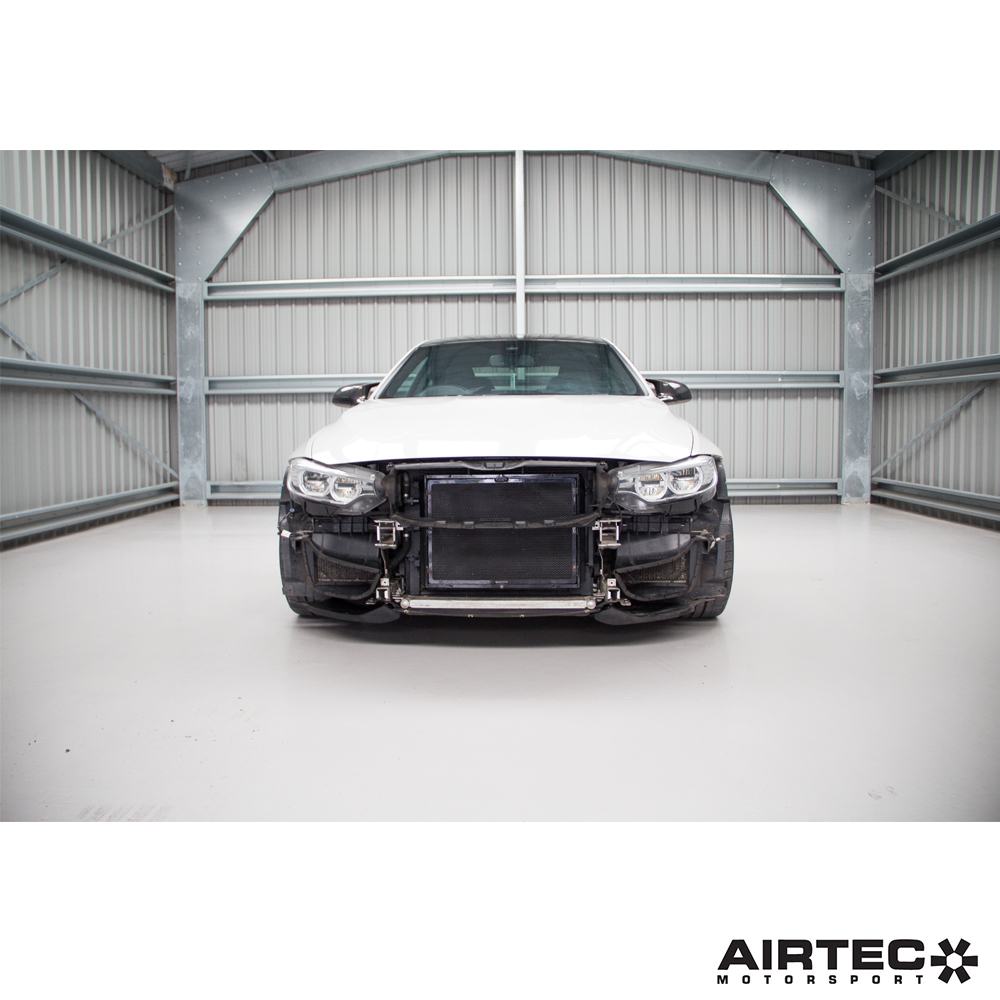

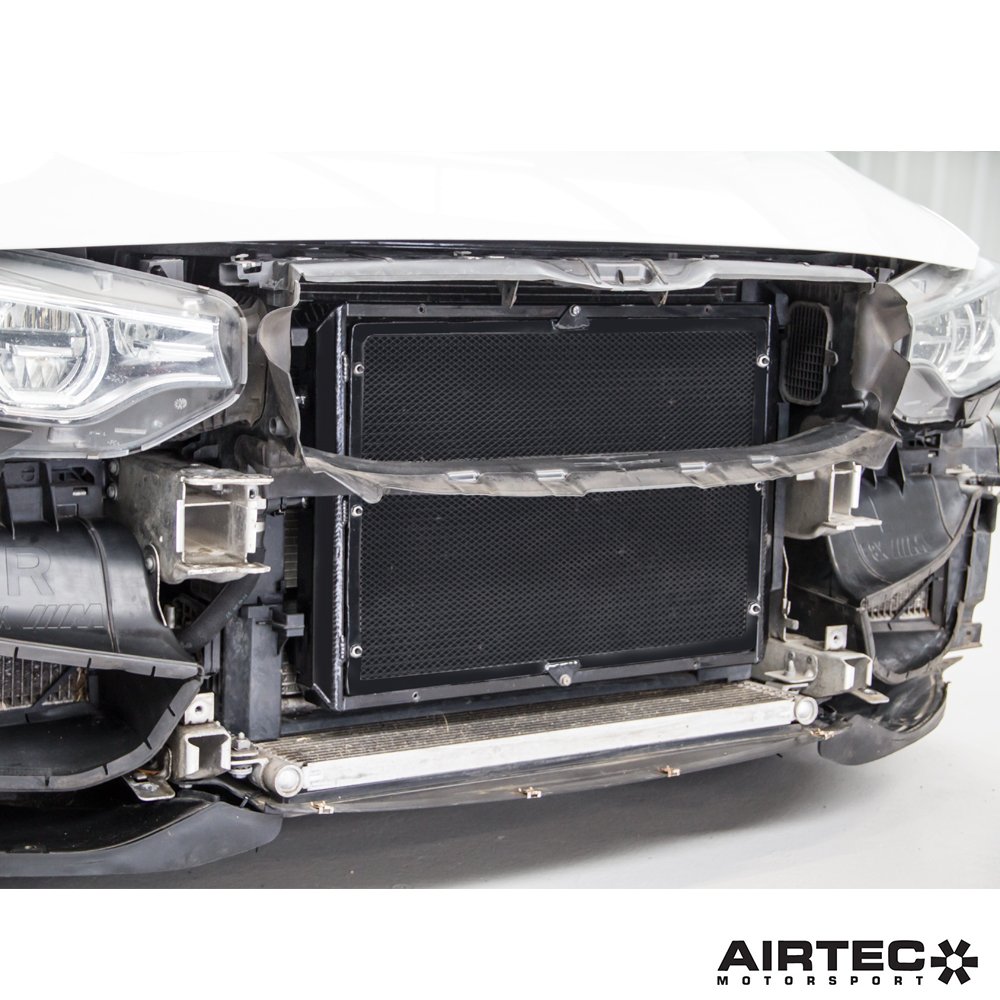

- Direct fit with no cutting or trimming

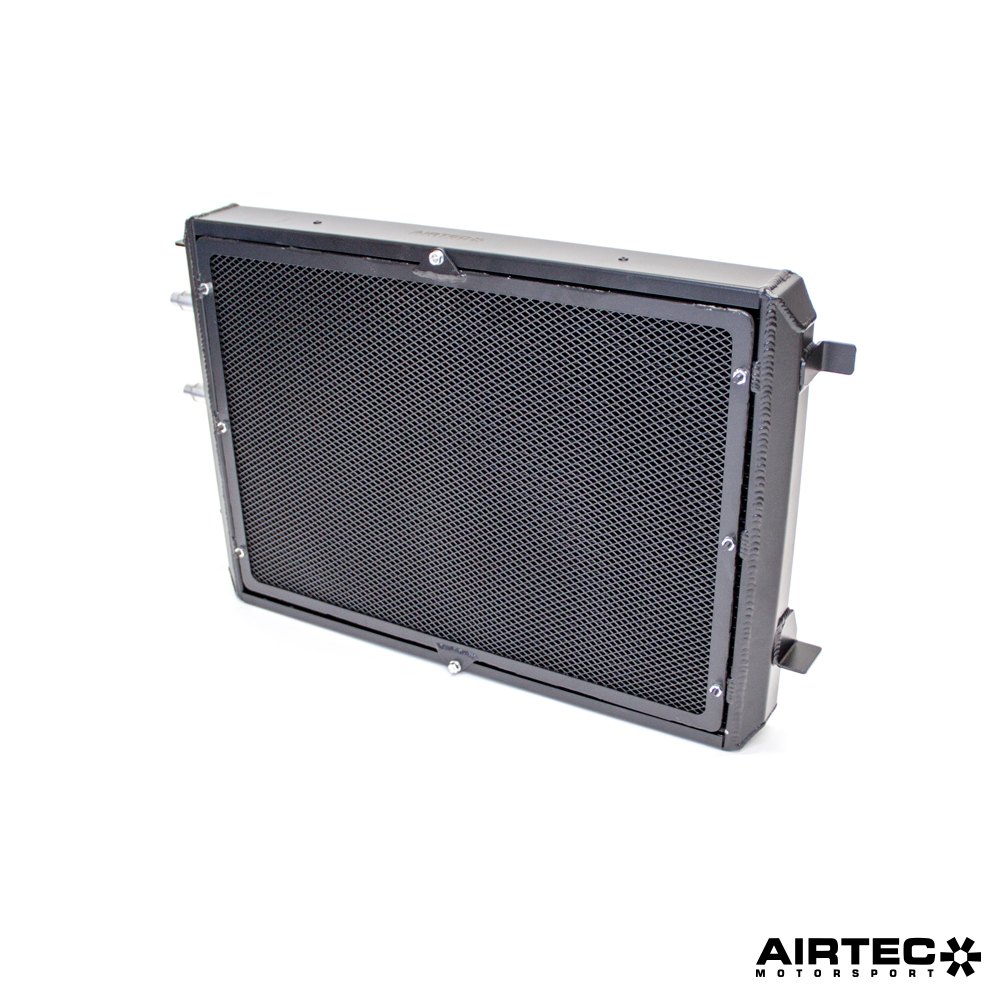

- Removable stone guard to protect the core
- Comprehensive fitting guide
AIRTEC part no: ATRADBMW1
