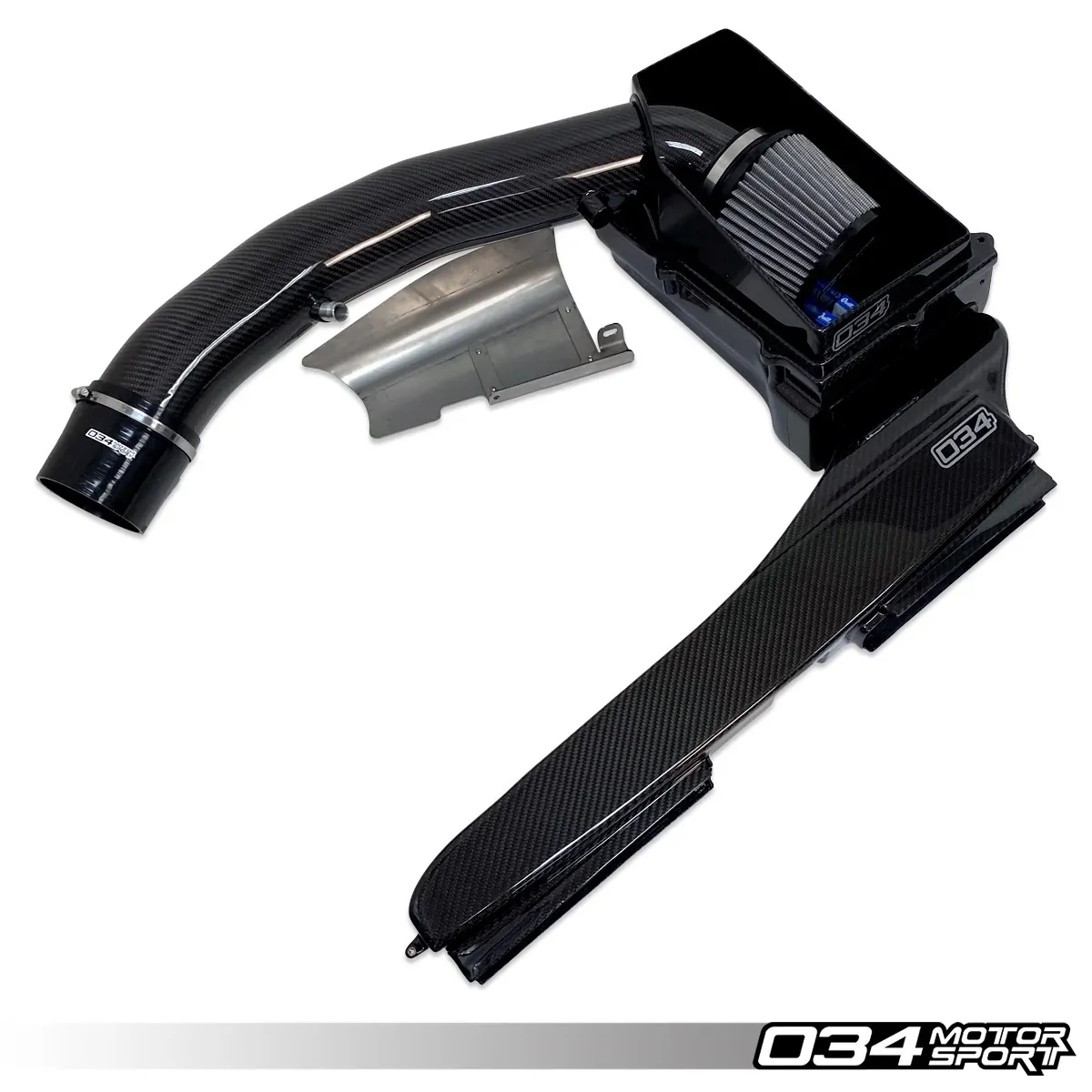

034Motorsport X34 Carbon Fiber Open-Top 4″ Intake Bundle Audi TTRS & RS3 2.5 TFSI EVO

MAXIMIZING AIRFLOW:

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art – maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.

MINIMIZING UNNECESSARY FILTER SHROUDING:

034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of air filter size, without taking into account the detrimental effects of shrouding the filter.

4″ DIAMETER FOR MAXIMUM PERFORMANCE:

034Motorsport engineers identified a serious bottleneck in the factory intake system. The factory, 2.8” turbo inlet size, which necks down even smaller throughout the unit, is by far the largest restriction in the intake system after a performance filter system is installed. Many aftermarket companies, including 034Motorsport, have solved this issue by increasing the turbo inlet diameter, thus warranting an intake that supports the added flow gain. The 4” diameter intake kit is designed to support upgraded 4” turbo inlets that can be used on factory, hybrid, and full frame turbochargers. It has been validated that this intake works with the majority of aftermarket inlet options, but has been optimized to work with the upcoming 034Motorsport 4” turbo inlet.

MINIMIZING INTAKE AIR TEMPERATURE:

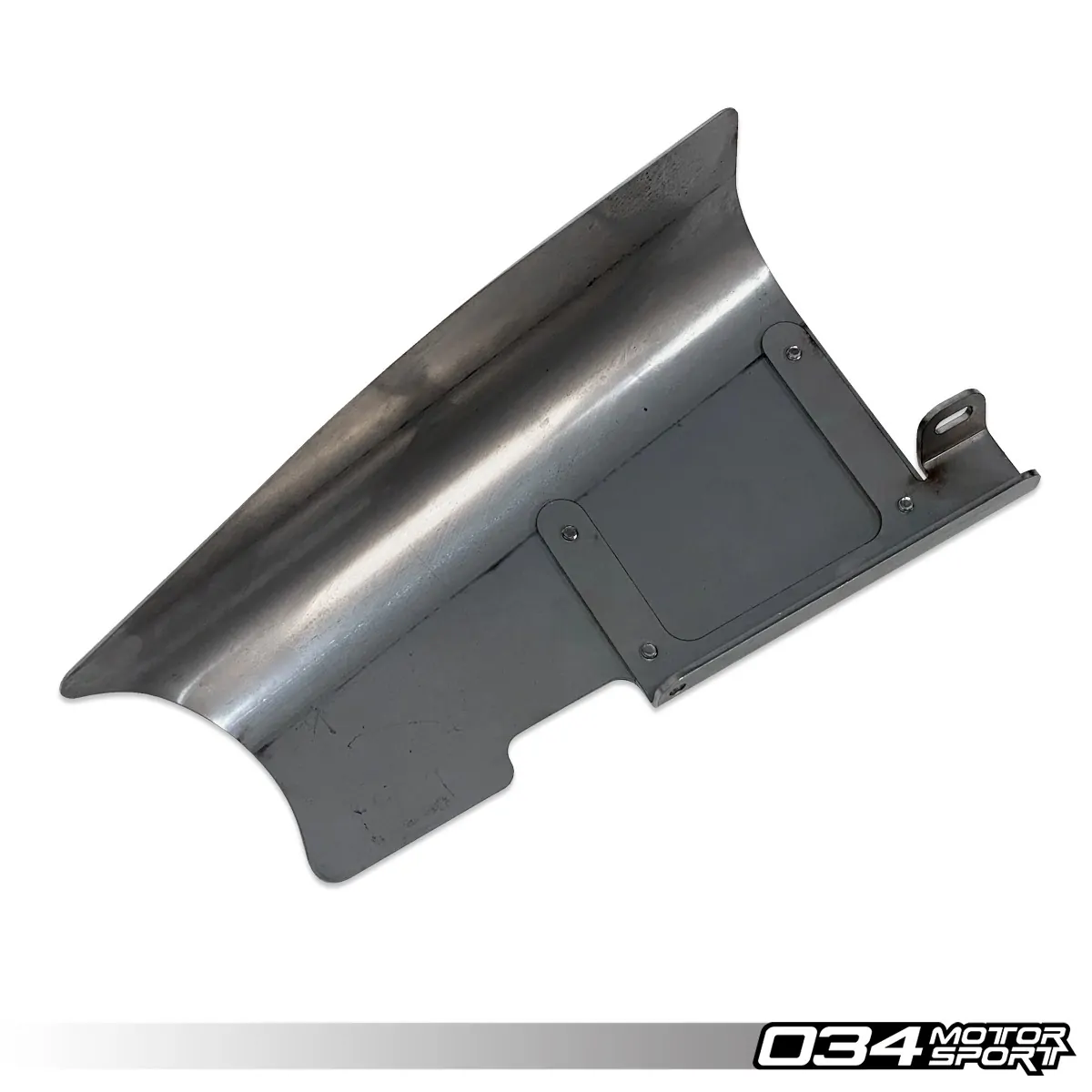

To ensure that the 034Motorsport X34 Open-Top Cold Air Intake System draws in cool, dense air, the system includes a open-top upper airbox to replace the upper airbox as well as a stainless steel heat shield to block heat from saturating the intake tube. This kit uses our intake duct and lower box allowing the high-flow conical filter to breathe cold air from before the radiator. The stainless steel heat shield bolts to the stock intake tube mounting point and to the back of the head, preventing the high temperatures from the exhaust header and turbo from radiating directly at the intake tube. Both heat shields work together to minimize pre-turbo intake air temperature.

PERFORMANCE AIR FILTER:

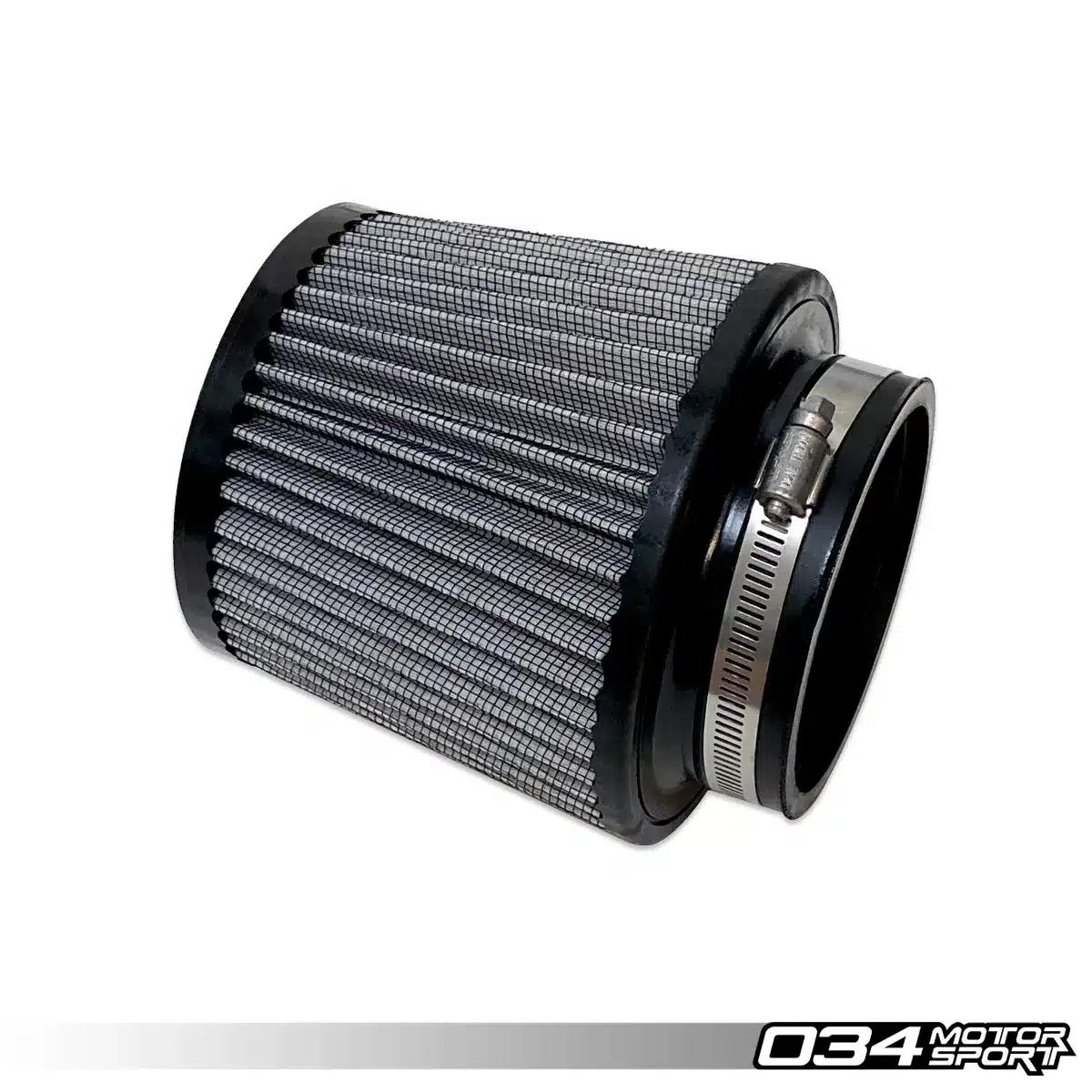

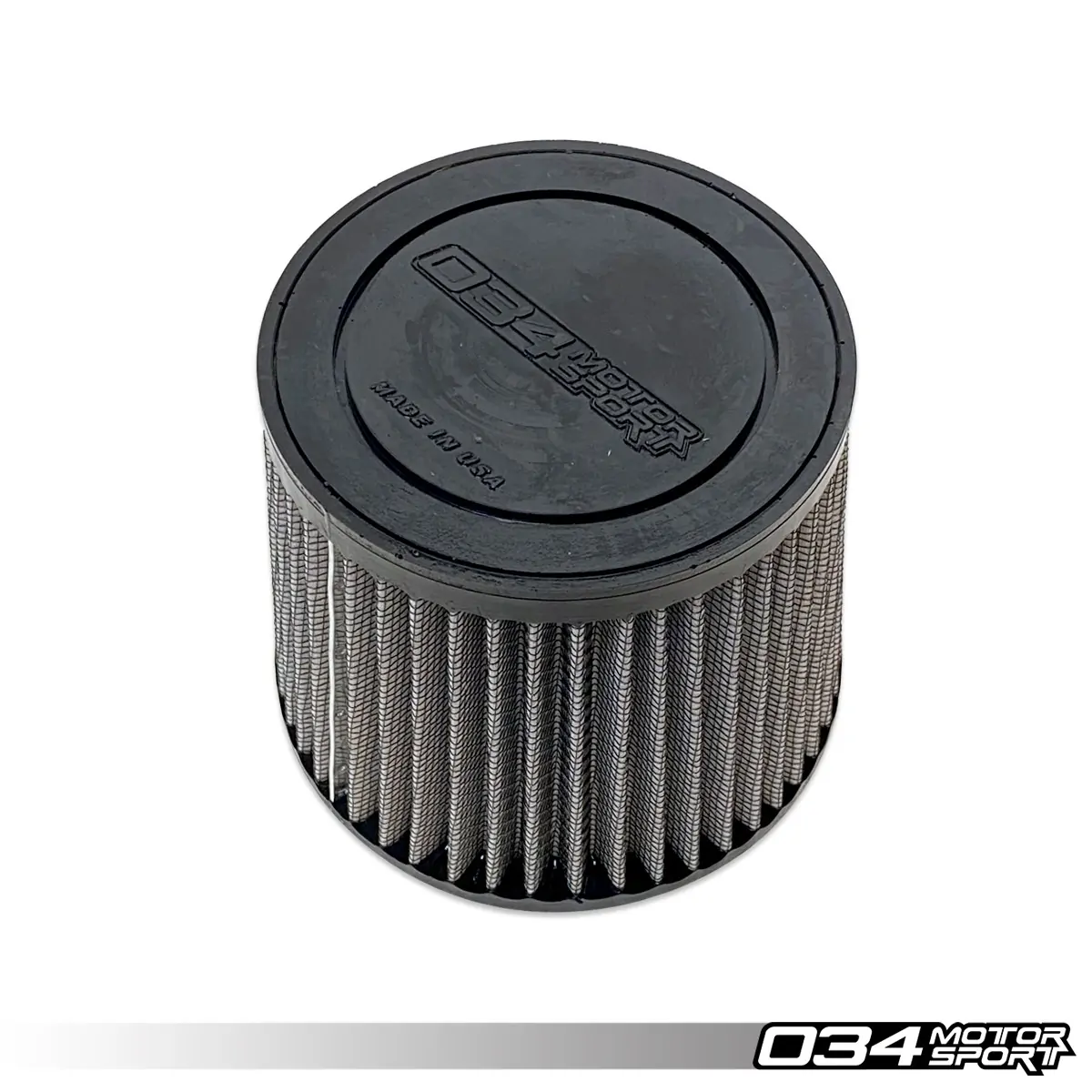

The 034Motorsport Carbon Fiber Open-Top Cold Air Intake system houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration. We have tested this air filter in applications over 800HP with minimal restriction, and superior OEM quality air filtration.

OEM+ FIT & FINISH:

034Motorsport carefully selected the carbon fiber weave on the intake tube, upper airbox, heat shield, intake duct and lower airbox to match the factory carbon fiber engine trim found in the Audi TTRS & RS3 2.5 TFSI engine bay. The 034Motorsport Audi TTRS & RS3 X34 Carbon Fiber Open-Top Intake Bundle Cold Air Intake System was designed to fit like a factory part, and mates directly using factory provisions to provide an OEM+ look.

DESIGNED FOR MORE:

While the testing above has verified the substantial power gains that this intake kit provides for stock turbo equipped vehicles, 034Motorsport designed the X34 4” intake systems to also support much larger hybrid and full frame turbocharger systems. With the help of independent customers and tuners, 034Motorsport has verified that the 4” intake system is more than capable of supporting 800+whp builds, with no restrictions measured or observed in data logging and Dyno testing.

X34 CARBON FIBER FRESH AIR DUCT AND LOWER AIRBOX PRESSURE DROP IMPROVEMENTS

Pressure Drop is the difference in ambient air pressure and the air pressure measured at the turbo inlet across the engine’s rpm range. The higher the pressure drop at any given rpm, the more restrictive the intake system is, reducing airflow.

DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS:

034Motorsport’s engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the 034Motorsport Audi TTRS & RS3 4” Open-Top Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.

PEAK WHEEL HORSEPOWER & TORQUE WITH STAGE 2 E85:

• Stock Intake w/4” inlet: 488 WHP / 459 WTQ
• 034 X34 4” Intake w/4” inlet: 509 WHP / 480 WTQ
• Peak Crank Gains: 33 HP / 36 TQ

PRODUCT FEATURES & DETAILS:

• Fits both right hand drive and left hand drive configurations
• High-Quality Carbon Fiber Construction
• High Gloss Epoxy Finish
• OEM+ Fit & Finish
• Dyno-Proven Horsepower & Torque Gains
• Increased Engine & Induction Sounds
• Improved Throttle Response
• Large-Diameter CFD-Optimized Air Intake Tube
• Improved Airflow from Factory Airbox & Intake Tube
• Reduced Intake Air Temperature
• High Performance Pleated Cotton Air Filter
• Full 4″ intake tube for upgraded turbo inlets

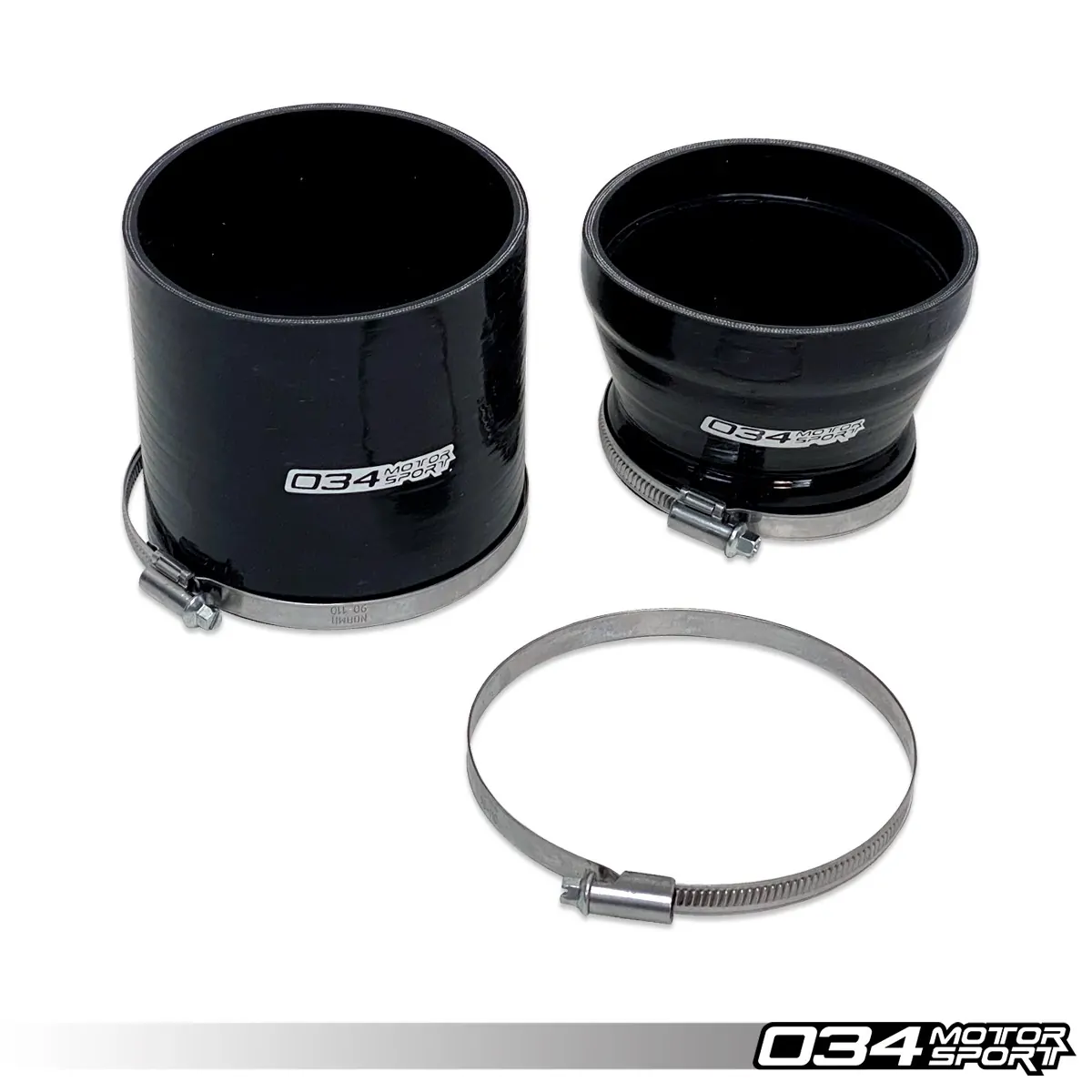

• Includes two high temp silicone couplers to accommodate OE size turbo inlets, or aftermarket 4″ inlets

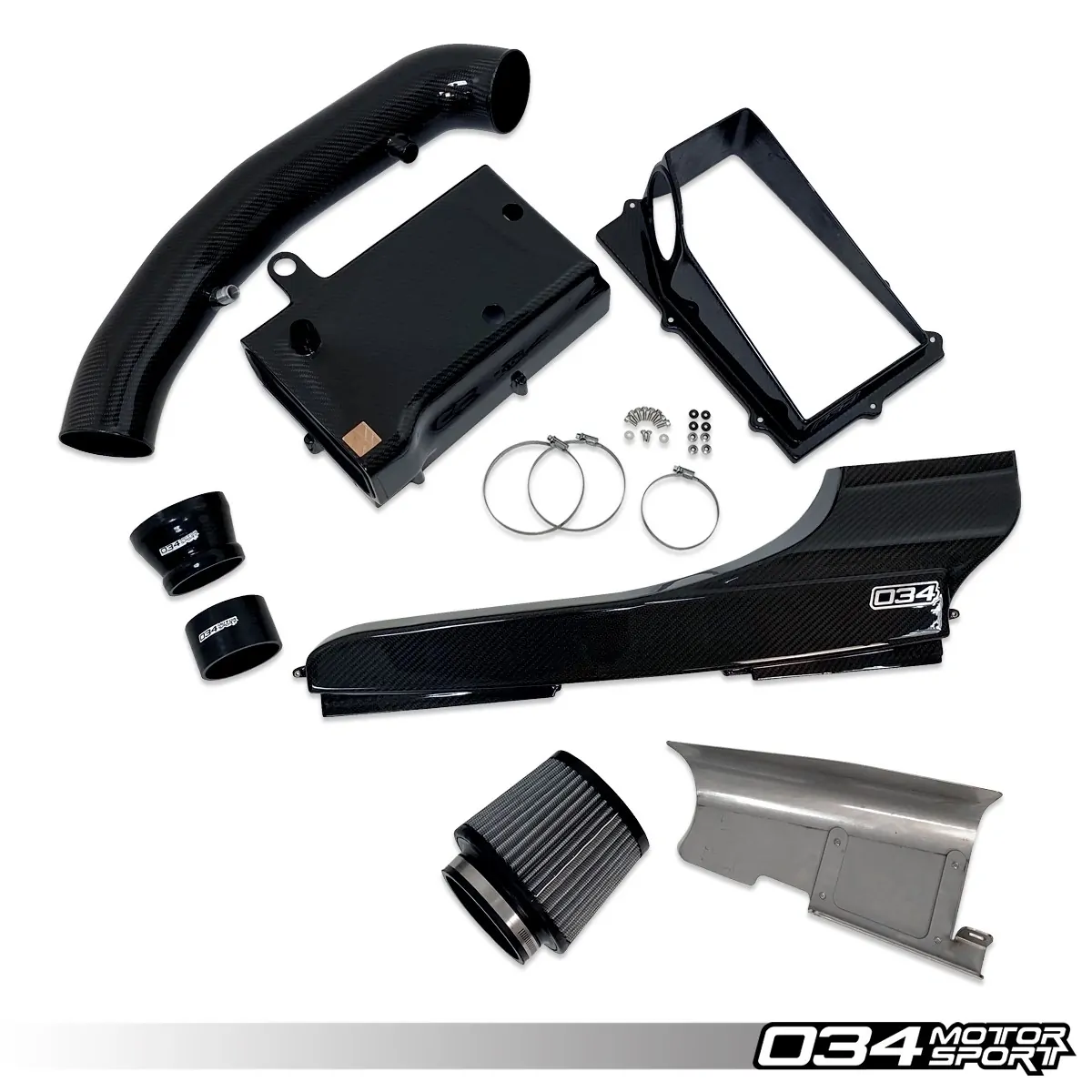

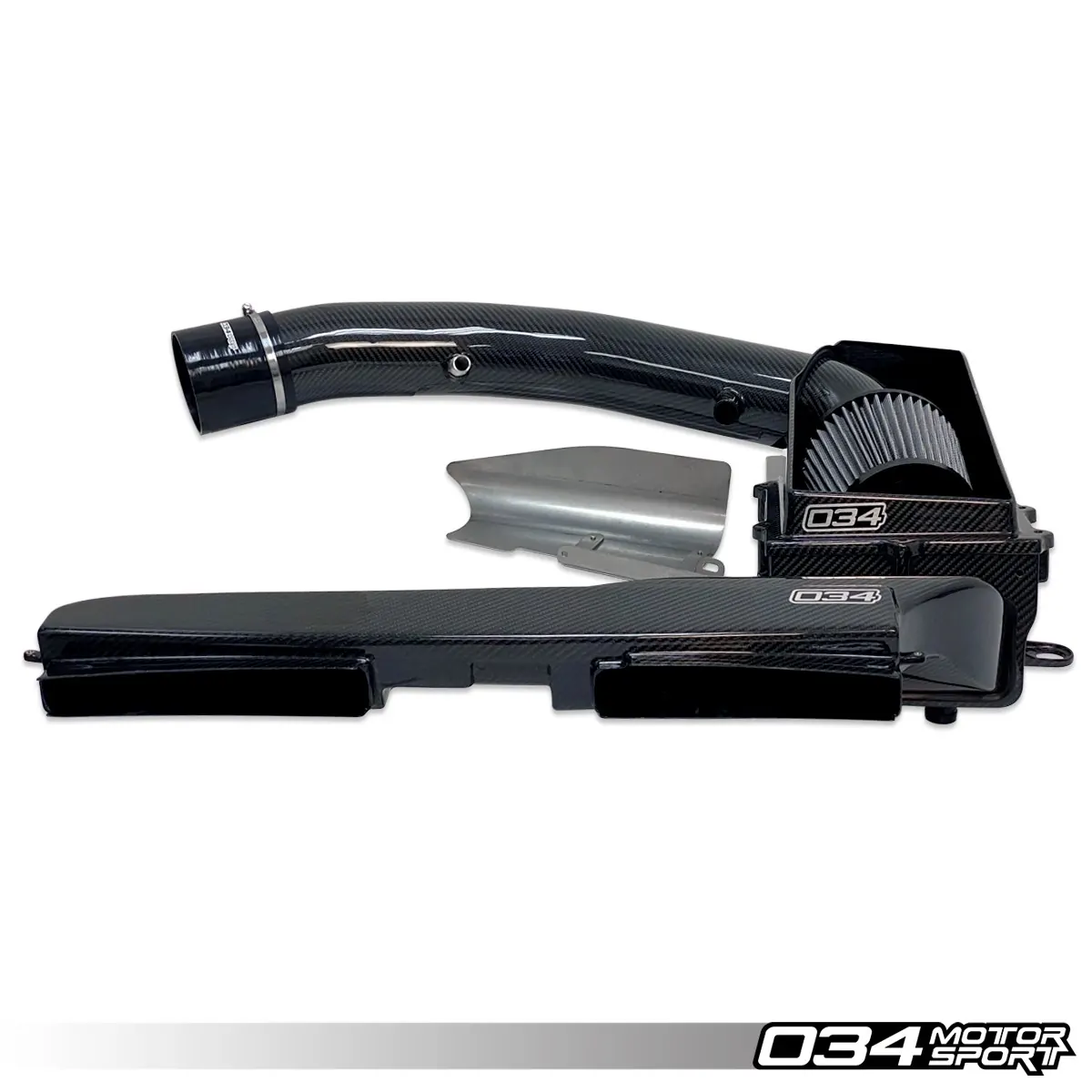

WHAT’S INCLUDED:

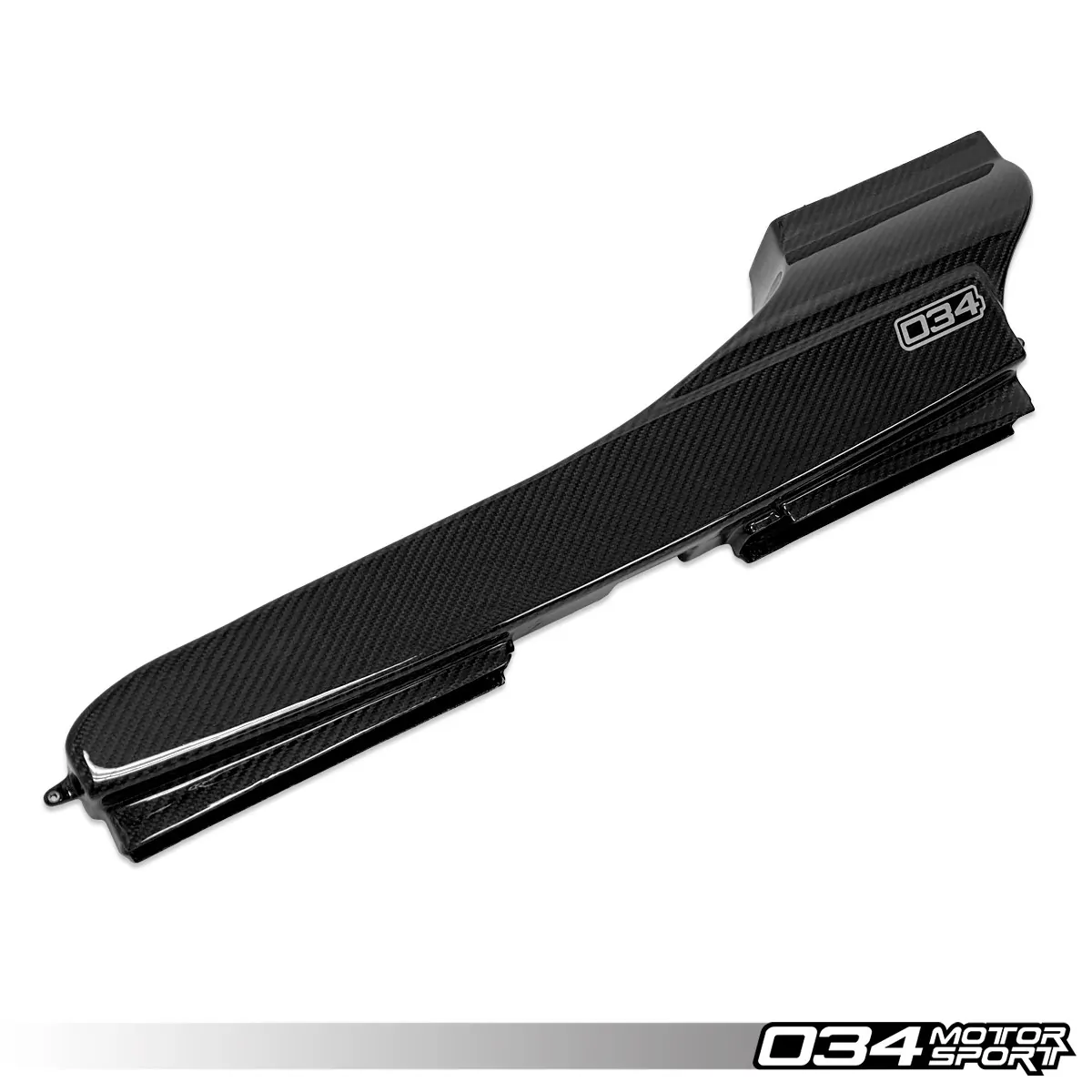

• X34 Carbon Fiber Fresh Air Duct

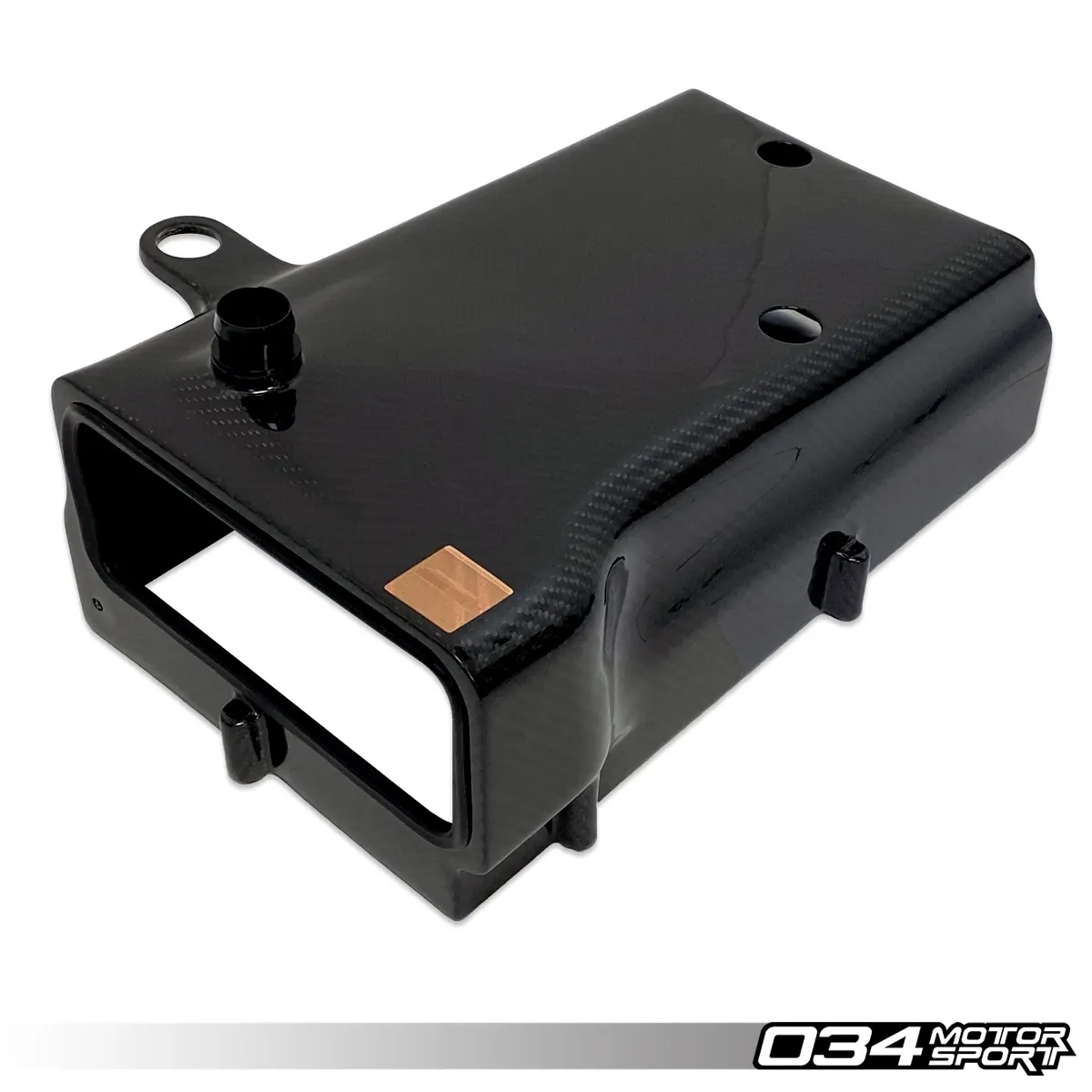

• X34 Carbon Fiber Lower Airbox

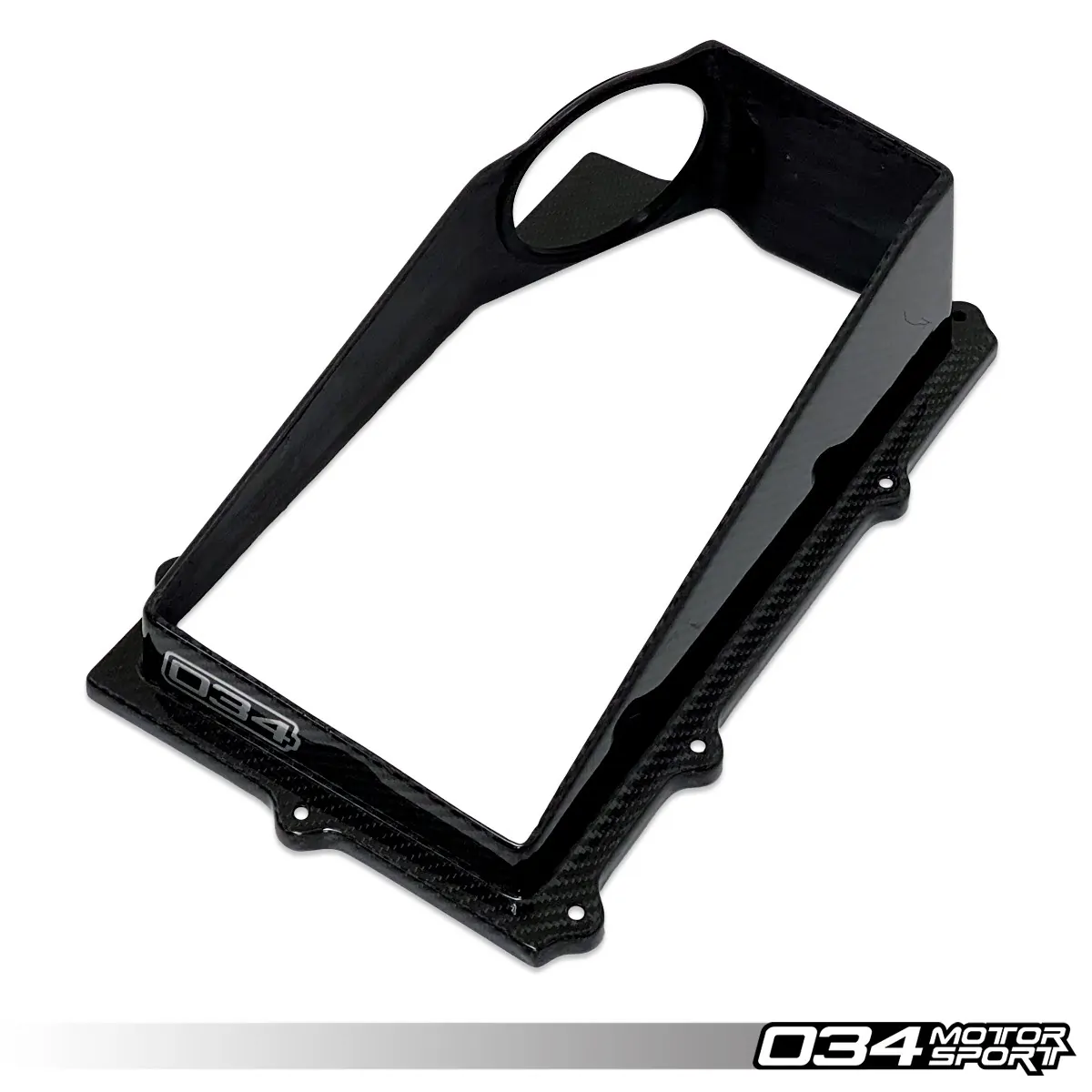

• X34 Carbon Fiber Open-Top Upper Airbox

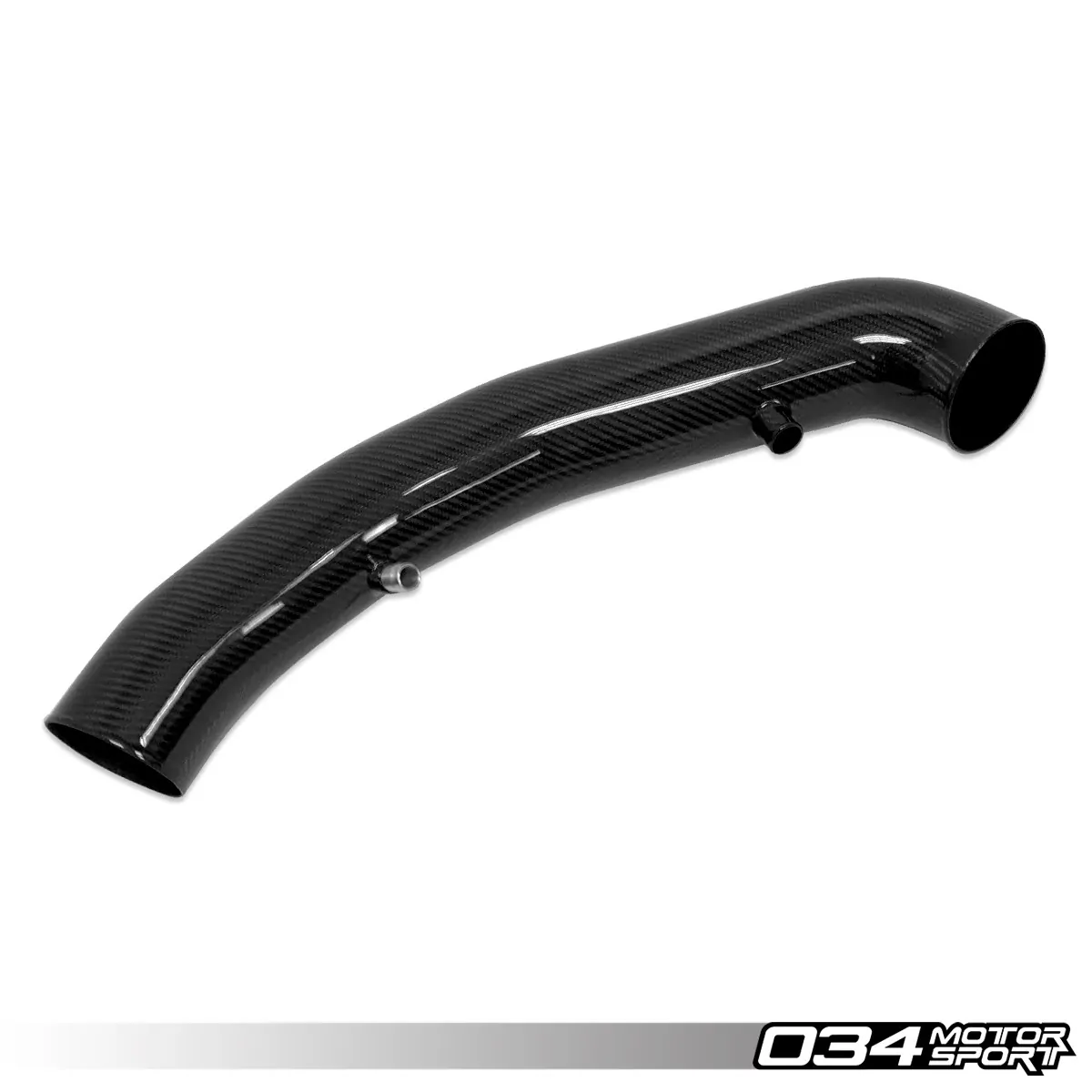

• X34 Carbon Fiber 4” Air Intake Tube
• 034Motorsport Double-Layer Pleated Air Filter
• 034Motorsport Stainless Steel Heat Shield
• 034Motorsport Silicone Coupler

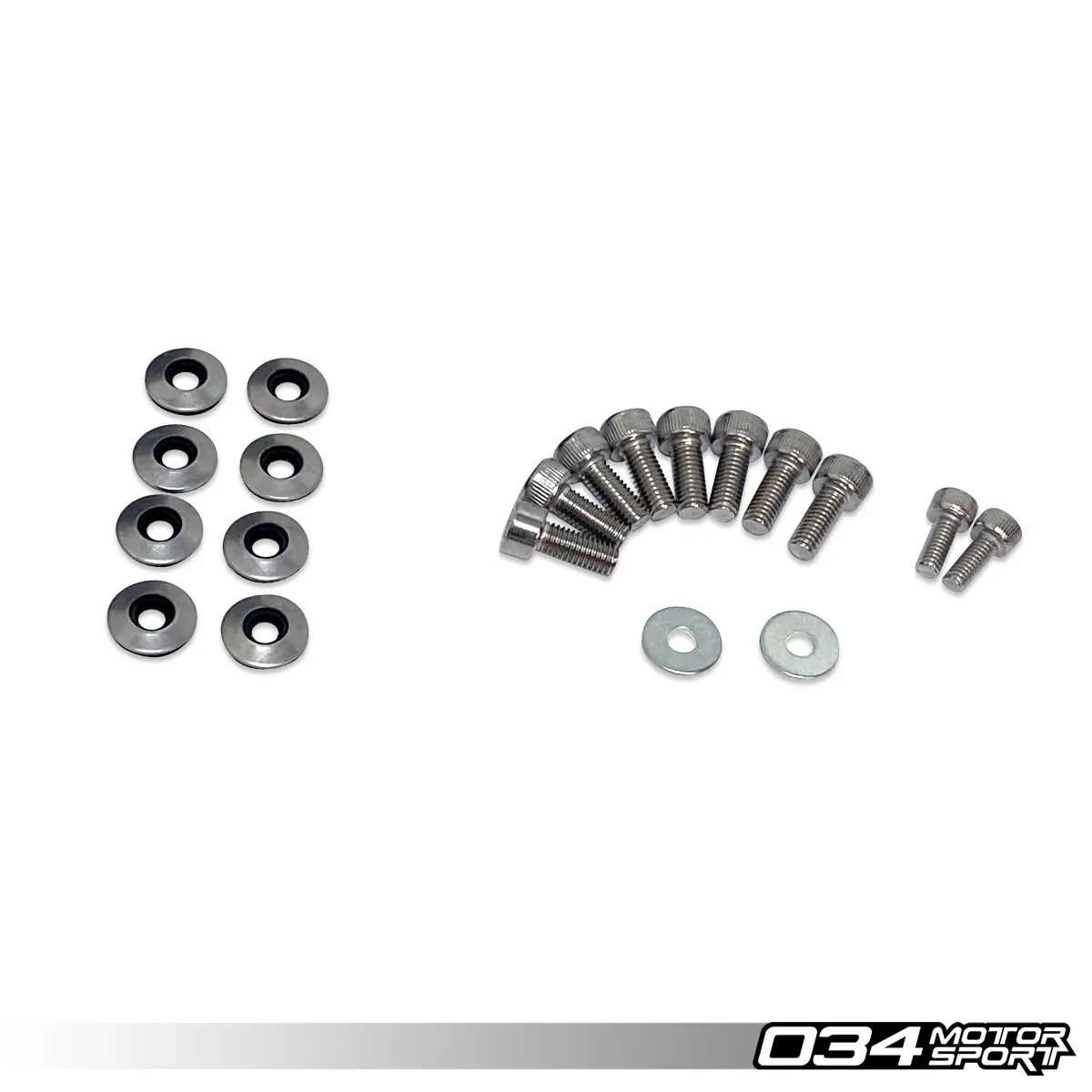

• Installation Hardware

EMISSIONS DISCLAIMER:

• This product is sold for racing use as well as use on vehicles not registered for on highway use.
• By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
