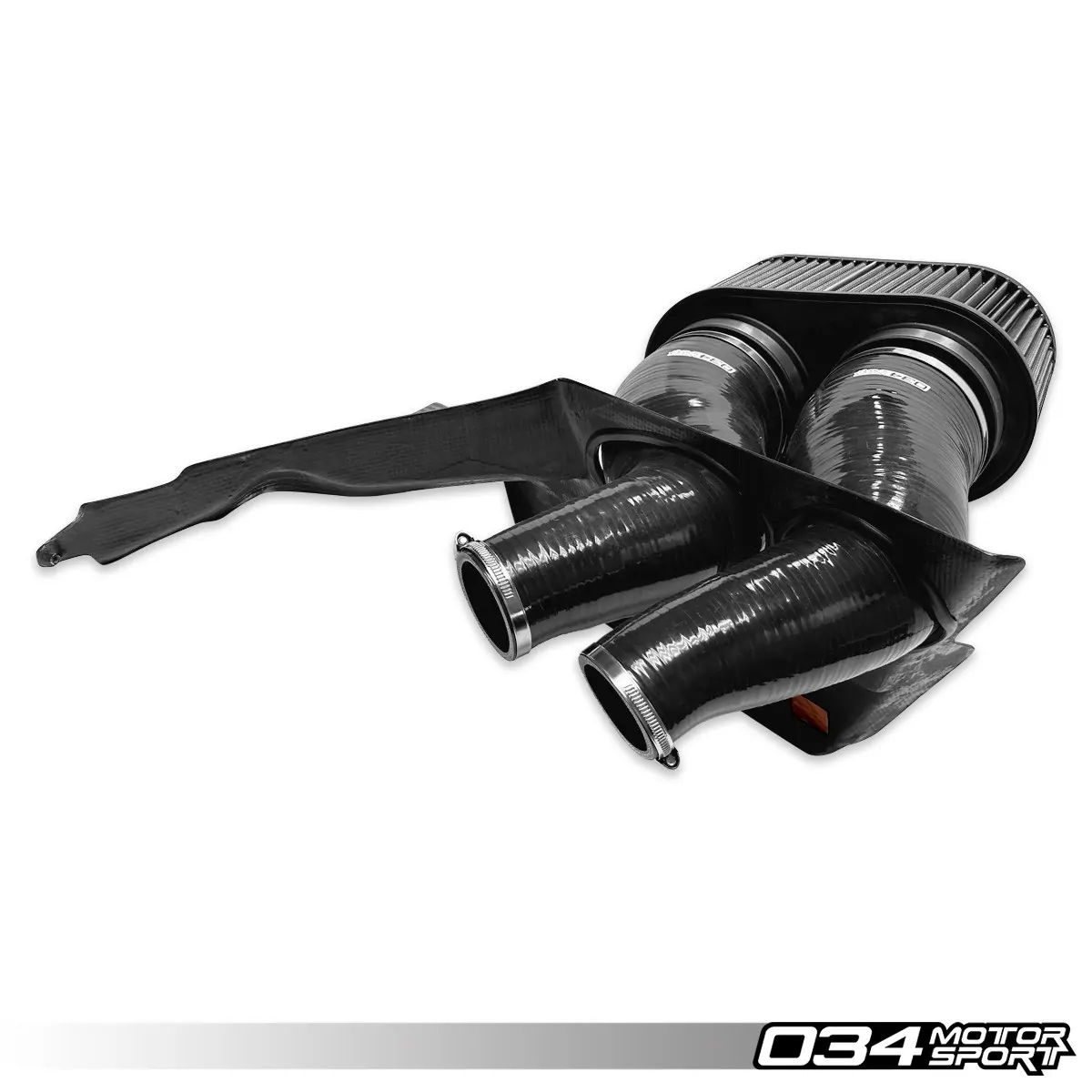

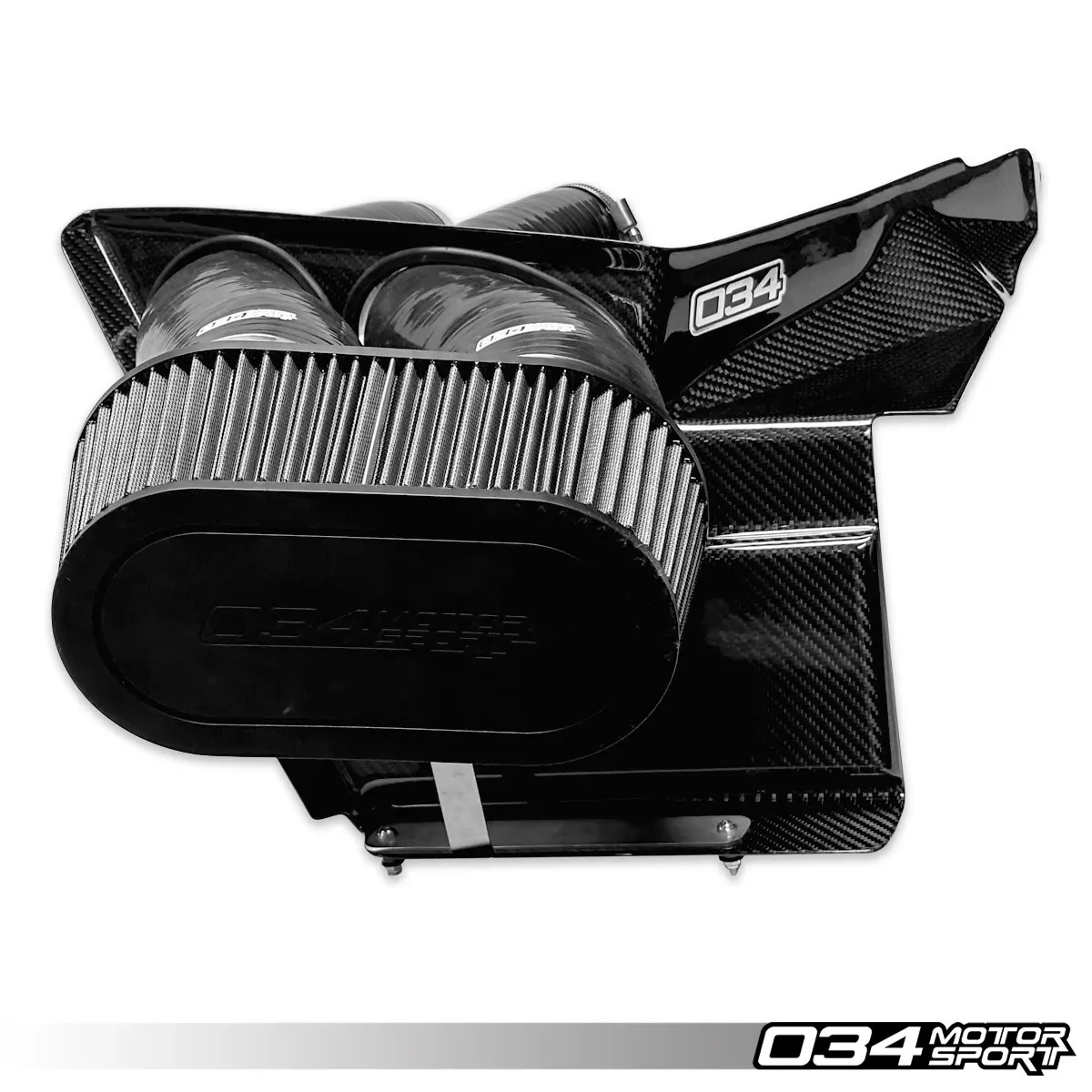

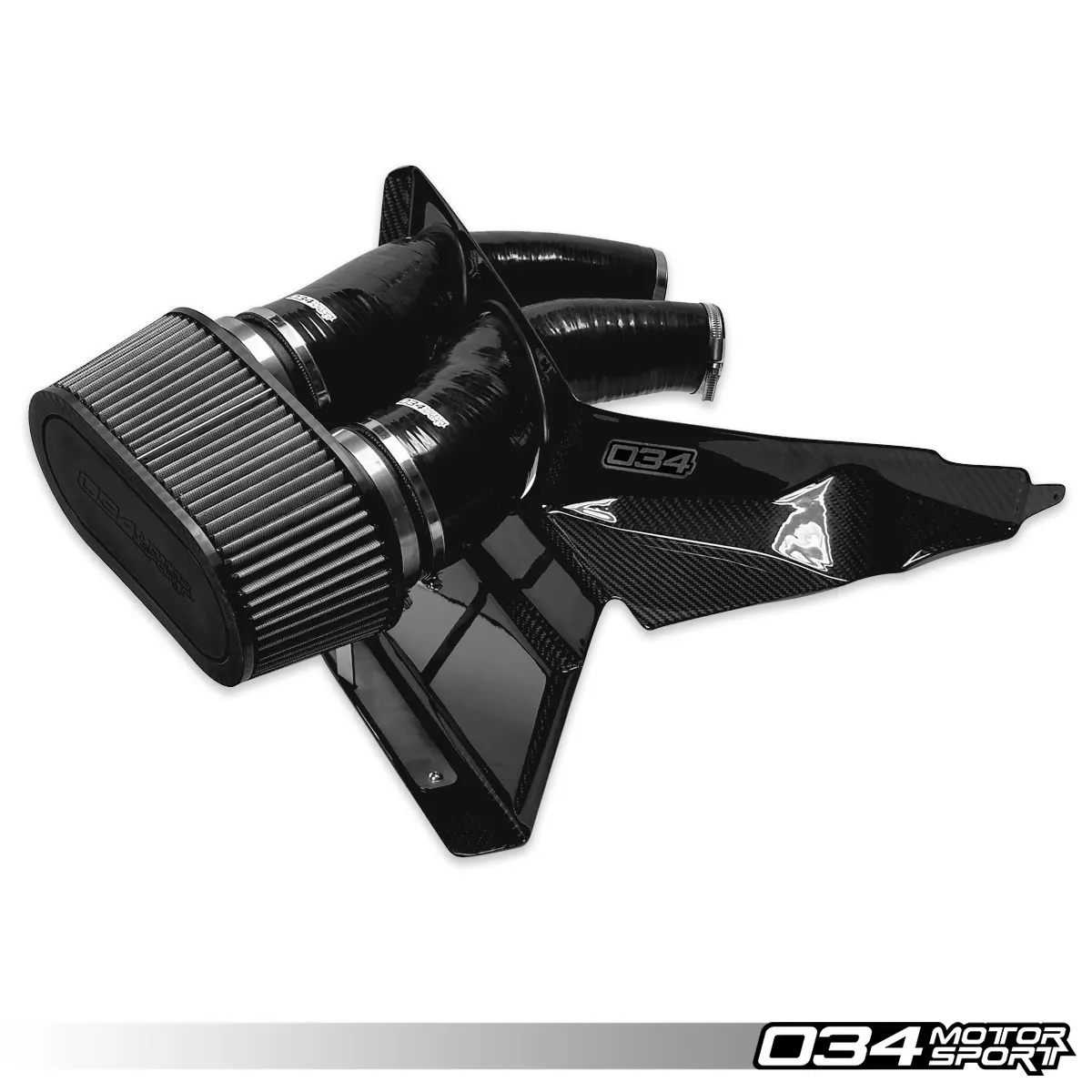

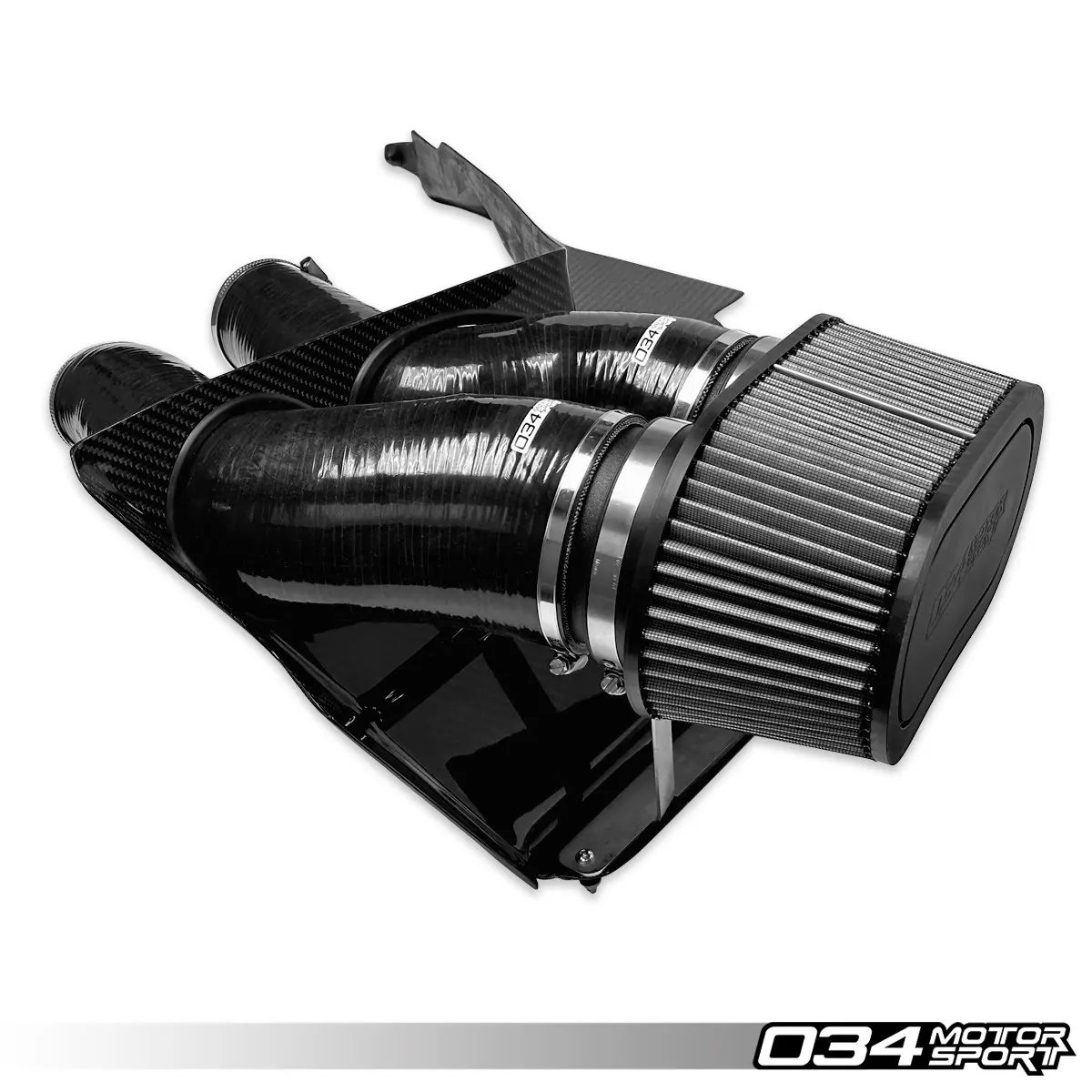

034Motorsport Carbon Fiber Intake for Audi C7/C7.5 S6/S7

£710.70

Checking current stock levels...

Klarna
3 payments of £236.90/mo example 0% APR
Clearpay
4 payments of £177.68/mo example 0% APR
Dopple
Compare 6, 12 and 24 month payment options from 16.9% APR
18+, T&C apply, Credit subject to status. Advanced calculator available at checkout.
SKU: 034-108-1008 Categories: , , , , PP-PC-10

034Motorsport Carbon Fiber Intake for Audi C7/C7.5 S6/S7

PRODUCT DESCRIPTION:

Significant effort went into developing this comprehensive performance-improving intake solution for the Twin-Turbocharged 4.0T EA824 engine found in the C7/C7.5 S6/S7. Subsequently, the S34 Carbon Fiber Intake for the C7/C7.5 S6/S7 offers discerning enthusiasts measurable increases in horsepower and torque, more aggressive induction sound and turbocharger noise, and a beautiful carbon fiber heat shield to prevent hot air from the engine bay from entering the intake.

Throughout the development process, multiple designs were modeled, prototyped, and tested – all to ensure that the S34 Carbon Fiber Intake delivers measurable performance benefits and superb fitment. The result is an optimized open-airbox design that utilizes the factory fresh air duct inlet to channel cool outside air to the filter. This large airbox design allows for a massive dual 4″ inlet air filter, free of restrictive shrouding, and channels air through a CFD-optimized 4-ply silicone inlet hose that smoothly increases air velocity to the turbochargers

PRODUCT FEATURES & DETAILS:

  • Developed In-House by 034Motorsport’s Engineering Team
  • Fits Both Left and Right Hand Drive Configurations
  • High-Quality Carbon Fiber Air Block-off Shield
  • High-Gloss Epoxy Finish
  • 4-Ply Gloss Black Silicone Intake Tubes
  • OEM+ Fit and Finish
  • No Rubbing or Excessive Movement
  • Dyno-Proven Horsepower Torque Gains
  • Improved Airflow Over Factory Airbox, Intake Tube, and Turbo Inlet
  • Enhanced Engine Induction Sounds
  • Improved Throttle Response
  • Large 4″ Dual Flange Oval Tapered SuperDuper Filter
  • Reduced Intake Air Temperature
  • Securely Installs Using Factory Mounting Grommets
  • Simple, Straightforward Installation Instructions

MINIMIZING UNNECESSARY FILTER SHROUDING:

034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of the air filter size, without taking into account the detrimental effects of shrouding the filter.

MAXIMIZING AIRFLOW:

034Motorsport engineers created CFD-optimized 4-Ply silicone intake tubes, which are a direct, high-performance replacement for the plastic factory accordion/sound deadening hose.

Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tubes while being mindful of space constraints. The resulting part is a functional work of art – maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbochargers.

PERFORMANCE AIR FILTER:

The S34 Carbon Fiber Intake houses a high-flow dual-inlet air filter with a double-layer pleated cotton filtration medium, capable of trapping particles as small as 5 Microns. This air filter design offers increased flow through an enlarged filtration surface while ensuring superior filtration. We have tested this air filter in applications over 800HP with minimal restriction, and superior OEM quality air filtration. An added benefit is an air shroud that doesn’t move and rub on other engine compartment components like many other designs on the market do.

WHAT’S INCLUDED:

  • S34 Carbon Fiber Heat Shield
  • S34 Inlet Silicone Hoses
  • S34 Dual Flange Oval Tapered SuperDuper Filter
  • 4” Filter Couplers
  • Misc. Hardware

CFM GAINS:

CFM stands for “cubic feet per minute” of airflow. The higher the number, the higher the horsepower an intake can support. At 034Motorsport, we design our intakes to have substantial flow increases over the factory intake, and we test all our intakes at 28″ of water (how much vacuum is used to suck air through the intake) on a Superflow airflow bench which gives us very accurate and repeatable test results. A stock intake that flows 200CFM may only freely support about 300HP. An intake that flows 400CFM can support roughly twice that power or 600HP.

  • Stock Intake: 527 CFM @ 28in H²O
  • S34 Intake: 816 CFM @ 28in H²O
Brand

034-108-1008 Confirmed Fitment

Please note, this information is a combination of supplier provided compatibility data and our workshop expertise. While every effort has been made to ensure the accuracy of this information Progressive Parts Ltd are not liable for abnormalities or inaccurate data. Customers are wholly responsible for checking fitment for their vehicle. More information is available from our Terms & Conditions

AUDI (4 Models)
A6 C7 (4G2, 4GC) S6 quattro (CEUC) | 420hp
Petrol 3993cc | Saloon | 2012 - 2018
A6 C7 (4G2, 4GC) S6 quattro (CTGE) | 450hp
Petrol 3993cc | Saloon | 2014 - 2018
A6 C7 Avant (4G5, 4GD) S6 quattro (CEUC) | 420hp
Petrol 3993cc | Estate | 2012 - 2018
A6 C7 Avant (4G5, 4GD) S6 quattro (CTGE) | 450hp
Petrol 3993cc | Estate | 2014 - 2018
